International Dock Shore Power Pedestal

International Dock Shore Power Pedestal

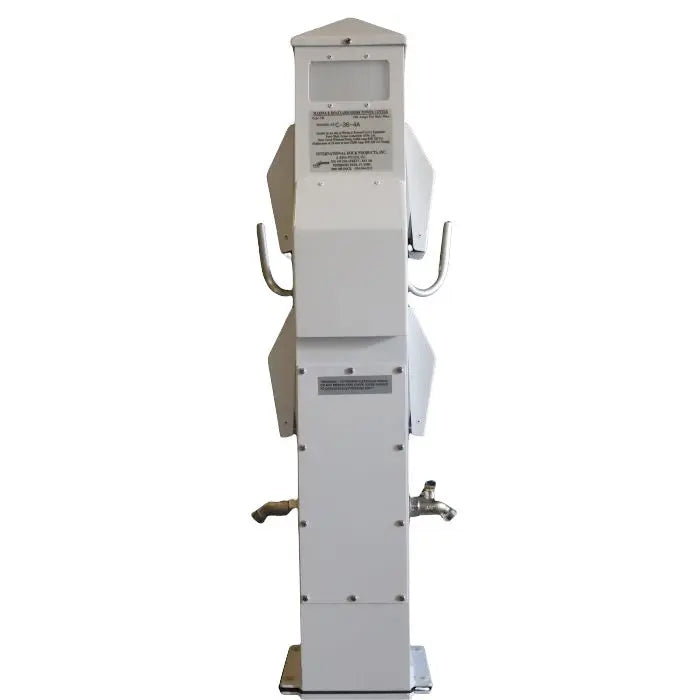

International SPC-36-4A-498Dock Power Pedestal

Model: SPC-36-4A-498

• Cone top


• Powder coated white inside and outside


• All stainless steel fasteners with nylon washers.


• Round and Flat Brackets


• 15 year unconditional warranty on structural integrity of casing


• Flourescent Light and Photocell


• 2 - Water


• 2-Hose Holders


• 2 - 30 Amp 125V


• 2 - 50 Amp 125/250V


• All receptacle mounted at 45 degrees


• All receptacle covers to be aluminum powder-coated

Specifications

Upper right receptacle
50 Amp 125/250V

Upper left receptacle
50 Amp 125/250V

Lower right receptacle
30 Amp 125v

Lower left receptacle
30 Amp 125v

Cable TV
None

Phone
None

Meter
None

Water Left
Standard

Water right
Standard

Hose Holder Left
Non-cast Hook

Hose holder right
Non-cast Hook

Cable TV
None

Phone
None

Meter
None

Power distribution box
Direct feed max wire size 2/0

Lighting
PL-7 Flourescent with Photocell

Pedestal dimensions
6" x 6" x 36"
