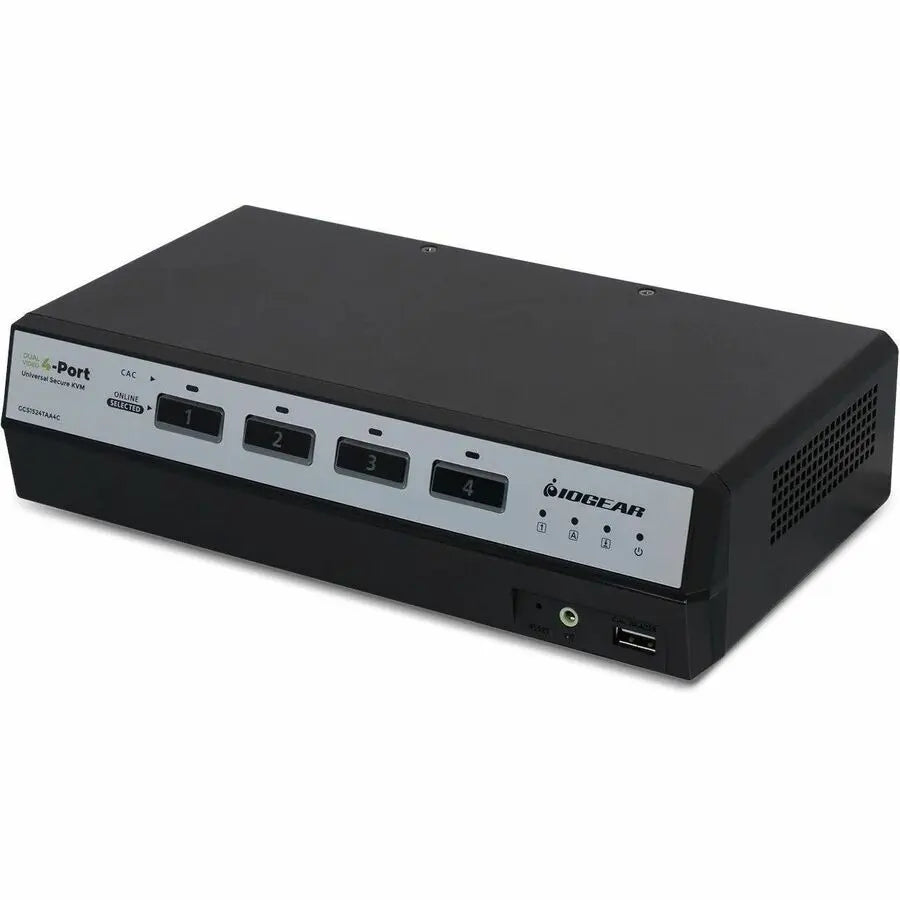

IOGEAR GCS1524TAA4C 4-Port Dual View Universal Secure KVM Switch with HDMI, DisplayPort, and CAC Support

IOGEAR 4-Port Dual View True Universal (DP/HDMI) Secure KVM Switch w/Audio and CAC Support

The IOGEAR GCS1524TAA4C is a 4-port dual monitor KVM switch designed for secure, multi-computer environments requiring high-definition video and robust security features. This device provides seamless connection options with its combined HDMI and DisplayPort ports, eliminating the need for adapters and simplifying setup for modern displays. Supporting ultra-high resolutions up to 5K UHD (5120 x 2880) at 60Hz, it ensures crystal-clear visuals suitable for detailed tasks and high-resolution workflows. The switch's dual-view capability allows users to manage multiple systems with ease, enhancing productivity in secure or classified environments.
Built with comprehensive security in mind, the GCS1524TAA4C is NIAP PP4.0 certified, meeting strict U.S. government security standards. It features data channel isolation and unidirectional data flow, preventing data leakage between connected computers. The switch's hardware security includes tamper-evident seals, soldered integrated circuits to prevent sabotage, and active chassis intrusion detection that disables operation if tampering is detected. Port selection is secured via push-button or remote port selector, with restrictions on keyboard hotkeys and OSD access to prevent unauthorized switching. These features collectively provide a high level of physical and logical security, ideal for sensitive environments requiring strict data control.
The device supports CAC (Common Access Card) integration, making it suitable for government and military applications. Its design emphasizes flexibility and ease of use, with configurable port LED colors and name labels for quick identification. Included accessories such as a power adapter, foot pad set, port labels, user manual, and HDMI cable lock set enhance installation and security management. The GCS1524TAA4C is TAA compliant and environmentally friendly under the WEEE directive, aligning with global procurement standards. With a compact form factor and a three-year warranty, this KVM switch offers a reliable, secure solution for managing multiple high-definition systems efficiently and safely.

Features:

• 4-Port USB DisplayPort/HDMI Dual Display Universal Secure KVM Switch with CAC Support

• DisplayPort/HDMI combo connectors - Connect DisplayPort or HDMI cables without the need for adapters

• Supports ultra-high video resolution up to 5K UHD (5120 x 2880) at 60Hz

• Configurable port LED colors and port name labels for easy identification

• NIAP-Certified PP4.0 compliant, meeting rigorous U.S. government security standards

• Port selection via push-button and remote selector, with enforced keyboard restrictions and no hotkey or OSD access

• Isolated channel per port with unidirectional data flow to prevent data leakage

• Tamper-evident seals and tamper-proof hardware to detect and prevent unauthorized access

• Active chassis intrusion detection disables the switch if tampering is detected

• Supports CAC cards for secure access in government and military applications
