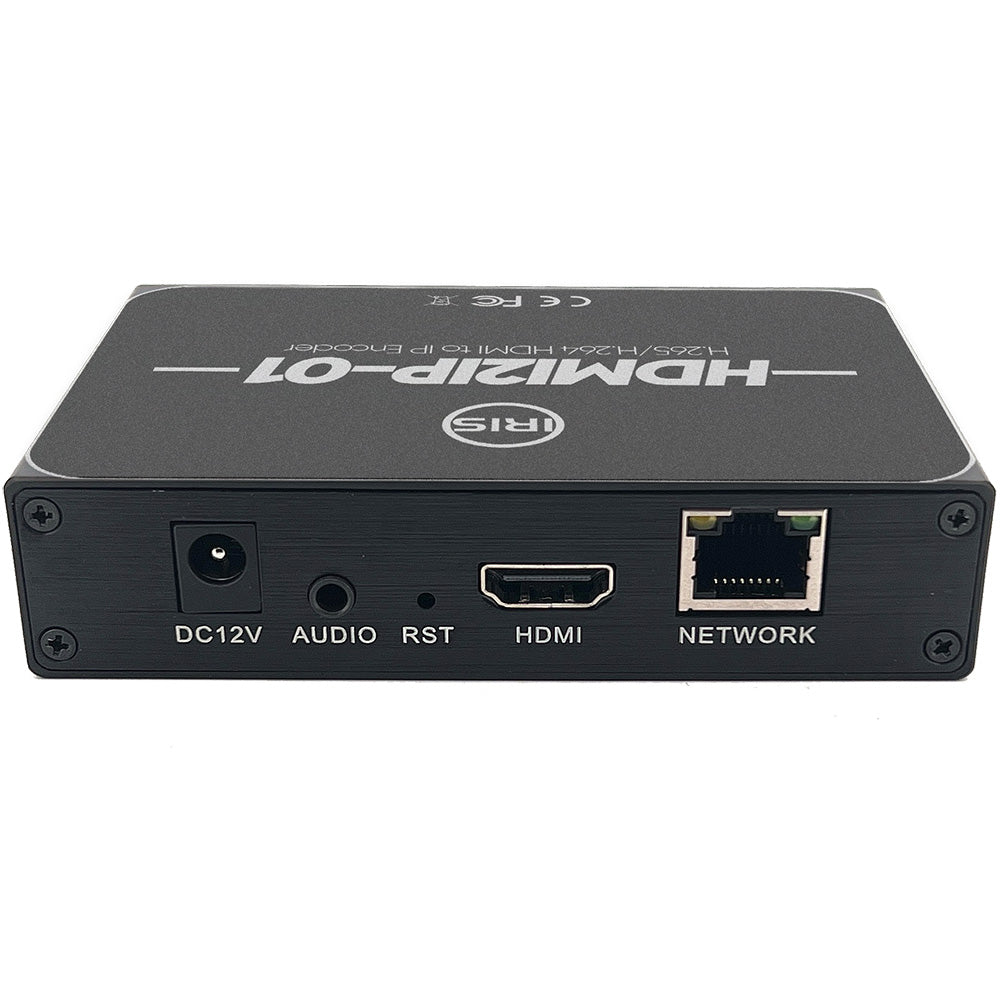

Iris Innovations HDMI to IP Encoder HD Video Streaming for Raymarine, Simrad, Furuno - Part Number HDMI2IP01

HDMI to IP Encoder - Converts HDMI to IP - Compatible with Raymarine, Simrad Furuno

Convert your HDMI video source to a high-definition IP stream compatible with Raymarine, Simrad, B G, and Furuno Chart-Plotters using the HDMI2IP-01 Single Channel Encoder from Iris Innovations.

This small and compact little box takes your HDMI video and uses H.265 / H.264 compression algorithms to encode the video into a high-definition IP stream which leading a chartplotters process as if it were an IP camera device. Simply configure the device to sit on your MFD network, hook up your HDMI camera, and then configure your MFD in the same way you would configure an IP camera. If your MFD works as an RTSP server (such as Raymarine Axiom and Furuno TZT devices) simply set the HDMI2IP unit to accept its IP address via RTSP and you are good to go.

Your MFD will treat the stream as if it were an IP camera, which means once configured, the video will display on all compatible devices connected to your MFD network, greatly simplifying installation.

The device is powered from your vessel (or vehicles) +12VDC supply and draws less than 200mA.

Features:

• Converts High Definition HDMI video into IP video streams using H.265 / H264 Compression
• Compatible with Raymarine, Navico (Simrad / B G), and Furuno Chart-Plotters
• HDMI Devices Handled as IP Cameras by Compatible MFDs
• Perfect for Displaying HD Video Ouput from CMAC on your Chartplotter
• Connect to the MFD Network to View Video on all Connected, Compatible Devices
• Low Power, +12VDC Operation.
• Small, Compact, and Easy to Install
• Supports Audio
• Can be Used to Encode any HDMI Video Source

The Iris Innovations HDMI2IP-01 HDMI to IP Encoder provides a reliable solution for converting high-definition HDMI video sources into IP streams compatible with leading marine chartplotters including Raymarine, Simrad, B G, and Furuno. This compact device employs advanced H.265 / H.264 compression algorithms to encode your HDMI video into high-quality IP streams, facilitating seamless integration with your vessel's MFD network. Simply connect your HDMI camera or device, configure the encoder to your network, and your MFD will recognize the stream as an IP camera, allowing easy viewing across compatible displays. This setup simplifies installation and expands your vessel’s monitoring capabilities without extensive wiring or complex setup procedures. The device is powered by a standard 12VDC supply, drawing less than 200mA, making it ideal for marine environments where power efficiency is crucial. It also supports audio transmission, enabling comprehensive multimedia streaming from your HDMI sources to your navigation displays. Perfect for displaying HD video output from CMAC or other HDMI sources on your chartplotter, the Iris HDMI to IP Encoder offers a straightforward way to enhance onboard monitoring and surveillance systems. Its small size and easy installation process make it suitable for various vessel configurations, and compatibility with RTSP-enabled MFDs allows for flexible integration into existing networks. Whether used for security, monitoring, or multimedia presentations, this encoder provides a robust, user-friendly solution for converting HDMI signals into accessible IP streams across your marine network.

Features:

• Converts high-definition HDMI video into IP video streams using H.265 / H.264 compression

• Compatible with Raymarine, Navico (Simrad / B G), and Furuno chartplotters

• Treats HDMI devices as IP cameras when connected to compatible MFDs

• Ideal for displaying HD video output from CMAC on your chartplotter

• Enables viewing on all connected devices within the MFD network

• Operates on +12VDC power supply with low power consumption

• Small, compact design for easy installation

• Supports audio transmission for comprehensive multimedia streaming

• Suitable for encoding any HDMI video source for marine applications
