SKU:104812
Hi-Resolution Analog Mini Dome Camera - 316 Stainless Steel - CVBS - TVI
Iriss SX60 range of miniature marine grade stainless steel cameras are available in multiple formats and deliver the highest quality video to suit your application.
The IRIS-S060 features a multi-format 4-in-1 camera module (CVBS, TVI, CVI, AHD) designed for maximum compatibility with most marine chart plotters, digital recorders, and monitors.
The IRIS-S060 can be set to output analog video (CVBS), or a range of Analogue Hi-Def formats (HD-TVI, HD-CVI, AHD) providing up to 1080P high-definition resolutions in real-time. When used with an IRIS HD switcher or HVR or our TVI to HDMI converter, the IRIS-S060 can be connected to HD TVs and MFDs with digital inputs such as Garmins 8000 series or Simrads NSO Series.
Like all models in our 60 range, the cameras are shipped as standard with a 3.6mm lens offering 80 HFOV, with a wide-angle 2.1mm lens (110 HFOV) and ultra-wide-angle 1.8mm lens (125 HFOV) options available.
The S060s 316 stainless steel housing provides the ultimate protection in the harsh marine environment and is, therefore, the perfect solution for deck monitoring aboard workboats, fishing vessels, and passenger vessels, while fitting in equally as well with the high-end aesthetic of luxury vessels and mega yachts.
Measuring only 58mm high by 60mm in diameter, the S060 is small enough to provide unobtrusive surveillance and also for use in areas where space is tight, such as engine rooms or anchor wells.
Whether you need high quality and rugged camera as part of your onboard surveillance system, for the engine room, deck, and companionway monitoring, or as a robust and stylish docking or backup camera, our IRIS-SX60 range of cameras is the perfect solution.
Features:

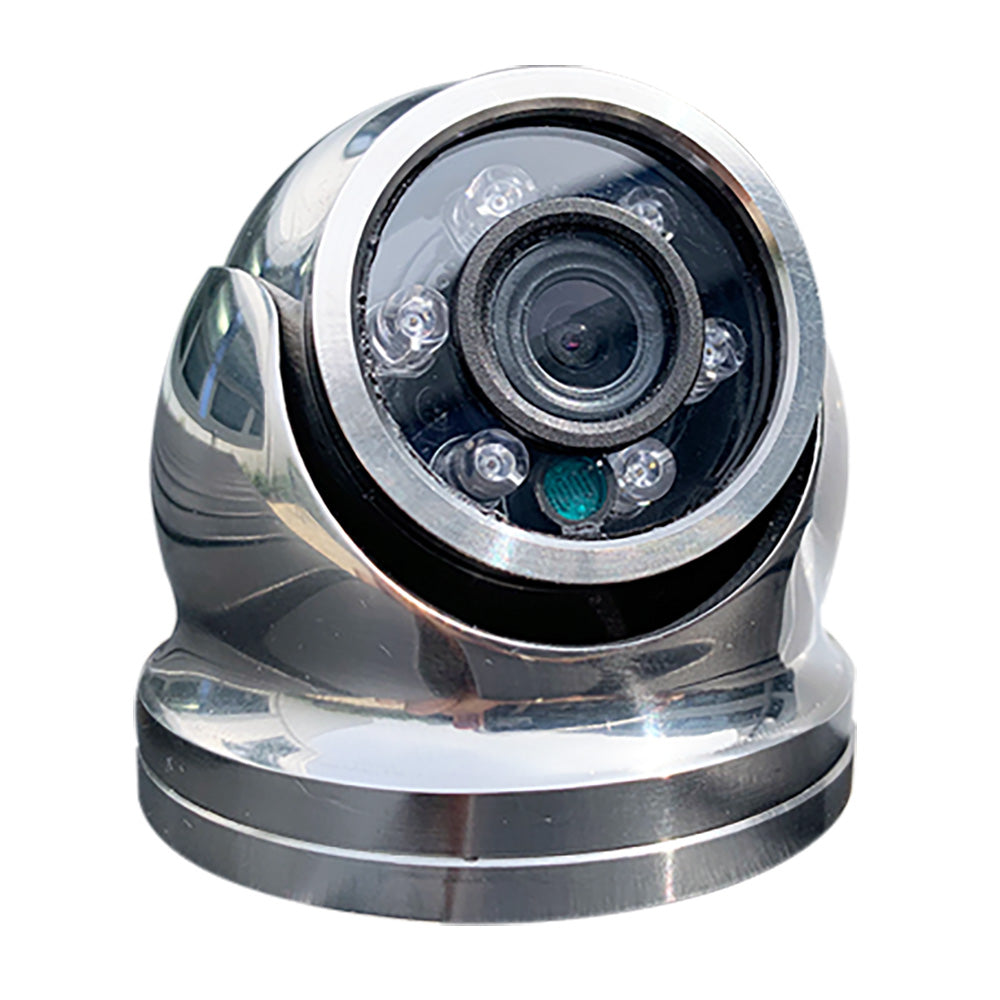

Iris Innovations IRIS-S060-18 Hi-Resolution Analog Mini Dome Camera
The Iris Innovations IRIS-S060-18 is a compact, rugged marine camera designed for dependable video monitoring aboard workboats, fishing vessels, passenger vessels, luxury yachts, and other demanding marine environments. Its marine-grade 316 stainless steel housing provides excellent corrosion resistance and a refined appearance suitable for both functional and high-end vessel installations. The unobtrusive mini dome form factor also makes it well suited for engine rooms, anchor wells, companionways, decks, docking applications, and backup monitoring where installation space is limited.
This 4-in-1 camera module supports CVBS, TVI, CVI, and AHD video formats for broad compatibility with marine chart plotters, monitors, digital video recorders, high-definition switchers, hybrid video recorders, and compatible HDMI converters. In CVBS mode, the IRIS-S060-18 delivers 1000 TVL analog resolution. When configured for TVI, CVI, or AHD, it supports real-time 1080p high-definition video without network latency, making it suitable for integration with compatible HD displays and multifunction displays. The included 1.8mm ultra-wide-angle lens provides an approximately 125-degree horizontal field of view for expansive coverage in tight or wide-area monitoring locations.
Built-in infrared LED illumination provides visibility in low-light conditions with an effective range of up to 33 feet. The camera is engineered for low power consumption and carries an IP66 environmental protection rating for resistance to dust and water exposure. The polished stainless steel finish is standard, while brushed and custom-painted finishes may be available for specialized installations. The IRIS-S060-18 combines flexible video output, wide-angle coverage, durable construction, and compact installation potential in a professional marine surveillance solution.
Important: This product may not be returned to the original point of purchase. Contact Iris Innovations directly with any questions, issues, or technical concerns.
