SKU:105195

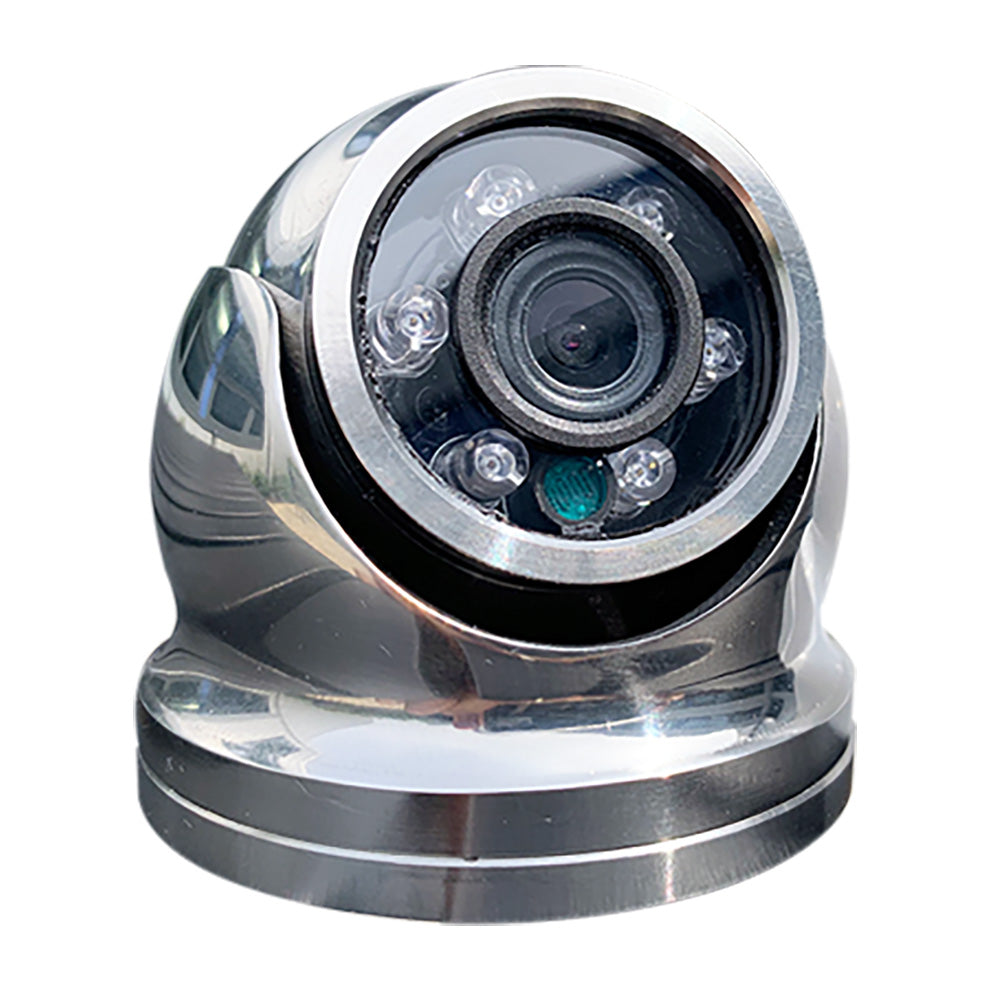

Hi-Resolution Analog Mini Dome Camera - 316 Stainless Steel - CVBS - TVI - 3.6
Iriss SX60 range of miniature marine grade stainless steel cameras are available in multiple formats and deliver the highest quality video to suit your application.
The IRIS-S060 features a multi-format 4-in-1 camera module (CVBS, TVI, CVI, AHD) designed for maximum compatibility with most marine chart plotters, digital recorders, and monitors.
The IRIS-S060 can be set to output analog video (CVBS), or a range of Analogue Hi-Def formats (HD-TVI, HD-CVI, AHD) providing up to 1080P high-definition resolutions in real-time. When used with an IRIS HD switcher or HVR or our TVI to HDMI converter, the IRIS-S060 can be connected to HD TVs and MFDs with digital inputs such as Garmins 8000 series or Simrads NSO Series.
Like all models in our 60 range, the cameras are shipped as standard with a 3.6mm lens offering 80 HFOV, with a wide-angle 2.1mm lens (110 HFOV) and ultra-wide-angle 1.8mm lens (125 HFOV) options available.
The S060s 316 stainless steel housing provides the ultimate protection in the harsh marine environment and is, therefore, the perfect solution for deck monitoring aboard workboats, fishing vessels, and passenger vessels, while fitting in equally as well with the high-end aesthetic of luxury vessels and mega yachts.
Measuring only 58mm high by 60mm in diameter, the S060 is small enough to provide unobtrusive surveillance and also for use in areas where space is tight, such as engine rooms or anchor wells.
Whether you need high quality and rugged camera as part of your onboard surveillance system, for the engine room, deck, and companionway monitoring, or as a robust and stylish docking or backup camera, our IRIS-SX60 range of cameras is the perfect solution.
Features:
The Iris Innovations IRIS-S060-36 is a high-resolution, miniature marine-grade stainless steel dome camera designed for demanding onboard surveillance applications. Crafted from durable 316 stainless steel, this rugged camera offers excellent corrosion resistance, making it ideal for use on workboats, fishing vessels, passenger ships, and luxury yachts. Its compact size ensures unobtrusive installation in tight spaces such as engine rooms, anchor wells, or deck areas, providing reliable security without compromising vessel aesthetics. The camera features a versatile 4-in-1 camera module that supports CVBS, TVI, CVI, and AHD formats, allowing seamless integration with existing video systems. It can output analog video at 1000TVL or switch to HD resolutions up to 1080P in real-time, ensuring clear image quality for monitoring critical areas. The built-in infrared LED illumination with a 10-meter range enhances visibility during low light conditions, while the IP66-rated housing guarantees protection against water and dust ingress. The IRIS-S060-36 offers a choice of lenses, including standard 3.6mm, wide-angle 2.1mm, and ultra-wide 1.8mm options, providing adjustable fields of view to suit various surveillance needs. Its low power consumption makes it suitable for extended operation in remote or power-sensitive environments. Whether used for deck surveillance, engine room monitoring, or as a stylish backup camera, this model combines durability, versatility, and high-quality imaging in one compact package. The camera’s multiple finish options—high polish, brushed, or custom paint—ensure it can blend seamlessly with vessel aesthetics or stand out as a robust security feature. Its versatility and rugged construction make the IRIS-S060-36 an excellent choice for marine surveillance systems requiring high performance and reliable operation in harsh environments.
