SKU:99643

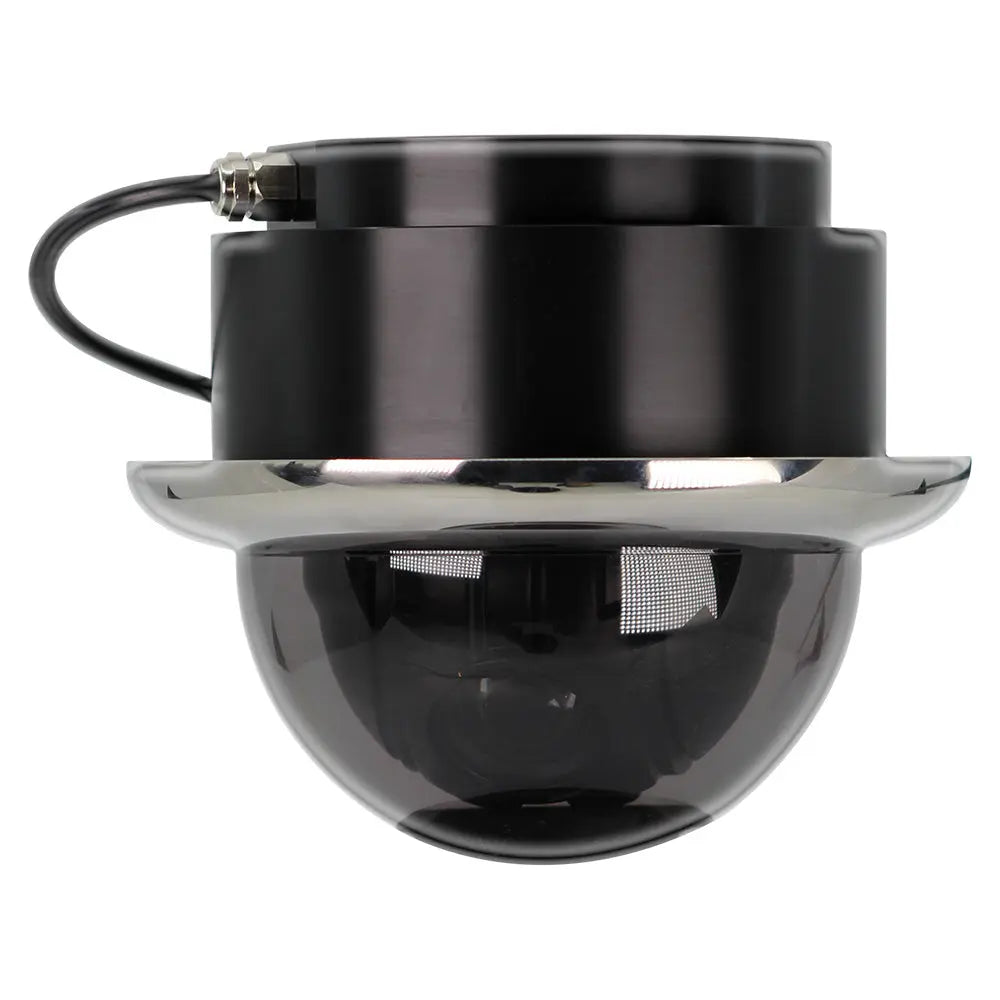

Miniature Marine PTZ Dome Camera - Stainless Bezel - Hi-Def Ethernet IP - 10x Digital Zoom - 4 in 1 Video Format
The IRISx106 range of multi-format miniature, controllable cameras are the smallest marine PTZ cameras available on the market and provide fast, smooth variable speed control in a variety of formats to suit your requirements.
The IRIS106 features a high-resolution camera sensor that can be switched to output analog (CVBS), AHD, HD-TVI, and HD-CVI video formats depending on your requirement. In analog mode (default) the camera will connect directly to all MFDs that feature a composite video input to provide a crisp, clear video image. Set the camera to HD-TVI and connect via one of our Hybrid recorders or TVIHDMI encoders and you will achieve 1080P High Definition video in real-time compatible with MFDs that feature digital (HDMI / DVI) inputs.
The camera can be controlled by our IRIS595 joystick controller, TE01 rotary controller, or via an Iris HVR interface. Data communication to the camera is achieved via a two-wire RS485 serial data connection.

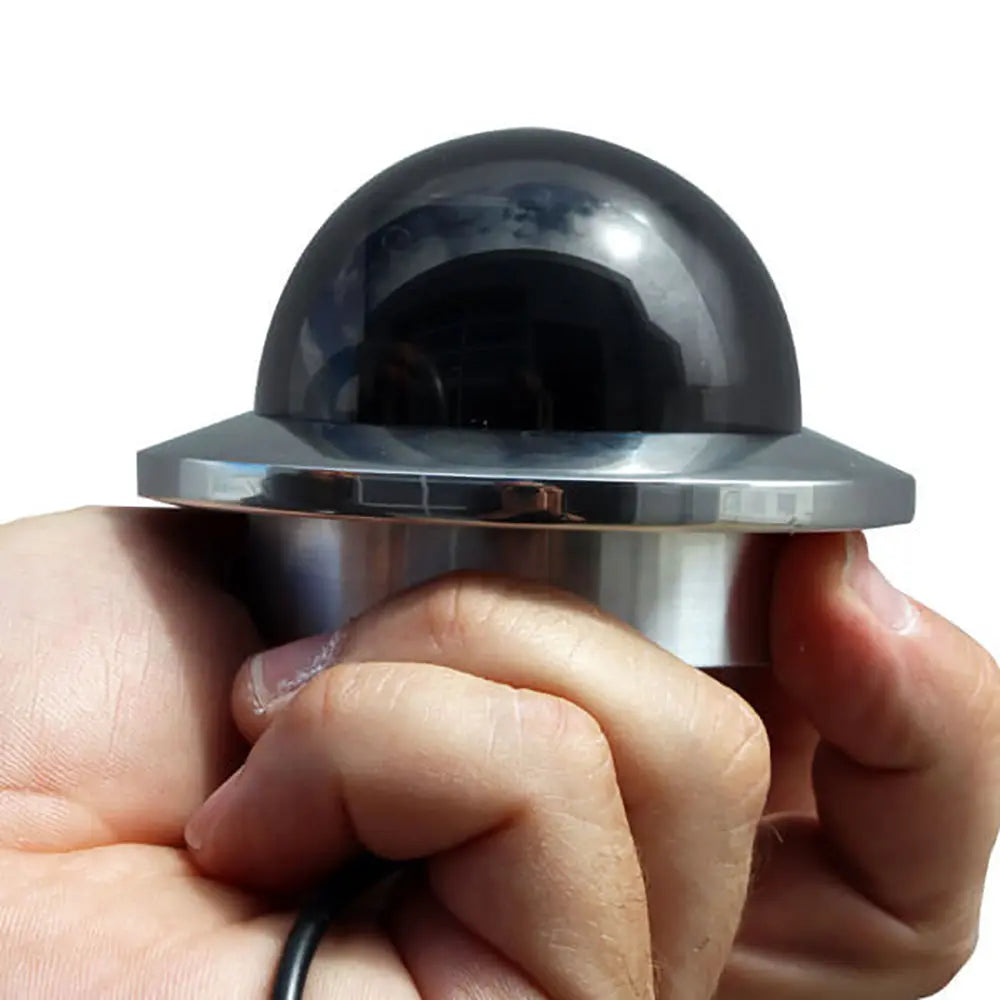

The camera housing is designed to be as small as possible, simplifying installation and fitting in discreetly with the boat's aesthetic, unlike other large, unsightly marine PTZ cameras. The body of the camera is made from lightweight but tough ABS plastic, and the dome is cast from smoke acrylic. The camera housing is finished off with a marine-grade stainless steel bezel available in high polish (standard). A surface mount bracket is also available for the camera (Part Number: BRK106), facilitating installation directly onto a bulkhead. This is often used when installing in engine rooms where it is not possible to recess mount the device.

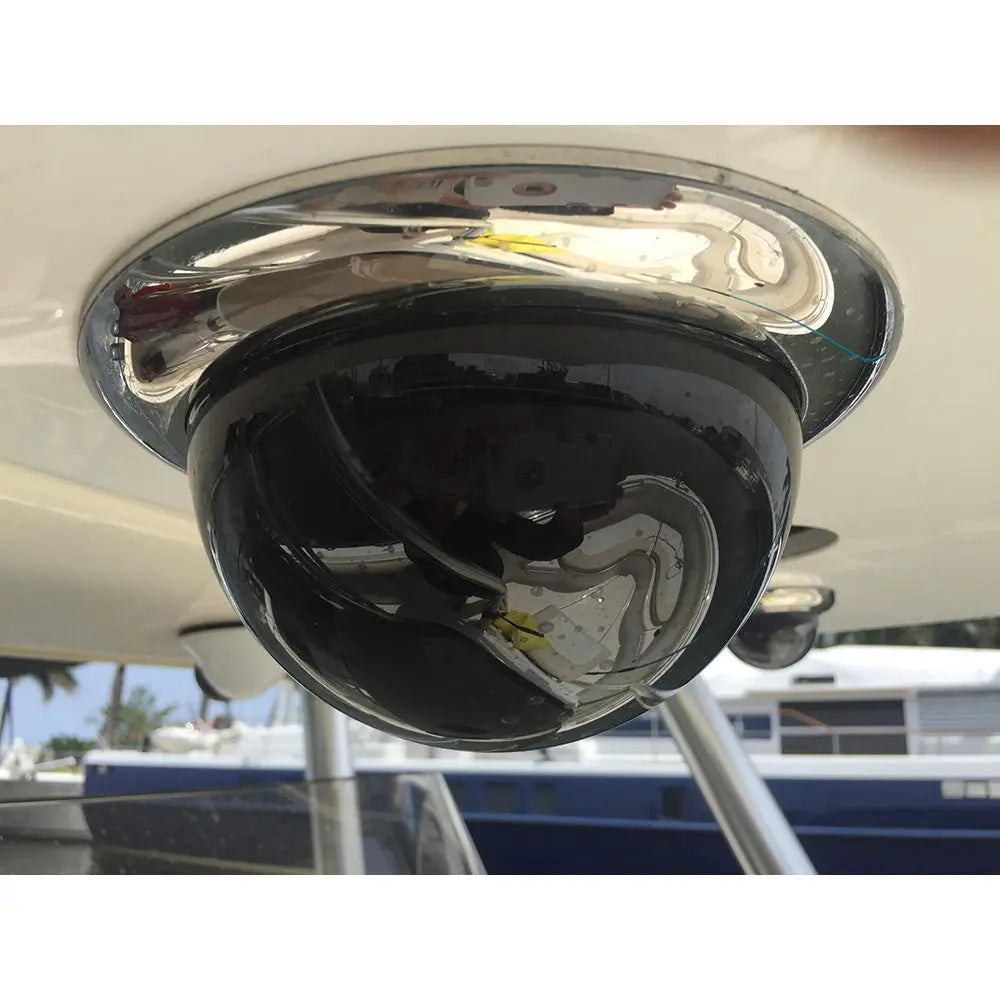

Because of its small size and sleek design, the IRIS4106 can be used for deck, companionway, and tender monitoring, engine room monitoring, and as part of your onboard surveillance system. In summary, the 4106 is a very versatile, robust, and controllable marine PTZ camera.
Features:
Specifications:
The Iris Innovations IRIS4106 is a compact, high-performance marine PTZ dome camera designed to deliver reliable surveillance in demanding maritime environments. Featuring a stainless steel bezel and a lightweight ABS plastic housing, this camera combines durability with discreet installation, making it ideal for deck, engine room, and tender monitoring. Its sleek design allows it to blend seamlessly with the boat's aesthetic while providing advanced control over pan, tilt, and zoom functions. The IRIS4106 supports multiple video formats—including analog (CVBS), AHD, HD-TVI, and HD-CVI—ensuring broad compatibility with various onboard systems. When configured for analog output, it offers a crisp, clear image directly compatible with most marine Multi-Function Displays (MFDs). Switching to HD-TVI mode enables real-time 1080p high-definition video, perfect for detailed monitoring via HDMI or DVI inputs on modern recorders and displays. Control options include an IRIS595 joystick, TE01 rotary controller, or Iris HVR interface, with communication facilitated through a convenient two-wire RS485 serial connection. Its IP66 ingress protection rating guarantees resistance to water and dust, suitable for harsh marine conditions. The camera's IR illumination extends up to 10 meters, supporting night vision with low-light sensitivity of 0.1 lux in color mode and 0.01 lux in black and white. The IRIS4106 boasts a 10x optical zoom, 10x digital zoom, and a broad 360-degree continuous pan with smooth, responsive operation at just over half a degree per second. Its advanced features include wide dynamic range, backlight compensation, 3D digital noise reduction, and mirror functions, ensuring clear images across various lighting conditions. Power options include +12VDC or Power over Ethernet (PoE IEEE 802.3af), with low power consumption for efficient operation. The durable construction, combined with stylish high-polished finishes, makes this camera both a functional and aesthetic addition to any marine surveillance system. Its compact size and versatile mounting options, including a surface mount bracket (Part Number: BRK106), facilitate easy installation in tight spaces or bulkhead mounting in engine rooms. Designed to operate reliably in temperatures ranging from -35°C to +60°C, the IRIS4106 is an essential tool for comprehensive onboard monitoring, offering a robust, controllable, and aesthetically pleasing surveillance solution.
Features:
