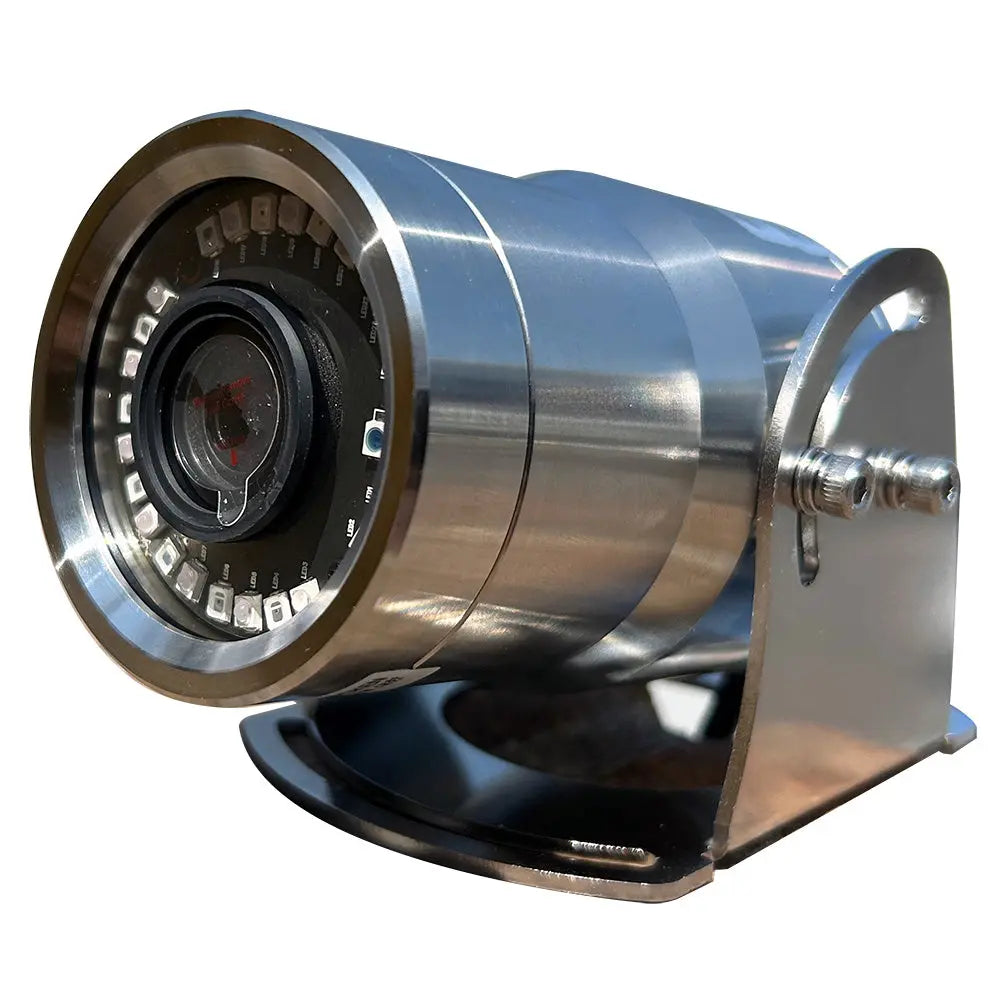

Iris Innovations IRIS490 5MP Marine IP Stainless Steel Bullet Camera with 3.6mm Lens

5MP Hi-Def Marine IP Stainless Steel Bullet Camera - 3.6mm Lens

The IRIS490 is a high-definition 2MP IP camera directly compatible with Raymarine chart plotters (running LH2 / LH3 software), Furuno MFDs running TimeZero v4.1, and PC-based chart-plotter systems.

The 490s 316 stainless steel housing provides the ultimate protection in the harsh marine environment and is, therefore, the perfect solution for deck monitoring aboard workboats, fishing vessels, and passenger's vessels, while fitting in equally well with the high-end aesthetic of luxury vessels and mega yachts.

Equipped with high-power infrared LEDs, the 490 provides high-definition video coverage even at night to a range of 20 meters.

For sub-surface surveillance, the 490 can also be supplied with fully submersible connections.

Whether you need a high-quality and rugged camera as part of your onboard surveillance system, for engine room, deck, and companionway monitoring, or as a robust and stylish docking or backup camera, the IRIS490 range of cameras is the perfect solution, favored by luxury boat owners and commercial vessel operators alike.

Features:

• 3.6mm lens 80-degree horizontal field of view
• Extremely robust for harsh environments
• Machined from marine-grade 316 stainless steel
• High-polish finish
• High-definition 19201080 resolution
• Built-in infrared illumination (20m range)
• Submersible Option Available
• PoE IEEE802.3af (IRIS490 Model)
• Compatible with Raymarine/Axiom (Lighthouse 2 and higher) and Furuno TimeZero 4.1
• Deficient power consumption
• IP66 environmental protection

Applications:

• Workboats commercial shipping
• Luxury motor yachts
• Fishing sports fishing
• Ferry boats passenger's vessels
• Law enforcement emergency services
• Rapid deployment applications
• Vehicle transport applications

Specifications:

• Lens (millimeter): 3.6mm
• Horizontal Field of View: 80-degree HFOV
• Sensor (inch): Sensor 1/4" CMOS Sensor
• Resolution: CVBS: Variable - 1920x1080P (2MP) Max
• Interface: RJ45 10/100 Base T Ethernet
• Video Processing: H.264 Codec / Dual Stream
• Protocols/Video Format: TCP/UDP/HTTP/Multicast/UPnP/NTP/RTSP/ONVIF
• Onvif: Profile S v2.4
• Bitrate: VBR / CBR 32kbps 8Mbps
• Illumination: 2 x High Power Infra Re 850nm - 20 Meter Range
• Lens/Field of View: 3.6mm Standard (80-degree HFOV)
• Mirroring: Horizontal Vertical - Configure via Browser
• Automatic Gain Control: Supported / multiple levels
• Compatibility: Raymarine / Axiom (LH2 or higher), Navico MFDs, inc Simrad / Lowrance, B G, PC-based systems, MFDs with
• digital (HDMI / DVI) input, MFDs via IRIS NVR/HVR, IE Browser, CMAC Systems
• Operating Temperature: -30 + 60-degrees C
• Connections: Water Resistant RJ45 Socket / DC Power Socket / Female BNC (1090)
• Material: 316 Stainless Steel
• Power: PoE IEEE802.3af / 12VDC <200mA Max.
• Weight Dimensions: 1.170Kg / 126mm x 64mm
• Environmental: IP66 Standard / IP68 Submersible Option Available

The Iris Innovations IRIS490 is a high-definition 5-megapixel marine IP camera designed for rugged environmental conditions. Crafted from durable 316 stainless steel with a polished finish, this camera offers superior corrosion resistance, making it ideal for both commercial and luxury marine applications. Its compact form and robust construction allow seamless integration into deck, engine room, or sub-surface surveillance systems. The IRIS490 provides crisp, clear video footage with a resolution of 1920x1080 pixels, ensuring detailed monitoring in various lighting conditions. Equipped with high-power infrared LEDs, it delivers night vision capabilities with a range of up to 20 meters, making it suitable for 24/7 surveillance on vessels such as workboats, passenger ferries, and yachts. The camera's IP66 environmental protection rating guarantees reliable operation in harsh marine environments, while the optional submersible connection enhances underwater monitoring capabilities. It supports Power over Ethernet (PoE) for simplified installation and low power consumption, aligning with modern vessel power systems. Compatibility with Raymarine Axiom (LH2 and higher), Furuno TimeZero, and other PC-based systems ensures easy integration into existing marine electronics and security networks. The IRIS490 features an 80-degree horizontal field of view, adjustable mirroring, and advanced video processing via H.264 codec with dual streaming. Its versatile connectivity options include RJ45 Ethernet, DC power socket, and water-resistant BNC connectors, all housed within a corrosion-resistant stainless steel shell. Whether used for deck surveillance, engine room monitoring, or as a stylish backup camera, the Iris IRIS490 provides reliable, high-quality video in demanding marine environments. This camera is perfect for various applications including commercial shipping, luxury yachts, sports fishing, emergency services, and vehicle transport, offering both durability and exceptional video performance for onboard security needs.

Features:

• 3.6mm lens with 80-degree horizontal field of view

• Constructed from marine-grade 316 stainless steel for maximum durability

• High-definition 1920x1080 resolution for clear imaging

• Built-in infrared LEDs with 20-meter night vision range

• IP66 environmental protection rating with optional IP68 submersible connection

• Supports Power over Ethernet (PoE IEEE 802.3af) for easy installation

• Compatible with Raymarine Axiom (LH2 or higher), Furuno TimeZero v4.1, and PC-based systems

• Corrosion-resistant high-polish finish suitable for harsh marine environments

• Advanced video codecs including H.264 with dual stream capability

• Multiple connectivity options including RJ45 Ethernet, water-resistant BNC, and DC power sockets

• Automatic gain control with multiple levels for optimal image quality

• Operates effectively in temperatures ranging from -30°C to +60°C
