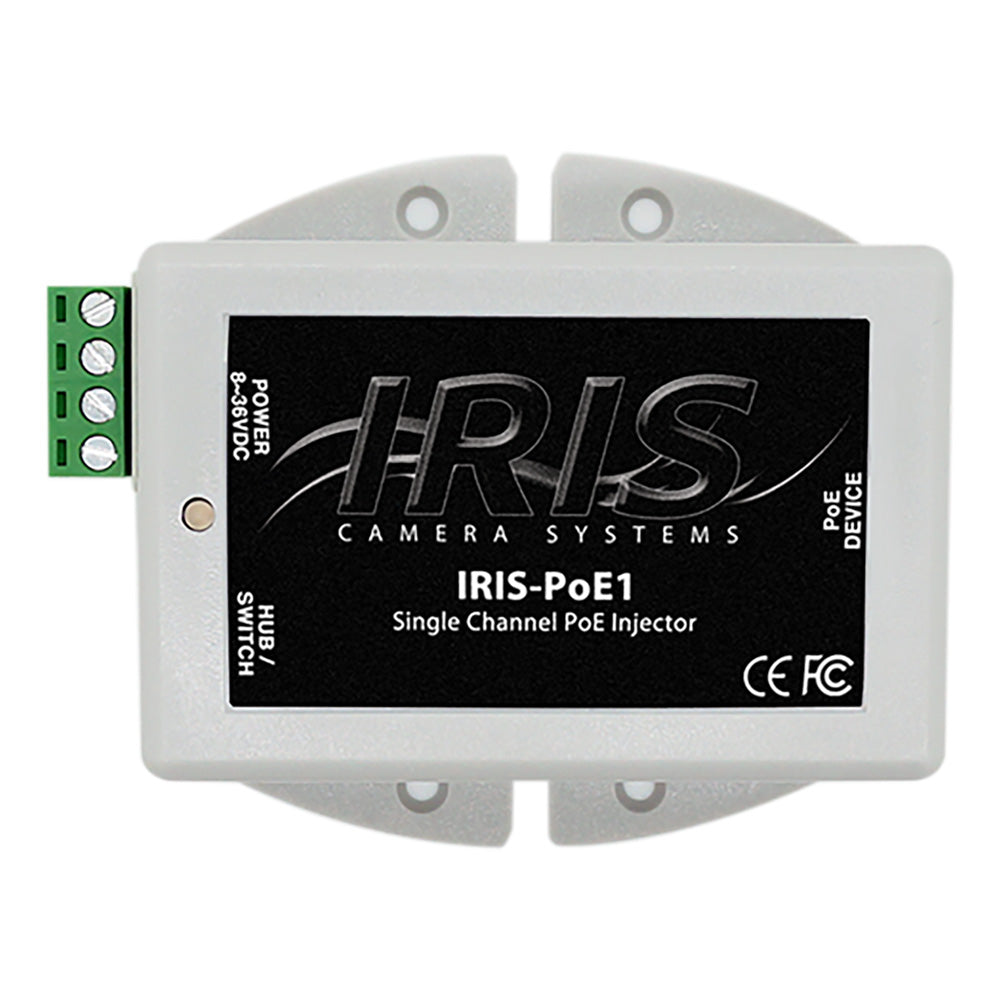

Iris Innovations POE1 Single Channel PoE Injector - 8-36VDC Input, 48VDC Output for Marine Applications

Single Channel PoE Injector - 8-36VDC Input Voltage 48VDC Output

Simplify your installation by only running a single CAT5 cable to your IP camera or other PoE network device.

The IRIS-PoE1 is a compact single-channel power over Ethernet (PoE) injector designed and certified, especially for use in marine applications. Simply connect your camera or PoE device with a single CAT5 cable to the injector and connect the injector to your onboard network. The IRIS-PoE1 uses high-end buck-boost power management to facilitate IEEE802.3aF PoE operation across an extremely wide 636VDC input range, making it perfect for environments where input voltage may not be stable or where the required 48VDC is not available.

Features:

• Inject DC power into a single device
• Wide Voltage range 6-36VDC Input
• Delivers up to 48VDC
• IEEE802.3af Compliant
• Small form factor with molded fixing points
• Simple to install and reliable, the IRIS-PoE1 features plug-and-play functionality and requires no setup.

Specifications:

• Dimensions (millimeter): 92mm x 84mm x 38mm
• Weight (grams): 144g
• Connections:
• CAT5 device in / output to network, a 4-pin screw terminal for DC input
• Input Voltage: 8-36VDC
• Power: 16.8W

The IRIS-PoE1 Gigabit Ethernet Injector has been fully certified to comply with the following standards for use in the marine industry:

• IEEE802.3af EN60945 EN55022 (Class B) EN50155
• UL1950, XSA 22.2

The Iris Innovations POE1 is a compact and reliable single-channel power over Ethernet (PoE) injector designed specifically for marine environments and other applications requiring stable network power delivery. With an input voltage range of 8 to 36VDC, it utilizes advanced buck-boost power management technology to provide a consistent 48VDC output, ensuring your IP camera or PoE device receives the necessary power regardless of fluctuating voltage conditions. The device allows for easy installation by simply connecting a single CAT5 cable from the injector to your network device, making it ideal for streamlined setups in space-constrained or harsh environments. Its certification to IEEE802.3af standards guarantees compatibility and safe operation within marine and industrial standards, including EN60945 and EN50155. The injector's small form factor features molded fixing points for secure mounting, and its plug-and-play design requires no additional configuration, facilitating quick deployment. Weighing approximately 5 ounces, the POE1 is built with durability in mind, suitable for demanding conditions where stable power and network connectivity are crucial. The device features a 4-pin screw terminal for DC input and a standard RJ45 port for network connection, delivering up to 16.8 watts of power. Its certifications, such as UL1950 and XSA 22.2, ensure compliance with industry safety and performance standards, making it a dependable choice for marine, transportation, and industrial networking applications. Whether upgrading an existing system or installing a new one, the Iris POE1 provides a simple, efficient solution for powering PoE devices in challenging environments, delivering reliable performance with minimal installation effort.

Features:

• Injects DC power into a single device with ease

• Wide input voltage range of 8-36VDC for versatile applications

• Delivers a stable 48VDC power output

• IEEE802.3af compliant for standard PoE operation

• Compact design with molded fixing points for secure mounting

• Plug-and-play setup requiring no configuration

• Suitable for marine and industrial environments with full certification

• Lightweight and durable for demanding conditions
