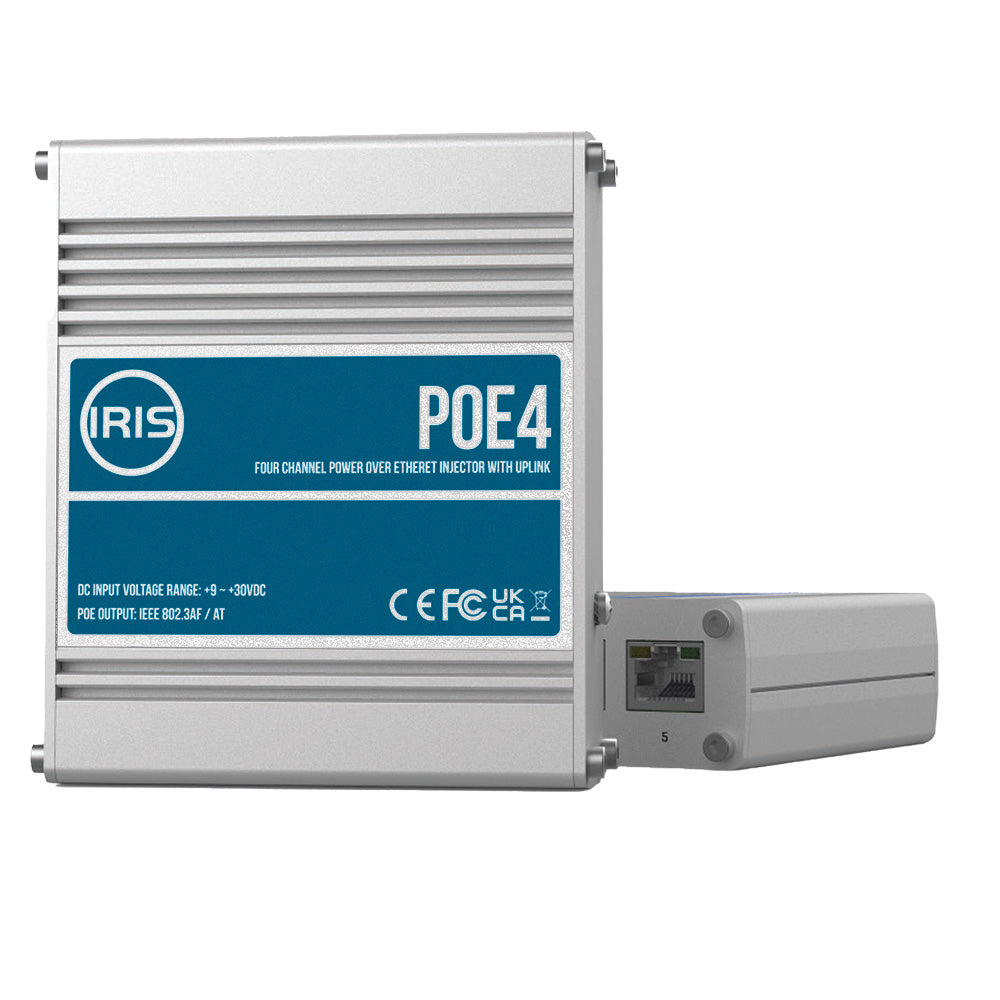

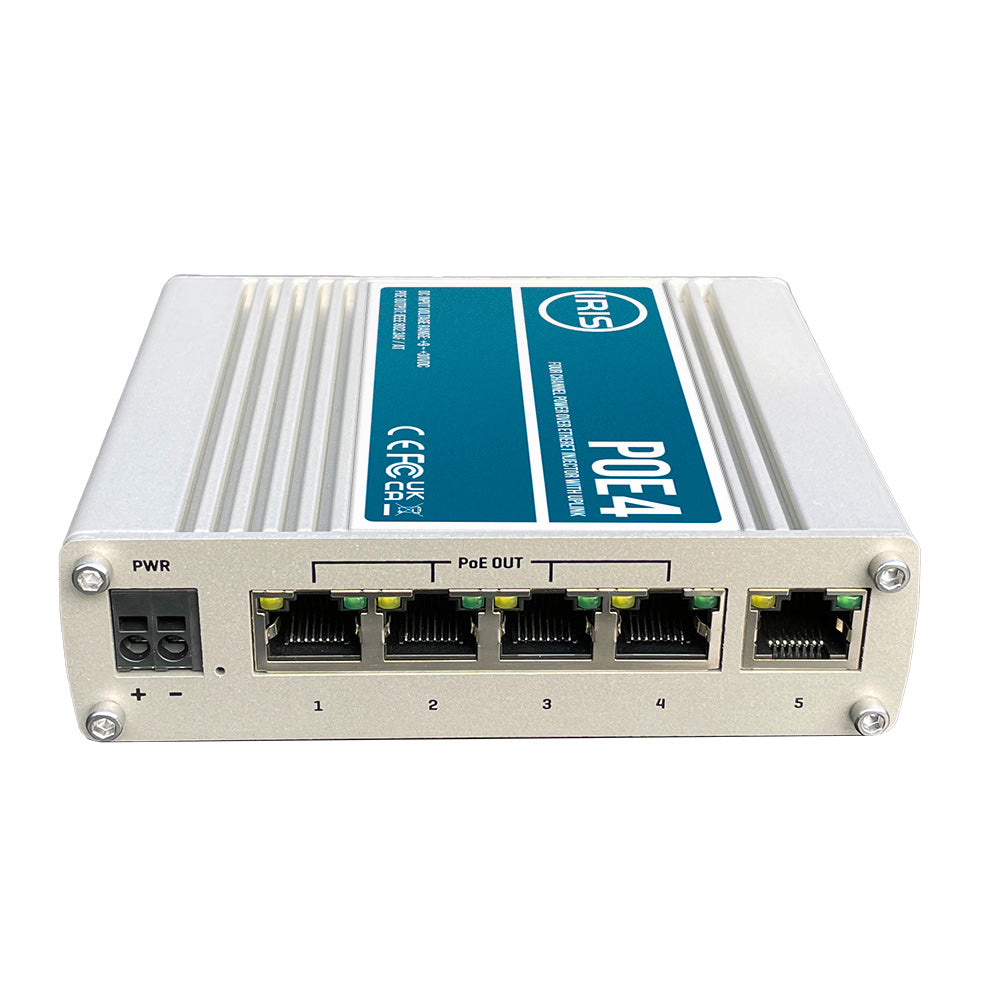

Iris Innovations POE4V2 Four Channel Uplink Power Over Ethernet Switch with 48VDC Output

Four Channel Uplink Power Over Ethernet Switch - IEEE802.3af 3at Compliant - 9-30VDC Input - 48VDC Output

The new PoE4v2 from Iris Innovations is a four-channel plus uplink power over Ethernet switch that operates over a wide DC input voltage range of 930VDC making it perfect for powering IEEE802.3af/3at devices from battery sources such as boats and vehicles.

The PoE4v2 outputs 48 VDC to your PoE device with a power budget of 60W in total and up to 30W per port, providing power to up to 4 devices at 15W each, 2 devices at 30W each, or 1 device at 30W, and further 2 devices at 15W.

The unit features a passive uplink port to enable connections to other network switch equipment, routers, or modems.

The PoE4v2 simplifies your installation as only a single network cable is required to connect and power your devices, reducing cost and adding convenience.

Features:

• Compact and robust housing
• Wide input voltage range of 930VDC
• Perfect for boats and vehicles
• 60W power budget
• IEEE802.3af / 3at compliant
• Up to 30W per channel
• Plug and play operation - no configuration required
• 48VDC PoE output voltage to your devices
• Provides power to devices up to a 100-meter cable length
• Simplifies installations

Specifications:

• Weight Dimensions: 0.350 Kg / 115 mm x 32 mm x 95 mm
• Material: Aluminium, soft anodized
• PoE Ports / Standard: Ports 14 IEEE802.3af / 802.3at + 1 Uplink Port (non PoE)
• Total PoE Budget: 60W across 4 PoE Ports
• Maximum Cable Length: 100 Meters
• Approvals / Standards CE, UKCA, FCC, IC, REACH, RoHS, WEEE / EN IEC 62368:12020+A11:2020 EN60945:2002 Section 9 10
• Input Voltage Range: 9 30 VDC
• Output Voltage: 48 VDC
• Power Consumption Idle: 0.8W / Max: 2.2W / PoE Max: 106W
• Environmental: IP30 - Install in a dry dust free environment. Do not expose to moisture.

The Iris Innovations POE4V2 is a versatile four-channel Power over Ethernet switch designed for demanding environments like boats and vehicles. Operating over a wide input voltage range of 9 to 30 VDC, this switch is ideal for powering IEEE802.3af and 3at compliant devices directly from battery sources. Its robust aluminum housing ensures durability while maintaining a compact form factor, making installation straightforward and reliable. The POE4V2 provides a total power budget of 60W, supporting up to 30W per port, which allows you to power multiple devices simultaneously, including high-power network cameras, access points, or VoIP phones. With a passive uplink port, it seamlessly connects to other network equipment such as routers or switches, enabling flexible network configurations without additional power requirements. The single Ethernet cable connection simplifies setup, reduces installation costs, and minimizes clutter, making it suitable for mobile or remote applications where space and power efficiency are critical. Designed to deliver consistent performance, this switch supports up to 100 meters of cable length for device connectivity, ensuring reliable power and data transfer across varied environments. Compliance with multiple safety standards such as CE, FCC, and RoHS confirms its suitability for professional use, while the IP30 rating ensures protection against dust and dry environments. The POE4V2 is an excellent choice for expanding network capabilities in mobile or off-grid setups, combining straightforward plug-and-play operation with dependable power delivery. For more detailed information, the owners manual is available online.

Features:

• Compact and robust aluminum housing for durability

• Wide input voltage range of 9 to 30 VDC for versatile power sourcing

• Supports IEEE802.3af and 3at standards for PoE compatibility

• Total power budget of 60W with up to 30W per port for high-power devices

• Passive uplink port for easy network integration

• Supports device connections up to 100 meters with reliable PoE delivery

• Plug and play operation with no configuration required

• Suitable for use in mobile environments like boats and vehicles

• Certified with multiple safety and environmental standards including CE and FCC
