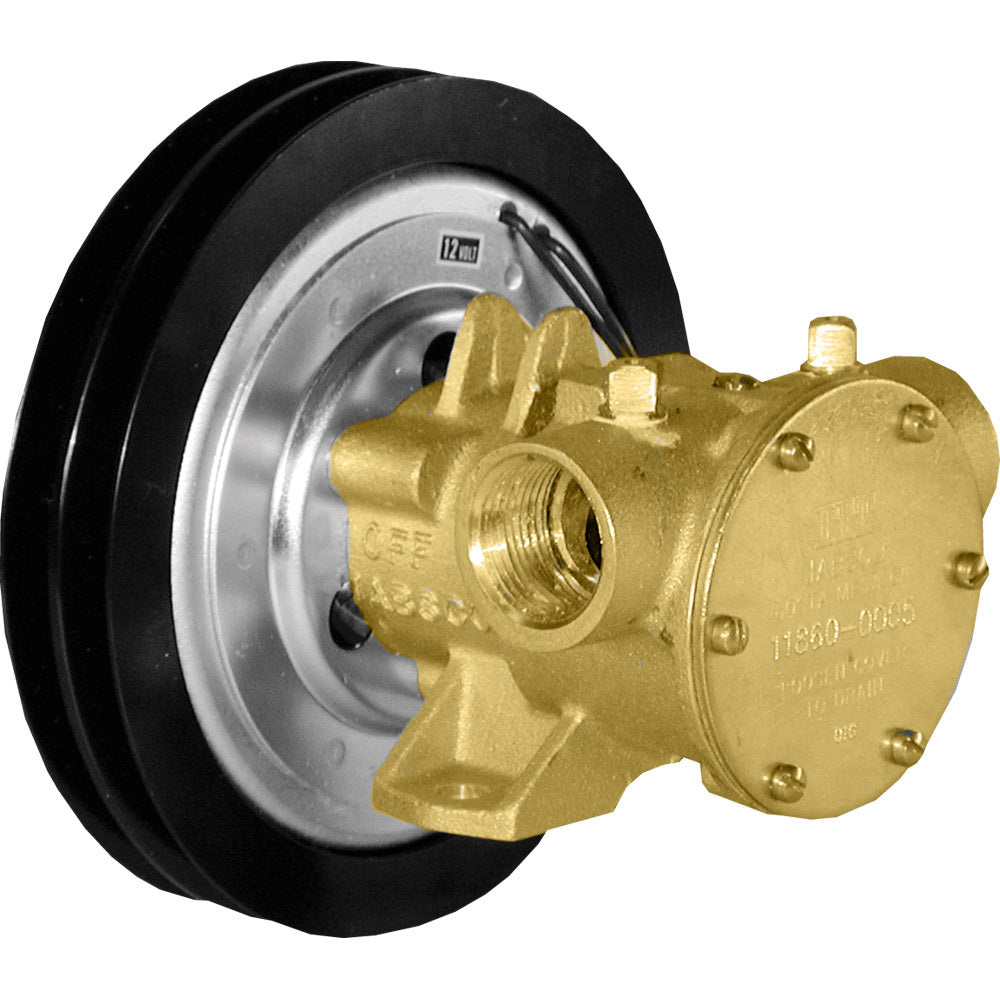

Jabsco 1-Inch Electro-Magnetic Clutch Pump - 12V for Marine and Industrial Use

1" Electro-Magnetic Clutch Pump

Flow rate: Nominal 23 US Gallons/min at 1750 RPM
Self-priming from dry up to 7.8ft

Features:

• Constructed from marine quality bronze and stainless steel for ruggedness and reliability.

• Easy to service and maintain.

• Inexpensive to buy and operate.

• Will tolerate abrasive wear (this may affect performance - seek advice from your distributor).

• Handles hard and soft solids without clogging.

• Can pump in either direction.

• Will not airlock.

APPLICATIONS MARINE:
Engine cooling, Pumping bilges, Wash downs, Circulating water in bait tanks, Utility dockside pump.

INDUSTRIAL:
Circulating and transferring, Velocity mixing, Return spill, Sump drainage, Chemicals, Pharmaceuticals, Soap, Liquors, Ink, Dyes, Alcohol, Tanning Liquors, Glycerin, Brine, etc.

FARMING:
Pumping water for stock, Pumping water from shallow wells and cisterns.

PUBLIC UTILITIES AND MUNICIPALITIES:
Under the hood mounting on service trucks for dewatering and draining meter boxes, manholes, excavations, and truck installation under hood for emergency pumping.

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Jabsco 1-inch electro-magnetic clutch pump (Part Number 11860-0005) is designed for reliable fluid transfer in a variety of applications. Constructed from durable marine-grade bronze and stainless steel, this pump offers excellent ruggedness and longevity, making it suitable for demanding environments. Its self-priming capability allows it to operate from dry conditions up to 7.8 feet, ensuring quick startup and minimal maintenance requirements. The pump boasts a flow rate of approximately 23 US gallons per minute at 1750 RPM, providing efficient circulation and transfer of liquids across marine, industrial, farming, and municipal settings. Its ability to handle both hard and soft solids without clogging, coupled with bidirectional operation, makes it a versatile choice for many fluid handling tasks. Additionally, the pump is designed to resist air locking, further enhancing its operational reliability. Easy to service and maintain, this pump is an economical solution for applications such as engine cooling, bilge pumping, washdowns, bait tank circulation, and utility dockside pumping in marine environments. In industrial settings, it is suitable for circulating chemicals, pharmaceuticals, inks, dyes, alcohol, and other liquids, providing versatility for diverse processing needs. Farming applications include pumping water for livestock and extracting from shallow wells or cisterns. Public utilities and municipalities benefit from its ability to dewater and drain meter boxes, manholes, excavations, and truck-mounted emergency pumping tasks. Please note that this product may contain lead, which is known to cause health issues; consult the provided safety warnings and visit P65Warnings.ca.gov for more information. For detailed installation and maintenance instructions, refer to the owner's manual available at this link. The Jabsco 1" electro-magnetic clutch pump offers a reliable, cost-effective, and versatile fluid transfer solution for a wide range of applications.

Features:

• Flow rate: Nominal 23 US gallons per minute at 1750 RPM

• Self-priming from dry up to 7.8 feet

• Constructed from marine quality bronze and stainless steel for durability

• Easy to service and maintain

• Inexpensive to buy and operate

• Handles hard and soft solids without clogging

• Can pump in either direction

• Will not airlock
