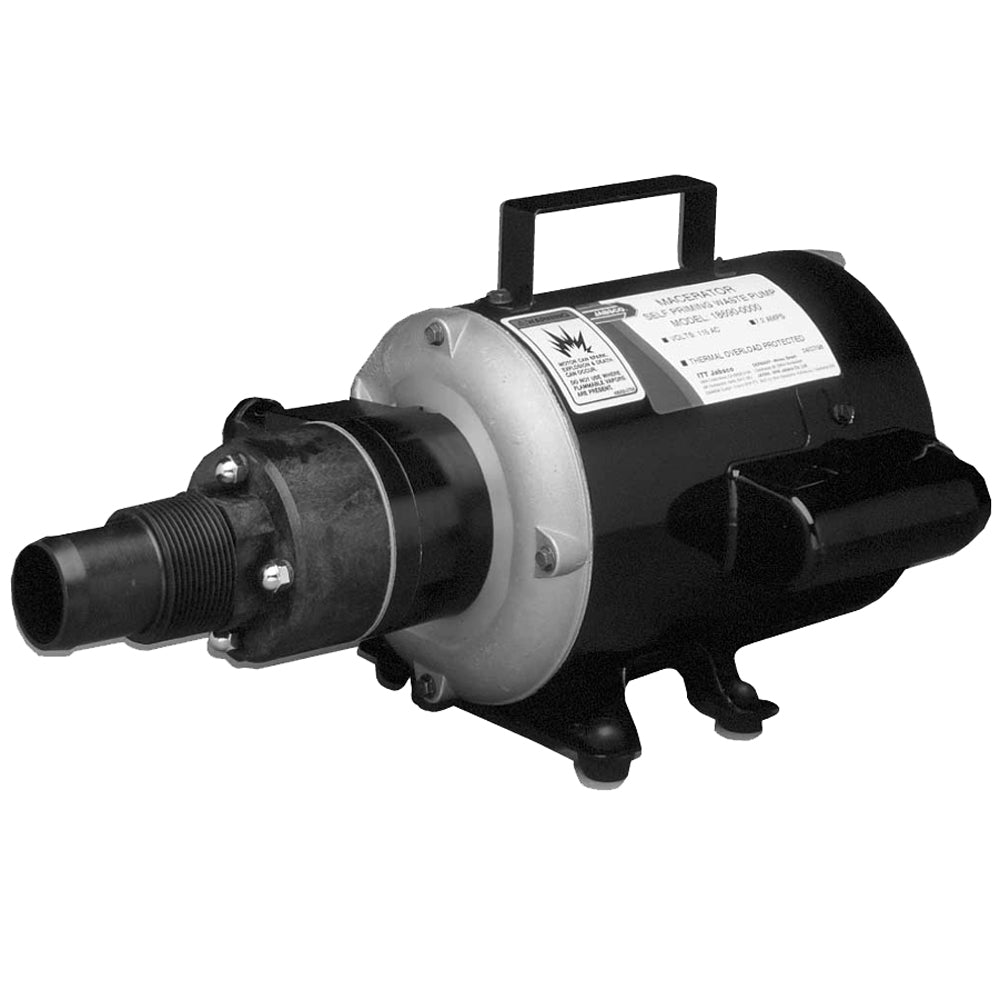

Jabsco 115V AC Macerator Pump for Marine and RV Waste Management

115V AC Macerator

The Jabsco AC macerator pump unit is the ideal answer to waste handling problems for marine, recreational vehicle and domestic uses. The macerator section grinds waste down to a particle size of 1/8" maximum so it can be pumped easily through a 1" hose discharge line. The pump is self-priming, permitting the unit to be mounted above or below the tank in a convenient location. For optimal efficiency, locate pump as close to the waste source as practical. Empties a 30 gallon holding tank in only 3 minutes. The waste pump will macerate and pump all waste and tissue normally found in marine waste systems. IT WILL NOT HANDLE HARD SOLID OBJECTS, SANITARY NAPKINS OR RAGS.

Specifications
Impeller Nitrile
Macerator Cast Bronze Cutter Plate reducesparticle size to 1/8" maximum
Seal Lip Type
Port Type Inlet - 1-1/2" External Pipe ThreadOutlet - 1" ID Hose Barb
Motor 115 Vac, AC Induction TypeSingle Phase, 60 HzThermal Overload Protection
Weight 7.7 (kg) 17 (lb)

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco 115V AC Macerator Pump is a reliable solution for efficient waste handling in marine, recreational vehicle, and domestic settings. Designed to grind waste down to a maximum particle size of 1/8 inch, this pump allows for easy transfer through a 1-inch hose discharge line. Its self-priming feature enables flexible installation options, whether above or below the waste tank, making it ideal for space-constrained or convenient locations. For optimal performance, positioning the pump close to the waste source is recommended. With the ability to empty a 30-gallon holding tank in just three minutes, this pump offers quick and effective waste removal. It is capable of handling typical marine waste and tissue but is not designed to process hard solids, sanitary napkins, or rags, ensuring reliable operation in appropriate applications. This pump features a cast bronze cutter plate, nitrile impeller, and a lip-type seal for durability and longevity. The inlet is a 1-1/2 inch external pipe thread, and the outlet connects via a 1-inch ID hose barb. Powered by a 115V AC induction motor with thermal overload protection, it provides consistent performance with minimal maintenance. Its compact design, weighing approximately 17 pounds, makes it suitable for a variety of installation environments. Please note, this product contains chemicals that may pose health risks, including nickel, and proper handling is advised. For detailed installation and maintenance instructions, refer to the owner manual available online.

Features:

• Self-priming design allows flexible installation above or below waste tank

• Grinds waste to a maximum particle size of 1/8 inch for easy pumping

• Powerful 115V AC induction motor with thermal overload protection ensures reliable operation

• Capable of emptying a 30-gallon holding tank in about 3 minutes

• Constructed with durable cast bronze cutter plate and nitrile impeller for longevity

• Inlet: 1-1/2 inch external pipe thread; Outlet: 1-inch hose barb for secure connection

• Compact weight of approximately 17 pounds facilitates versatile installation

• Designed for marine, RV, and domestic waste applications, excluding hard solids and rags
