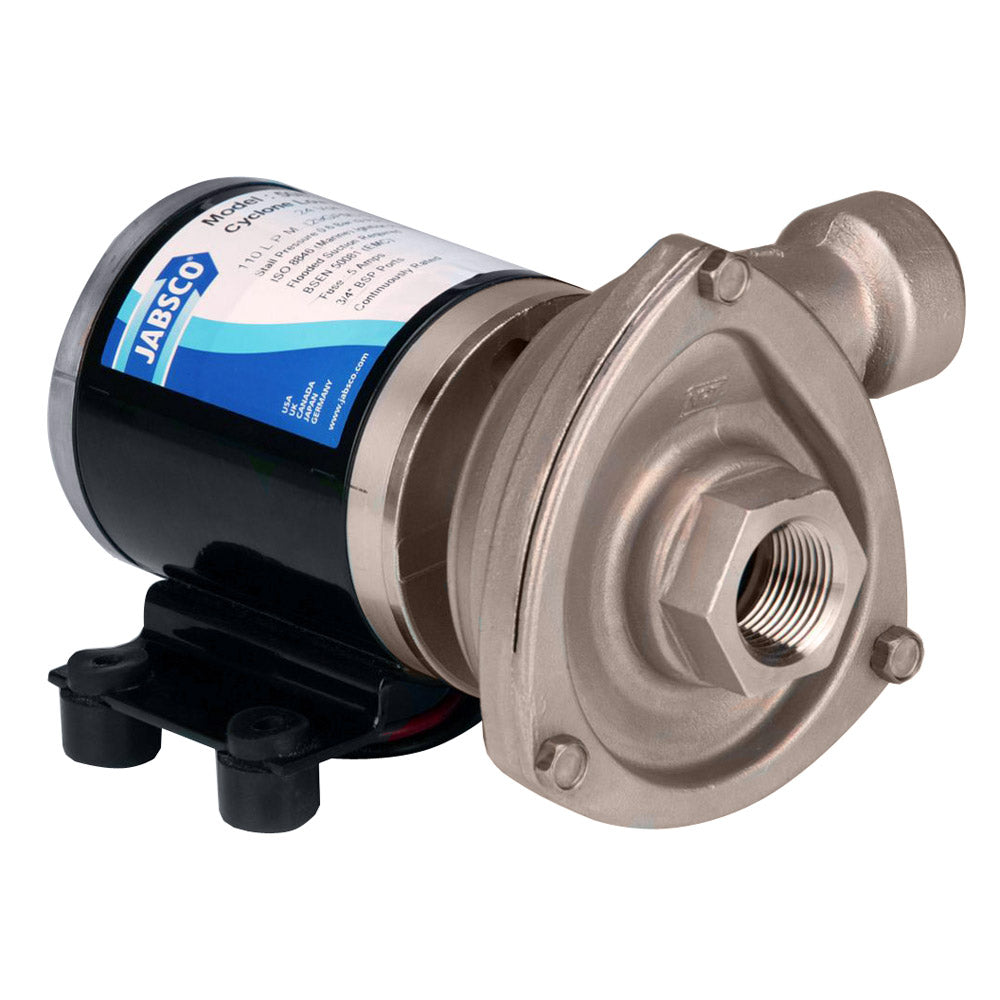

Jabsco 12V Low Pressure Cyclone Centrifugal Pump for Marine and Industrial Applications

Low Pressure Cyclone Centrifugal Pump - 12V

Silent running. Single tool servicing. 2m (6 foot) suction lift when wet.

A range of Stainless Steel General Purpose Centrifugal pumps designed specifically for the marine and industrial markets. Typical applications would be for circulation applications such as hot water systems, livewell or bait tank installations.

Features:

• Heavy duty robust design
• Stainless steel construction
• Long life DC motor
• Silent running
• Anti-clog impeller design
• Long life mechanical seal
• Single tool servicing

Specifications:

• Pump Body: Stainless Steel
• Port Size: 3/4" pipe threads, available with NPTF threads
• Flow: 110 Liters/Minute (29.7 gallons/min.)
• Pressure: Up to 0.6 bar (8.7psi)
• Impeller: Stainless Steel Anti-Clog Impeller Design
• Shaft Seal: Mechanical
• Maximum Current: 9 Amp
• Fuse Size: 10 Amp
• Motor: Continuously rated
• Motor life 3500 hours
• ISO 8846 Marine and USCG Regulations for Ignition Protection
• ISO 8849 Marine Bilge Pump Standard

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Low Pressure Cyclone Centrifugal Pump (Part Number 50840-0012) is a durable and efficient solution designed for both marine and industrial environments. Crafted with stainless steel construction, this pump offers exceptional corrosion resistance and longevity, making it suitable for applications such as hot water circulation, livewell, or bait tank systems. Its heavy-duty design ensures reliable operation under demanding conditions while maintaining a quiet performance for seamless integration into your setup. Featuring a long life DC motor rated for approximately 3,500 hours of continuous use, this pump provides a consistent flow rate of up to 110 liters per minute (29.7 gallons per minute) at pressures up to 0.6 bar (8.7 psi). The anti-clog impeller design minimizes maintenance by reducing blockages, and the mechanical shaft seal enhances durability and leak prevention. Designed for easy maintenance, the pump can be serviced with a single tool, reducing downtime and simplifying repairs. Its compact dimensions and straightforward installation with 3/4

Features:

• Heavy-duty robust design

• Stainless steel construction

• Long life DC motor

• Silent running

• Anti-clog impeller design

• Long life mechanical seal

• Single tool servicing
