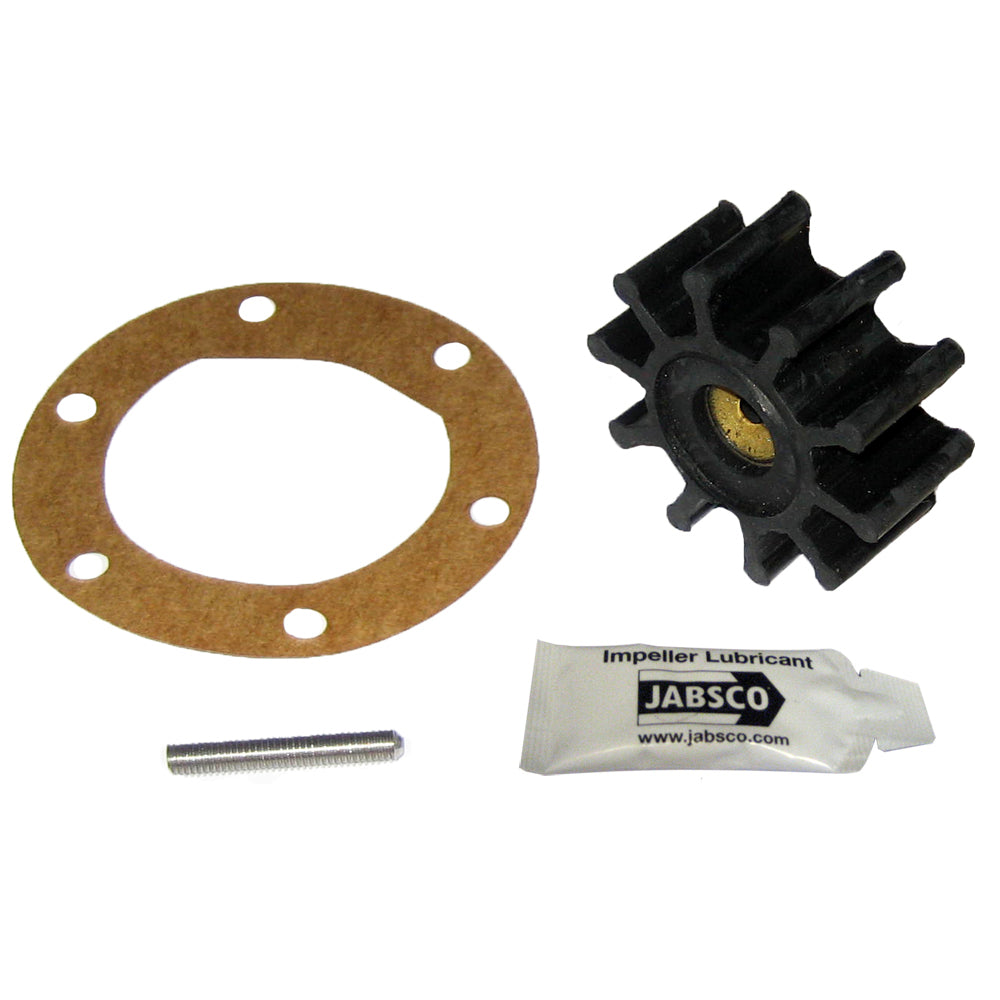

Jabsco 18673-0001-P Impeller Kit - 10 Blade Neoprene with Brass Insert, 2 Inch Diameter

Impeller Kit - 10 Blade - Neoprene - 2" Diameter x 7/8"W Pin Drive Insert

Material: Neoprene
Insert Material:Brass
Drive Type: Slotted Shaft Pin Drive or Through Hole Pin Drive
Number of Blades: 10
Dimensions:
Diameter:2"
Shaft Width:1/2"
Shaft Diameter:7/8"

Jabsco flexible impellers can be fitted to most makes and models of bronze flexible impeller engine cooling, bilge, transfer and general purpose pumps.
Jabsco flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.

Replace all impellers at least once every year, or sooner, depending on the engine duty. When the installation is correct an impeller may last for several years, but it is always advisable to stick to a schedule of preventative, rather than corrective, maintenance.

Replacing impellers is easy. By removing the end cover screws, it is possible to remove the impeller by using either a Jabsco Impeller Removal Tool, or channel lock pliers, to grip the hub of the impeller. Dont use screwdrivers as they may damage the face of the pump body, causing leaks, and they can be dangerous in confined spaces.

Always carry spare impellers on board in case of emergency. The impeller is one of the most vital components of the engine cooling system and should always be treated as such.

Always grease new impellers. Firstly, it makes it easier to install the impeller into the pump bore, and secondly it gives added protection to the impeller during initial prime. After replacing the gasket and end cover the pump is ready to use.

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Jabsco 18673-0001-P impeller kit features a durable 10-blade design made from high-quality neoprene, ensuring reliable performance in engine cooling, bilge, transfer, and general-purpose pumps. This impeller is engineered with a brass insert to facilitate secure attachment and optimal operation. Its 2-inch diameter and 7/8-inch shaft diameter make it compatible with a wide range of pump models, providing versatile application options. The impeller's slotted shaft pin drive or through-hole pin drive enhances installation flexibility, making maintenance straightforward and efficient.
Proper maintenance of the impeller is critical for engine longevity and performance. It is recommended to replace the impeller at least once a year or more frequently depending on usage conditions. When installed correctly, a quality impeller like this can last several years, but adhering to a preventative maintenance schedule helps avoid unexpected failures. Replacing the impeller involves removing the end cover screws and using a dedicated impeller removal tool or channel lock pliers to grip the hub—screwdrivers should be avoided as they can damage the pump face and create leaks. Always carry spare impellers on board, as they are vital components of the engine cooling system and should be easily accessible during emergencies.
Applying grease to the new impeller prior to installation simplifies insertion into the pump bore and provides additional protection during initial priming. After replacing the gasket and end cover, the pump is ready for operation. Regular inspection and timely replacement of impellers help maintain optimal pump efficiency and prevent costly repairs. Keep in mind that this product contains chemicals including lead, which is known to cause health hazards; more information is available at P65Warnings.ca.gov.

Features:

• Material: Neoprene for durability and flexibility

• Insert Material: Brass for secure attachment

• Drive Type: Slotted Shaft Pin Drive or Through Hole Pin Drive for versatile installation

• Number of Blades: 10 for efficient fluid movement

• Dimensions: 2-inch diameter with a 7/8-inch shaft diameter for broad compatibility

• Easy Replacement: Designed for straightforward maintenance and replacement
