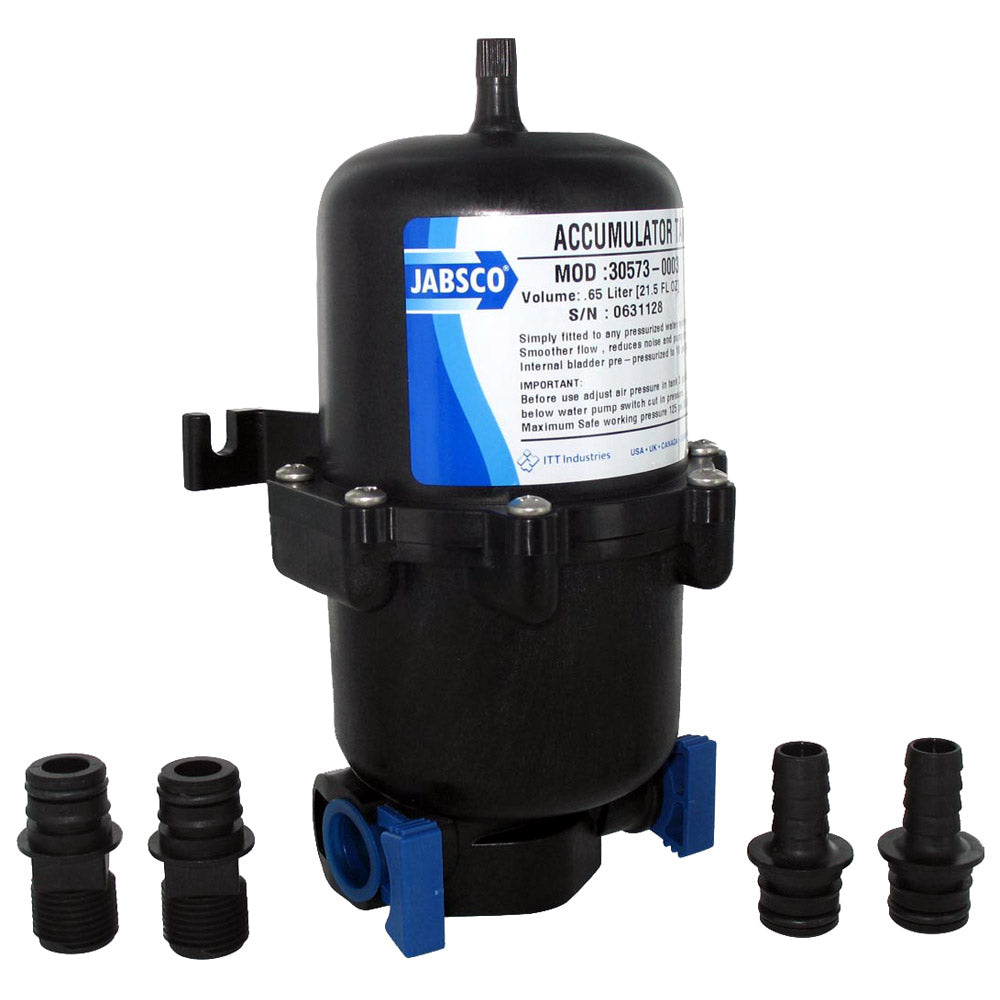

Jabsco 30573-0003 Mini Accumulator Tank with Internal Bladder for Pump Systems

Mini Accumulator Tank
Part #: 30573-0003

This accumulator tank is intended for installation in any pumped water system controlled by a pressure switch, and may also be used with air-driven pumps. The tank can serve as a storage vessel as well as a pulsation dampener for pressurized fluid. The accumulator tank smoothes water flow and reduces on/off switch cycling of the pump by lessening the variation in pressure and flow between the pump and the system discharge points.The even flow of water gives better control of hot water temperature with systems using instant water heaters.

Features:

• Internal bladder

• Smoother flow

• Quieter water system

• Longer pump life

• Easily fitted to new or existing systems

• Compact size

• Quick-connect/disconnect port flttings

• Mounting point for optional pressure switch

• Food grade materials, NSF Standard 18 listed

• Volume: 21.5 oz

• Dimensions: 8.4 x 4.7 inches

• Max Pressure: 125 psi

• Weight: 0.96 lb

• Pre charged pressure: 10 psi

  WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco 30573-0003 Mini Accumulator Tank is designed to enhance the performance of pumped water systems by providing pressure stabilization and pulsation dampening. Suitable for installation in systems controlled by pressure switches or air-driven pumps, this compact tank acts as both a storage vessel and a pulsation absorber. Its internal bladder helps maintain consistent water flow, reducing the frequency of pump cycling and improving overall system efficiency. This results in quieter operation, less wear on the pump, and better control of hot water temperature when used with instant water heaters. Made with food-grade materials compliant with NSF Standard 18, the tank ensures safe contact with potable water and durability over time. Easy to install in both new and existing systems, it features quick-connect/disconnect port fittings and a mounting point for an optional pressure switch, offering versatile integration options. With a volume of 21.5 ounces and a maximum pressure of 125 psi, the tank is built for reliable performance in residential or commercial applications. The pre-charged pressure of 10 psi ensures immediate readiness upon installation, and its slim profile makes it suitable for tight spaces. The tank's lightweight design and sturdy construction allow for straightforward installation and maintenance, making it an ideal addition to water systems requiring pressure regulation and pulsation dampening.

Features:

• Internal bladder for pressure stabilization

• Smoother water flow reduces pulsation

• Quieter operation of water system

• Extends pump lifespan

• Easily fitted to new or existing systems

• Compact size for space-saving installation

• Quick-connect/disconnect port fittings

• Mounting point provided for optional pressure switch

• Constructed with food-grade, NSF Standard 18 listed materials

• Pre-charged at 10 psi for immediate use

• Maximum pressure of 125 psi ensures durability
