SKU:81112

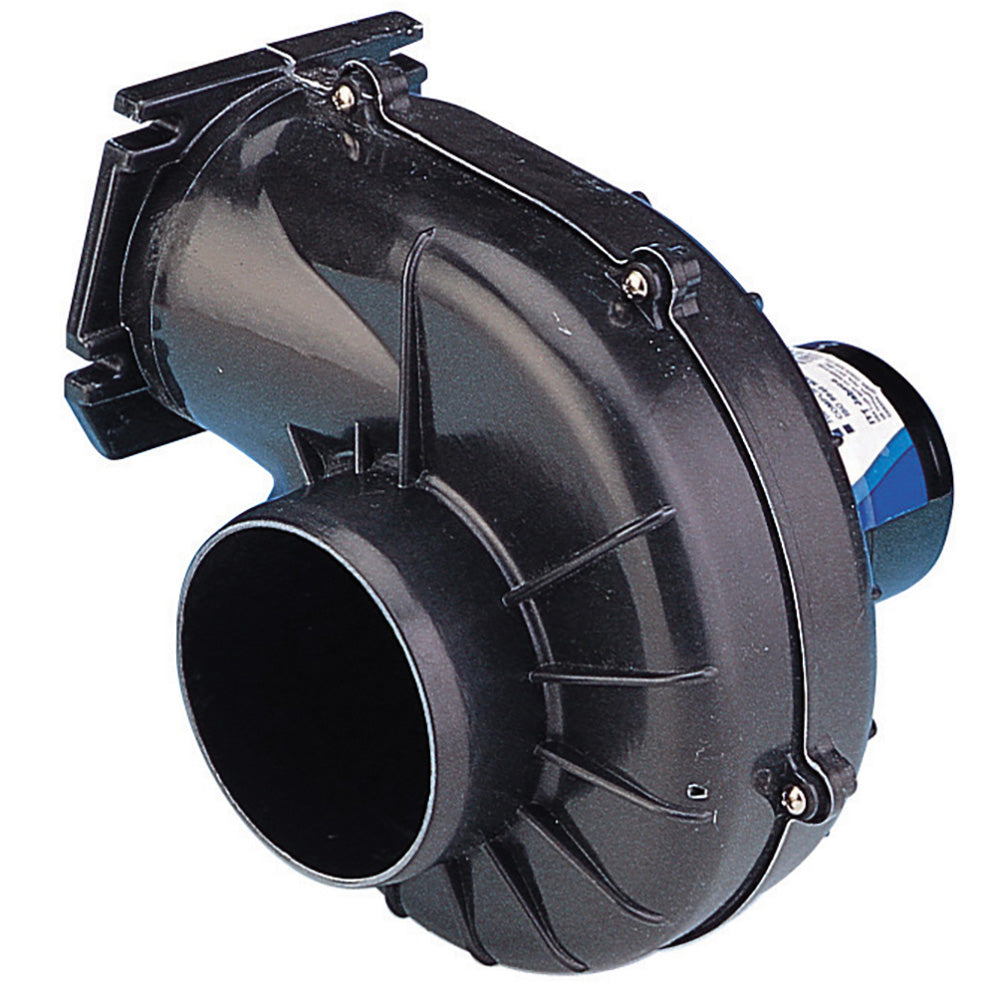

4 Continuous Duty Flangemount Blower - 115V, 250 CFM
The Jabsco continuous duty 4-inch flange-mount blower, with a 115 Volt Motor. This is rated for 250 CFM. The Jabsco AC blowers are ideal for ventilating equipment areas. They may also be used for engine room ventilation on vessels with diesel-powered engines only. The blower is also suitable for general air circulation when AC power consumption is preferred. Flangemount Blowers are generally mounted with the discharge port fastened directly to a flat external surface to minimize required ducting. The inlet port can then be connected with a duct hose to the area requiring ventilation. Standard models are rated for intermittent service, 15 minutes maximum. These commercial-duty blowers are rated for continuous service. The blower housing flange should be mounted on a flat bulkhead surface. Selection of a dry, cool location will prolong motor life.
This blower is not ignition-protected. Do not use to exhaust flammable vapors such as gasoline fumes, or in areas that may contain flammable vapors.
Specifications:
The Jabsco 4-inch flange-mount blower model 36760-0115 is designed for reliable continuous operation in ventilation applications. Powered by a 115-volt extended life induction motor, this blower delivers a high airflow rate of 250 cubic feet per minute (CFM), making it suitable for ventilating equipment areas, engine rooms on diesel-powered vessels, and general air circulation where AC power is available. Its reinforced thermoset plastic housing provides durability and resistance to corrosion, ensuring long-term performance in demanding environments. The blower is constructed for continuous duty with thermal overload protection, allowing it to operate beyond the standard 15-minute intermittent rating without risk of overheating or failure. The slip-on inlet duct connection simplifies installation, enabling quick attachment to duct hoses for directing airflow precisely where needed. Mounting the blower with the flange on a flat bulkhead surface minimizes ducting requirements and facilitates stable positioning. To maximize motor longevity, it is recommended to install the blower in a dry, cool location away from flammable vapors, as it is not ignition-protected and should not be used in explosive atmospheres. Its efficient high-volume airflow combined with low current draw makes it an energy-efficient choice for continuous ventilation needs. Constructed from corrosion-resistant materials throughout, the Jabsco blower offers durability and reliable performance in marine, industrial, and commercial applications, ensuring effective airflow with minimal maintenance.
Features:
