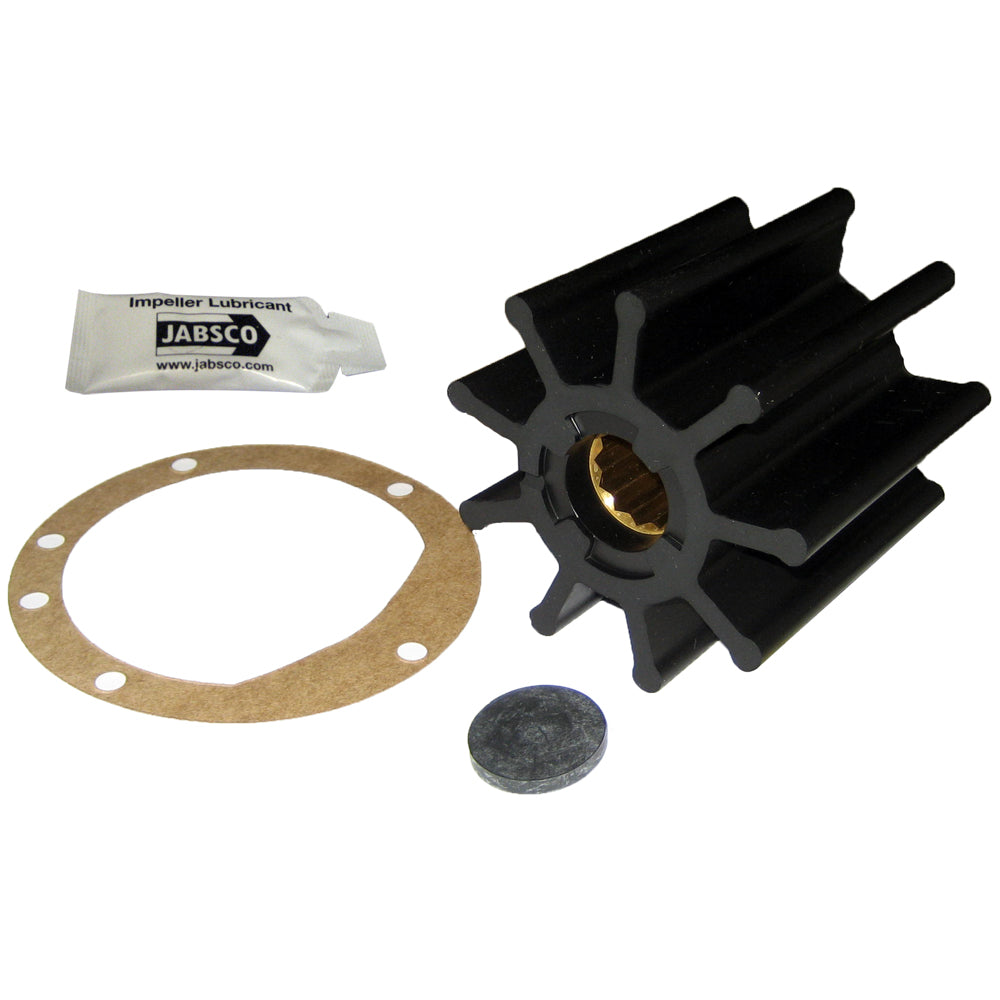

Jabsco 6760-0003-P Impeller Kit - 9 Blade Nitrile Pump Impeller for Marine and Industrial Applications

Impeller Kit - 9 Blade - Nitrile - 3-3/4" Diameter x 3-1/2" W, 1" Shaft Diameter

Features:

• Material: Nitrile

• Drive Type: Spline Drive

• Number of Blades: 9

• Dimensions: Diameter: 3-3/4", Shaft Diameter: 1", Shaft Width: 3-1/2"

Jabsco flexible impellers can be fitted to most makes and models of bronze flexible impeller engine cooling, bilge, transfer and general purpose pumps.
Jabsco flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.

Replace all impellers at least once every year, or sooner, depending on the engine duty. When the installation is correct an impeller may last for several years, but it is always advisable to stick to a schedule of preventative, rather than corrective, maintenance.

Replacing impellers is easy. By removing the end cover screws, it is possible to remove the impeller by using either a Jabsco Impeller Removal Tool, or channel lock pliers, to grip the hub of the impeller. Dont use screwdrivers as they may damage the face of the pump body, causing leaks, and they can be dangerous in confined spaces.

Always carry spare impellers on board in case of emergency. The impeller is one of the most vital components of the engine cooling system and should always be treated as such.

Always grease new impellers. Firstly, it makes it easier to install the impeller into the pump bore, and secondly it gives added protection to the impeller during initial prime. After replacing the gasket and end cover the pump is ready to use.

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Jabsco 6760-0003-P impeller kit features a durable 9-blade nitrile impeller designed for reliable performance in a variety of marine and industrial pump systems. This impeller measures approximately 3-3/4 inches in diameter with a 1-inch shaft diameter and a 3-1/2-inch shaft width, making it compatible with most bronze flexible impeller pumps used for engine cooling, bilge, transfer, and general-purpose applications. Crafted from high-quality nitrile material, this impeller offers excellent resistance to wear, chemicals, and temperature variations, ensuring long-lasting operation in demanding environments.
Jabsco flexible impellers are manufactured under stringent quality standards to guarantee efficiency, durability, and consistent performance. Designed with a spline drive, the impeller is easy to install and replace, making routine maintenance straightforward and quick. Proper installation involves greasing the impeller to facilitate insertion into the pump bore and provide initial protection during priming. Regular replacement of impellers—at least once a year or more frequently depending on usage—is essential to maintain optimal cooling system performance and prevent unexpected failures.
Replacing the impeller is a simple process that involves removing the end cover screws and extracting the impeller with the help of a Jabsco Impeller Removal Tool or channel lock pliers. It is recommended to avoid using screwdrivers, which could damage the pump face or pose safety risks in confined spaces. Always carry spare impellers on board as part of your routine maintenance supplies, since the impeller plays a crucial role in the cooling system. After installing the new impeller and reassembling the pump with a new gasket and end cover, the system is ready for operation. Proper maintenance and timely replacement of the impeller will ensure your pump continues to operate efficiently, helping prevent overheating and system failures.
Note that this product may contain chemicals such as lead, which are recognized by California as hazardous. For more safety information, visit P65Warnings.ca.gov.

Features:

• Material: Nitrile for chemical and temperature resistance

• Drive Type: Spline drive for secure attachment and easy replacement

• Number of Blades: 9 blades designed for efficient fluid movement

• Dimensions: Approximately 3-3/4 inches in diameter, 1-inch shaft diameter, 3-1/2-inch shaft width
