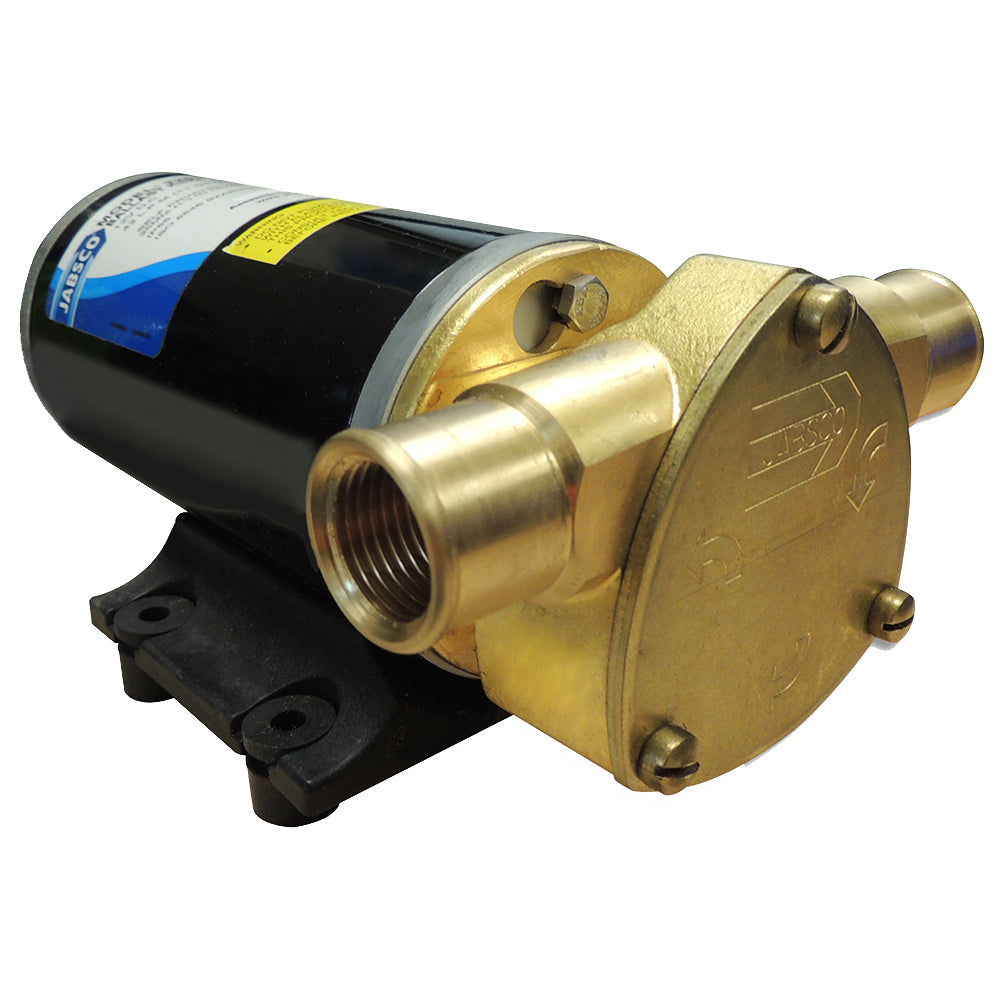

Jabsco Ballast King Bronze DC Pump with Deutsch Connector – 15 GPM Wakeboard and Ski Boat Ballast Pump

Ballast King Bronze DC Pump with Deutsch Connector - No Reversing Switch - 15 GPM

Wakeboard and Ski Boat Ballast Pump

Features:

• Flow rate: 15 US gallons/min (57 Litres/min)
• Self-priming from dry up to 1.2m (4ft)
• Adds approx 125lbs (56kgs) of ballast per minute
• Reversible to both fill and empty tanks
• Simple design means fewer wearing parts
• ISO 8846 MARINE (Ignition protection)

Applications:

The Ballast King is designed to pump water into Wakeboard Liquid Ballast Tanks and when reversed will also pump water out of them. It has a flow rate of 15 gallons per minute, so it can fill most ballast tanks in about five minutes. It is equipped with a Run-Dry Protection Device (patent pending) to automatically shut-off the pump and protect the impeller from run-dry damage should the pump be mistakenly left on after the Ballast Tank is empty.

Specifications:

• Body Materials: Bronze
• Impeller: Jabsco Neoprene compound
• Seal: Lip Type
• Port(s): 1/2" Internal Pipe Threads 1" External Hose Barb
• Voltage: 12 (Vdc)
• Amp Draw: 19 (amp)
• Fuse Size: 25 (amp)
• Motor Type: Equipped with Run-Dry Protection Device (Patent Pending) Permanent Magnet Type Fully Enclosed Stainless Steel Shaft Ball Type Shaft Bearing Reversible
• Duty Cycle: 30 Minutes Max
• Dimensions: 3 5/8 x 8 x 4 3/4 (inches)

The Jabsco Ballast King Bronze DC Pump is a reliable and efficient solution designed specifically for wakeboard and ski boats to manage ballast water with ease. Constructed from durable bronze, this pump offers a flow rate of 15 gallons per minute, allowing most ballast tanks to be filled or emptied within approximately five minutes. Its self-priming capability from dry conditions up to 4 feet ensures consistent performance even when starting from a dry state, making it suitable for various boat configurations. This pump is ideal for adding approximately 125 pounds of ballast per minute, helping optimize boat performance and stability.

Equipped with a reversible function, the Ballast King can both fill and drain ballast tanks without requiring separate pumps. Its simple design features fewer wearing parts, reducing maintenance needs and increasing longevity. The pump also includes a Run-Dry Protection Device (patent pending) that automatically shuts off the motor if the pump operates dry, safeguarding the impeller from potential damage. Its ISO 8846 MARINE certification guarantees ignition protection, making it safe for marine use. The pump's compact dimensions and robust construction make it easy to install in tight spaces while providing dependable operation during water management tasks.

Designed for versatility, the Jabsco Ballast King Bronze Pump features a 1/2
