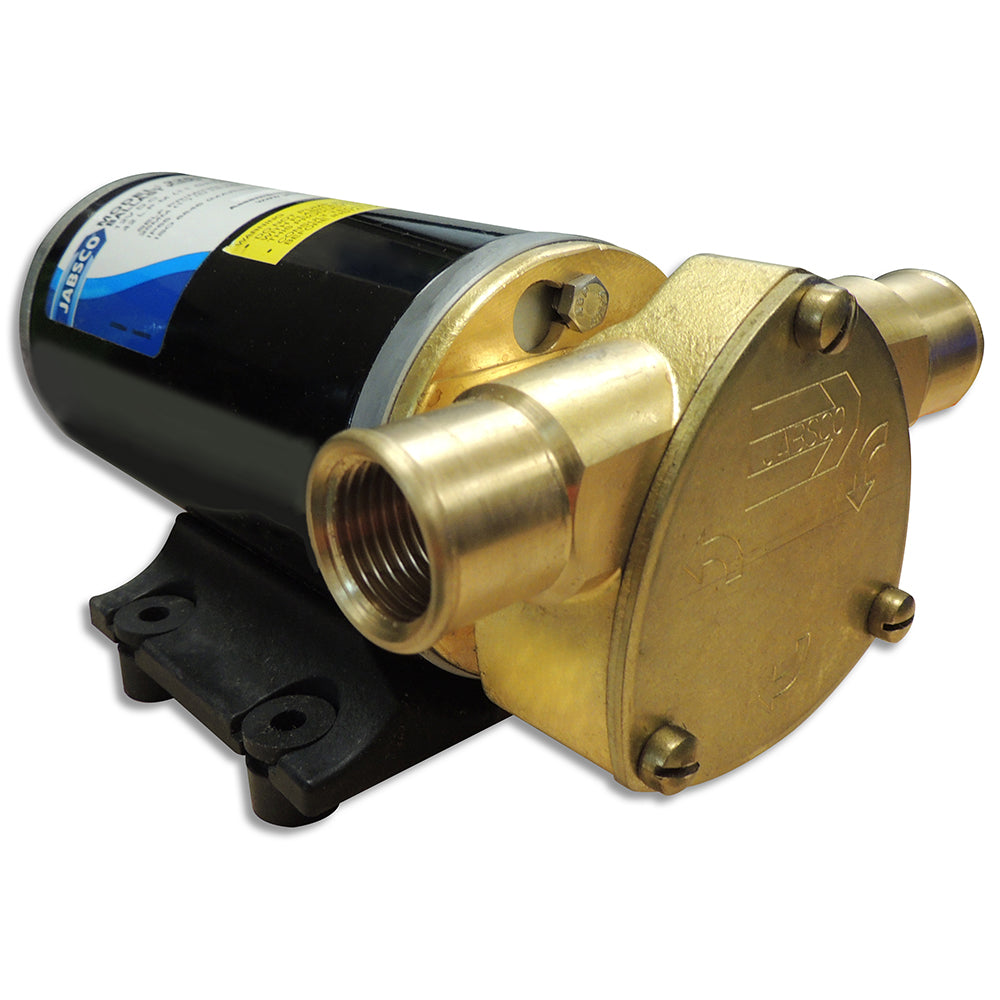

Jabsco Ballast King Bronze DC Pump with Reversing Switch – 15 GPM for Wakeboard and Ski Boats

Ballast King Bronze DC Pump with Reversing Switch - 15 GPM

Wakeboard and Ski Boat Ballast Pump

Features:

• Flow rate: 15 US gallons/min (57 Litres/min)
• Self-priming from dry up to 1.2m (4ft)
• Adds approx 125lbs (56kgs) of ballast per minute
• Reversible to both fill and empty tanks
• Simple design means fewer wearing parts.
• ISO 8846 MARINE (Ignition protection).

Applications:

The Ballast King is designed to pump water into Wakeboard Liquid Ballast Tanks and when reversed will also pump water out of them. It has a flow rate of 15 gallons per minute, so it can fill most ballast tanks in about five minutes. It is equipped with a Run-Dry Protection Device (patent pending) to automatically shut-off the pump and protect the impeller from run-dry damage should the pump be mistakenly left on after the Ballast Tank is empty.

Specifications:

• Body Materials: Bronze
• Impeller: Jabsco Neoprene compound
• Seal: Lip Type
• Port(s): 1/2" Internal Pipe Threads 1" External Hose Barb
• Voltage: 12 (Vdc)
• Amp Draw: 19 (amp)
• Fuse Size: 25 (amp)
• Motor Type: Equipped with Run-Dry Protection Device (Patent Pending) Permanent Magnet Type Fully Enclosed Stainless Steel Shaft Ball Type Shaft Bearing Reversible
• Duty Cycle: 30 Minutes Max
• Dimensions: 3 5/8 x 8 x 4 3/4 (inches)

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Ballast King Bronze DC Pump with Reversing Switch offers a reliable solution for wakeboard and ski boat ballast systems. Designed with a durable bronze body, this pump delivers a flow rate of 15 gallons per minute, allowing most ballast tanks to be filled or emptied in about five minutes. Its self-priming capability from dry conditions up to 4 feet ensures consistent performance even when starting with minimal water. The reversible feature allows quick transition between filling and emptying operations, making it an efficient choice for managing ballast water. Equipped with a patent-pending Run-Dry Protection Device, the pump automatically shuts off if left on after the tank is empty, preventing damage to the impeller and extending its service life. The simple design reduces wear and tear by minimizing moving parts, while the ISO 8846 MARINE certification ensures ignition protection for safe marine operation.
Constructed with high-quality materials, the pump features a Jabsco neoprene impeller and a lip-type seal to withstand harsh marine environments. Its compact dimensions make it easy to install in tight spaces on your vessel. Powered by a 12-volt DC motor with a 19-amp draw, it is suitable for demanding applications with a maximum duty cycle of 30 minutes. The pump includes a 1/2-inch internal pipe thread and a 1-inch external hose barb for versatile connection options. Whether filling or draining ballast tanks, the Jabsco Ballast King Bronze DC Pump provides dependable performance and durability for your boat’s ballast management needs.

Features:

• Flow rate: 15 US gallons per minute (57 liters per minute)

• Self-priming from dry up to 4 feet (1.2 meters)

• Adds approximately 125 pounds (56 kilograms) of ballast per minute

• Reversible operation for filling and emptying tanks

• Simple design with fewer wearing parts for enhanced durability

• ISO 8846 MARINE certification for ignition protection

• Equipped with patent-pending Run-Dry Protection Device to prevent impeller damage

• High-quality bronze body construction for corrosion resistance

• Compact size for easy installation

• Suitable for demanding marine ballast applications
