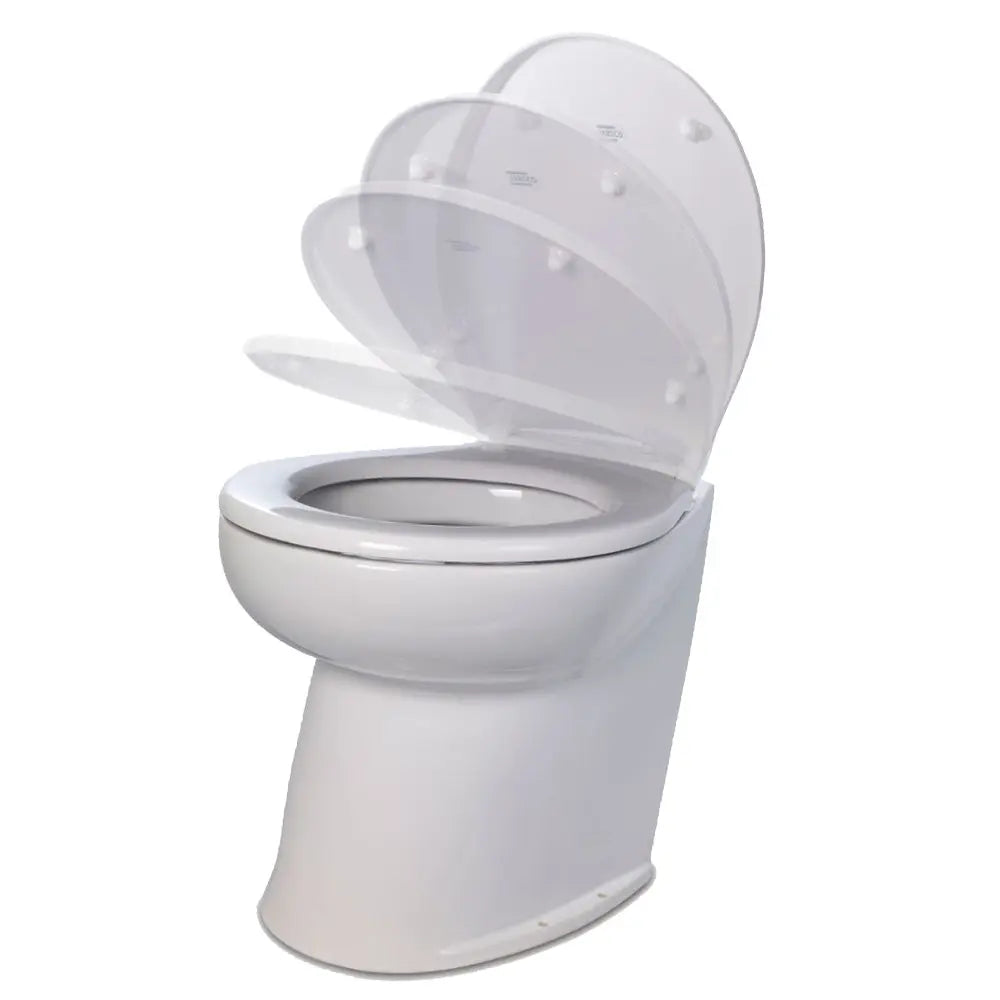

Jabsco Deluxe Flush 14-Inch Angled Back 12V Freshwater Electric Marine Toilet with Soft Close Lid

Deluxe Flush 14" Angled Back 12V Freshwater Electric Marine Toilet with Solenoid Valve Soft Close Lid

You can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.

Features:

• 14" Angled back
• Space-saving stylish design
• Household size soft closing seat
• Virtually silent operation
• Fresh water rinse model
• Powerful non-clogging large bore flush pump macerates waste

Specifications:

• Bowl Size: Domestic
• Lid: Soft close
• Rinse Type: Freshwater
• Rinse Pump/Solenoid Valve: Solenoid valve
• Voltage DC: 12V DC
• Recommended fuse Size (AMP): 25
• Flush control Switch: 4-Button Touch Panel
• Height: (inch) 14.4 / (mm) 366
• Width: (inch) 14.8 / (mm) 375
• Depth: (inch) 17.7" / (mm) 450
• Weight: (LBS) 59.5" / (kg) 27

One-Touch Control Pad:

All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel.

The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet location automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowled always left wet modes.

Control Pad Options:

• Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary
• Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water
• Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water
• Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing

Rinse Options:

• Supplied with a solenoid valve assembly for connection to any existing pressurized water system capable of delivering 2.9 GPM (11 LPM) or more
• The solenoid valve features dual non-return valves to protect the freshwater system from possible black flow from the toilet into the water system

Experience the comfort of home at sea with the Jabsco Deluxe Flush electric marine toilet, designed for those who demand luxury and efficiency aboard their vessel. Featuring a compact 14-inch angled back design, this toilet maximizes space while providing a stylish, modern appearance that blends seamlessly into marine environments. Its household-size soft closing seat offers a gentle, quiet closure, enhancing user comfort and reducing noise levels during operation. Built with minimal water consumption and virtually silent operation, the Deluxe Flush model ensures a discreet and eco-friendly solution for marine sanitation needs. The unit includes a powerful, non-clogging large bore flush pump that macerates waste efficiently, reducing the risk of blockages and maintenance issues. This freshwater rinse model connects seamlessly to existing pressurized water systems capable of delivering at least 2.9 gallons per minute, with a solenoid valve assembly that incorporates dual non-return valves to prevent black flow and protect the freshwater supply. The toilet's intuitive four-button touch control panel allows users to easily choose between fill, quick flush, full flush, or empty functions, with customizable settings to keep the bowl dry or wet after flushing, thereby optimizing water usage. The control pad provides flexibility for different operational preferences and can be customized with a simple long press to switch modes. The unit's dimensions and weight are designed for straightforward installation and maintenance, making it an ideal choice for both new builds and retrofit projects on boats, yachts, or RVs. The included owner’s manual offers detailed instructions for setup and use, ensuring optimal performance and longevity of the toilet system.

Features:

• 14-inch angled back design for space efficiency

• Stylish, space-saving appearance

• Household-size soft close seat for comfort and quiet operation

• Virtually silent operation minimizes noise disturbance

• Freshwater rinse model ensures hygiene and water efficiency

• Powerful, non-clogging large bore flush pump for waste maceration

• Integrated solenoid valve with dual non-return valves for system protection

• Four-button touch control panel with fill, quick flush, full flush, and empty options

• Customizable bowl wet/dry settings to optimize water use

• Easy installation and maintenance with detailed owner’s manual
