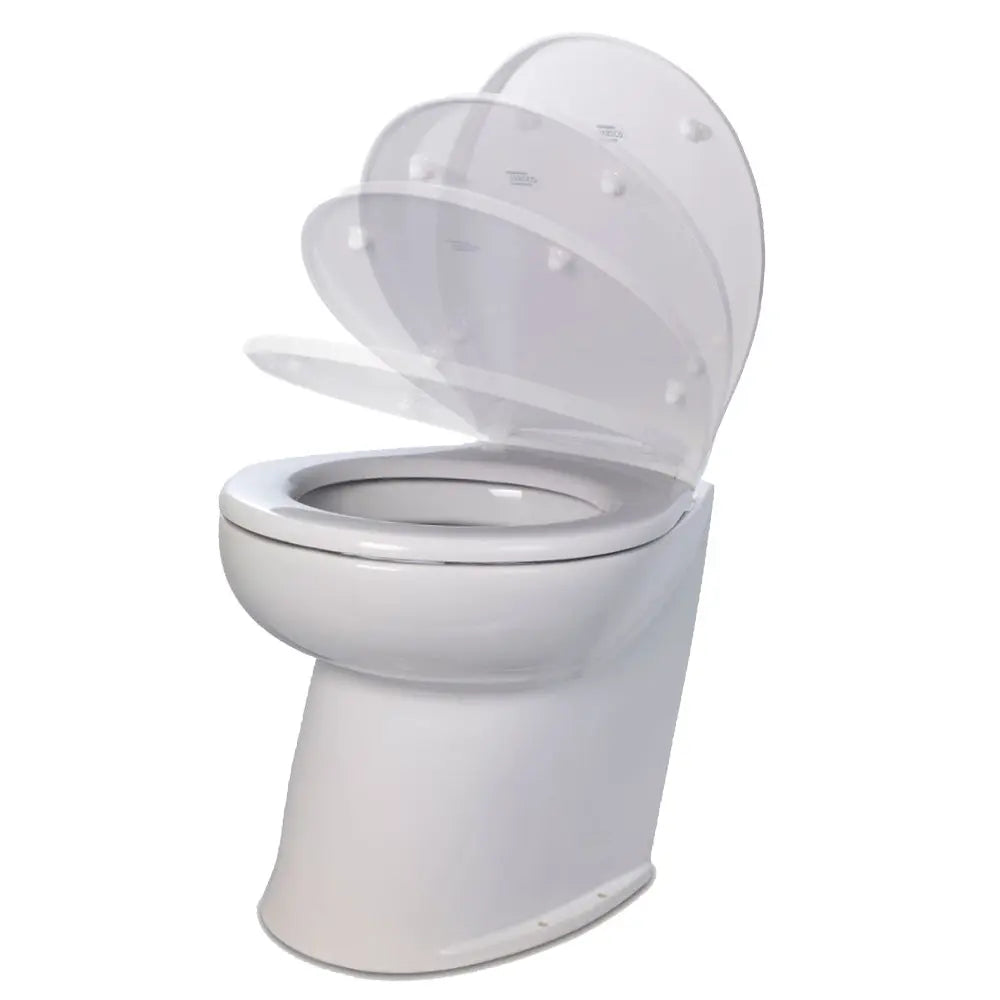

Jabsco Deluxe Flush 14 Inch Angled Back 12V Raw Water Electric Marine Toilet with Remote Rinse Pump and Soft Close Lid

Deluxe Flush 14" Angled Back 12V Raw Water Electric Marine Toilet with Remote Rinse Pump Soft Close Lid

You can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.

Features:

• 14" Angled back
• Space-saving stylish design
• Household size soft closing seat
• Virtually silent operation
• Sea, river, or lake water rinse model
• Powerful non-clogging large bore flush pump macerates waste

Specifications:

• Bowl Size: Domestic
• Lid: Soft close
• Rinse Type: Raw water
• Rinse Pump/Solenoid Valve: Remote Rinse Pump
• Voltage DC: 12V DC
• Recommended fuse Size (AMP): 25
• Flush control Switch: 4-Button Touch Panel
• Height: (inch) 14.4 / (mm) 366
• Width: (inch) 14.8 / (mm) 375
• Depth: (inch) 17.7" / (mm) 450
• Weight: (LBS) 57.3" / (kg) 26

One-Touch Control Pad:

All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel.

The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet setting automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowl always left wet modes.

Control Pad Options:

• Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary
• Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water
• Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water
• Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing

Rinse Options:

• Supplied with a remote-mounted, self-priming pump to bring in sea, river, or lake rinse water
• Complete with a Jabsco Pumpgard strainer

The Jabsco Deluxe Flush 14-inch Angled Back 12V Raw Water Electric Marine Toilet offers a luxurious and space-efficient solution for marine sanitation. Designed for boat owners who prioritize comfort and functionality, this toilet features a sleek, space-saving design with a soft-close lid that mimics household comfort. Its innovative construction ensures minimal water usage while maintaining effective waste management, making it ideal for various water conditions including sea, river, and lake environments. The powerful non-clogging large bore flush pump macerates waste efficiently, ensuring smooth operation even in demanding conditions. The toilet's compact dimensions and modern aesthetic make it suitable for a variety of boat sizes and layouts, providing a seamless blend of style and practicality. The unit is powered by a 12V DC system, supported by a 25-amp fuse, and includes a user-friendly four-button touch control panel. This panel allows you to choose between fill, quick flush, full flush, or empty modes, with the added convenience of setting the bowl to always remain wet or dry, optimizing water usage according to your preferences. The remote-mounted rinse pump supplies fresh or raw water from external sources, enhancing versatility and cleanliness. The included self-priming pump and strainer ensure reliable operation, preventing clogs and maintaining odor control. Overall, the Jabsco Deluxe Flush marine toilet combines advanced features, thoughtful design, and durable construction to elevate your onboard comfort and hygiene standards. Whether you're on a yacht, sailboat, or recreational vessel, this toilet provides the performance and reliability needed for extended marine use, all while maintaining a sleek and modern appearance.

Features:

• 14-inch angled back design for space efficiency

• Space-saving stylish layout suitable for various boat cabins

• Household-sized soft-close seat for comfort and quiet operation

• Virtually silent operation for a peaceful marine environment

• Raw water rinse capability for versatile water source usage

• Powerful, non-clogging large bore flush pump with macerator for efficient waste handling

• Four-button touch control panel for easy operation and mode selection

• Remote-mounted rinse pump with self-priming function and strainer for reliable rinsing

• Adjustable bowl moisture setting to conserve water or enhance cleanliness

• Compact and lightweight construction designed for marine applications
