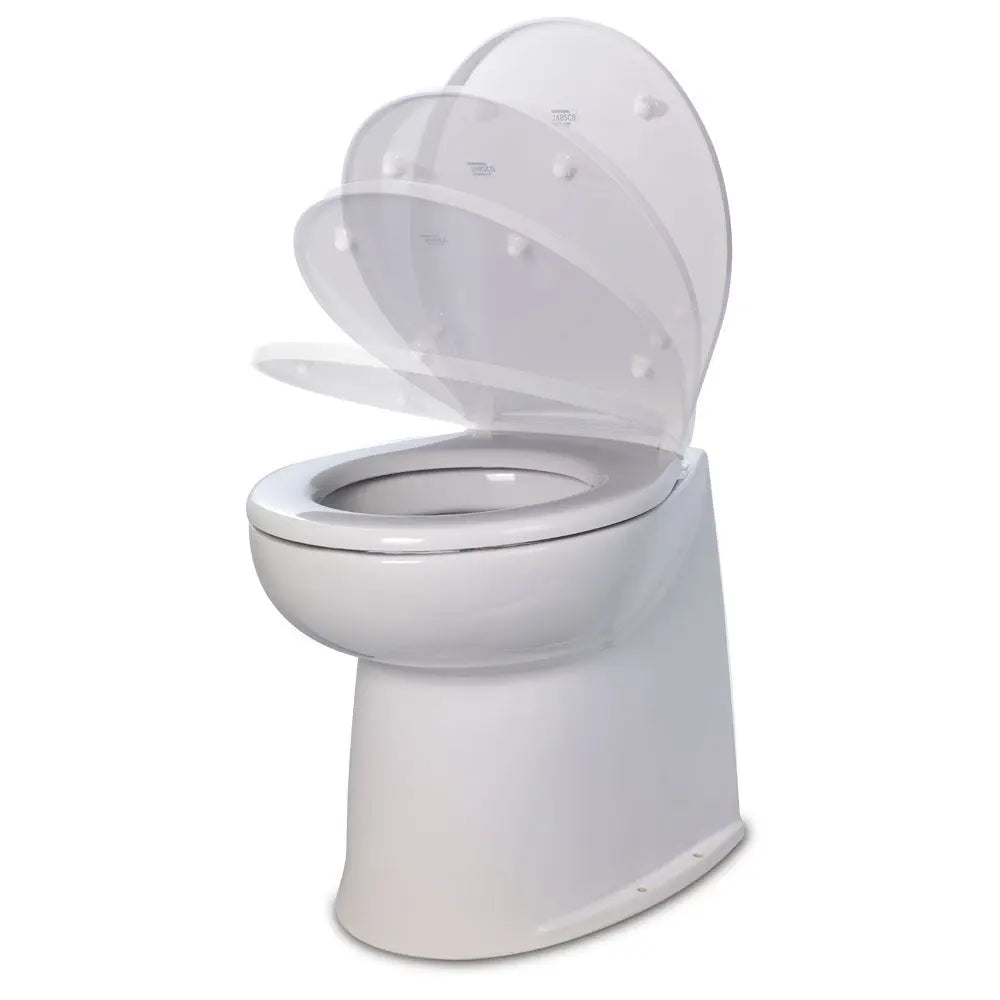

Jabsco Deluxe Flush 14-Inch Straight Back 12V Raw Water Electric Marine Toilet with Remote Rinse Pump and Soft Close Lid

Deluxe Flush 14" Straight Back 12V Raw Water Electric Marine Toilet with Remote Rinse Pump Soft Close Lid

You can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.

Features:

• 14" Straight back
• Space-saving stylish design
• Household size soft closing seat
• Virtually silent operation
• Sea, river, or lake water rinse model
• Powerful non-clogging large bore flush pump macerates waste

Specifications:

• Bowl Size: Domestic
• Lid: Soft close
• Rinse Type: Raw water
• Rinse Pump/Solenoid Valve: Remote Rinse Pump
• Voltage DC: 12V DC
• Recommended fuse Size (AMP): 25
• Flush control Switch: 4-Button Touch Panel
• Height: (inch) 14.4 / (mm) 366
• Width: (inch) 14.8 / (mm) 375
• Depth: (inch) 17.7" / (mm) 450
• Weight: (LBS) 55.1" / (kg) 25

One-Touch Control Pad:

All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel.

The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet setting automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowled always left wet modes.

Control Pad Options:

• Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary
• Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water
• Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water
• Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing

Rinse Options:

• Supplied with a remote-mounted, self-priming pump to bring in sea, river, or lake rinse water
• Complete with a Jabsco Pumpgard strainer

Experience the comfort of a household bathroom aboard your vessel with the Jabsco Deluxe Flush 14-inch electric marine toilet. Designed for the discerning boat owner, this model combines a sleek, space-saving profile with minimal water consumption and near-silent operation. Its 14-inch straight back design allows for easy installation in tight spaces, making it suitable for a variety of marine environments. The soft-close seat adds a touch of luxury, ensuring quiet and gentle lid closure, while the large bowl size provides familiar comfort at sea. Built with durability and efficiency in mind, the toilet features a powerful, large-bore, non-clogging flush pump that macerates waste effectively, reducing blockages and maintenance requirements. The raw water rinse system allows for freshwater or lake, river, or sea water rinsing, enhancing cleanliness and odor control during use.

The control system includes a user-friendly four-button touch panel, offering options such as fill, quick flush, full flush, or empty, giving boaters flexible control over water usage and waste management. The dry setting minimizes water consumption for eco-conscious users, while the wet setting ensures the bowl is always filled for convenience. The ability to switch modes by holding down specific buttons provides added customization. The remote-mounted, self-priming rinse pump, paired with a Jabsco Pumpgard strainer, ensures reliable water intake from natural sources without hassle. This system simplifies maintenance and ensures consistent rinse performance, whether at sea, on rivers, or lakes.

Constructed to operate efficiently on 12V DC power, the toilet is equipped with a 25-amp fuse recommendation for safe operation. It measures approximately 14.4 inches high, 14.8 inches wide, and 17.7 inches deep, with a weight of about 55 pounds, making it suitable for a variety of vessel sizes. The included owners manual provides detailed installation and operation instructions, which can be accessed online. Overall, the Jabsco Deluxe Flush 14" marine toilet offers a blend of comfort, efficiency, and durability, making it an ideal choice for luxury marine facilities seeking high performance and modern features.

Features:

• 14-inch straight back design for easy installation

• Space-saving, stylish profile suitable for tight spaces

• Household-size soft-close lid for quiet operation

• Virtually silent operation minimizes noise

• Raw water rinse system compatible with sea, river, or lake water

• Powerful non-clogging flush pump with waste maceration

• Four-button touch control panel for versatile operation

• Mode switching for water-saving or full rinse convenience

• Remote-mounted, self-priming rinse pump with strainer

• Operates on 12V DC with recommended 25-amp fuse
