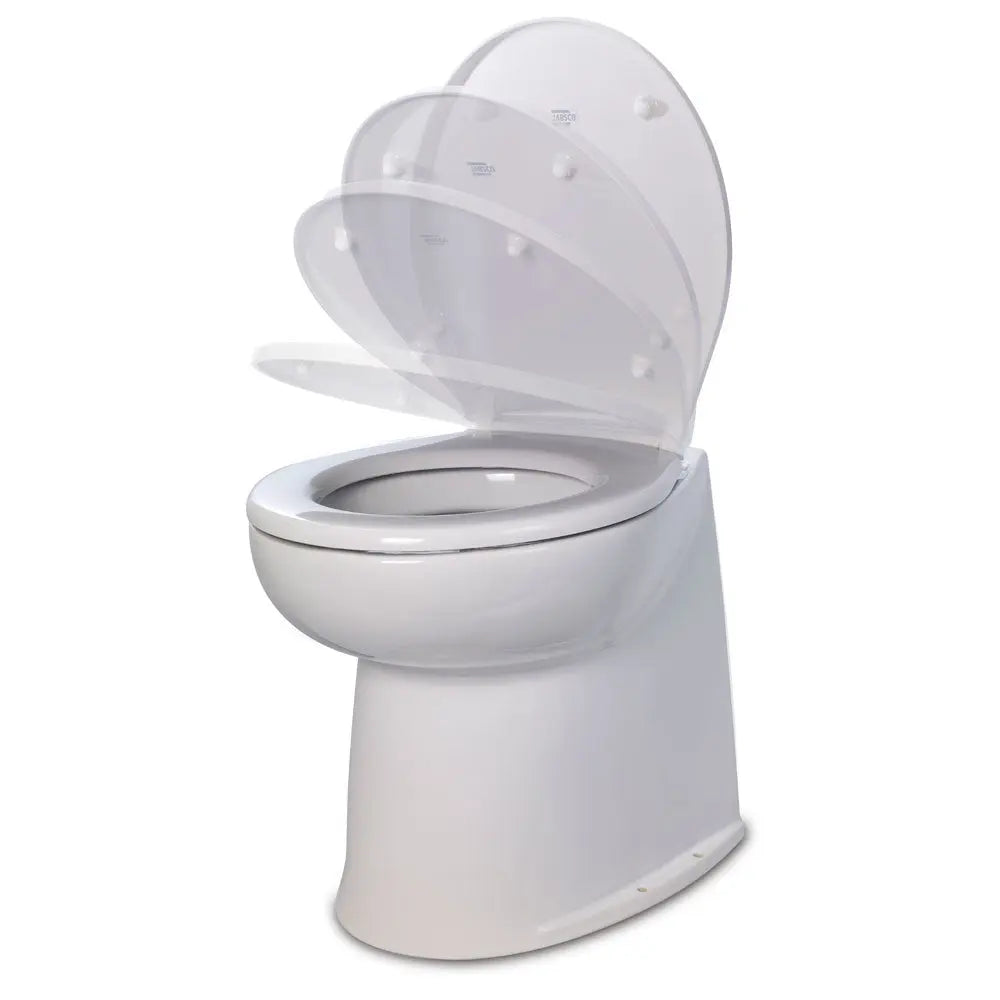

Jabsco Deluxe Flush 14" Straight Back 12V Freshwater Electric Marine Toilet with Soft Close Lid

Deluxe Flush 14" Straight Back 12V Freshwater Electric Marine Toilet with Solenoid Valve Soft Close Lid

You can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.

Features:

• 14" Straight back
• Space-saving stylish design
• Household size soft closing seat
• Virtually silent operation
• Fresh water rinse model
• Powerful non-clogging large bore flush pump macerates waste

Specifications:

• Bowl Size: Domestic
• Lid: Soft close
• Rinse Type: Freshwater
• Rinse Pump/Solenoid Valve: Solenoid valve
• Voltage DC: 12V DC
• Recommended fuse Size (AMP): 25
• Flush control Switch: 4-Button Touch Panel
• Height: (inch) 14.4 / (mm) 366
• Width: (inch) 14.8 / (mm) 375
• Depth: (inch) 17.7" / (mm) 450
• Weight: (LBS) 55.1" / (kg) 25

One-Touch Control Pad:

All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel.

The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet setting automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowled always left wet modes.

Control Pad Options:

• Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary
• Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water
• Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water
• Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing

Rinse Options:

• Supplied with a solenoid valve assembly for connection to any existing pressurized water system capable of delivering 2.9 GPM (11 LPM) or more
• The solenoid valve features dual non-return valves to protect the freshwater system from possible black flow from the toilet into the water system

Experience the comfort of home at sea with the Jabsco Deluxe Flush electric marine toilet. Designed for boat owners seeking luxury and efficiency, this model features a space-saving, stylish design that minimizes water consumption while providing virtually silent operation. Its 14-inch straight back bowl allows for easy installation in tight spaces, making it an ideal choice for marine applications. The household-size soft-close seat adds to the comfort and quiet functionality, ensuring a premium user experience aboard your vessel.
The toilet operates on 12V DC power and includes a powerful, non-clogging large bore flush pump that macerates waste efficiently. The freshwater rinse system ensures cleanliness and hygiene, with a solenoid valve that connects seamlessly to pressurized water sources capable of delivering at least 2.9 GPM. The combination of minimal water use and effective waste management makes this toilet both eco-friendly and reliable. Installation and operation are simplified with the included four-button touch control panel, offering options such as fill, quick flush, full flush, and drain functions. Owners can customize the bowl's residual water state, choosing to leave it dry or wet after each flush, optimizing water conservation or convenience as needed.
The control panel's versatility allows for quick adjustments, including a special mode that toggles between always dry or wet bowls with a long press of the flush buttons. The rinse cycle is designed for efficiency, with the ability to perform a quick rinse or a full wash depending on usage. The system’s dual non-return valves protect the freshwater supply from potential black flow, ensuring safety and hygiene onboard. The unit’s durable construction, combined with a sleek aesthetic, makes it a practical and attractive addition to any marine environment, combining luxury with functionality.
Complete with an owner’s manual available online, the Jabsco Deluxe Flush 14" electric marine toilet is engineered for easy installation and maintenance, providing dependable performance at sea. Its compact size, powerful features, and customizable operation make it an excellent choice for boat owners who demand quality and convenience in marine sanitation systems.

Features:

• 14-inch straight back bowl for easy installation in tight spaces

• Space-saving stylish design with minimal water usage

• Household-size soft-close seat for comfort and quiet operation

• Virtually silent operation ensures a peaceful environment

• Freshwater rinse system for enhanced hygiene

• Powerful, non-clogging large bore flush pump for efficient waste maceration

• Includes a four-button touch control panel for multiple flushing options

• Customizable residual water setting to optimize water conservation

• Solenoid valve connects to pressurized water sources capable of delivering 2.9 GPM or more

• Dual non-return valves protect freshwater systems from black flow
