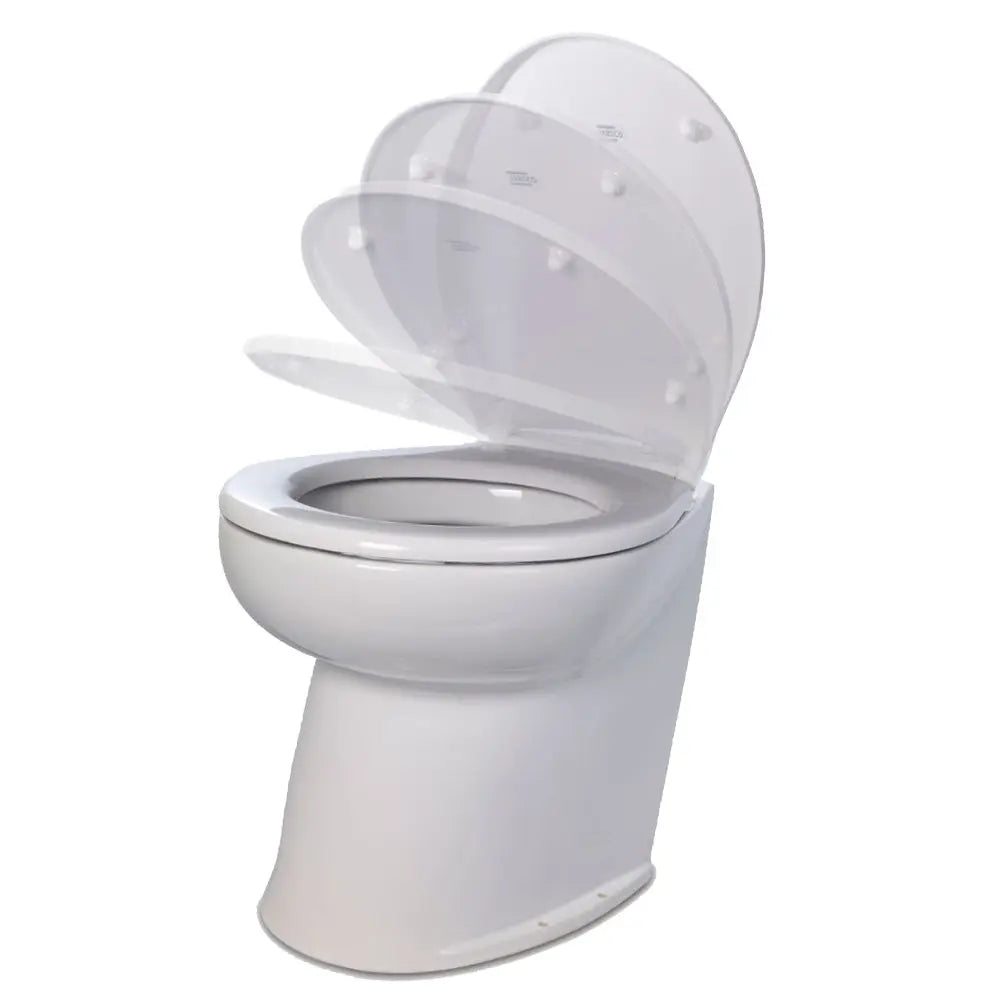

Jabsco Deluxe Flush 17-Inch Angled Back 12V Freshwater Electric Marine Toilet with Solenoid Valve and Soft Close Lid

Deluxe Flush 17" Angled Back 12V Freshwater Electric Marine Toilet with Solenoid Valve Soft Close Lid

You can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.

Features:

• 17" Angled back
• Space-saving stylish design
• Household size soft closing seat
• Virtually silent operation
• Fresh water rinse model
• Powerful non-clogging large bore flush pump macerates waste

Specifications:

• Bowl Size: Domestic
• Lid: Soft close
• Rinse Type: Freshwater
• Rinse Pump/Solenoid Valve: Solenoid valve
• Voltage DC: 12V DC
• Recommended fuse Size (AMP): 25
• Flush control Switch: 4-Button Touch Panel
• Height: (inch) 17.5 / (mm) 445
• Width: (inch) 14.8 / (mm) 375
• Depth: (inch) 17.7" / (mm) 450
• Weight: (LBS) 61.7" / (kg) 28

One-Touch Control Pad:

All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel.

The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet location automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowled always left wet modes.

Control Pad Options:

• Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary
• Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water
• Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water
• Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing

Rinse Options:

• Supplied with a solenoid valve assembly for connection to any existing pressurized water system capable of delivering 2.9 GPM (11 LPM) or more
• The solenoid valve features dual non-return valves to protect the freshwater system from possible black flow from the toilet into the water system

Experience the comfort of a home bathroom at sea with the Jabsco Deluxe Flush 17-Inch Angled Back Marine Toilet. Designed for discerning boat owners, this electric marine toilet combines a space-saving, stylish profile with advanced features that ensure minimal water consumption and near-silent operation. Its 17-inch angled back design allows for easy installation in tight spaces, making it an excellent choice for retrofit or new marine applications. The household-sized soft-close seat adds a touch of luxury, providing quiet, gentle closure that prevents slamming and enhances onboard comfort.

This model is equipped with a powerful, large-bore non-clogging flush pump that macerates waste efficiently, ensuring reliable operation even in demanding conditions. The freshwater rinse feature reduces the need for excessive water usage while maintaining hygiene standards. The integrated solenoid valve connects seamlessly to pressurized water systems capable of delivering at least 2.9 gallons per minute, with dual non-return valves protecting your freshwater system from potential backflow. The unit’s compact dimensions and lightweight design make it suitable for various marine environments without sacrificing performance.

Control of the Jabsco Deluxe Flush is intuitive, thanks to the included four-button touch panel. This multi-function control pad offers options for fill, quick flush, full flush, or emptying the bowl, allowing customization based on usage and water conservation preferences. The control system also features a mode to keep the bowl either dry or wet after flushing, with a quick 5-second hold to switch between modes. The fill function enables adding water before use, while the flush options are designed to optimize water efficiency—using as little as one quart or 2.5 quarts of water depending on the selected mode. The unit's silent operation and efficient water use make it ideal for long voyages and daily use aboard.

For detailed installation and operation instructions, the owner's manual is available online. The Jabsco Deluxe Flush 17-Inch Angled Back Marine Toilet combines practical design with advanced features, ensuring a comfortable, hygienic, and efficient marine sanitation solution for your vessel.

Features:

• 17-inch angled back design allows for easy installation in tight spaces

• Space-saving and stylish profile complements modern marine interiors

• Household-sized soft-close seat provides quiet, gentle closure

• Virtually silent operation for onboard comfort

• Freshwater rinse model ensures hygiene with minimal water use

• Powerful, non-clogging large bore flush pump macerates waste efficiently

• Includes multi-function four-button touch control panel for easy operation

• Control panel offers options for fill, quick flush, full flush, and empty

• Selectable bowl wet or dry modes to optimize water consumption

• Connects to pressurized water systems of 2.9 GPM or higher with dual non-return valves for protection
