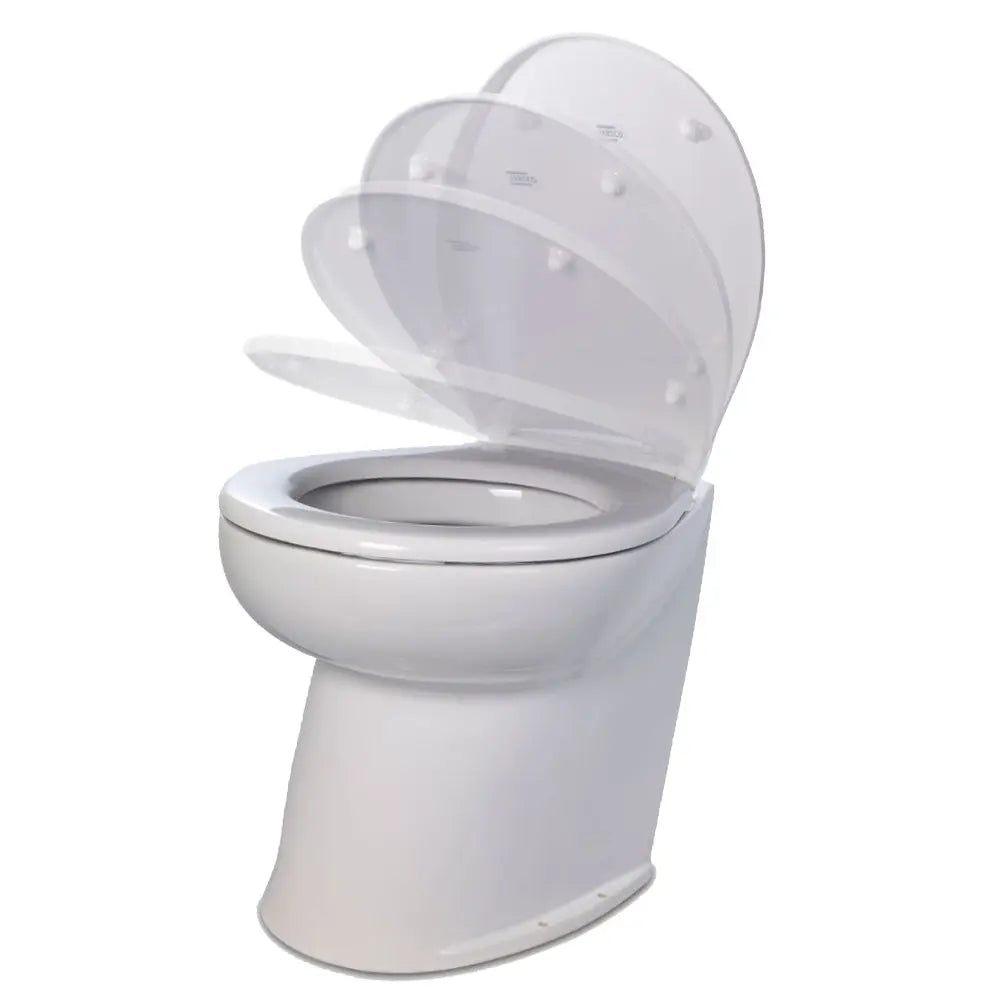

Jabsco Deluxe Flush 17-inch Angled Back 12V Raw Water Electric Marine Toilet with Remote Rinse Pump and Soft Close Lid

Deluxe Flush 17" Angled Back 12V Raw Water Electric Marine Toilet with Remote Rinse Pump Soft Close Lid

You can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.

Features:

• 17" Angled back
• Space-saving stylish design
• Household size soft closing seat
• Virtually silent operation
• Sea, river, or lake water rinse model
• Powerful non-clogging large bore flush pump macerates waste

Specifications:

• Bowl Size: Domestic
• Lid: Soft close
• Rinse Type: Raw water
• Rinse Pump/Solenoid Valve: Remote Rinse Pump
• Voltage DC: 12V DC
• Recommended fuse Size (AMP): 25
• Flush control Switch: 4-Button Touch Panel
• Height: (inch) 17.5 / (mm) 445
• Width: (inch) 14.8 / (mm) 375
• Depth: (inch) 17.7" / (mm) 450
• Weight: (LBS) 66.1" / (kg) 30

One-Touch Control Pad:

All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel.

The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet setting automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowl always left wet modes.

Control Pad Options:

• Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary
• Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water
• Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water
• Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing

Rinse Options:

• Supplied with a remote-mounted, self-priming pump to bring in sea, river, or lake rinse water
• Complete with a Jabsco Pumpgard strainer

The Jabsco Deluxe Flush 17-inch Angled Back 12V Raw Water Electric Marine Toilet offers a luxurious and space-efficient solution for marine sanitation. Its sleek, modern design combines comfort with practicality, making it ideal for boat owners who seek the convenience of home-style amenities at sea. The toilet features a 17-inch angled back, allowing for easy installation in tight spaces without compromising on style or function. Its household-sized soft close lid provides quiet operation and added comfort, ensuring a premium user experience during every use.

Designed for durability and efficiency, this marine toilet utilizes a powerful, non-clogging large bore flush pump that macerates waste effectively. The raw water rinse system allows for versatile water sources, whether from the sea, river, or lake, making it suitable for various aquatic environments. The unit operates on 12V DC power, with a recommended fuse size of 25 amps, ensuring reliable performance aboard your vessel. The compact dimensions and lightweight design make installation straightforward, while the overall construction emphasizes longevity and ease of maintenance.

Included with the toilet is a multi-function, one-touch control pad featuring four operational options: fill, quick flush, full flush, and empty. The control pad allows customization, enabling users to select whether the bowl remains dry or wet after flushing, optimizing water use based on personal preference or conservation needs. The quick flush option rinses and empties the bowl with minimal water, ideal for light use, while the full flush handles heavier waste loads efficiently. The empty function provides a waterless flush at any time, offering convenience and odor control. Additionally, holding down specific buttons for five seconds switches between dry and wet bowl modes, providing further flexibility.

The rinse system includes a remote-mounted, self-priming pump with a Jabsco Pumpgard strainer, ensuring reliable intake of seawater or freshwater for rinsing. This setup guarantees a hygienic and odor-free environment, essential for onboard comfort. The unit's thoughtful design and advanced features make it a top choice for boat owners who desire a combination of luxury, efficiency, and ease of use in their marine sanitation system.

Features:

• 17-inch angled back design for easy installation in confined spaces

• Space-saving, stylish profile suitable for modern marine interiors

• Household-sized soft close lid for quiet and comfortable operation

• Virtually silent operation for a refined onboard experience

• Raw water rinse option compatible with sea, river, or lake water

• Powerful non-clogging flush pump with macerator for efficient waste processing

• Multi-function one-touch control pad with four operation modes

• Adjustable bowl moisture setting for water conservation or convenience

• Remote-mounted, self-priming rinse pump with strainer for reliable water intake

• Compact, lightweight construction for straightforward installation
