Jabsco HotShot 3 Washdown Pump - 12V, 3 GPM, 50 PSI for Reliable Marine and RV Cleaning

HotShot 3 Washdown Pump - 12V - 3 GPM - 50 PSI

Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.

Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet

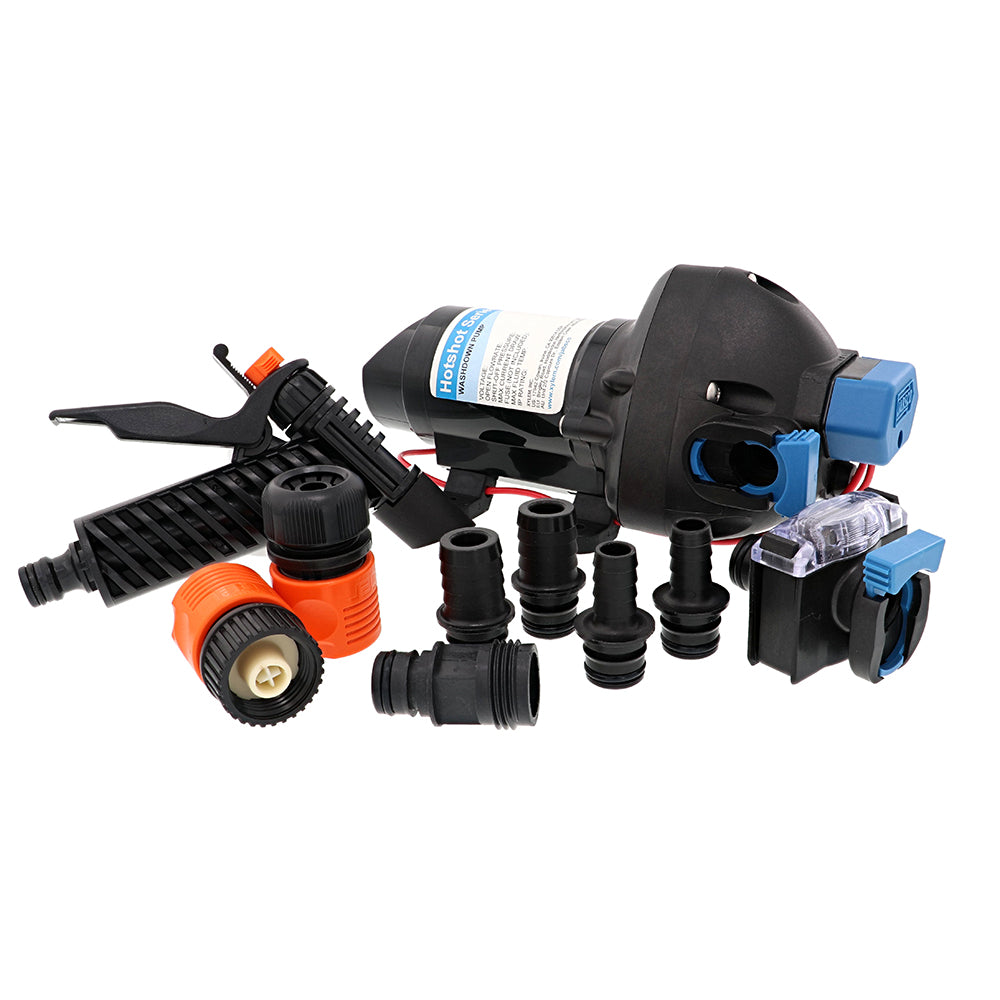

• Full kit versions available which include 25' (7.6m) hose coil

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.1m min)
• Certifications: CE, ISO8846, RCM
• Ingress protection: IPX6

Fittings Accessories:

• Quick Connect straight hosebarb and GHT fittings. Size varies by model.
• Inline 40 mesh Quick Connect strainer
• Trigger nozzle Quick Connect hose adapters
• No kit versions with hose offered

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco HotShot 3 Washdown Pump (Part Number: 32305-5012-3A) offers dependable high-flow and high-pressure performance ideal for marine, RV, and industrial applications. Designed with durability and efficiency in mind, this 12V diaphragm pump delivers up to 3 gallons per minute at a maximum of 50 PSI, providing powerful cleaning capabilities. Its robust construction features a glass fiber reinforced polypropylene pump head and co-molded TPV diaphragm for long-lasting operation. The integrated, sealed pressure switch allows on-demand activation, reducing unnecessary power consumption and wear. This self-priming pump can operate dry without damage, offering installation flexibility across various setups.

Heavy-duty (HD) models incorporate a wider diameter motor with a powder-coated shell, cast aluminum endbells, and a lower housing, significantly enhancing pressure capability and lifespan under demanding conditions. Standard models maintain excellent performance in a more economical package, with a corrosion-resistant plastic housing to protect vital components. The pump's quiet operation and vibration dampening mounting feet contribute to a more comfortable and secure installation. Quick connect ports facilitate easy installation, servicing, and maintenance, while optional full kits include a 25-foot hose coil for immediate setup. Suitable for applications requiring high durability and consistent performance, the HotShot 3 Pump is a reliable choice for demanding washdown tasks.

Additional features include efficient check valves made from EPDM, a maximum inlet pressure of 30 PSI, and compatibility with fluid temperatures ranging from 32°F to 140°F. Certifications such as CE, ISO8846, and RCM ensure compliance with international standards. The pump's ingress protection rating of IPX6 makes it suitable for wet environments. Accessories like quick connect hose fittings, inline strainers, and trigger nozzles are available to customize your setup. Please note that this product contains chemicals such as Antimony Trioxide, which is recognized by the State of California to cause cancer; further information is available at P65Warnings.ca.gov.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty models feature cast aluminum lower housings and high-capacity motors for extended lifespan at high pressures

• Efficient and quiet operation for comfortable use

• Integrated, sealed pressure switch for on-demand operation

• Self-priming design allows installation versatility and dry operation without damage

• Quick connect ports for easy installation, servicing, and maintenance

• Vibration dampening mounting feet to reduce noise and movement

• Full kit options include a 25-foot hose coil for immediate use
