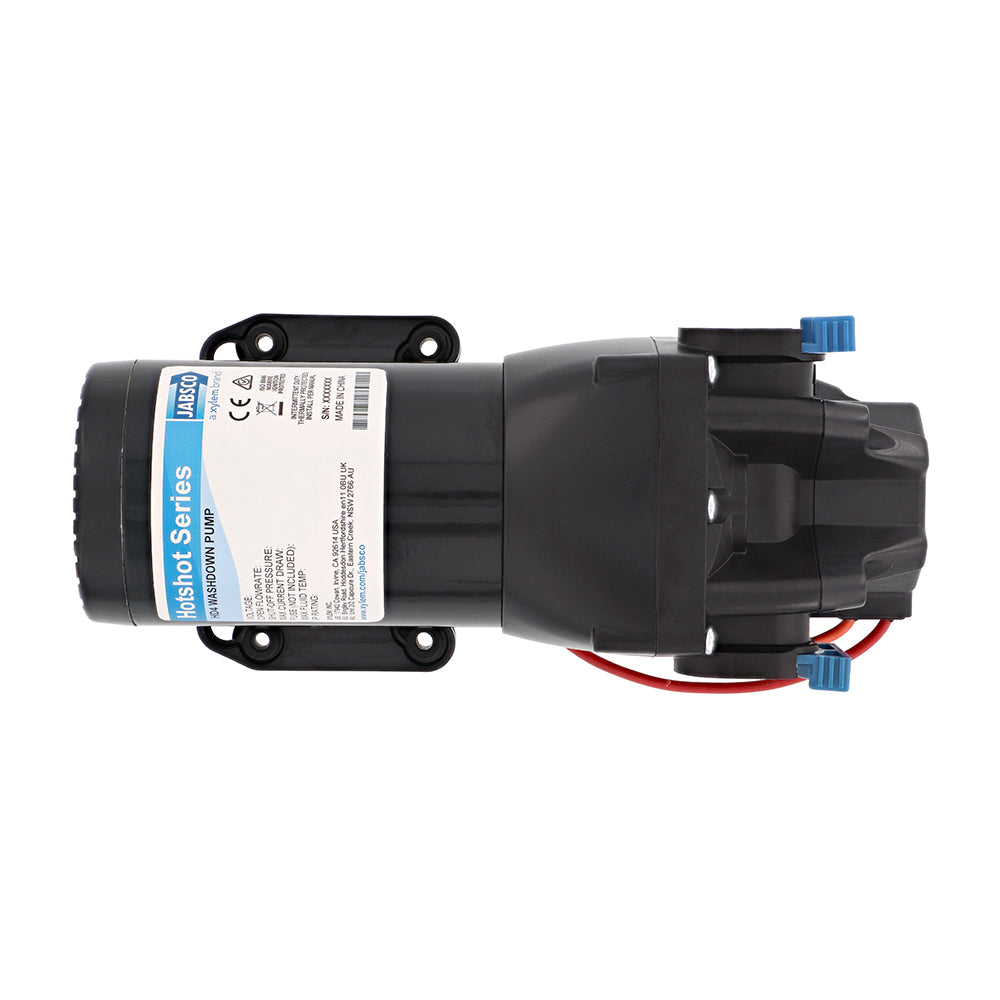

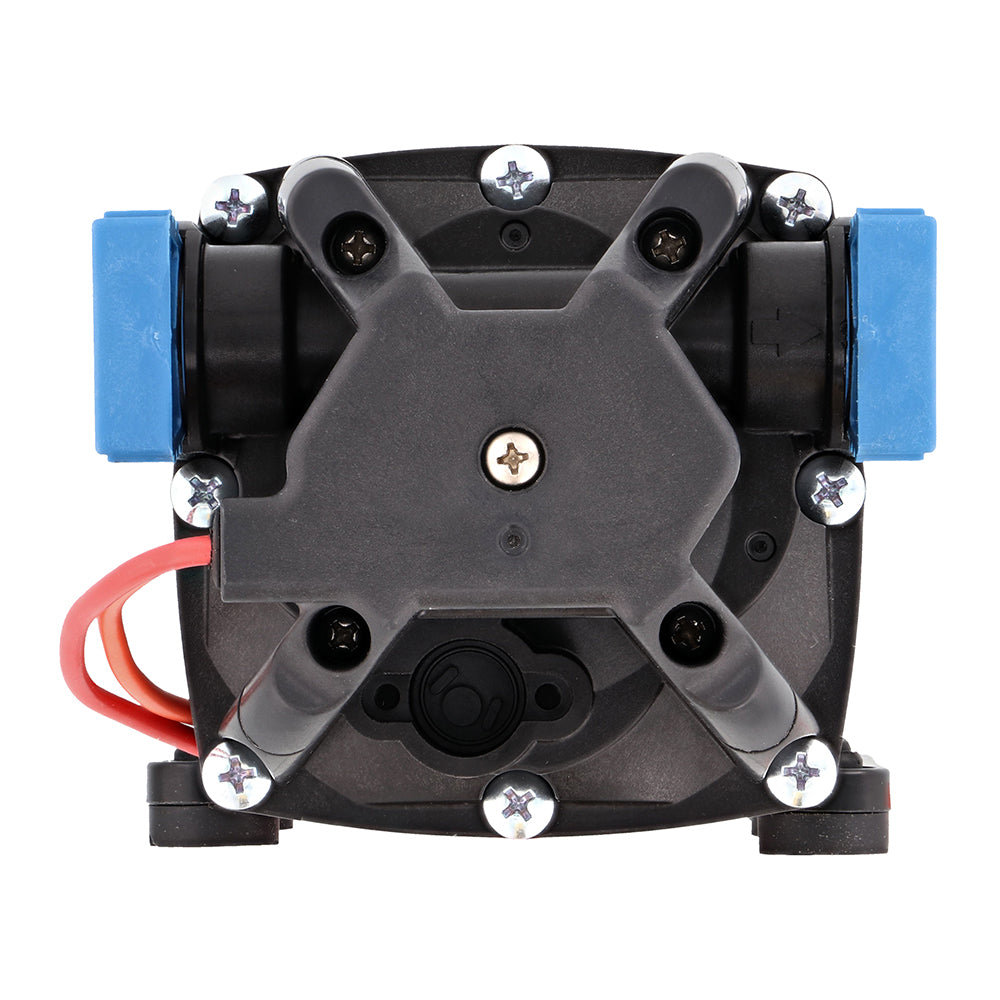

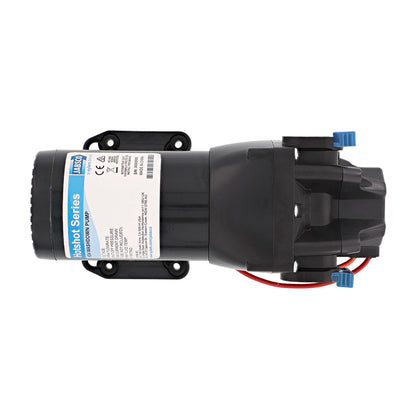

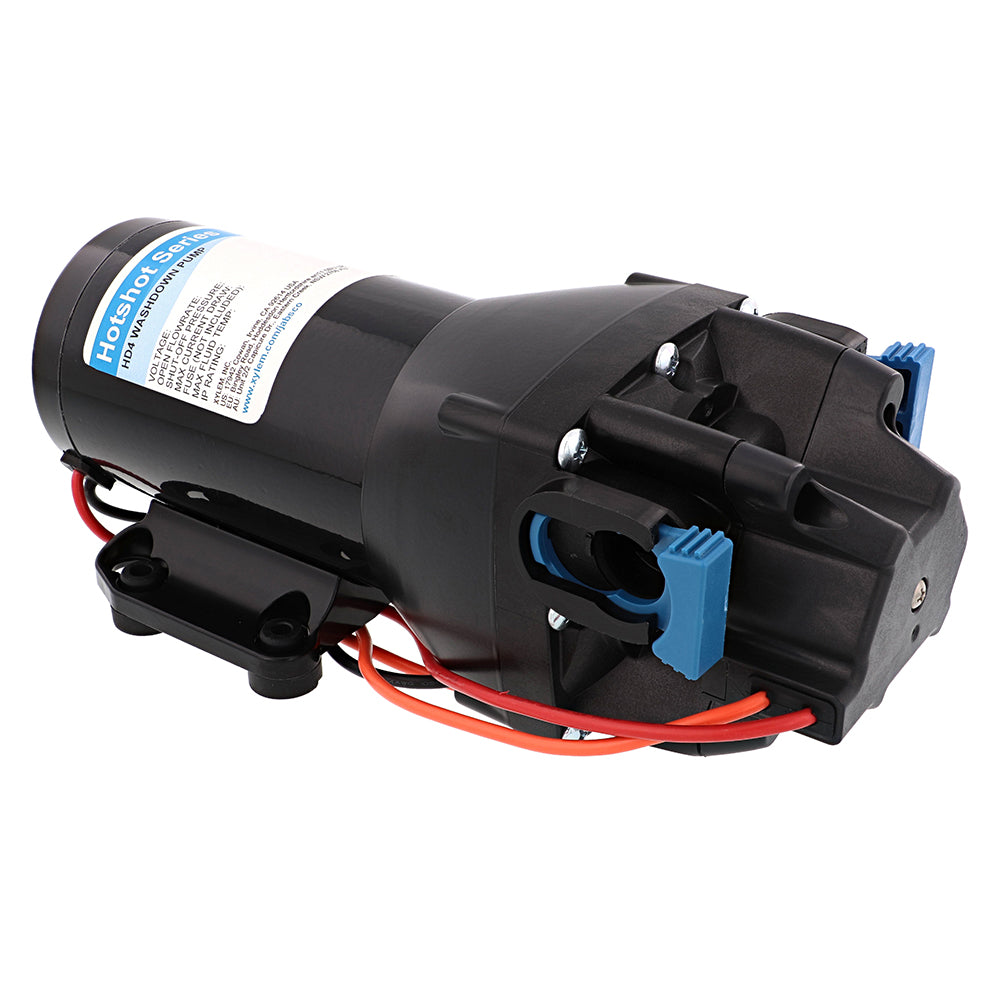

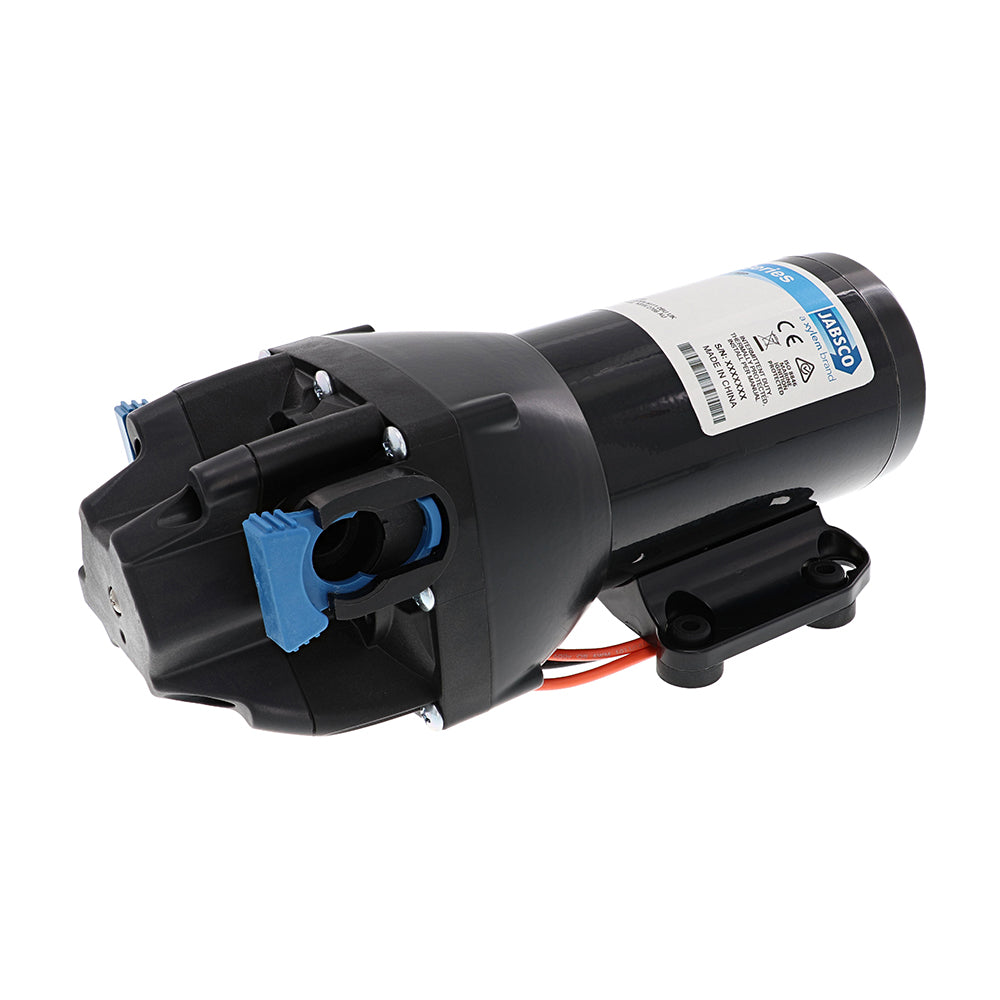

Jabsco HotShot HD4 Heavy Duty Washdown Pump with 25' HoseCoil - 12V, 4 GPM, 60 PSI

HotShot HD4 Heavy Duty Washdown Pump with 25' HoseCoil - 12V - 4 GPM - 60 PSI

Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.

Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Full kit versions available which include 25' (7.6m) hose coil

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.1m min)
• Certifications: CE, ISO8846, RCM
• Ingress protection: IPX6

Fittings Accessories:

• Quick Connect straight hosebarb and GHT fittings. Size varies by model.
• 90 20 mesh Quick Connect straine
• Trigger nozzle Quick Connect hose adapters

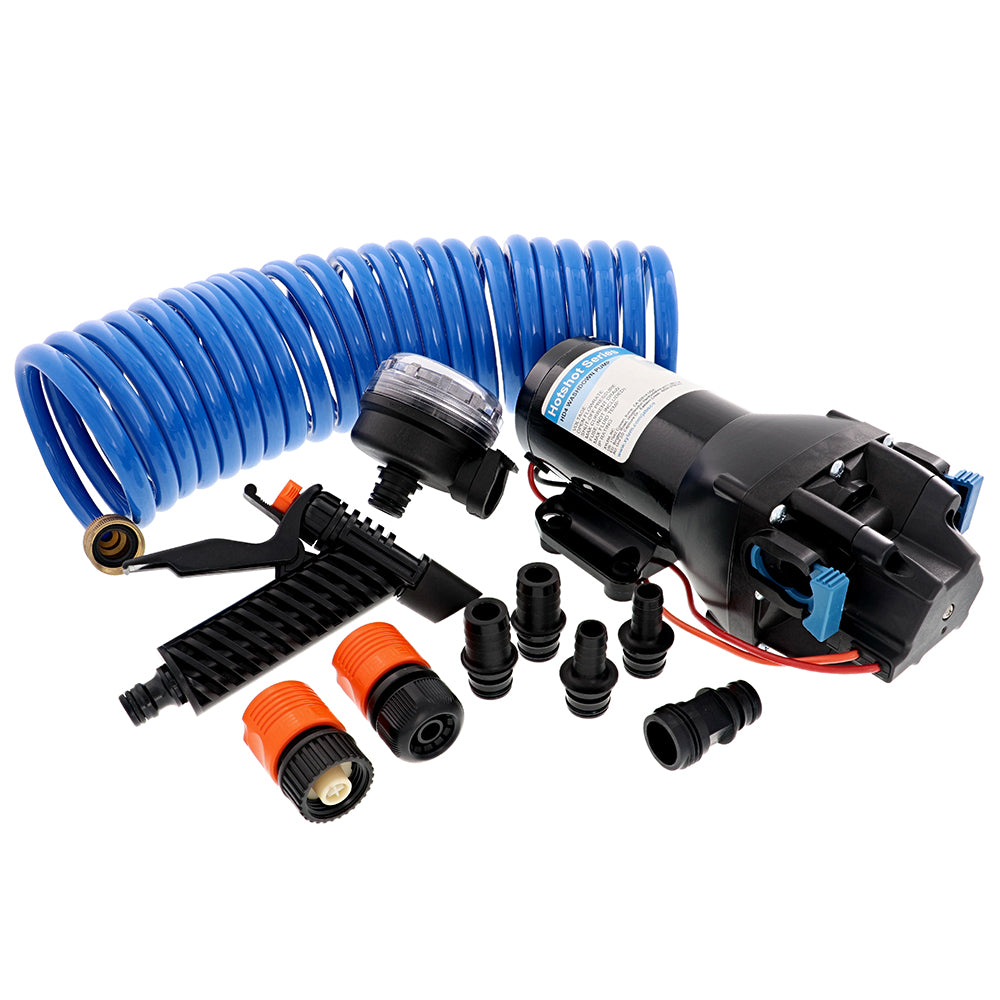

• Kit version includes 25' HoseCoil

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco HotShot HD4 Heavy Duty Washdown Pump offers reliable performance for demanding cleaning tasks on boats, trucks, and industrial applications. Powered by a durable 12V motor, this pump delivers a flow rate of 4 gallons per minute at 60 PSI, ensuring efficient and thorough cleaning. Its robust construction features a wider diameter motor with a powder-coated shell, cast aluminum endbells, and a cast aluminum lower housing, which collectively enhance pressure capabilities and extend service life. The pump's housing is made from glass fiber reinforced polypropylene with a co-molded TPV diaphragm for long-lasting durability and resistance to wear. An integrated, sealed pressure switch enables on-demand operation, while the self-priming feature allows flexible installation options and easy setup. The design permits dry operation without damage, and quick connect ports facilitate hassle-free installation and maintenance. Vibration dampening mounting feet contribute to quiet operation, making this pump suitable for various environments. The complete kit includes a 25-foot hose coil, providing everything needed for immediate use. This model is CE, ISO8846, and RCM certified, with an ingress protection rating of IPX6, ensuring dependable performance in challenging conditions. The pump is compatible with quick connect fittings, strainers, and trigger nozzles, making it versatile for different cleaning needs. Whether for heavy-duty washdowns or routine rinsing, the Jabsco HotShot HD4 offers a combination of power, durability, and ease of use for professional and recreational applications alike.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motors and cast aluminum lower housings for high-pressure performance

• Efficient and quiet operation

• Integrated, sealed pressure switch for on-demand activation

• Self-priming capability for installation flexibility

• Can run dry without damage

• Quick connect ports for easy installation and servicing

• Vibration dampening mounting feet for stable operation

• Includes 25-foot hose coil for immediate use in kit versions
