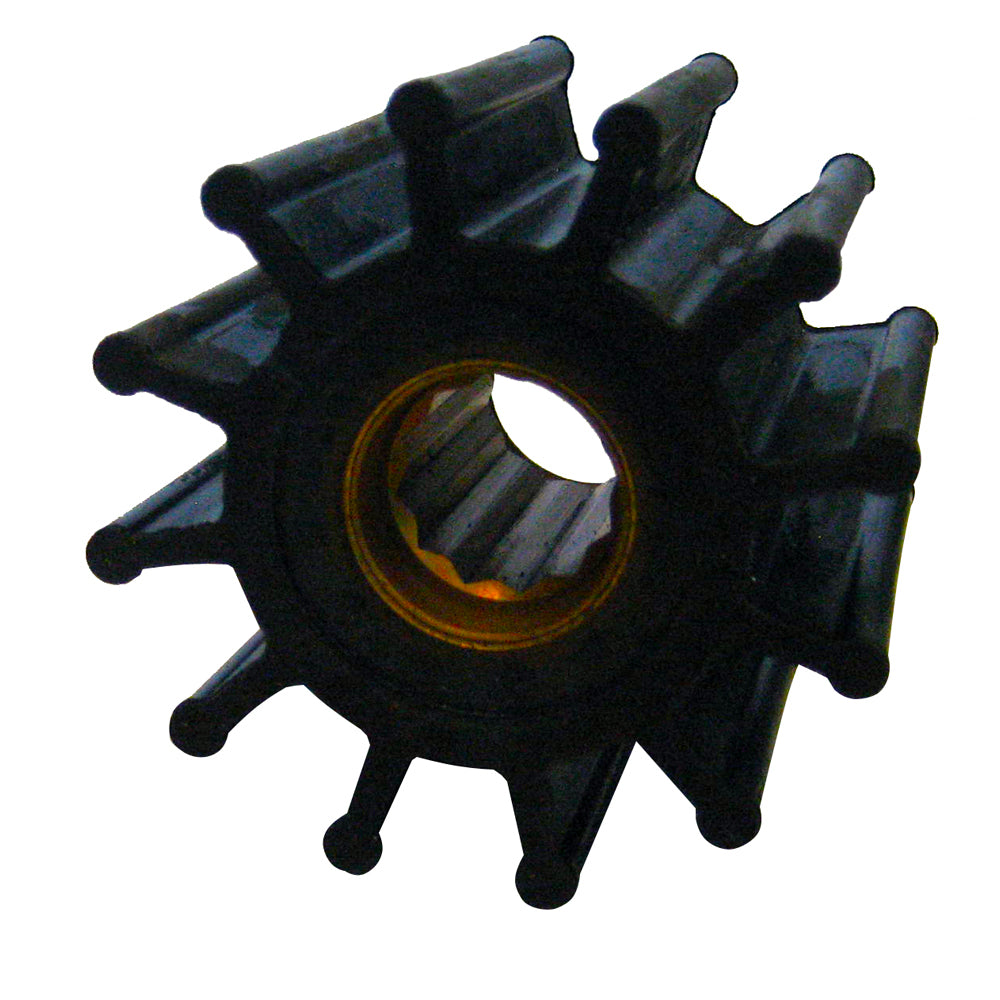

Jabsco Impeller Kit - 12 Blade Neoprene for Marine and Utility Pumps Part 13554-0001-P

• Diameter:2-1/4"

• Shaft Width:5/8"

• Shaft Diameter:1-29/32"
  Insert Material:Brass


  Jabsco flexible impellers can be fitted to most makes and models of bronze flexible impeller engine cooling, bilge, transfer and general purpose pumps.
  Jabsco flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.

  Replace all impellers at least once every year, or sooner, depending on the engine duty. When the installation is correct an impeller may last for several years, but it is always advisable to stick to a schedule of preventative, rather than corrective, maintenance.

  Replacing impellers is easy. By removing the end cover screws, it is possible to remove the impeller by using either a Jabsco Impeller Removal Tool, or channel lock pliers, to grip the hub of the impeller. Dont use screwdrivers as they may damage the face of the pump body, causing leaks, and they can be dangerous in confined spaces.

  Always carry spare impellers on board in case of emergency. The impeller is one of the most vital components of the engine cooling system and should always be treated as such.

  Always grease new impellers. Firstly, it makes it easier to install the impeller into the pump bore, and secondly it gives added protection to the impeller during initial prime. After replacing the gasket and end cover the pump is ready to use.

  WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Jabsco Impeller Kit, Part Number 13554-0001-P, features a durable neoprene construction designed for reliable performance in a variety of engine cooling, bilge, transfer, and general-purpose pumps. With a 12-blade design and spline drive type, this impeller provides efficient fluid movement essential for maintaining optimal engine temperatures and preventing overheating. Its robust build ensures longevity and consistent operation when properly maintained, making it suitable for most makes and models of bronze flexible impeller pumps.

Constructed with a 2-1/4 inch diameter and a 5/8 inch shaft width, the impeller's brass insert enhances durability and secure fitment. The shaft diameter measures approximately 1-29/32 inches, ensuring compatibility with your pump assembly. Regular replacement—at least once annually—is recommended to sustain peak performance and avoid potential damage caused by wear or debris. Proper installation involves removing end cover screws and using a removal tool or pliers to grip and extract the impeller hub, avoiding damage from screwdrivers. Applying grease to the new impeller facilitates installation and provides initial protection during priming.

Always keep spare impellers on hand as part of routine maintenance, given their critical role in engine cooling systems. A well-maintained impeller supports efficient engine operation and prolongs pump life. When installing the new impeller, ensure it is properly greased to ease assembly and help it withstand initial operational stresses. After replacing the gasket and end cover, the pump is ready for use, ensuring continuous cooling and system integrity.

Note: This product may contain chemicals such as lead, which are recognized by California's Proposition 65 as potential health hazards. For more information, visit P65Warnings.ca.gov. Proper handling and replacement procedures are essential to maintain safety and equipment performance.

Features:

• Material: Neoprene for durability and flexibility

• Drive Type: Spline drive for secure fitment

• Number of Blades: 12 for efficient fluid transfer

• Diameter: 2-1/4 inch for compatibility with various pumps

• Shaft Width: 5/8 inch ensures proper alignment

• Insert Material: Brass for added strength and corrosion resistance

• Easy to replace with standard tools, recommended annual maintenance

• Suitable for most bronze flexible impeller pumps

• Includes necessary components for quick installation and reliable operation
