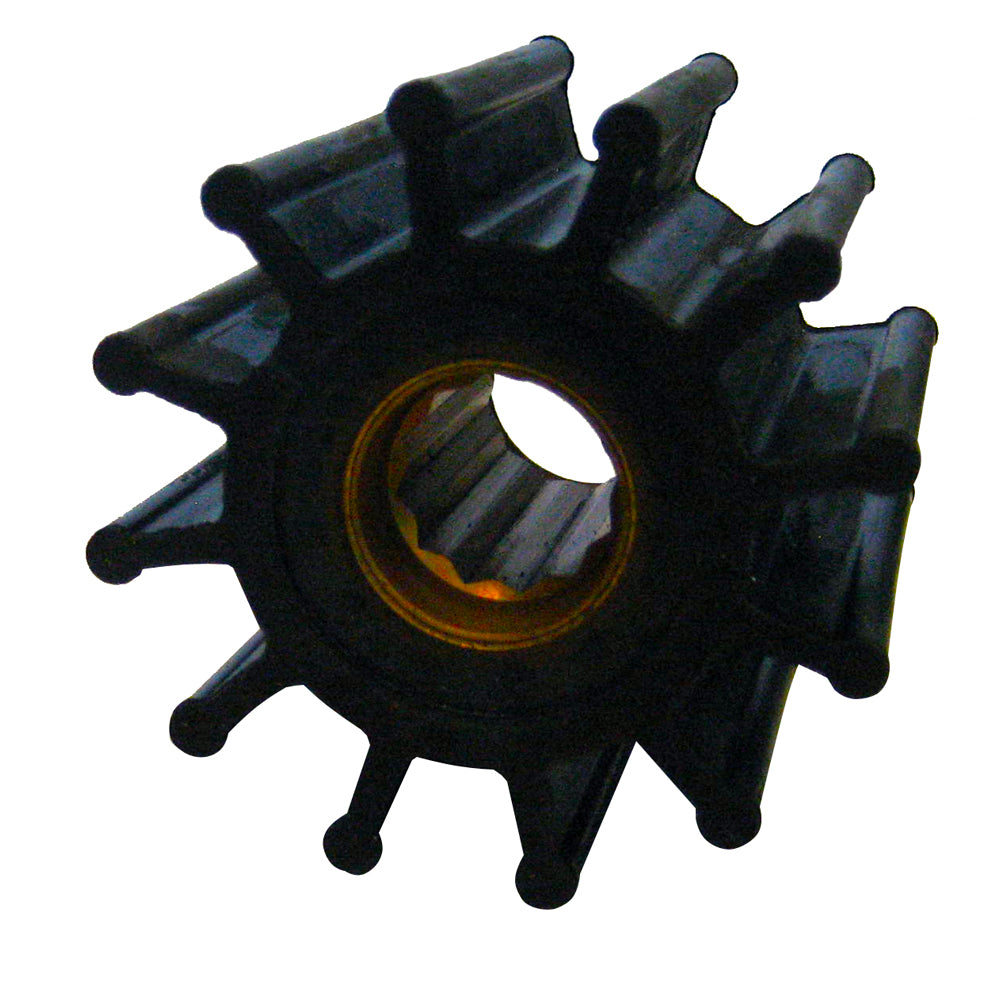

Jabsco Impeller Kit - 12 Blade Neoprene Replacement for Marine and Pump Systems

• Diameter:2-1/4"

• Shaft Width:1-1/4"

• Shaft Diameter:5/8"
  Insert Material:Brass


  Jabsco flexible impellers can be fitted to most makes and models of bronze flexible impeller engine cooling, bilge, transfer and general purpose pumps.
  Jabsco flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.

  Replace all impellers at least once every year, or sooner, depending on the engine duty. When the installation is correct an impeller may last for several years, but it is always advisable to stick to a schedule of preventative, rather than corrective, maintenance.

  Replacing impellers is easy. By removing the end cover screws, it is possible to remove the impeller by using either a Jabsco Impeller Removal Tool, or channel lock pliers, to grip the hub of the impeller. Dont use screwdrivers as they may damage the face of the pump body, causing leaks, and they can be dangerous in confined spaces.

  Always carry spare impellers on board in case of emergency. The impeller is one of the most vital components of the engine cooling system and should always be treated as such.

  Always grease new impellers. Firstly, it makes it easier to install the impeller into the pump bore, and secondly it gives added protection to the impeller during initial prime. After replacing the gasket and end cover the pump is ready to use.

  WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Jabsco Impeller Kit, part number 1210-0001-P, is designed to ensure reliable performance in engine cooling, bilge, transfer, and general-purpose pumps. Crafted from durable neoprene, this impeller features a spline drive and 12 blades that provide efficient fluid movement. Its 2-1/4 inch diameter and 1-1/4 inch shaft width make it compatible with a wide range of pump models, while the brass insert ensures secure fitting and longevity. Jabsco's high-quality manufacturing processes guarantee that this impeller delivers long-lasting, dependable service in demanding marine and industrial environments.

Replacing the impeller at least once a year is recommended to maintain optimal pump performance, though the exact interval depends on usage and operating conditions. Proper installation is straightforward; by removing the end cover screws, the impeller can be easily extracted using a Jabsco Impeller Removal Tool or channel lock pliers to grip the hub. It’s important to avoid using screwdrivers, which can damage the pump face and cause leaks. Always carry spare impellers on board for emergencies, as this component plays a critical role in engine cooling systems. Before installation, apply a thin layer of grease to the new impeller, facilitating easier insertion into the pump bore and providing initial protection during priming. Once the gasket and end cover are reassembled, the pump is ready for operation.

This impeller kit is subjected to rigorous quality testing to ensure efficiency and durability. It is suitable for use with most makes and models of bronze flexible impeller pumps across various applications. Regular maintenance and timely replacement help prevent unexpected failures and extend the life of your pump. Keep in mind that exposure to chemicals such as lead, present in some materials, can pose health risks; consult the provided safety warnings for proper handling and disposal. Trust Jabsco for dependable, high-quality pump components designed to meet the demands of marine and industrial environments.

Features:

• Material: Neoprene for durability and flexibility

• Drive Type: Spline drive for secure attachment

• Number of Blades: 12 for efficient fluid movement

• Dimensions: 2-1/4 inch diameter, 1-1/4 inch shaft width

• Insert Material: Brass for strength and corrosion resistance

• Compatibility: Fits most bronze flexible impeller pumps

• Ease of Replacement: Simple removal and installation process

• Maintenance Tip: Replace annually or as needed

• Quality Assurance: Manufactured with rigorous quality standards

• Safety Note: Handle with care due to chemical exposure warnings
