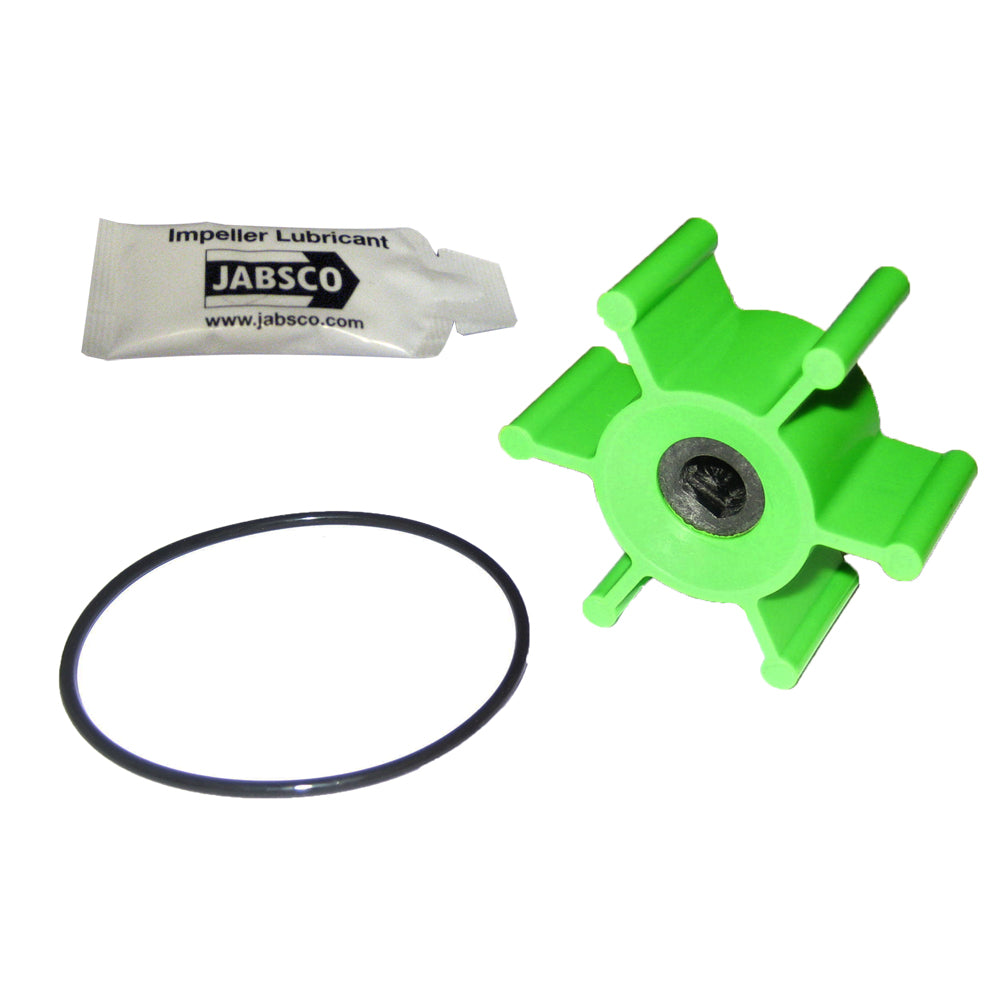

Jabsco Impeller Kit 6303-0007-P – 6 Blade Urethane Impeller for Marine and Engine Cooling Pumps

Impeller Kit

Material:Urethane
Drive Type:Single Flat Drive
Number of Blades:6
Dimensions:

• Diameter:2"

• Shaft Width:7/8"

• Shaft Diameter:5/16"

Insert Material:Plastic


Jabsco flexible impellers can be fitted to most makes and models of bronze flexible impeller engine cooling, bilge, transfer and general purpose pumps.
Jabsco flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.

Replace all impellers at least once every year, or sooner, depending on the engine duty. When the installation is correct an impeller may last for several years, but it is always advisable to stick to a schedule of preventative, rather than corrective, maintenance.

Replacing impellers is easy. By removing the end cover screws, it is possible to remove the impeller by using either a Jabsco Impeller Removal Tool, or channel lock pliers, to grip the hub of the impeller. Dont use screwdrivers as they may damage the face of the pump body, causing leaks, and they can be dangerous in confined spaces.

Always carry spare impellers on board in case of emergency. The impeller is one of the most vital components of the engine cooling system and should always be treated as such.

Always grease new impellers. Firstly, it makes it easier to install the impeller into the pump bore, and secondly it gives added protection to the impeller during initial prime. After replacing the gasket and end cover the pump is ready to use.

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Jabsco Impeller Kit 6303-0007-P features a durable urethane construction designed for reliable performance in marine and engine cooling applications. This kit includes a single flat drive type impeller with six blades, optimized for efficient fluid transfer and pump operation. Its 2-inch diameter and 7/8-inch shaft width make it suitable for a wide range of bronze flexible impeller pumps used in bilge, transfer, and general-purpose systems. The plastic insert enhances durability and ease of installation, ensuring the impeller maintains integrity under demanding conditions. Jabsco’s rigorous quality control processes guarantee long-lasting, efficient operation, making this impeller a dependable choice for maintenance and replacement needs.
Proper maintenance is essential for optimal pump performance. It is recommended to replace impellers at least once a year or sooner if used extensively. When installing, removing the impeller is straightforward: simply remove the end cover screws and use a Jabsco Impeller Removal Tool or channel lock pliers to grip the hub without damaging the pump. It is advisable to carry spare impellers onboard for emergency replacements, as the impeller is a critical component of the cooling system. Applying grease to the impeller before installation facilitates insertion and provides added protection during initial priming, extending the lifespan of the component. After replacing the gasket and end cover, the pump is ready for operation.
Always adhere to safety precautions and proper maintenance schedules to ensure consistent performance. The included impeller is suitable for most makes and models of bronze flexible impeller pumps, offering a reliable solution for marine and engine cooling systems. Regular inspection and timely replacement help prevent pump failure and maintain optimal fluid flow. Keep in mind that this product contains chemicals such as lead, which are recognized to cause health risks; please consult the provided safety warning and visit P65Warnings.ca.gov for more information.

Features:

• Material: Urethane for durability and flexibility

• Drive Type: Single flat drive for easy installation

• Number of Blades: Six blades for efficient fluid movement

• Dimensions: 2-inch diameter with a 7/8-inch shaft width

• Insert Material: Plastic for added strength and ease of fitting

• Compatible with most bronze flexible impeller pumps

• Reliable performance through rigorous quality testing

• Easy to replace with common tools like a removal tool or pliers

• Ideal for marine, bilge, transfer, and general-purpose use

• Includes safety and maintenance recommendations for longevity
