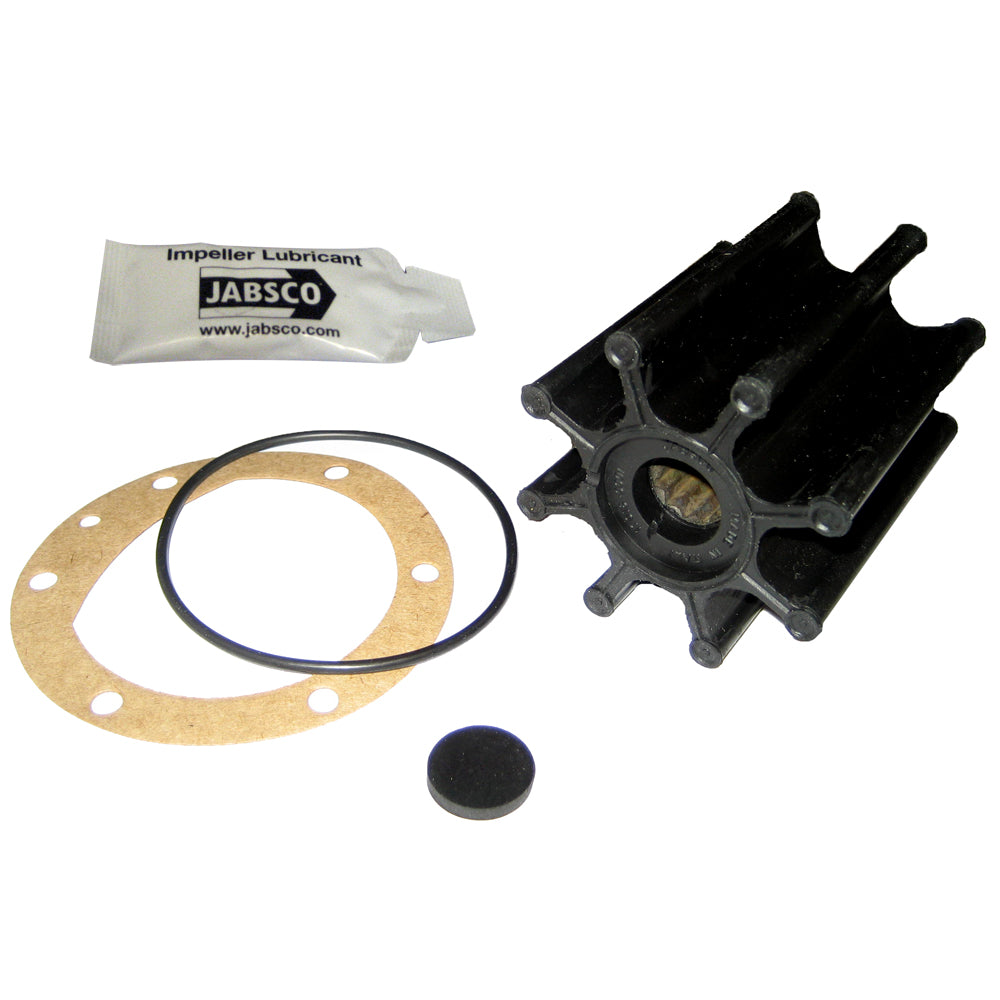

Jabsco Impeller Kit - 8 Blade Neoprene for Marine and Pump Applications Part 17018-0001-P

Impeller Kit - 8 Blade - Neoprene - 2-9/16" Diameter x 3" W, 5/8" Shaft Diameter

Features:

• Material: Neoprene

• Drive Type: Spline Drive

• Number of Blades: 8

• Dimensions: Diameter: 2-9/16", Shaft Width: 3", Shaft Diameter: 5/8"

• Insert Material: Brass

Jabsco flexible impellers can be fitted to most makes and models of bronze flexible impeller engine cooling, bilge, transfer and general purpose pumps.
Jabsco flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.

Replace all impellers at least once every year, or sooner, depending on the engine duty. When the installation is correct an impeller may last for several years, but it is always advisable to stick to a schedule of preventative, rather than corrective, maintenance.

Replacing impellers is easy. By removing the end cover screws, it is possible to remove the impeller by using either a Jabsco Impeller Removal Tool, or channel lock pliers, to grip the hub of the impeller. Dont use screwdrivers as they may damage the face of the pump body, causing leaks, and they can be dangerous in confined spaces.

Always carry spare impellers on board in case of emergency. The impeller is one of the most vital components of the engine cooling system and should always be treated as such.

Always grease new impellers. Firstly, it makes it easier to install the impeller into the pump bore, and secondly it gives added protection to the impeller during initial prime. After replacing the gasket and end cover the pump is ready to use.

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Jabsco Impeller Kit, model 17018-0001-P, features an 8-blade design crafted from durable neoprene material, ensuring reliable performance in engine cooling, bilge, transfer, and general-purpose pumps. With a diameter of approximately 2-9/16 inches and a shaft width of 3 inches, this impeller is suitable for a wide range of pump configurations. The spline drive facilitates secure attachment, while the brass insert enhances durability and wear resistance in demanding environments. This impeller is compatible with most makes and models of bronze flexible impeller pumps, making it a versatile choice for marine and industrial applications. Jabsco's rigorous quality testing guarantees long-lasting, efficient operation, and the impeller is designed for easy replacement, streamlining maintenance procedures. Regular replacement, ideally once a year or sooner depending on engine use, helps maintain optimal pump performance. To replace the impeller, remove the end cover screws and use a Jabsco Impeller Removal Tool or channel lock pliers to grip the hub; avoid using screwdrivers to prevent damage. Always carry spare impellers onboard for emergencies, and grease new impellers during installation to facilitate insertion and provide initial protection. Proper maintenance ensures the impeller’s longevity and efficient system operation. Note that this product may contain chemicals such as lead, which are recognized to pose health risks, so appropriate handling and disposal are advised. The pump assembly is ready for use after gasket and end cover replacement, ensuring a secure seal and optimal function.

Features:

• Material: Neoprene for durability and flexibility

• Drive Type: Spline drive for secure attachment

• Number of Blades: 8 for efficient fluid movement

• Dimensions: Diameter of approximately 2-9/16 inches, shaft width of 3 inches

• Insert Material: Brass for wear resistance and longevity
