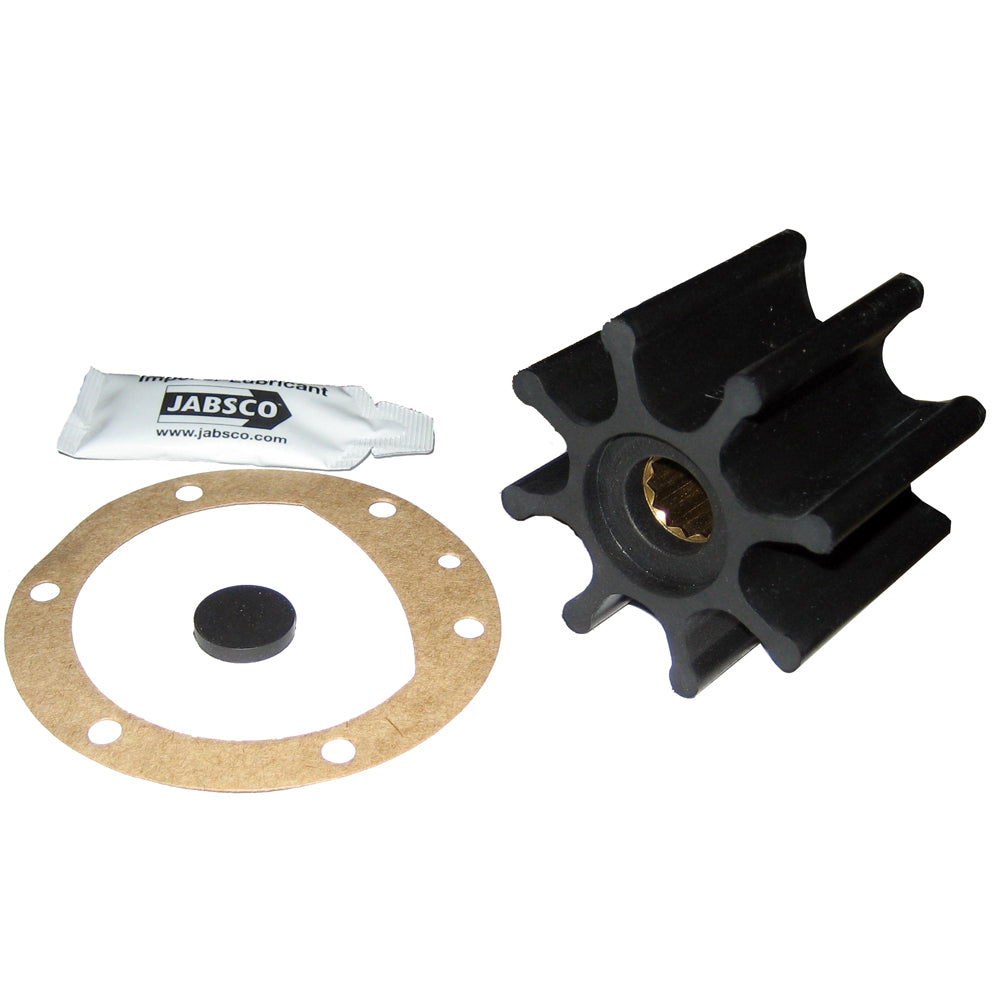

Jabsco Impeller Kit - 8 Blade Neoprene Replacement for Marine and Pump Systems Part 920-0001-P

Impeller Kit - 8 Blade - Neoprene - 2-9/16" Diameter x 2" W, 5/8" Shaft
Diameter

Features:

• Material: Neoprene

• Drive Type: Spline Drive

• Number of Blades: 8

• Dimensions: Diameter: 2-9/16", Shaft Width: 2", Shaft Diameter: 5/8"

• Insert Material: Brass

Jabsco flexible impellers can be fitted to most makes and models of bronze flexible impeller engine cooling, bilge, transfer and general purpose pumps.
Jabsco flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.

Replace all impellers at least once every year, or sooner, depending on the engine duty. When the installation is correct an impeller may last for several years, but it is always advisable to stick to a schedule of preventative, rather than corrective, maintenance.

Replacing impellers is easy. By removing the end cover screws, it is possible to remove the impeller by using either a Jabsco Impeller Removal Tool, or channel lock pliers, to grip the hub of the impeller. Dont use screwdrivers as they may damage the face of the pump body, causing leaks, and they can be dangerous in confined spaces.

Always carry spare impellers on board in case of emergency. The impeller is one of the most vital components of the engine cooling system and should always be treated as such.

Always grease new impellers. Firstly, it makes it easier to install the impeller into the pump bore, and secondly it gives added protection to the impeller during initial prime. After replacing the gasket and end cover the pump is ready to use.

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Jabsco Impeller Kit, part number 920-0001-P, features an 8-blade design crafted from durable neoprene material, specifically engineered for reliable performance in engine cooling, bilge, transfer, and general-purpose pumps. Each impeller has a diameter of approximately 2 9/16 inches with a shaft width of 2 inches and a shaft diameter of 5/8 inch, making it suitable for a broad range of pump applications. The spline drive facilitates easy installation and secure attachment, while the brass insert enhances durability and longevity. These impellers are compatible with most makes and models of bronze flexible impeller pumps, ensuring versatility across various marine and industrial systems.

Jabsco's commitment to quality means these flexible impellers undergo rigorous manufacturing processes to guarantee efficiency, reliability, and a long service life. Proper maintenance includes replacing all impellers at least once annually or more frequently if the pump operates under heavy duty conditions. Correct installation is crucial; removing the end cover screws and using a Jabsco Impeller Removal Tool or channel lock pliers to grip the hub simplifies removal and installation, avoiding damage to the pump body. Regular replacement and proper handling help prevent failures and keep your system running smoothly. It is recommended to grease new impellers before installation to facilitate insertion and provide initial protection during priming. Always carry spare impellers onboard for emergencies and follow scheduled maintenance routines for optimal performance.

Safety should be a priority; this product may contain chemicals such as lead, which are recognized by the State of California to cause health issues. For further information, visit P65Warnings.ca.gov. Proper handling and replacement of impellers ensure your pumping system remains efficient and dependable, supporting the longevity of your equipment and safety of your operation.

Features:

• Material: Neoprene for durability and flexibility

• Drive Type: Spline drive for secure attachment

• Number of Blades: 8-blade design for efficient pumping

• Dimensions: 2-9/16 inches diameter, 2 inches shaft width, 5/8 inch shaft diameter

• Insert Material: Brass for added strength and longevity
