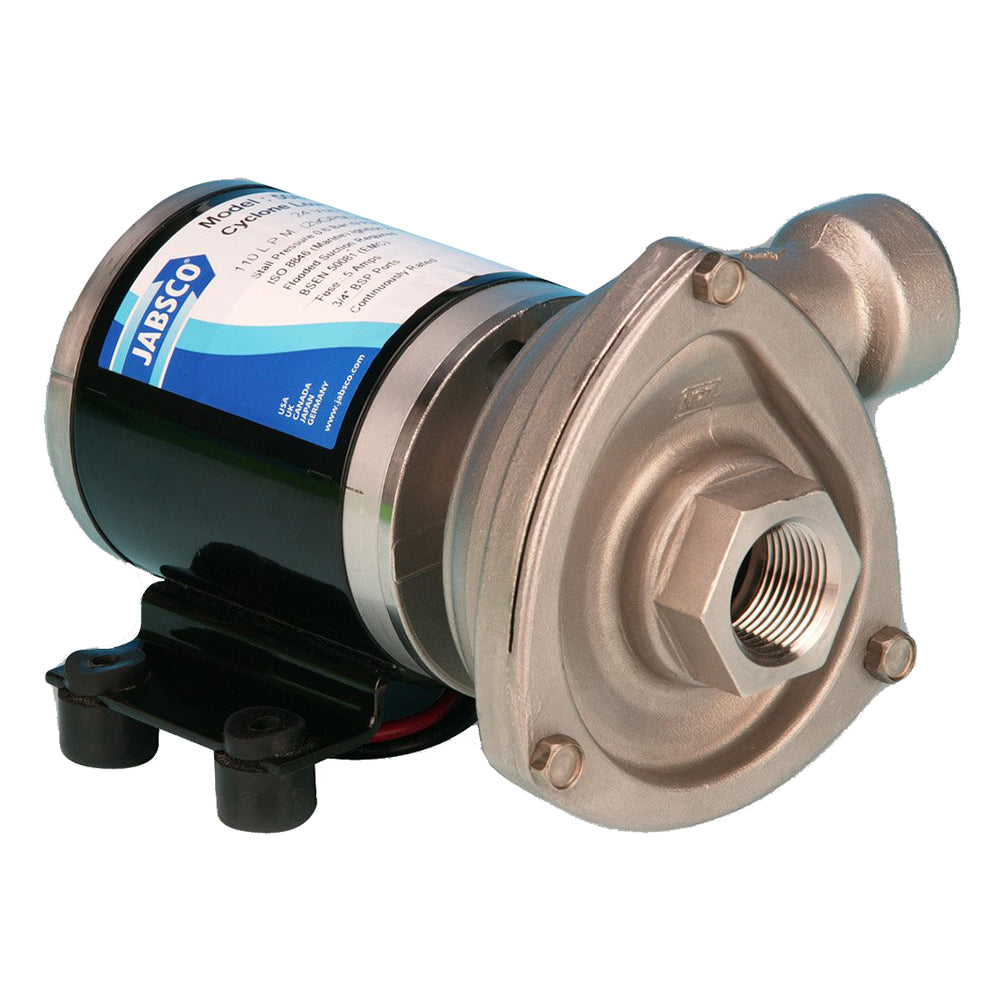

Jabsco Low Pressure Cyclone Centrifugal Pump - 24V Marine and Industrial Use

Low Pressure Cyclone Centrifugal Pump - 24V

Silent running. Single tool servicing. 2m (6 foot) suction lift when wet.

A range of Stainless Steel General Purpose Centrifugal pumps designed specifically for the marine and industrial markets. Typical applications would be for circulation applications such as hot water systems, livewell or bait tank installations.

Features:

• Heavy duty robust design
• Stainless steel construction
• Long life DC motor
• Silent running
• Anti-clog impeller design
• Long life mechanical seal
• Single tool servicing

Specifications:

• Pump Body: Stainless Steel
• Port Size: 3/4" pipe threads, available with NPTF threads
• Flow: 110 Liters/Minute (29.7 gallons/min.)
• Pressure: Up to 0.6 bar (8.7psi)
• Impeller: Stainless Steel Anti-Clog Impeller Design
• Shaft Seal: Mechanical
• Maximum Current: 4.5 Amp
• Fuse Size: 7 Amp
• Motor: Continuously rated
• Motor life 3500 hours
• ISO 8846 Marine and USCG Regulations for Ignition Protection
• ISO 8849 Marine Bilge Pump Standard

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Low Pressure Cyclone Centrifugal Pump (Part Number: 50840-0024) is engineered for reliable performance in marine and industrial circulation applications. Featuring a stainless steel body, this pump delivers a flow rate of approximately 110 liters per minute and operates efficiently at pressures up to 0.6 bar (8.7 psi). Its heavy-duty design ensures durability and long-term operation, making it suitable for hot water systems, livewell, or bait tank installations. The pump's stainless steel anti-clog impeller and mechanical shaft seal provide resistance to debris and enhance longevity, while its silent running capability minimizes noise during operation. Designed for easy maintenance, the pump can be serviced with just a single tool, reducing downtime and increasing convenience. With a continuously rated motor that boasts a lifespan of around 3,500 hours, the Jabsco Cyclone Pump adheres to ISO 8846 marine ignition protection standards and US Coast Guard regulations for safety and reliability. Its 3/4-inch pipe threads (also available with NPTF threads) facilitate straightforward installation, and the pump's 2-meter (6-foot) suction lift when wet enables versatile placement options. The low current draw of 4.5 amps and a 7-amp fuse requirement contribute to energy efficiency and electrical safety, ensuring dependable operation in demanding environments. The Jabsco Cyclone Pump is a robust, maintenance-friendly solution designed to meet the rigorous demands of marine and industrial applications, providing efficient fluid circulation while maintaining quiet operation and long service life.

Features:

• Heavy duty robust design for durability

• Stainless steel construction for corrosion resistance

• Long life DC motor with approximately 3,500 hours of operation

• Silent running operation minimizes noise

• Anti-clog impeller design improves reliability

• Long-lasting mechanical shaft seal for durability

• Single tool servicing for easy maintenance
