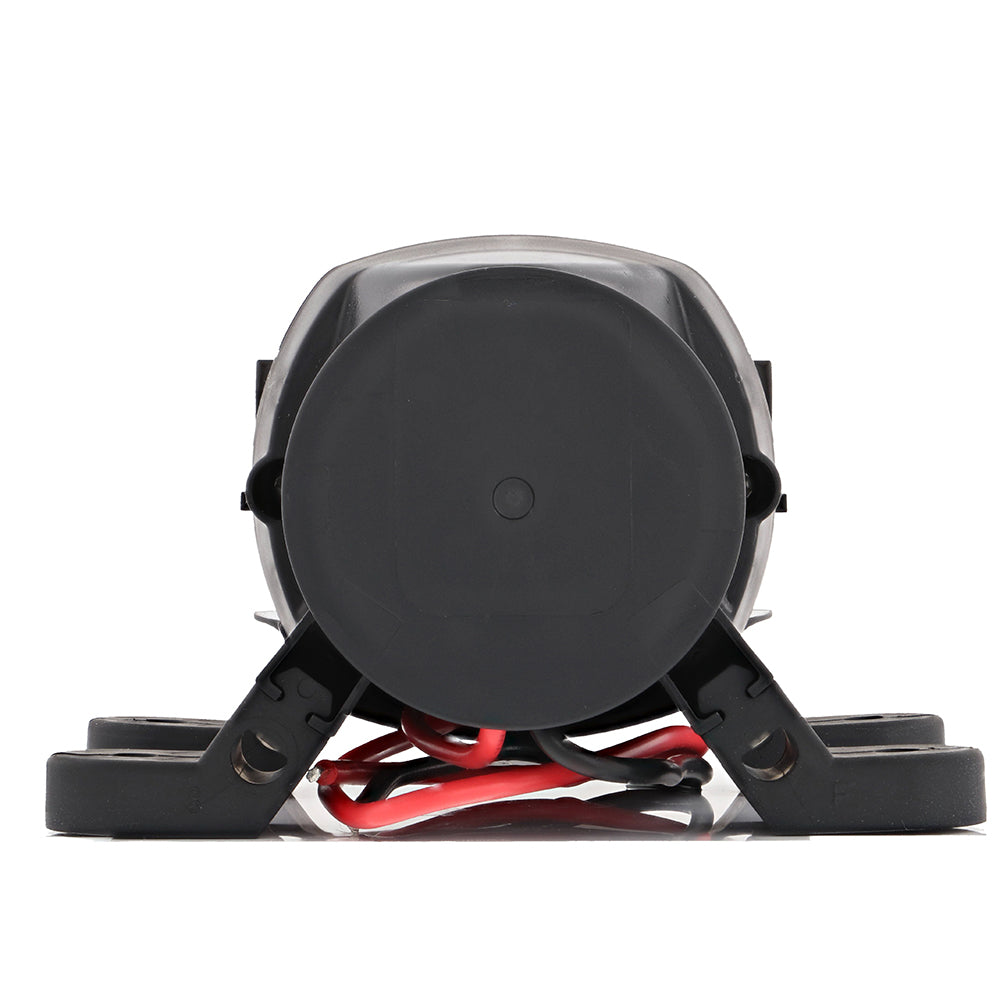

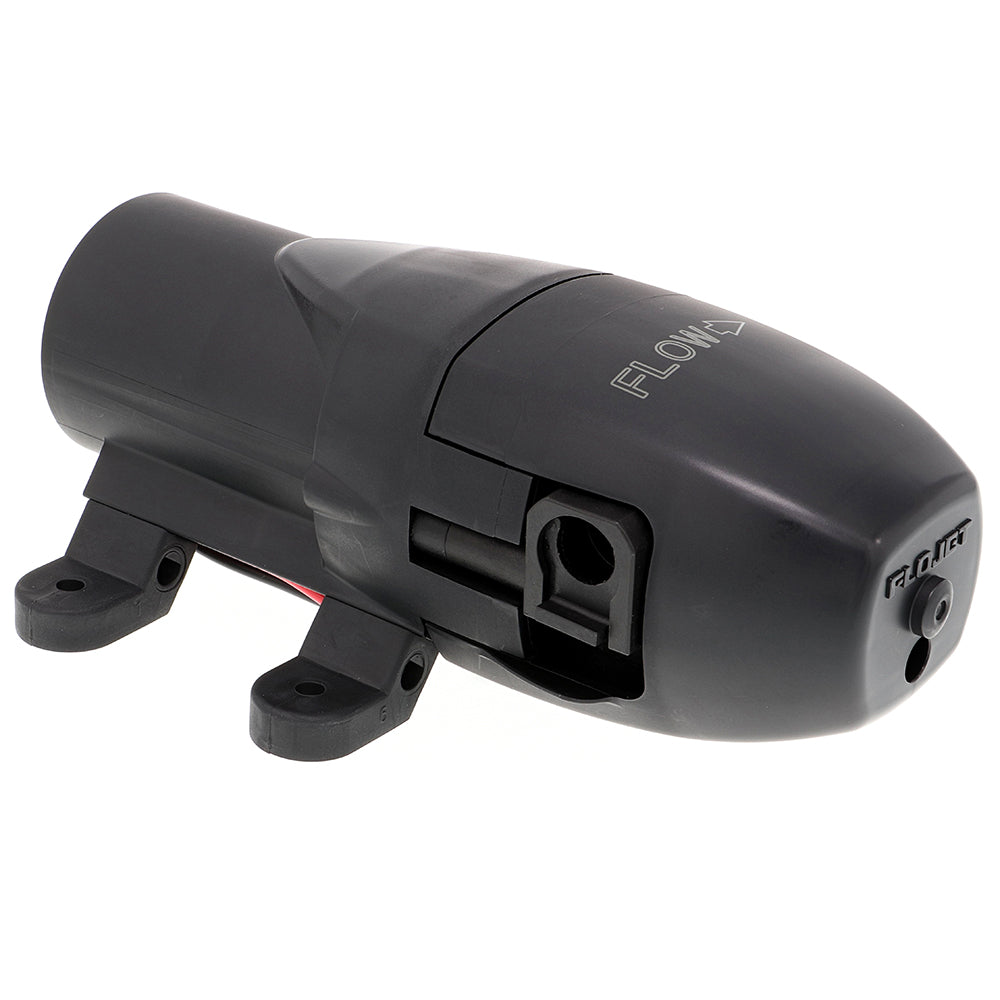

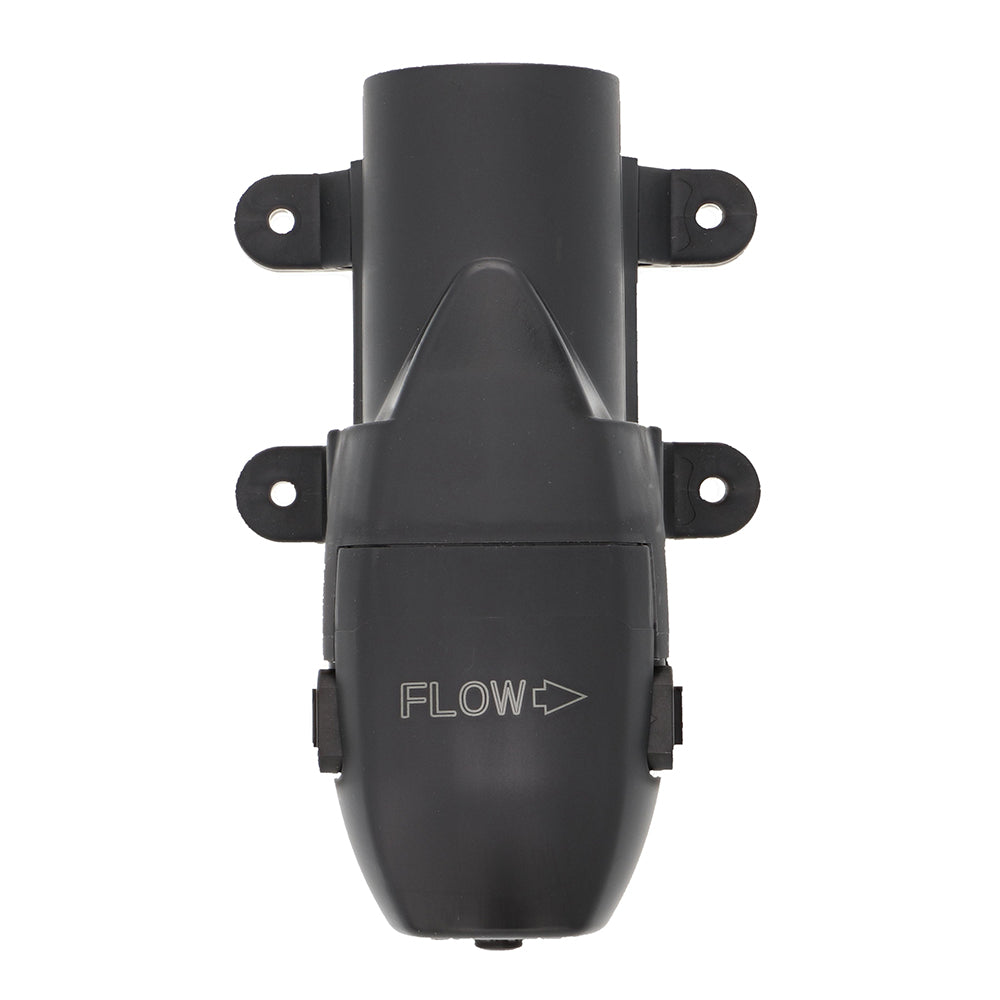

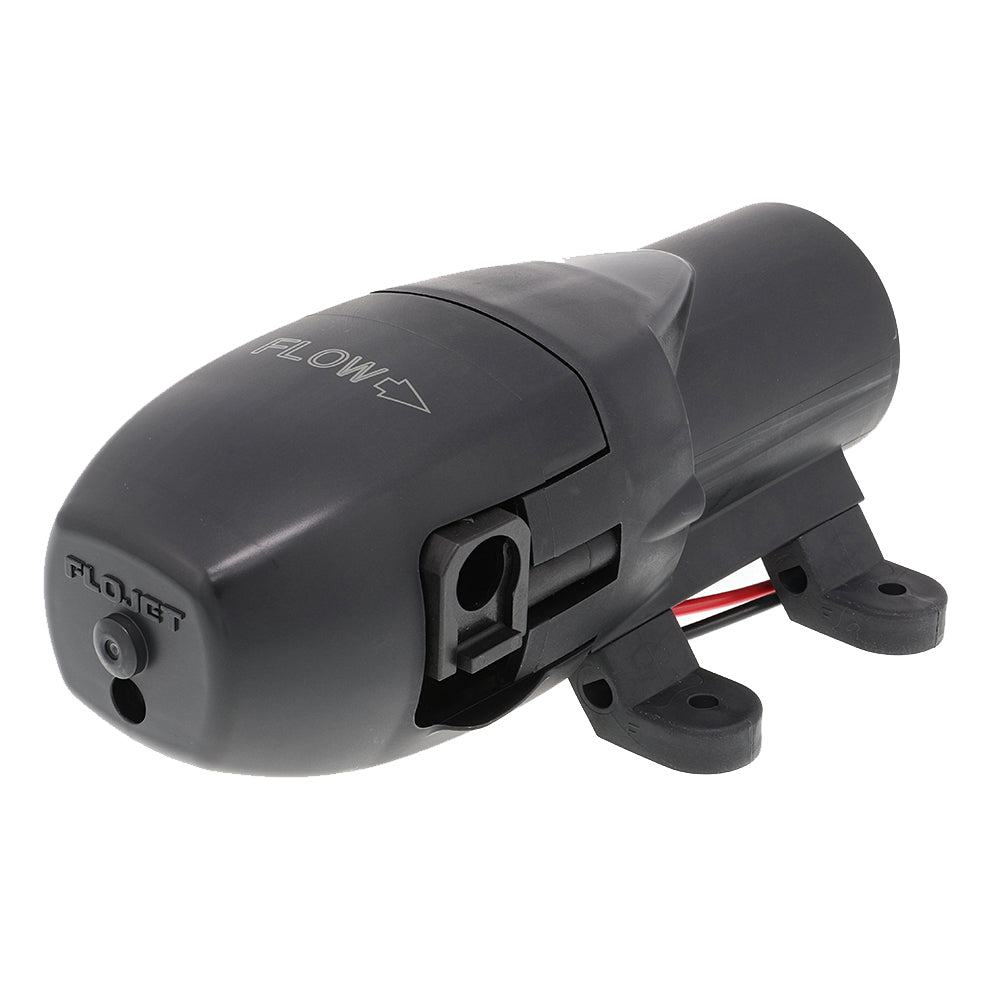

Jabsco Par-Max 1 Water Pressure Pump - 12V, 1 GPM, 35 PSI

Par-Max 1 Water Pressure Pump - 12V - 1 GPM - 35 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max 1 water pressure pump is a reliable 12-volt solution designed to deliver consistent water flow for marine, RV, and other mobile applications. This model offers a flow rate of 1 gallon per minute and operates efficiently at 35 PSI, making it suitable for vessels with multiple outlets or small water systems. Its compact design combined with robust construction ensures dependable performance in demanding environments. The pump features integrated components such as a sealed pressure switch for on-demand operation and quick connect ports for straightforward installation and maintenance, reducing downtime and simplifying system upgrades. The self-priming capability up to 7 feet allows versatile installation options, while its ability to run dry without damage enhances durability and reduces the need for frequent servicing. The inclusion of vibration dampening mounting feet minimizes noise and vibration, contributing to a quieter operation. Constructed with a glass fiber reinforced polypropylene pump head and a co-molded TPV diaphragm, the Jabsco Par-Max 1 emphasizes longevity and resistance to corrosion. The heavy-duty, cast aluminum endbells and lower housings in HD models extend service life even under high pressure conditions, making them ideal for more demanding applications. Certified with CE, ISO8846, and RCM standards and rated IPX6 for ingress protection, this pump is built to meet rigorous safety and performance requirements. Whether used in a marine system or RV water supply, the Jabsco Par-Max 1 offers a dependable, quiet, and easy-to-maintain water pumping solution that ensures efficient operation in various environments.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motors and cast aluminum lower housings in HD models for extended service life under high pressure

• Efficient and quiet operation for minimal noise disturbance

• Integrated, sealed pressure switch for on-demand activation

• Self-priming design allows flexible installation options

• Can run dry without damage, enhancing reliability

• Quick connect ports facilitate easy installation, servicing, and maintenance

• Vibration dampening mounting feet reduce noise and vibration

• Integrated bypass module reduces cycling and provides smoother flow
