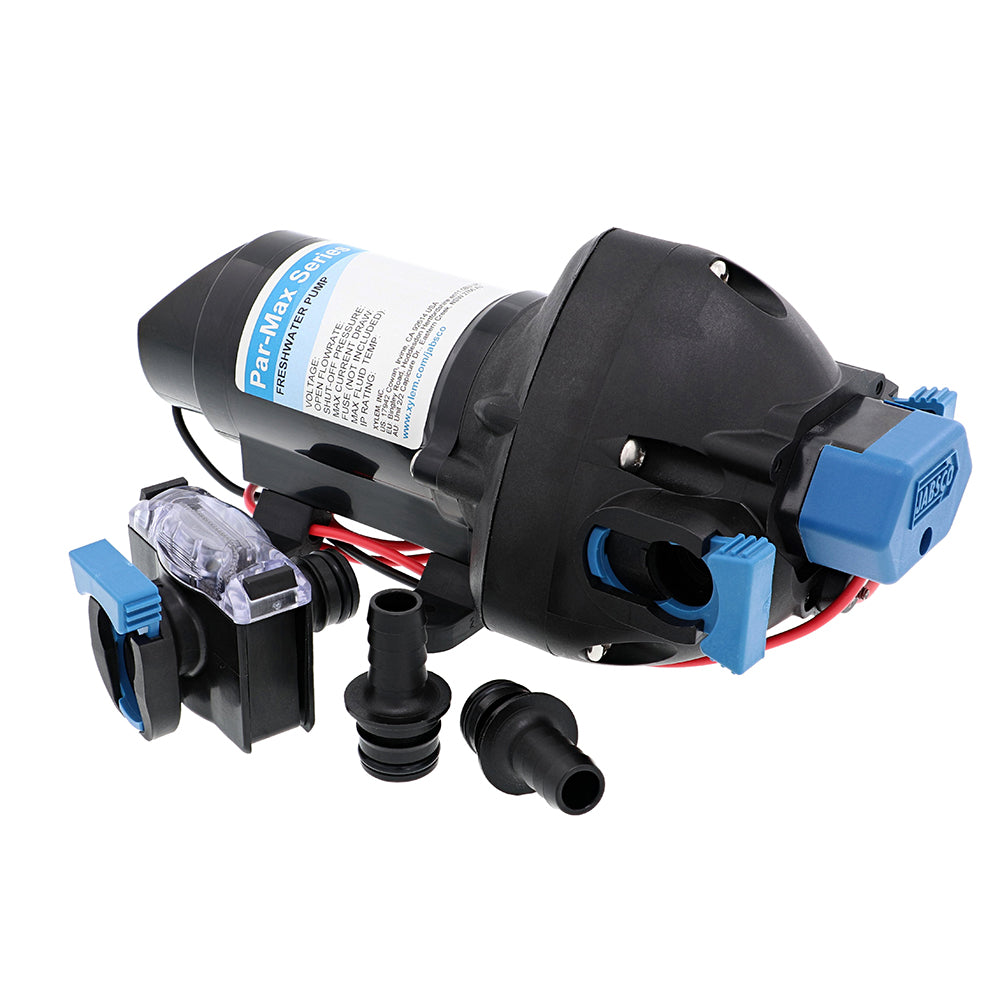

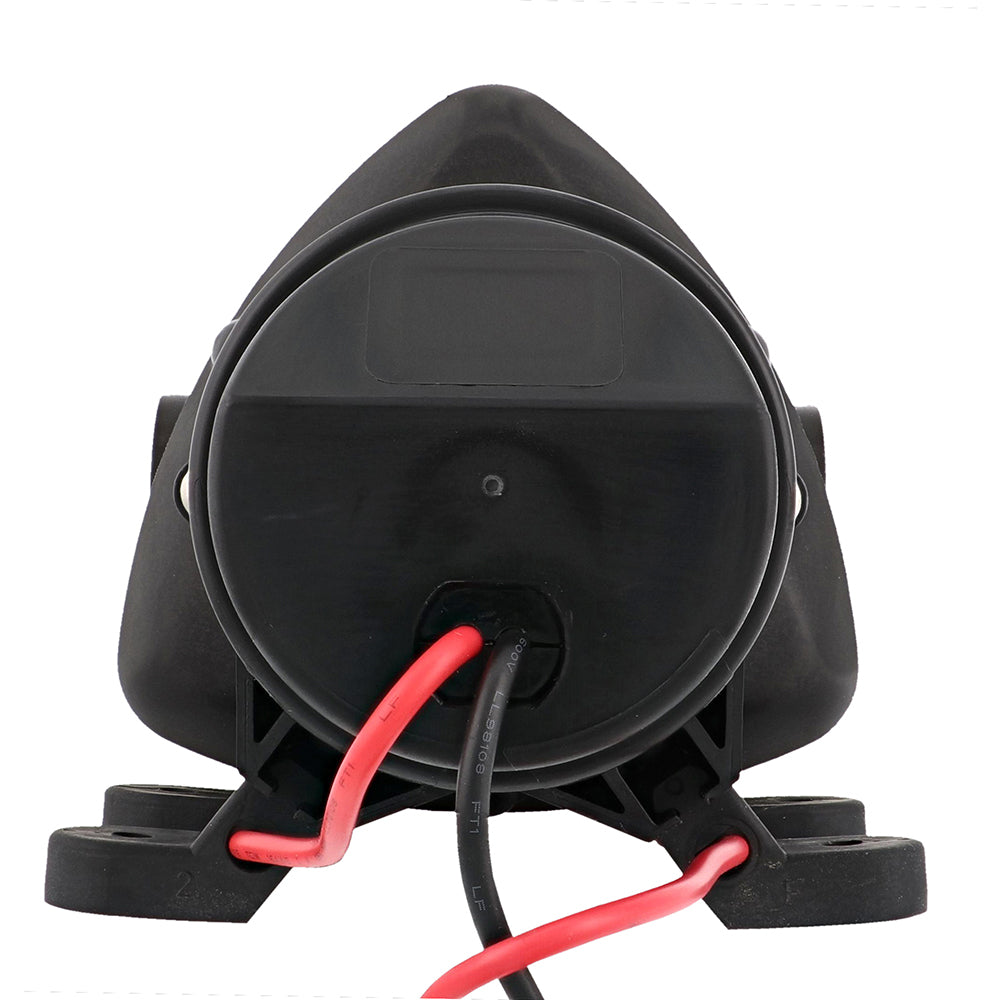

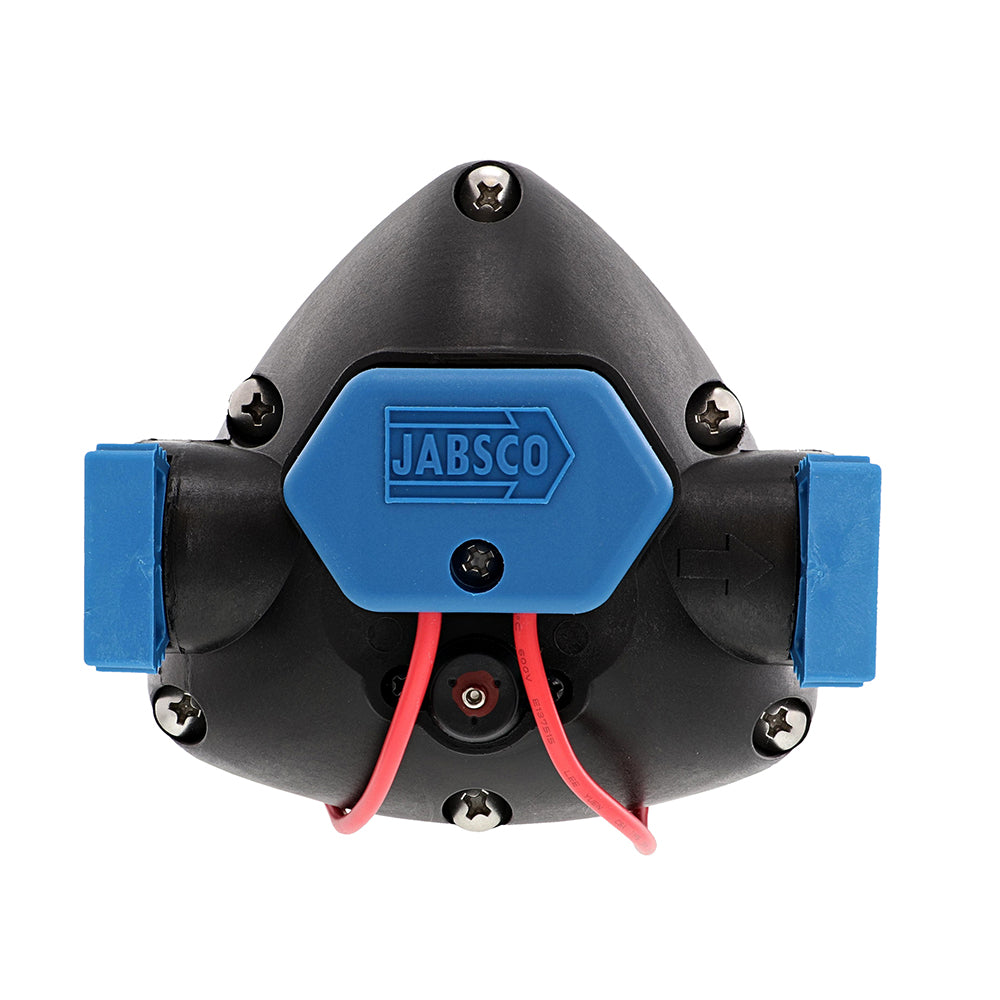

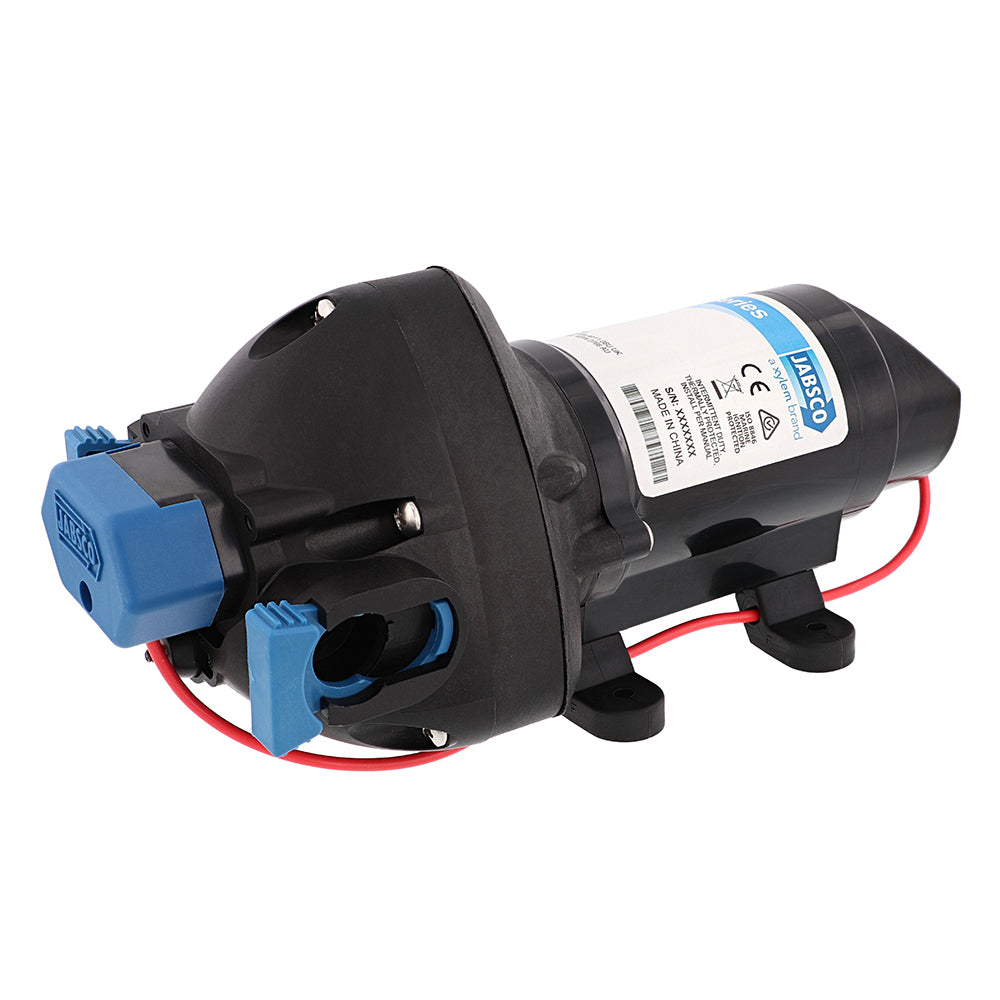

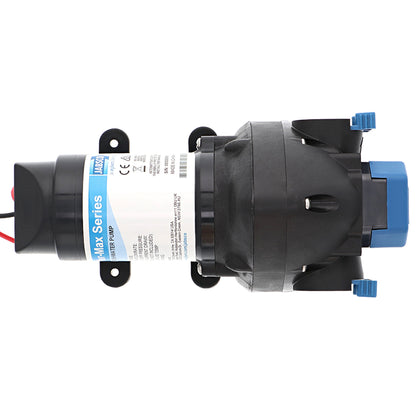

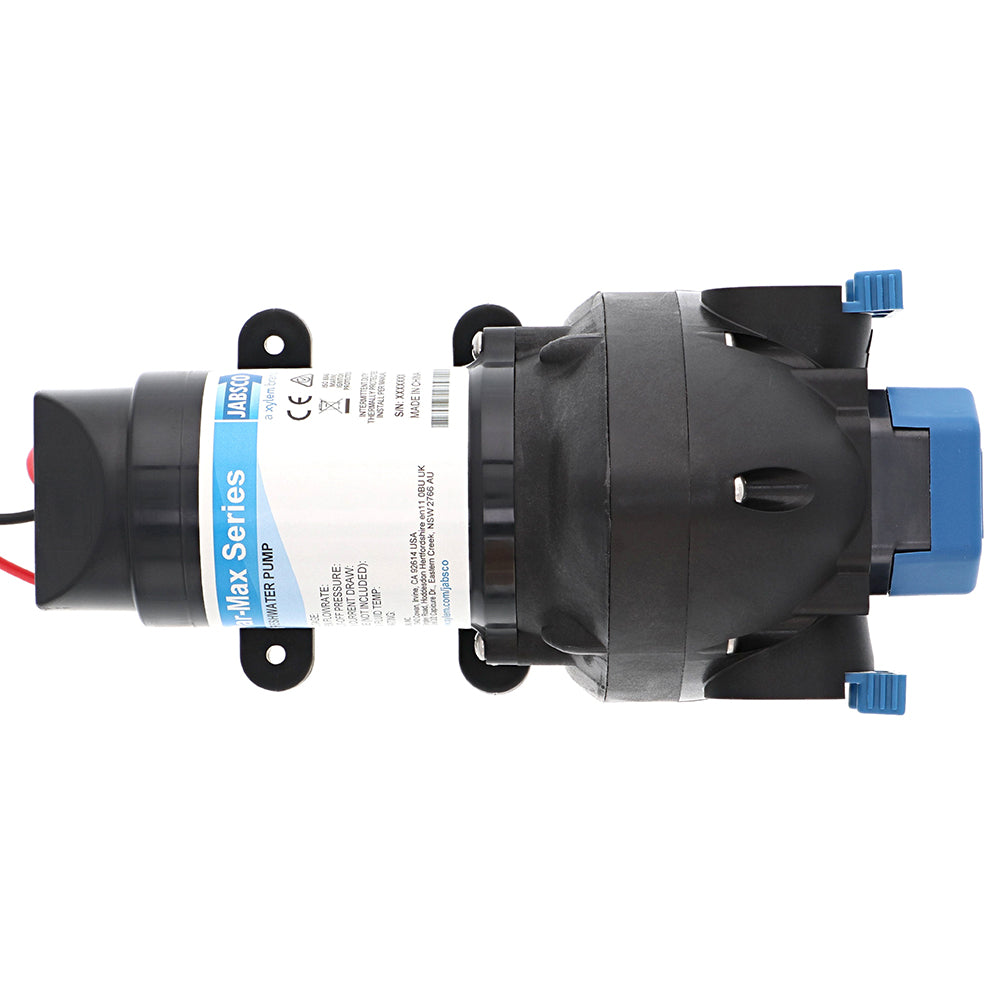

Jabsco Par-Max 2 Water Pressure Pump - 12V, 2 GPM, 35 PSI

Par-Max 2 Water Pressure Pump - 12V - 2 GPM - 35 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max 2 water pressure pump is engineered for reliable performance in demanding applications. Designed with a durable, co-molded diaphragm and a glass fiber-reinforced polypropylene pump head, this 12V model delivers a flow rate of 2 gallons per minute at 35 PSI, making it ideal for marine, RV, and other mobile systems. Its compact design allows for flexible installation, and the self-priming feature ensures quick setup even in challenging environments. The pump's sealed, integrated pressure switch activates on demand, providing efficient operation while reducing power consumption and wear. Built with a powder-coated heavy-duty motor, cast aluminum endbells, and a lower housing, the HD version offers extended service life under high-pressure conditions. The unit operates quietly and includes vibration-dampening mounting feet for added stability. The integrated bypass module smooths flow and minimizes cycling, enhancing system longevity and performance. Suitable for fluid temperatures ranging from 32°F to 140°F, the pump can run dry without damage, ensuring versatility in various applications. Certified with CE, ISO8846, and RCM standards, and rated IPX6 for ingress protection, the Jabsco Par-Max 2 offers dependable, long-lasting operation. Its quick connect ports simplify installation and maintenance, making it a practical choice for those seeking a durable, efficient water pressure solution.
Note: This product contains chemicals like Antimony Trioxide, which may cause health concerns in certain regions. Refer to P65Warnings.ca.gov for more information.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy duty motors with cast aluminum housings for high-pressure performance

• Efficient and quiet operation

• Integrated sealed pressure switch for on-demand activation

• Self-priming design for versatile installation

• Can run dry without damage

• Quick connect ports for easy installation and maintenance

• Vibration dampening mounting feet for stability

• Integrated bypass module to reduce cycling and improve flow
