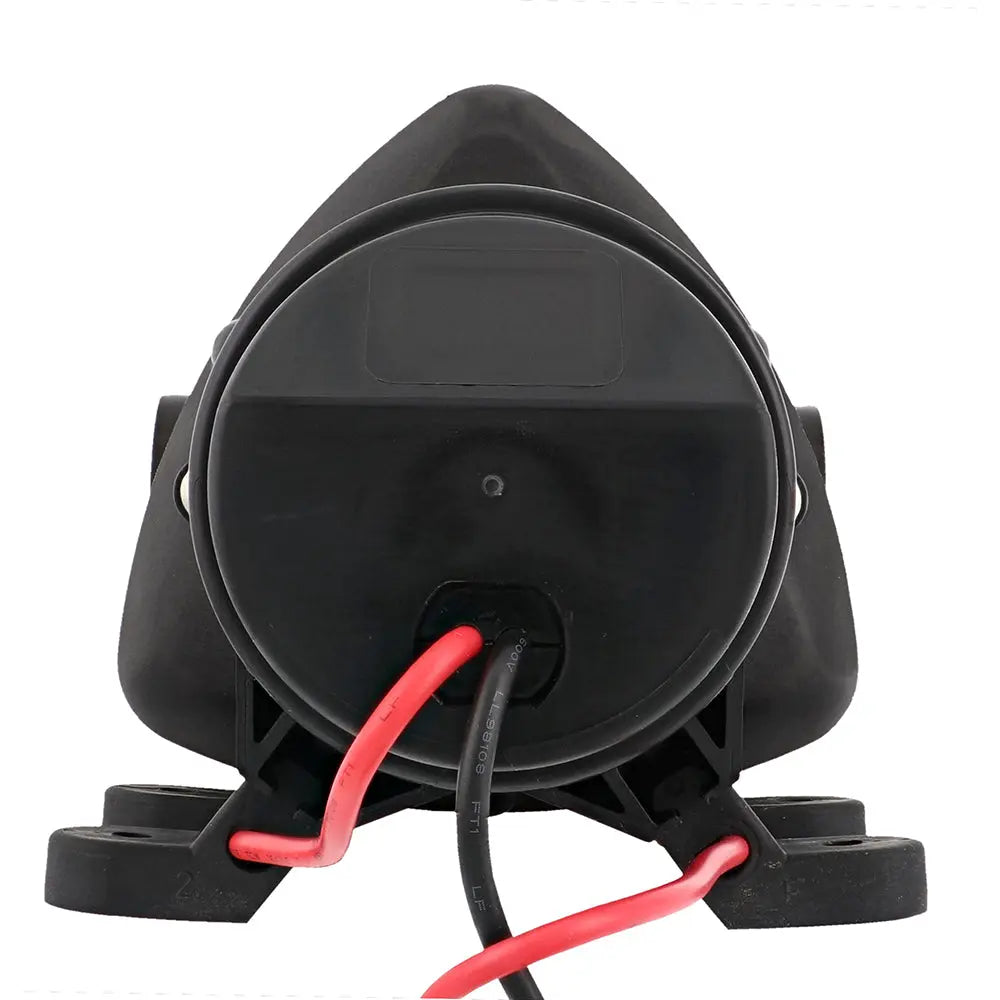

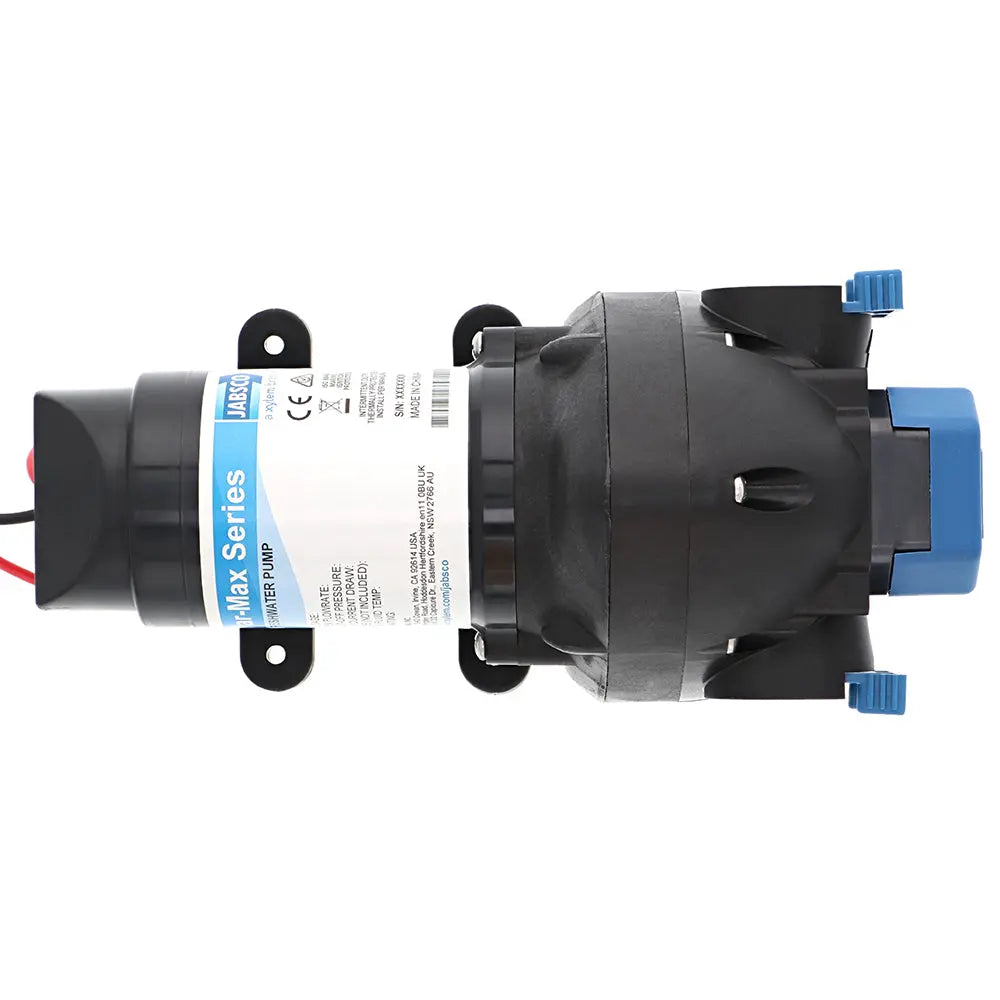

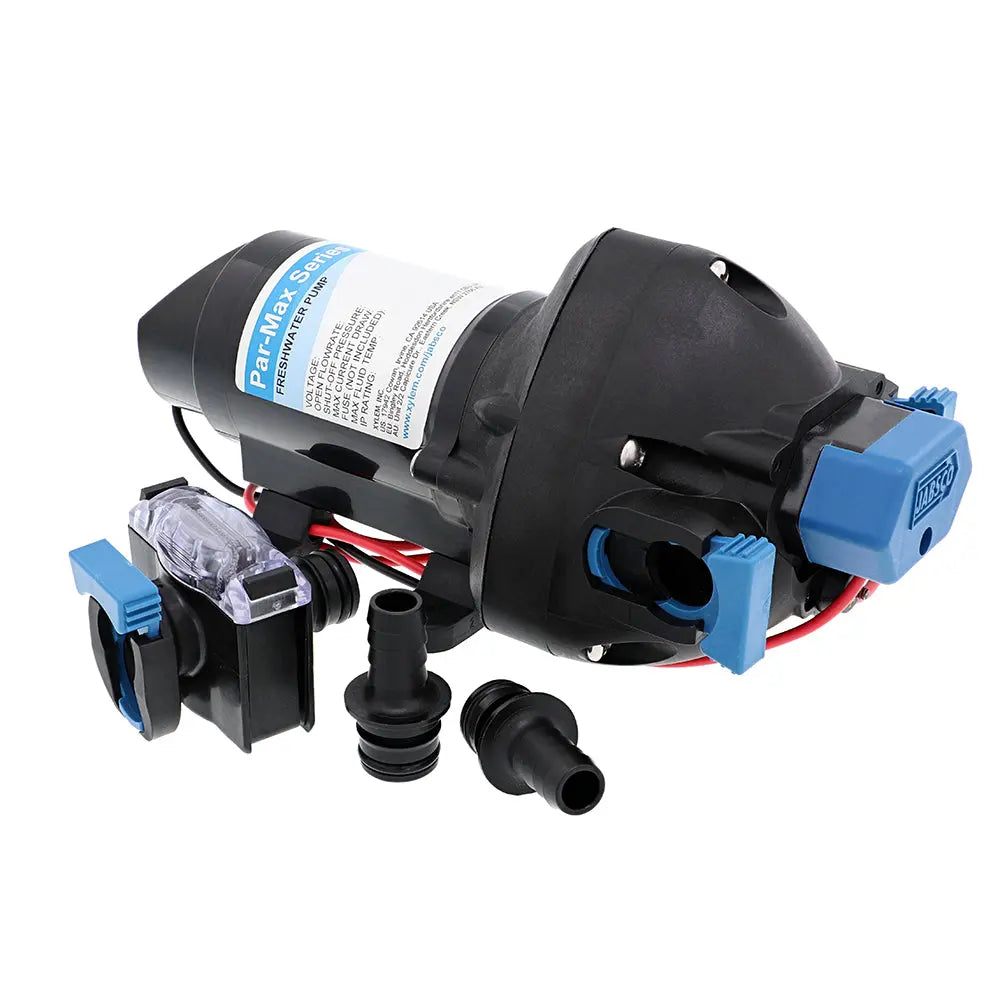

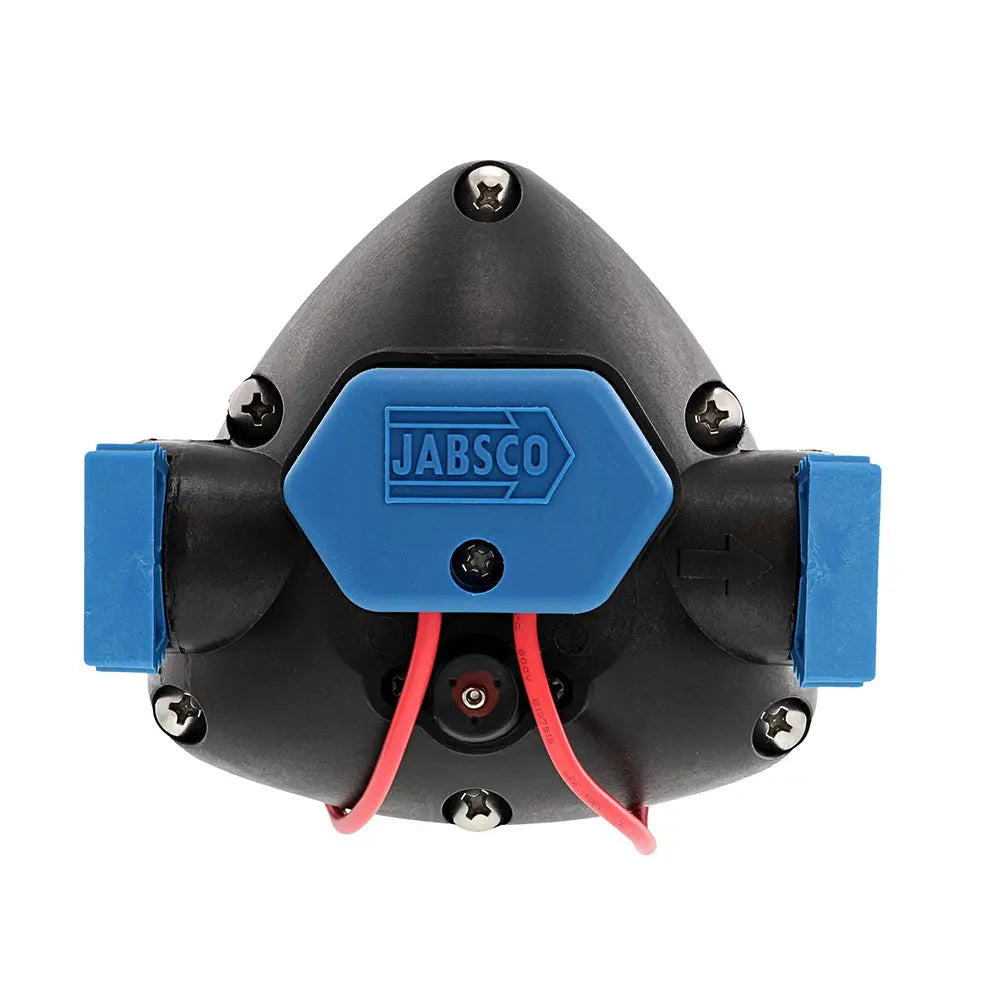

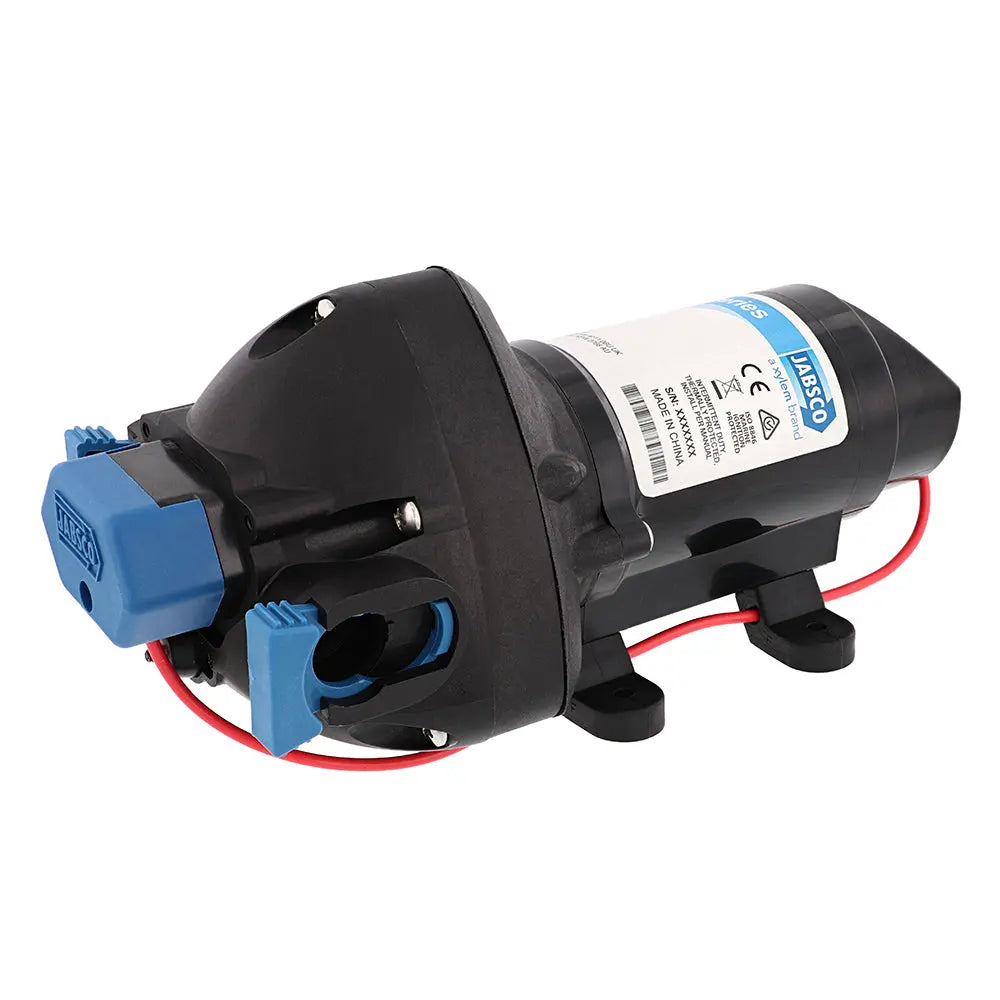

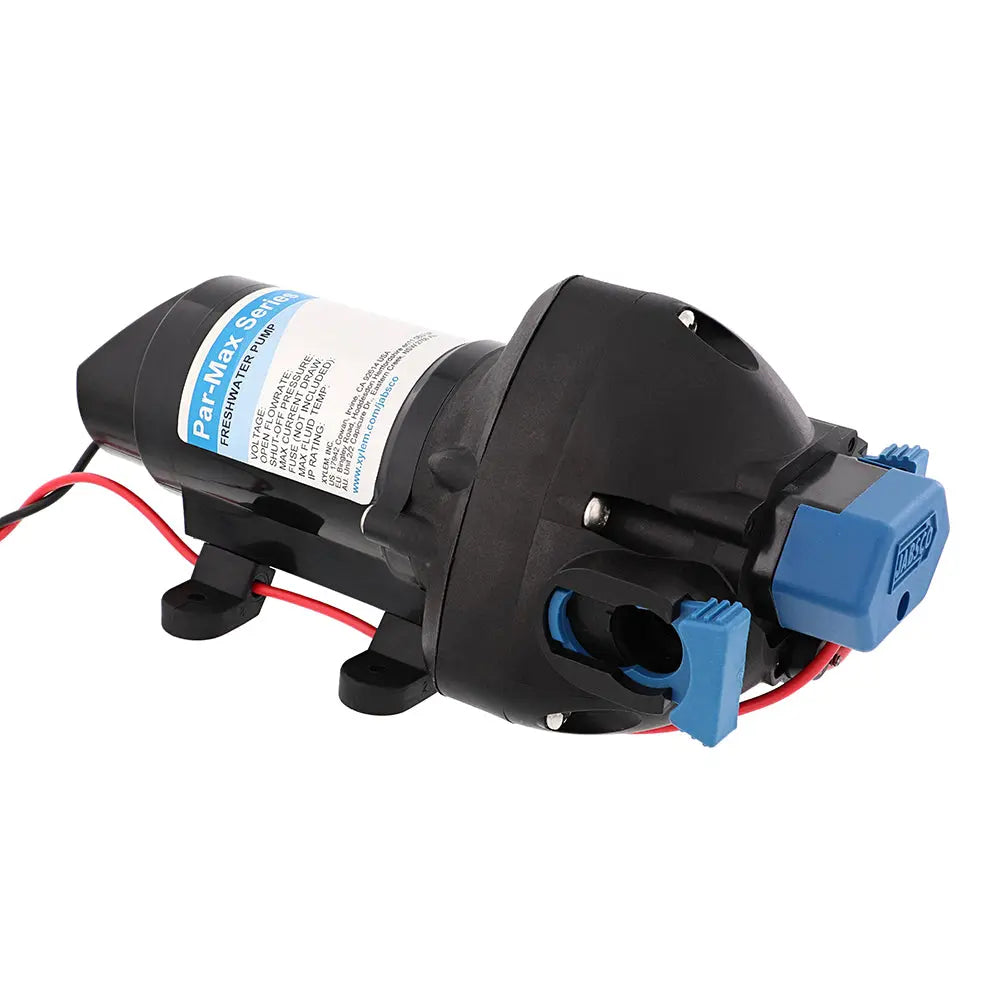

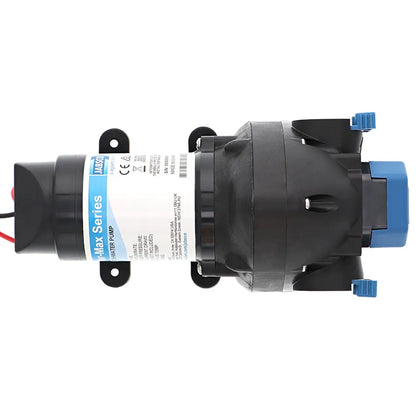

Jabsco Par-Max 2 Water Pressure Pump - 24V, 2 GPM, 35 PSI for Marine and RV Applications

Par-Max 2 Water Pressure Pump - 24V - 2 GPM - 35 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max 2 Water Pressure Pump is designed for reliable on-demand water delivery in marine, RV, and other mobile applications. Operating at 24 volts, this pump provides a flow rate of 2 gallons per minute and delivers a steady 35 PSI pressure, making it ideal for vessels with multiple outlets or water systems requiring consistent pressure. Built with durable components, including a co-molded diaphragm and corrosion-resistant plastic housing, the Par-Max 2 ensures longevity even in demanding environments. Its self-priming feature allows flexible installation options, while the integrated bypass module reduces cycling and ensures a smooth flow. The pump's quiet operation and vibration dampening mounting feet contribute to a disturbance-free experience. Designed for ease of maintenance, quick connect ports facilitate installation and servicing, making this pump suitable for both new setups and upgrades.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty models feature cast aluminum endbells and lower housings for enhanced pressure capability and extended lifespan

• Efficient and quiet operation for comfortable use

• Integrated, sealed pressure switch for on-demand activation

• Self-priming design allows versatile installation options

• Can operate dry without damage, increasing reliability

• Quick connect ports for easy installation, servicing, and maintenance

• Vibration dampening mounting feet for reduced noise and stability

• Built-in bypass module to reduce cycling and ensure smoother flow
