SKU:86612

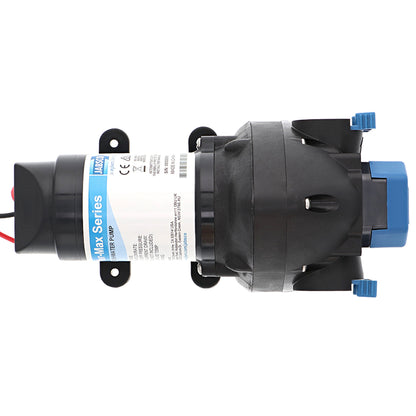

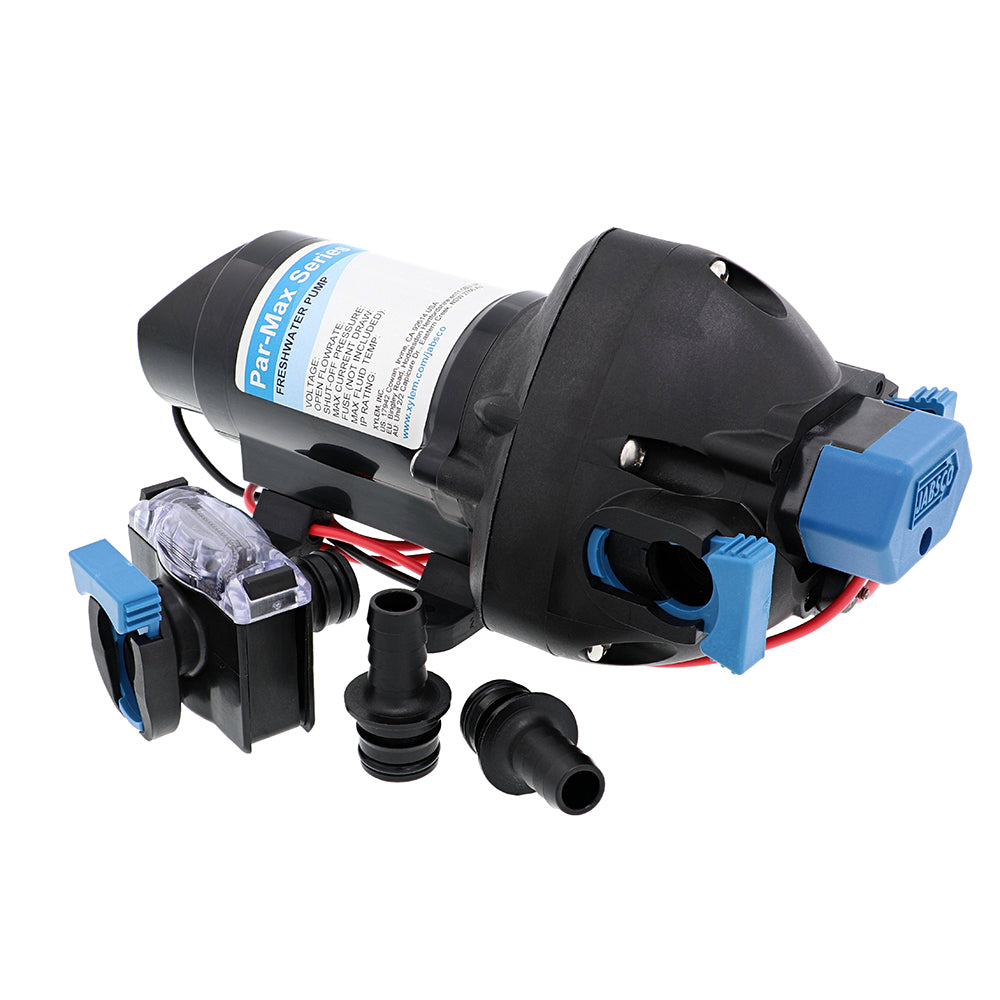

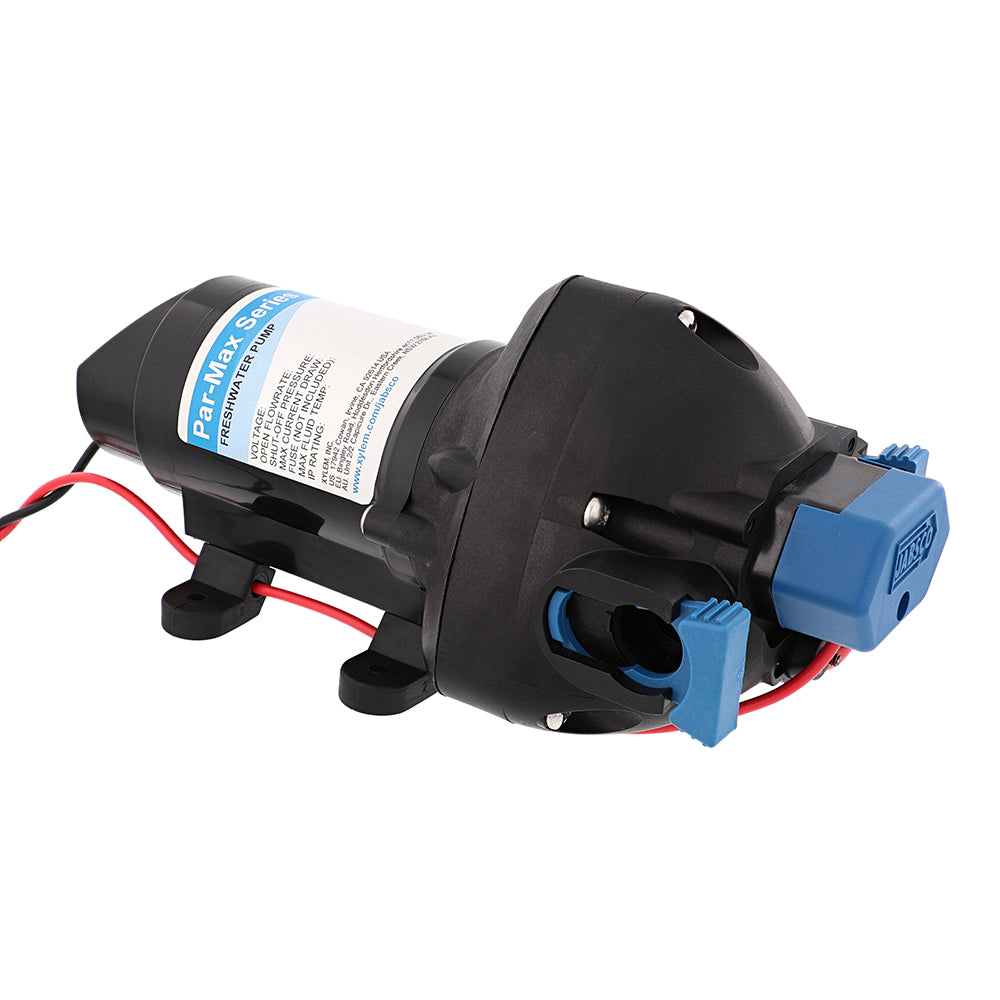

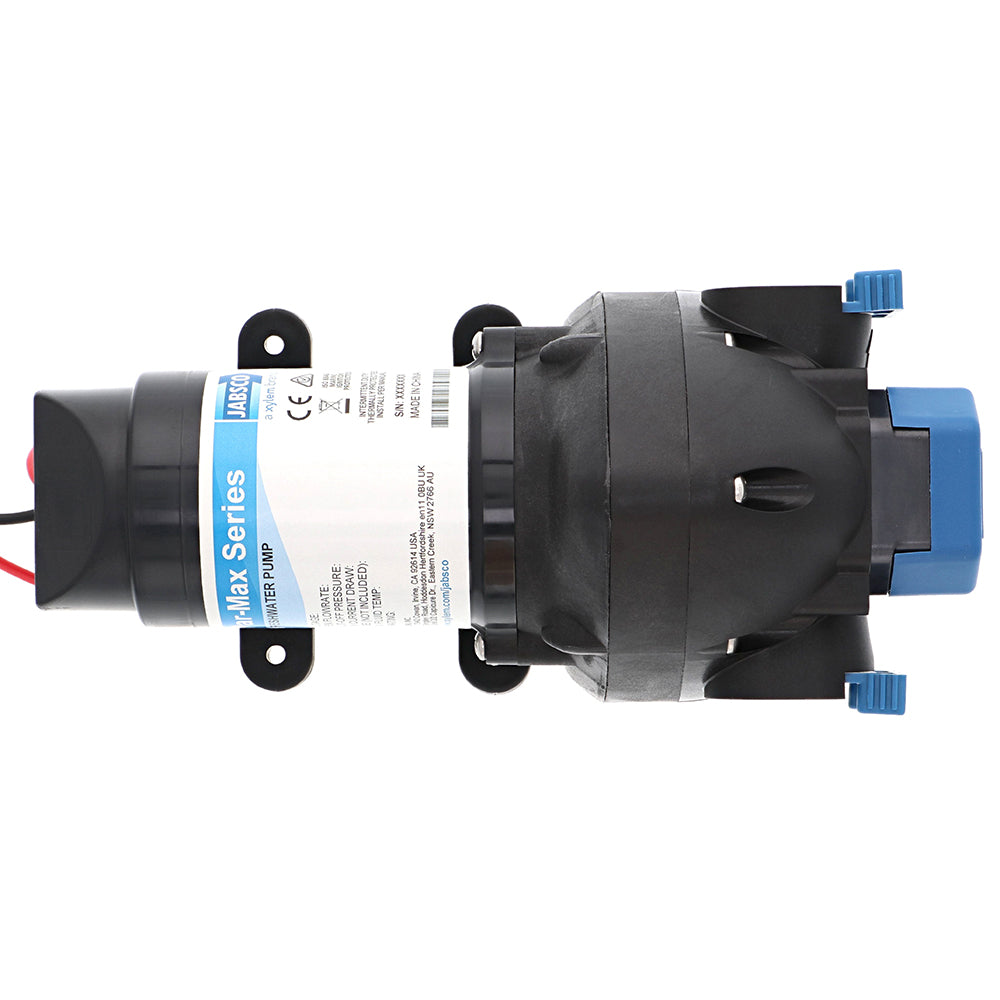

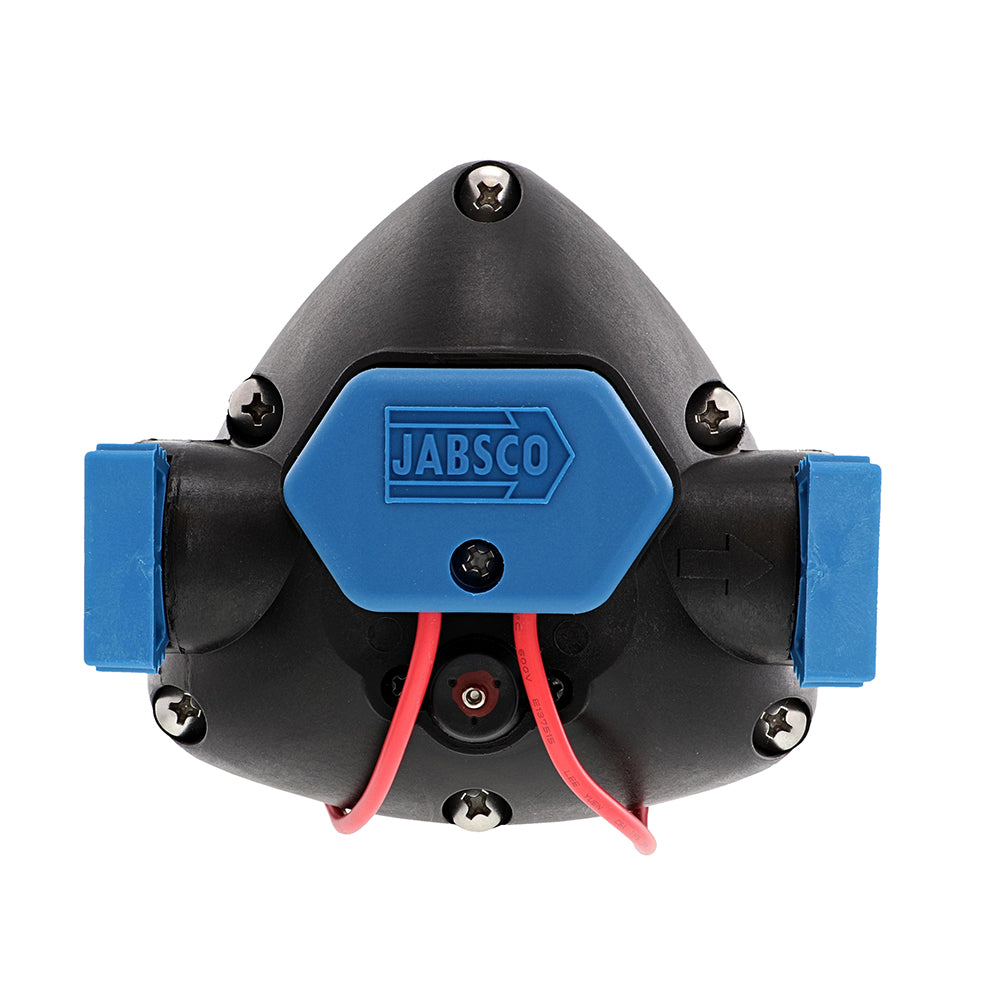

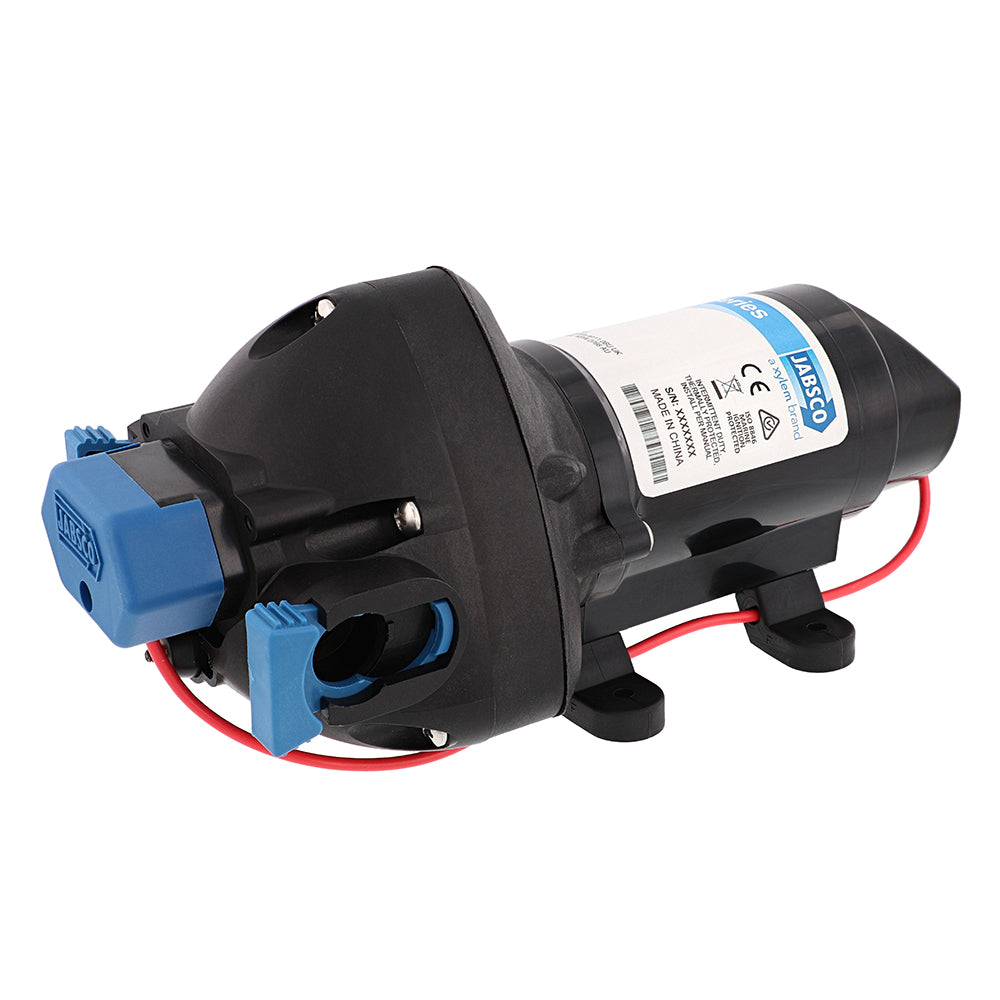

Par-Max 3 Water Pressure Pump - 12V - 3 GPM - 25 PSI
HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.
Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.
Features:
Specifications:
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
The Jabsco Par-Max 3 water pressure pump offers reliable performance for marine and RV applications with a compact 12V design. Featuring a durable co-molded diaphragm made from TPV, this pump ensures long-lasting operation even under demanding conditions. Its integrated sealed pressure switch provides on-demand activation, contributing to efficient power usage and quiet operation. The self-priming capability allows flexible installation options, and the ability to run dry without damage offers added reliability for various fluid handling needs. The pump's plastic housing protects internal components from corrosion, making it suitable for typical marine environments.
Heavy-duty models of the Par-Max 3 feature a wider diameter motor with a powder-coated shell, cast aluminum endbells, and a lower housing to enhance pressure capabilities and extend service life. These models can deliver up to 6 GPM and 60 PSI, making them ideal for applications requiring higher flow and pressure. Standard versions provide a balanced combination of performance and economy, supporting flows up to 3 GPM at 25 PSI, perfect for vessels with multiple outlets. The pump is equipped with quick connect ports for straightforward installation and maintenance, vibration dampening mounting feet to reduce noise and vibration, and an integrated bypass module to minimize cycling and deliver a smoother flow.
The pump's components include a glass fiber reinforced polypropylene upper housing, EPDM check valves, and an inlet pressure limit of 30 PSI. It operates within a temperature range of 32°F to 140°F (0°C to 60°C) and is certified to CE, ISO8846, and RCM standards. With an ingress protection rating of IPX6, the Jabsco Par-Max 3 is built to withstand water ingress and harsh conditions, ensuring long-term operational integrity.
Note: This product may contain chemicals such as antimony oxide, which are known to cause cancer in California. For more details, visit P65Warnings.ca.gov.
Features:
