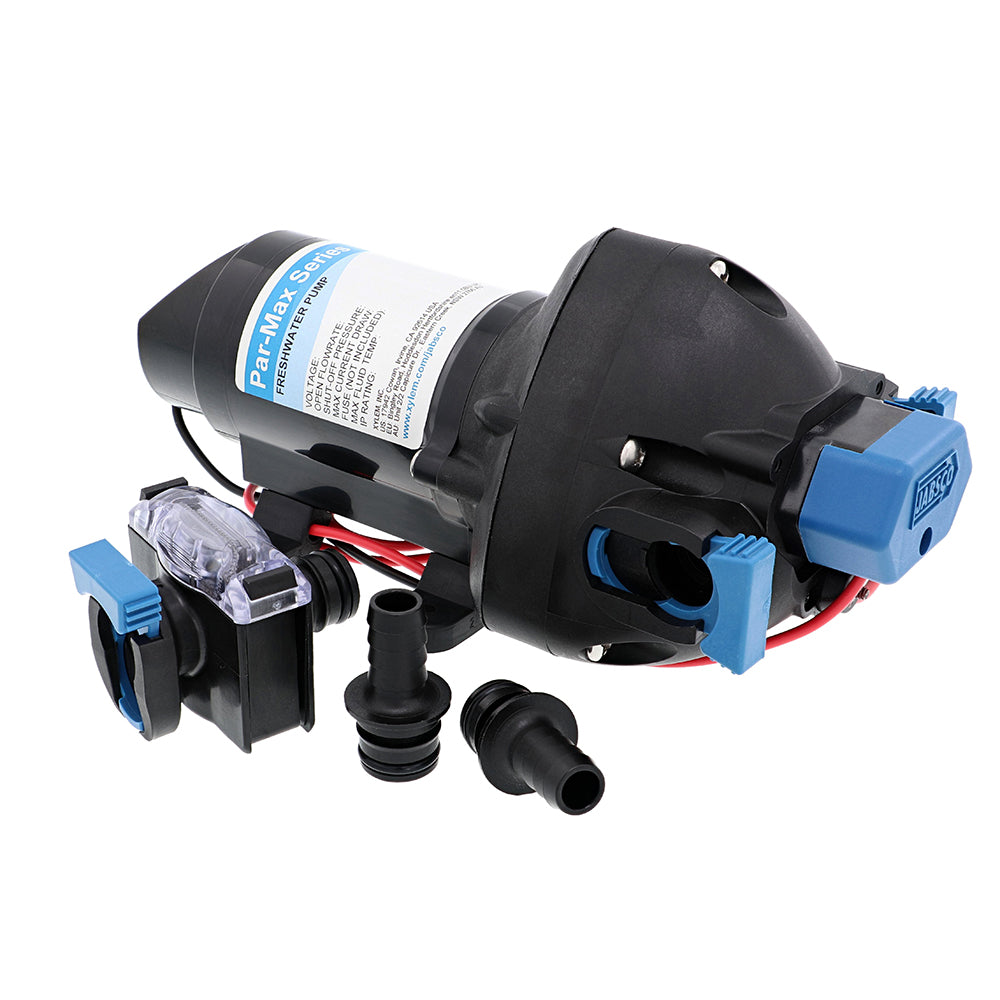

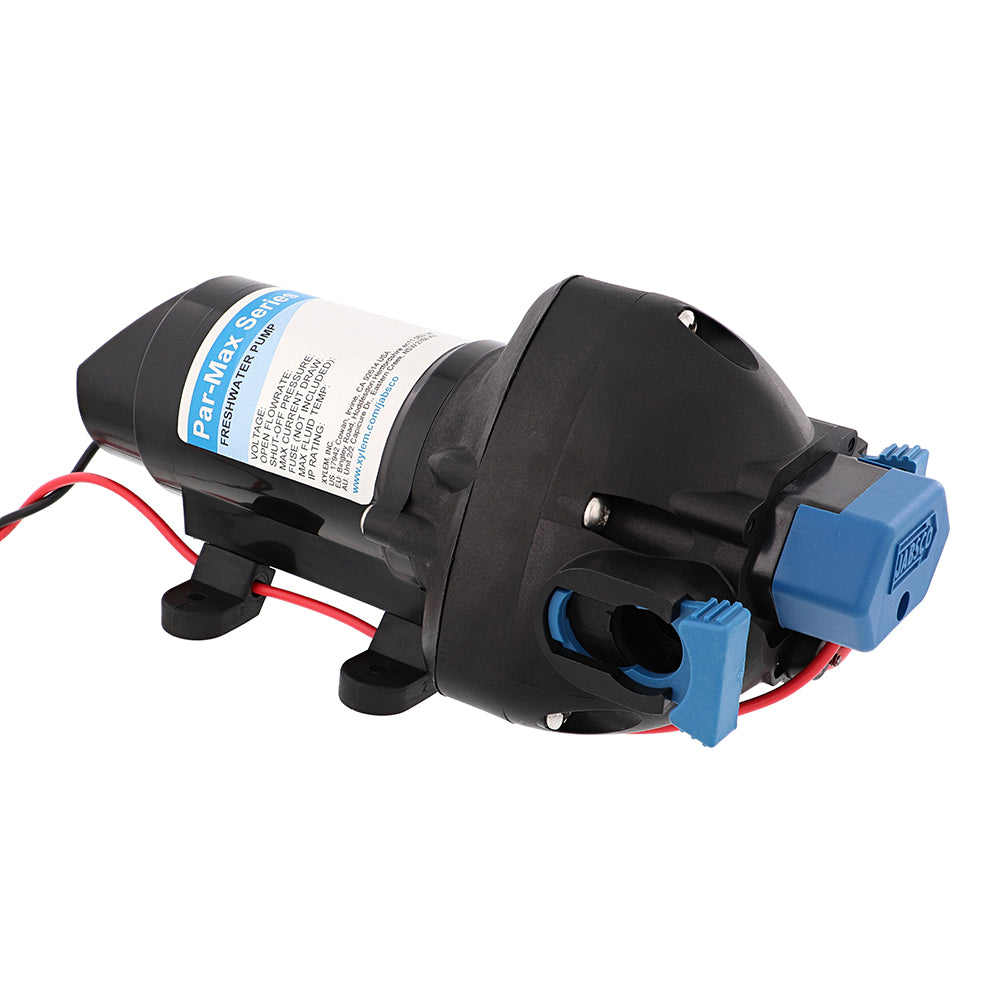

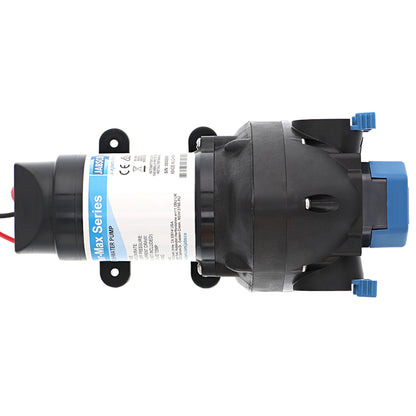

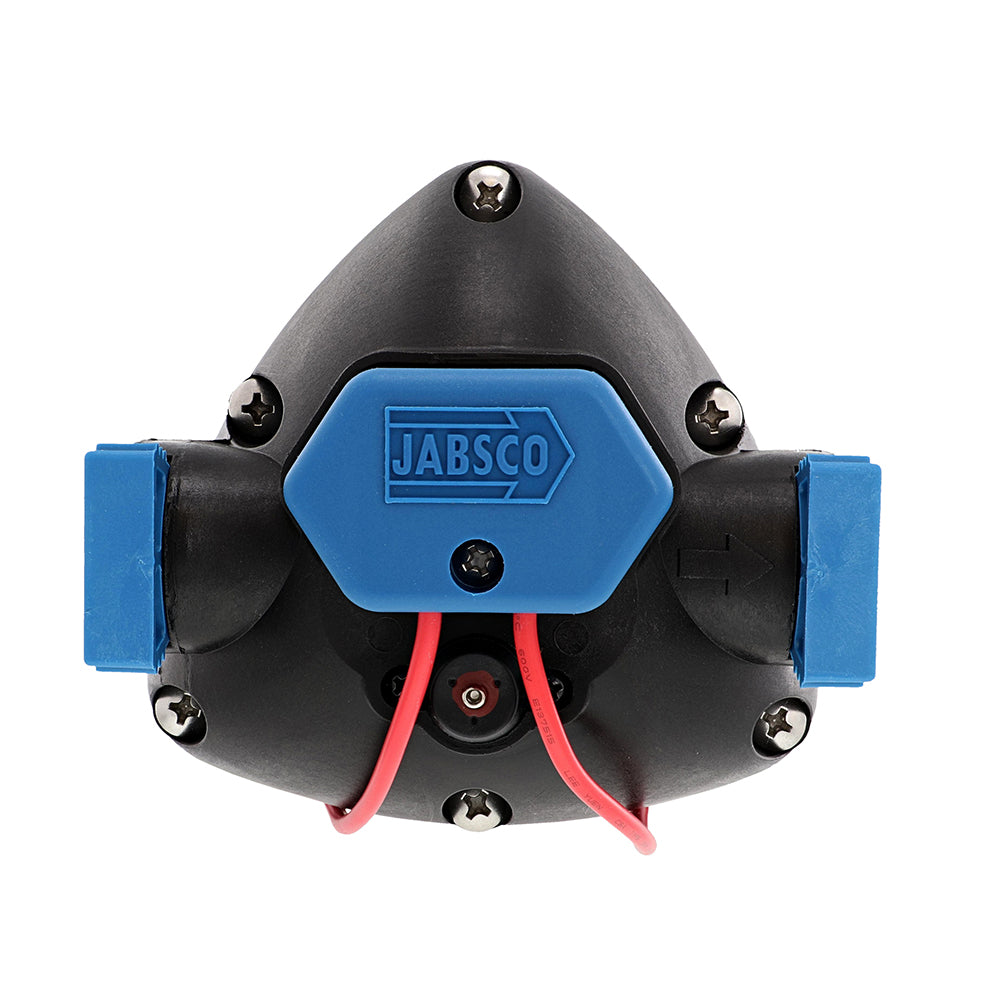

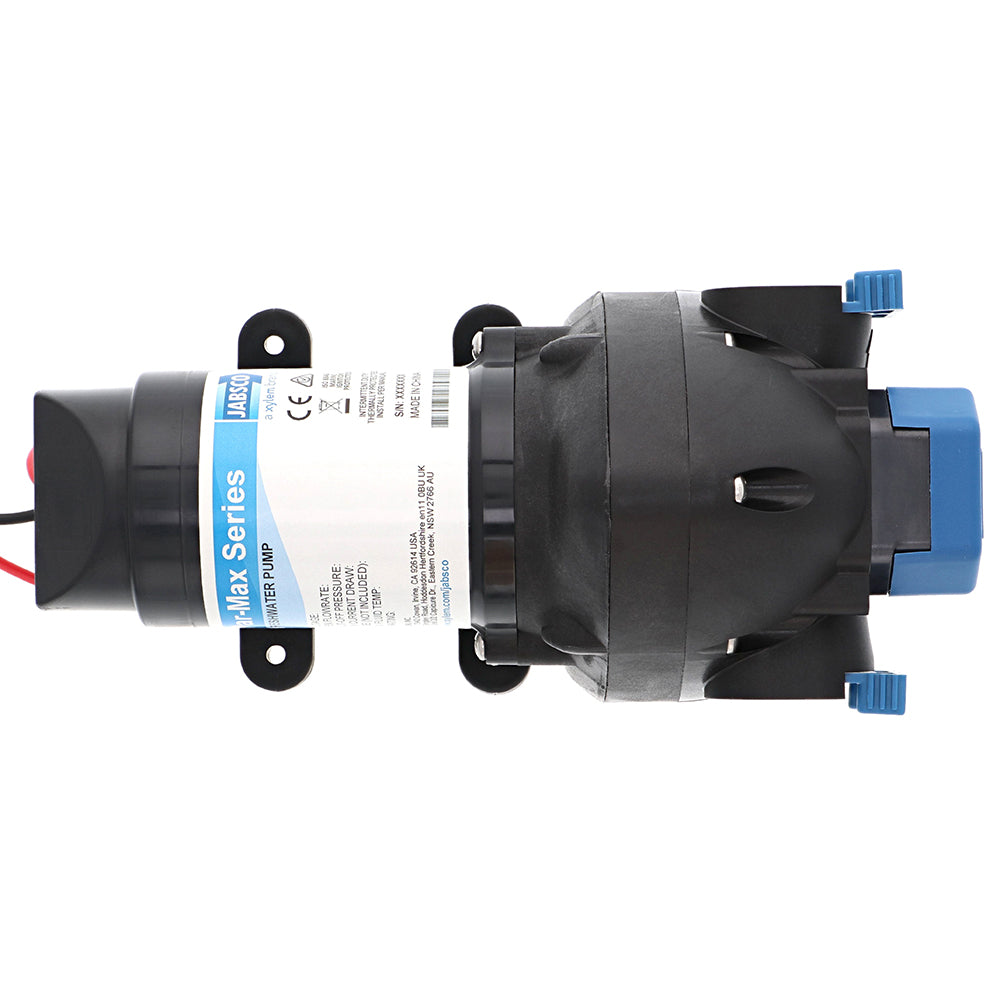

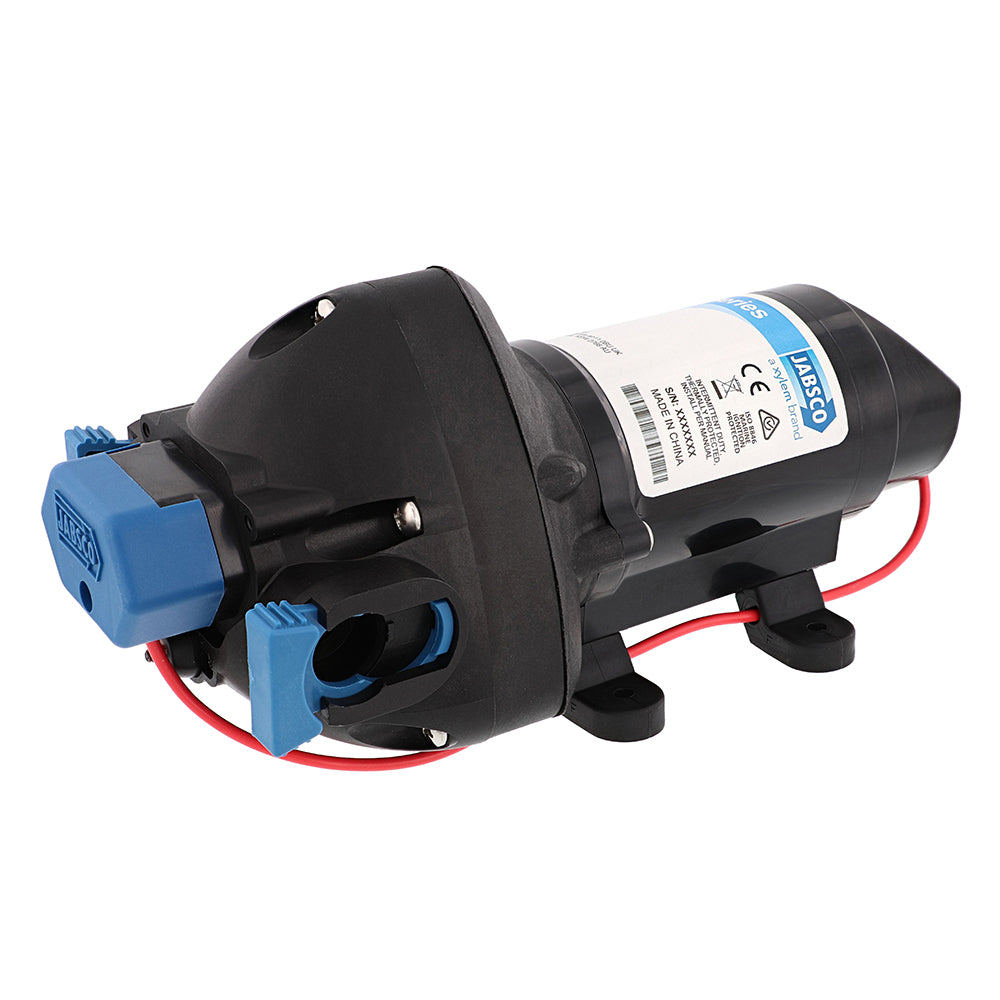

Jabsco Par-Max 3 Water Pressure Pump - 12V, 3 GPM, 40 PSI

Par-Max 3 Water Pressure Pump - 12V - 3 GPM - 40 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max 3 Water Pressure Pump offers reliable performance for marine, RV, and industrial applications. Designed with a durable construction, this 12V pump delivers up to 3 gallons per minute at a pressure of 40 PSI, ensuring consistent water flow in various systems. Its compact size and self-priming feature allow for flexible installation options, making it suitable for vessels and vehicles with limited space. The pump's integrated sealed pressure switch activates on demand, providing efficient operation while reducing power consumption and noise levels. Constructed with a glass fiber reinforced polypropylene pump head and EPDM check valves, the Par-Max 3 is built to withstand harsh environments and continuous use. Its vibration dampening mounting feet minimize noise and vibration, contributing to a quieter operation. The pump is also equipped with an integrated bypass module to smooth flow and reduce cycling, enhancing overall performance and lifespan. Whether used in fresh water systems or other fluid transfer applications, the Jabsco Par-Max 3 provides a dependable solution for maintaining water pressure and flow. Its corrosion-resistant plastic housing protects vital components, while the heavy-duty motor and cast aluminum endbells in HD models extend durability and service life. Certified to CE, ISO8846, and RCM standards, this pump meets rigorous safety and quality benchmarks, making it a trusted choice for demanding environments.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motor and cast aluminum lower housings for enhanced pressure capability and longevity

• Efficient and quiet operation for comfort and performance

• Integrated, sealed pressure switch for on-demand activation

• Self-priming design allows for flexible installation

• Can operate dry without damage, reducing maintenance concerns

• Quick connect ports for easy installation and servicing

• Vibration dampening mounting feet for noise reduction

• Integrated bypass module to reduce cycling and ensure smooth flow
