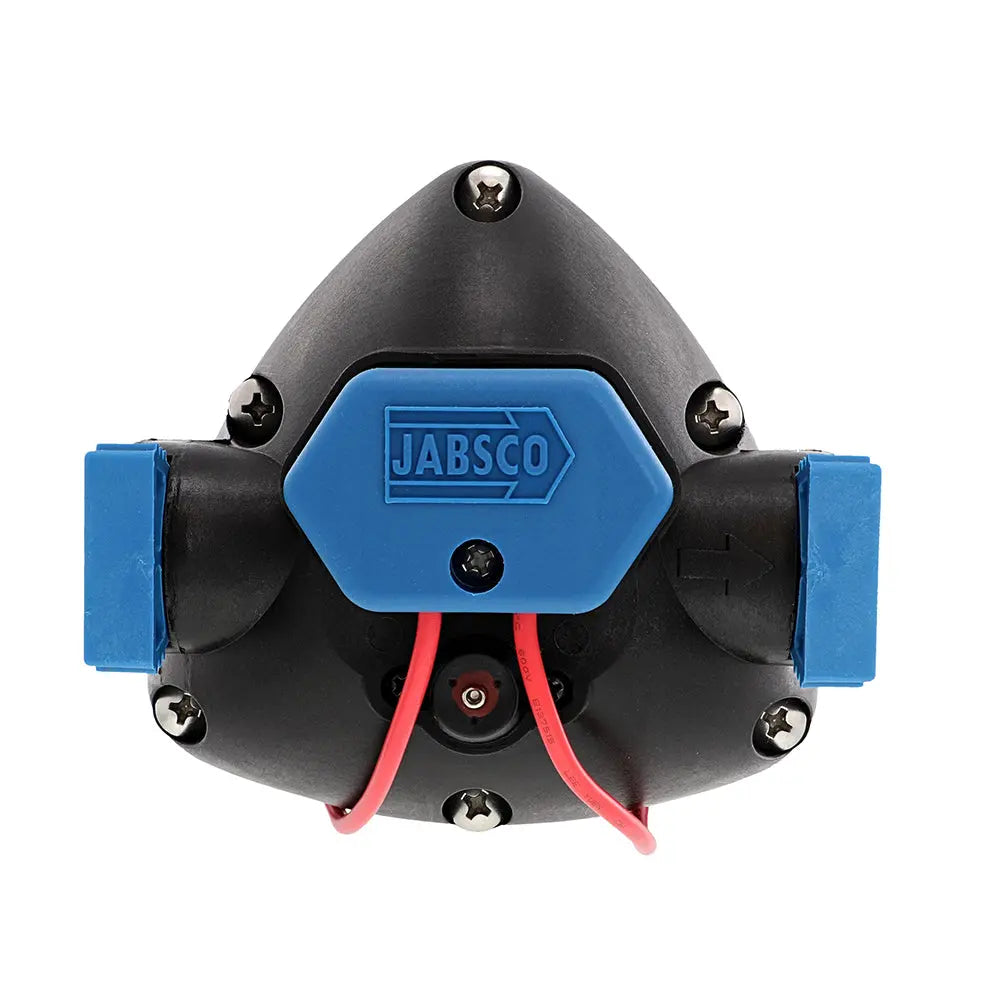

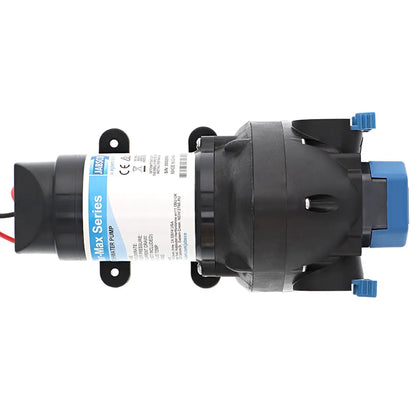

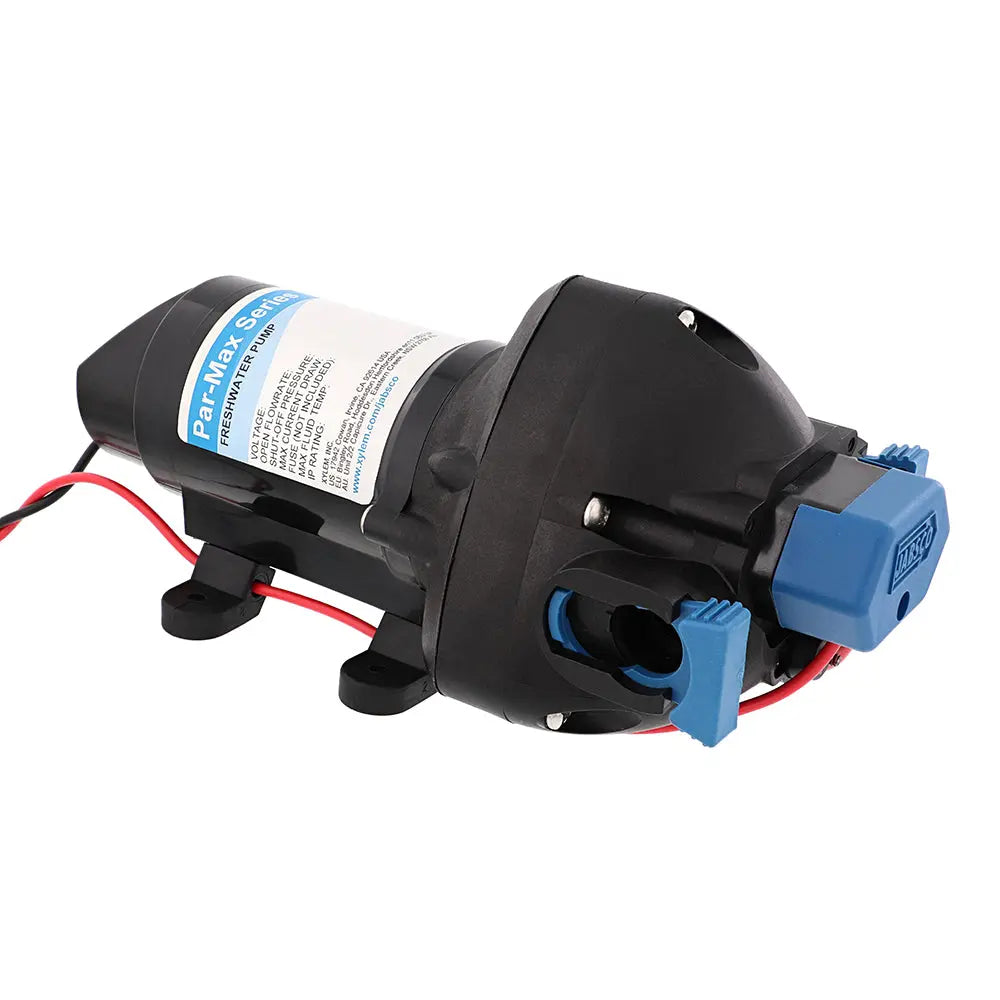

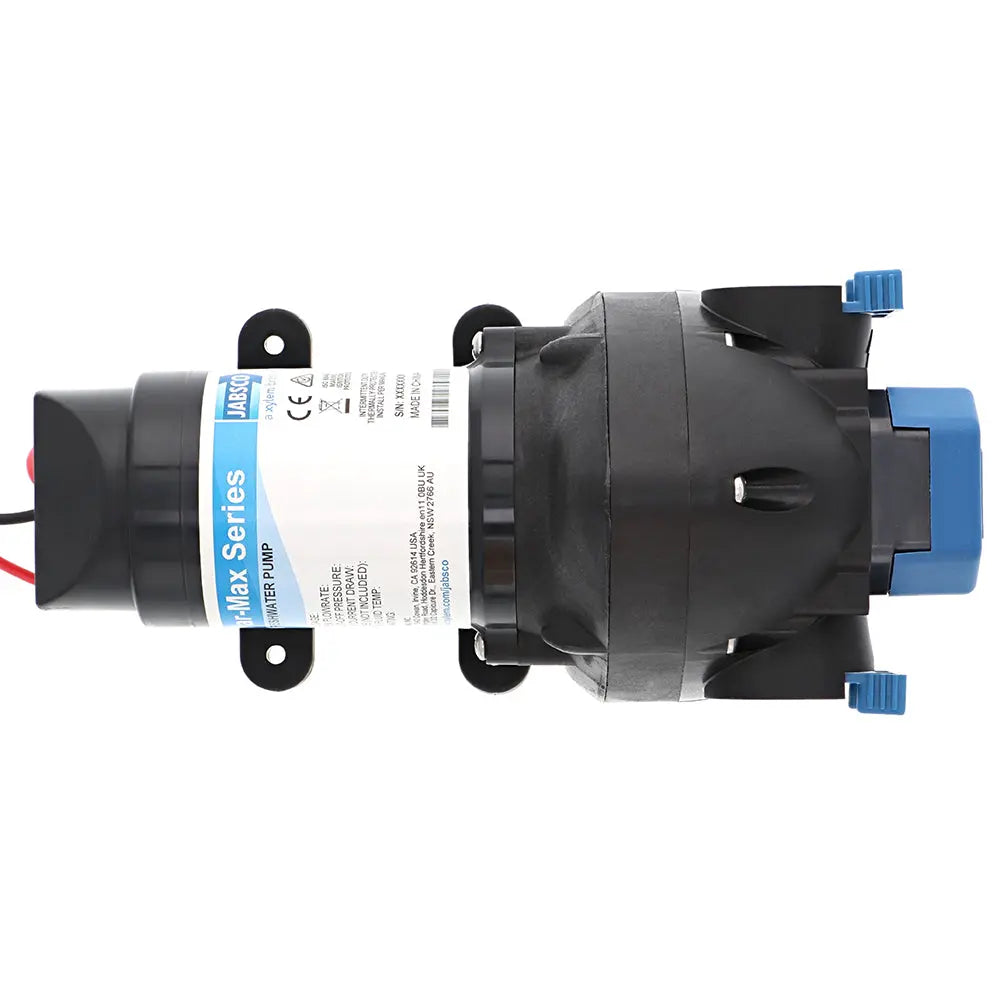

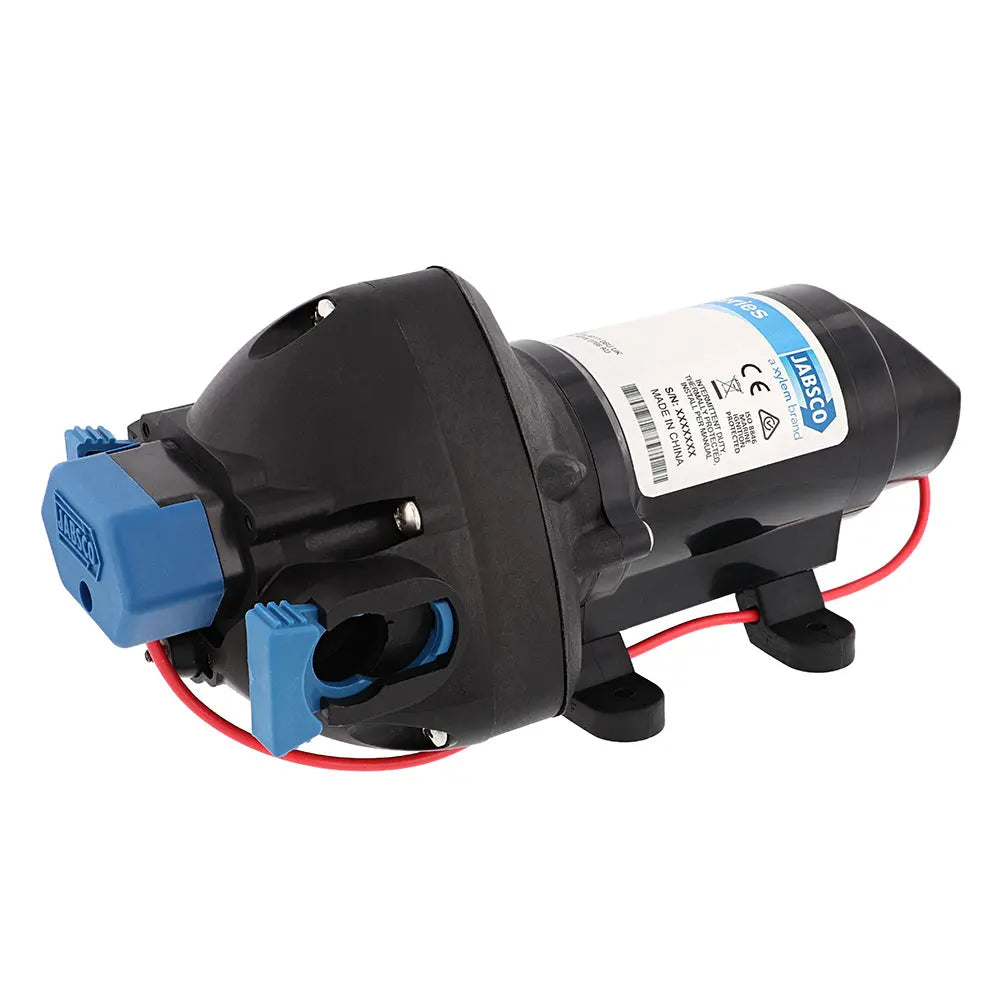

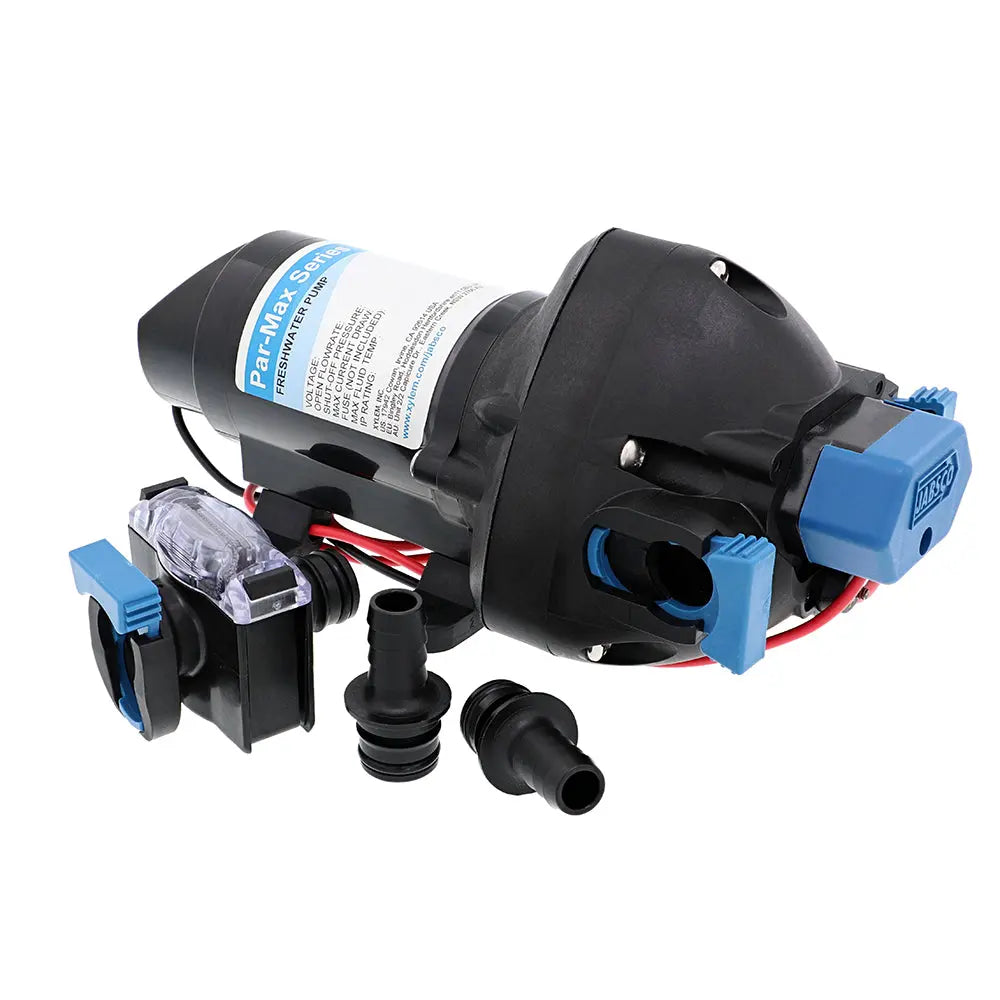

Jabsco Par-Max 3 Water Pressure Pump - 24V, 3 GPM, 25 PSI

Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 25 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max 3 water pressure pump is engineered for reliable performance in demanding applications. Powered by a 24V brushed, permanent magnet TENV motor, this pump offers a flow rate of 3 gallons per minute at a pressure of 25 PSI, making it suitable for a variety of marine, RV, or industrial uses. Its robust construction includes a glass fiber reinforced polypropylene pumphead and a co-molded TPV diaphragm, ensuring long-lasting durability even under continuous operation. The integrated, sealed pressure switch allows for on-demand activation, promoting energy efficiency and reducing wear over time. Vibration dampening mounting feet contribute to quiet operation and stability, while the quick connect ports facilitate straightforward installation and maintenance. The self-priming feature, capable of handling elevations up to 7 feet, provides versatility in mounting options and system configurations. The pump's design allows it to run dry without damage, adding to its reliability in various operating conditions. Certified with CE, ISO8846, and RCM standards and protected by an IPX6 ingress rating, the Jabsco Par-Max 3 is built to meet rigorous safety and performance requirements. Its corrosion-resistant plastic housing offers additional protection, making it ideal for marine or outdoor environments. The pump includes an integrated bypass module that smooths flow and reduces cycling, enhancing overall system efficiency. Whether for vessel water systems or auxiliary functions, this pump delivers consistent, efficient performance in a compact, easy-to-install package.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motors and cast aluminum lower housings in HD models for extended lifespan at high pressures

• Efficient and quiet operation for minimal noise disturbance

• Integrated, sealed pressure switch for on-demand operation

• Self-priming capability up to 7 feet for installation flexibility

• Can operate dry without damage for added reliability

• Quick connect ports for easy installation and maintenance

• Vibration dampening mounting feet for stability and noise reduction

• Built-in bypass module to reduce cycling and ensure smoother flow
