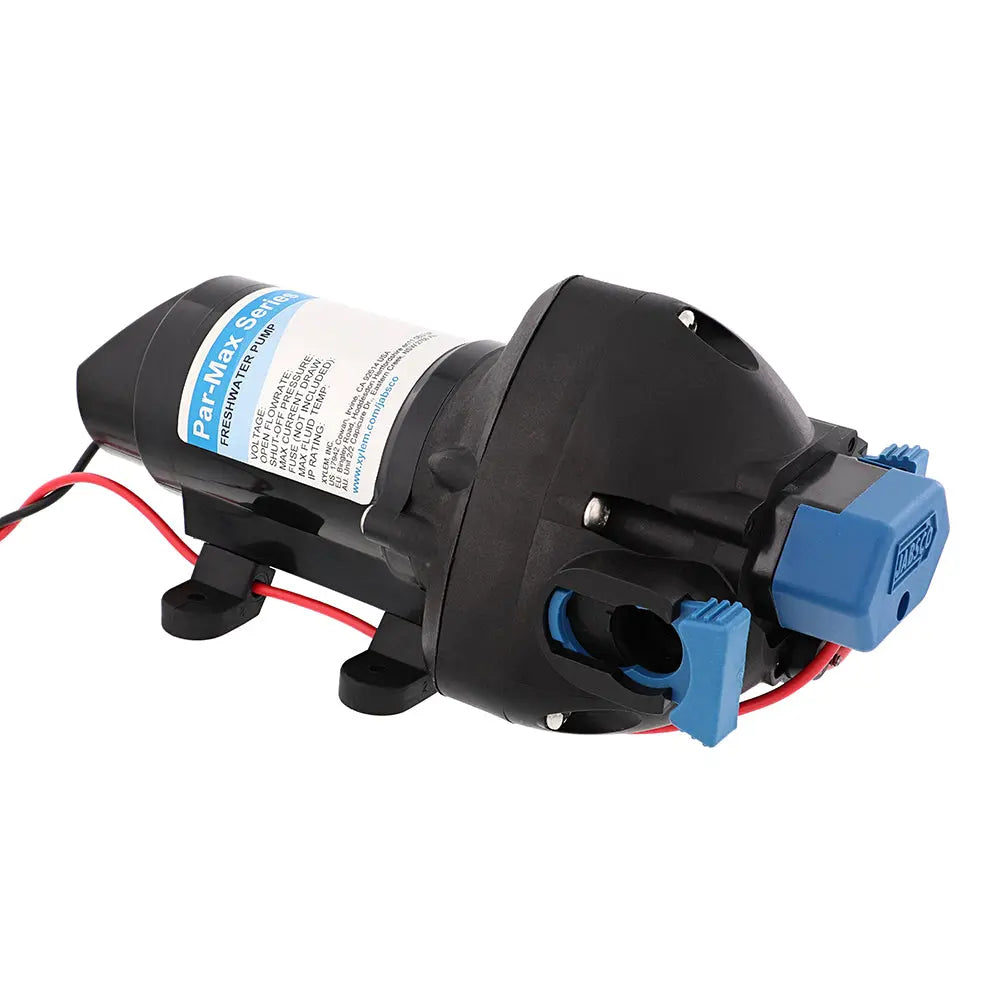

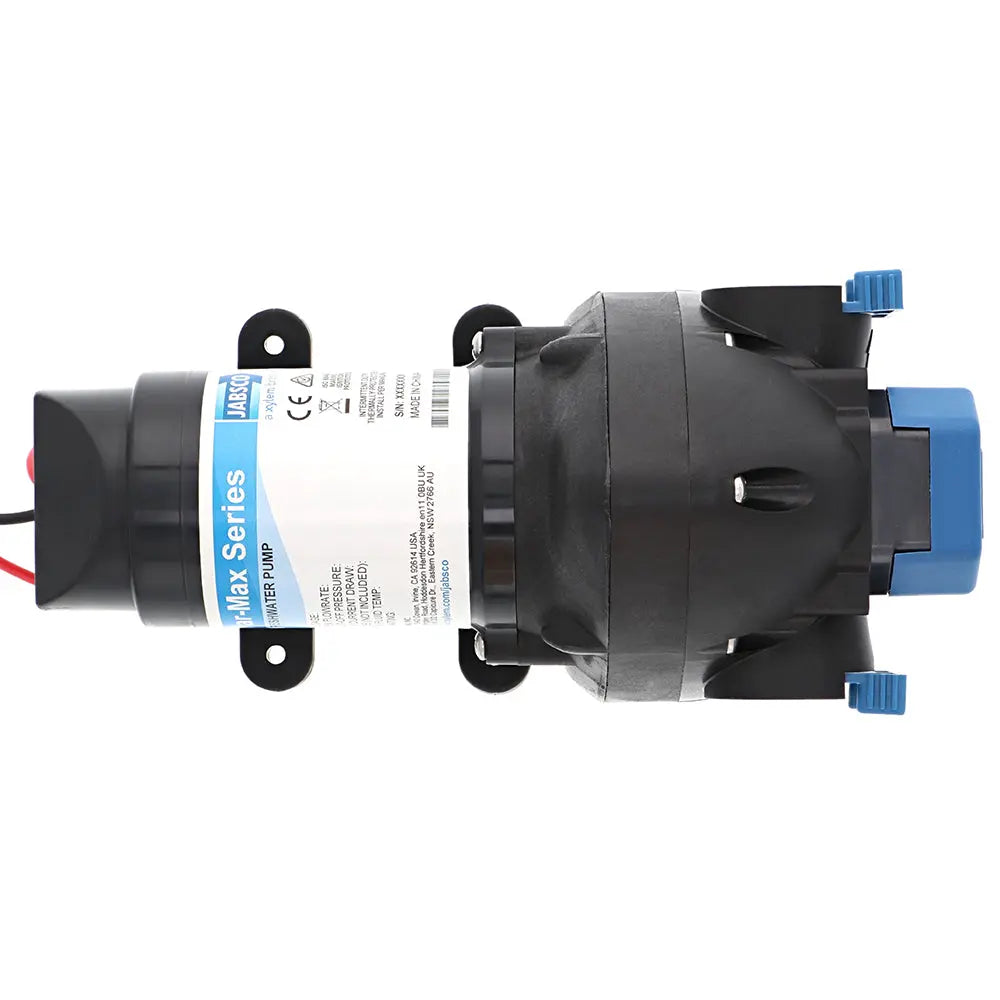

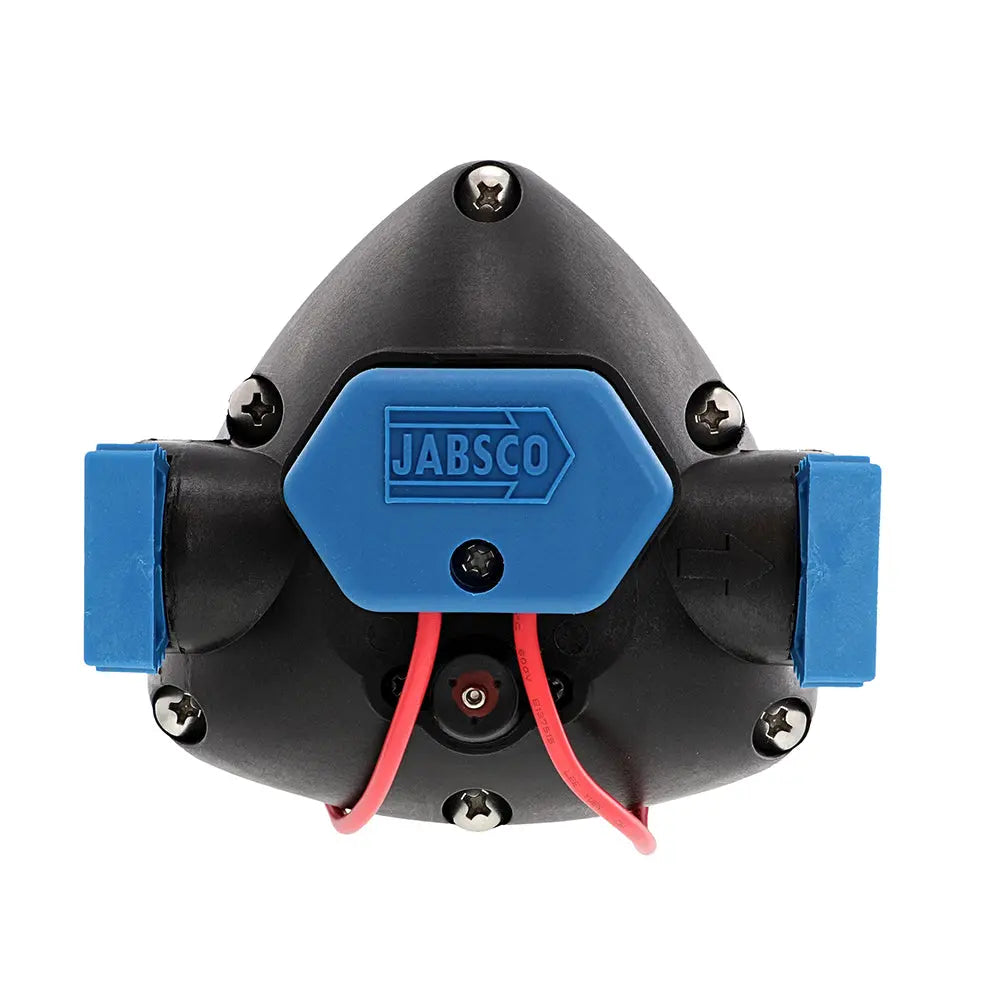

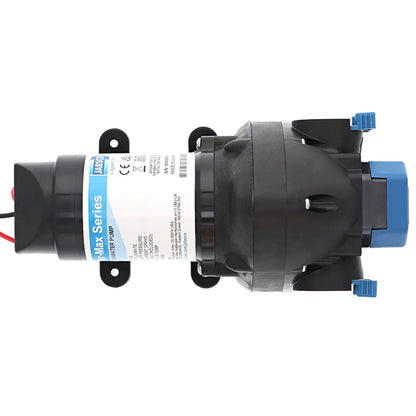

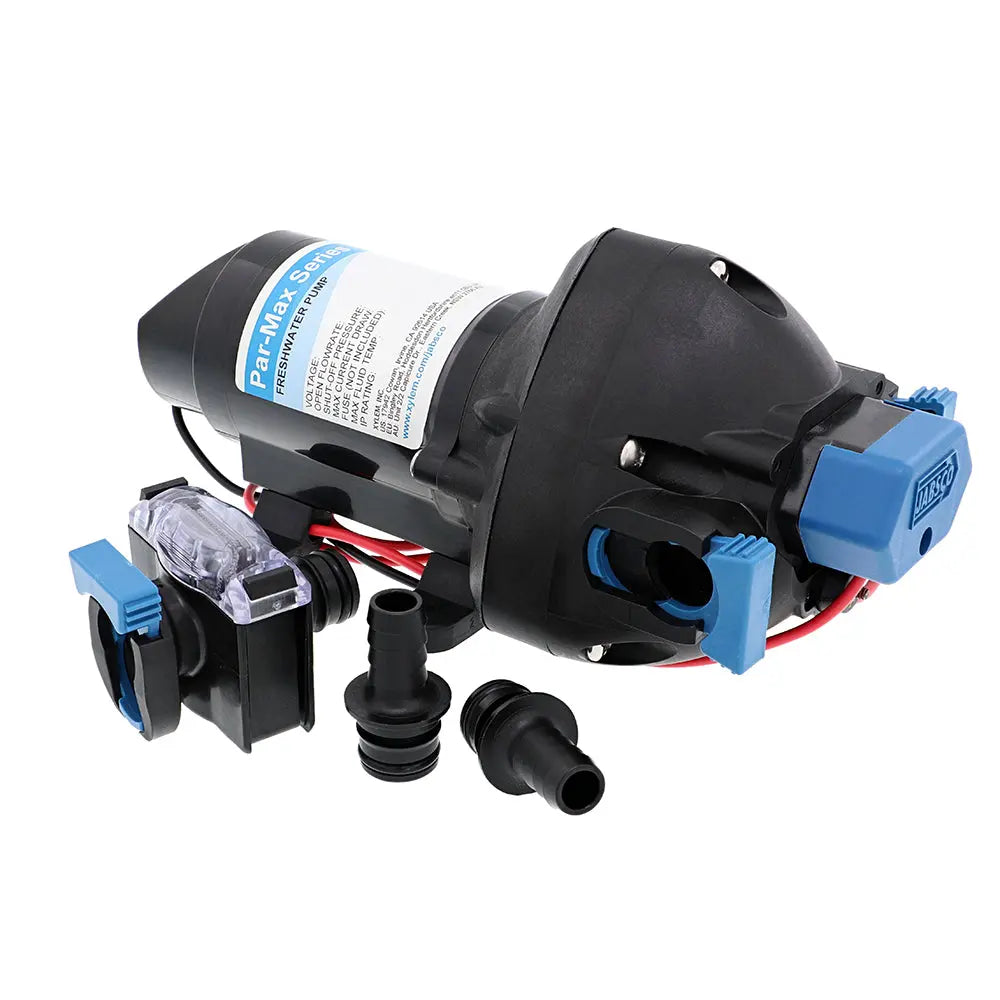

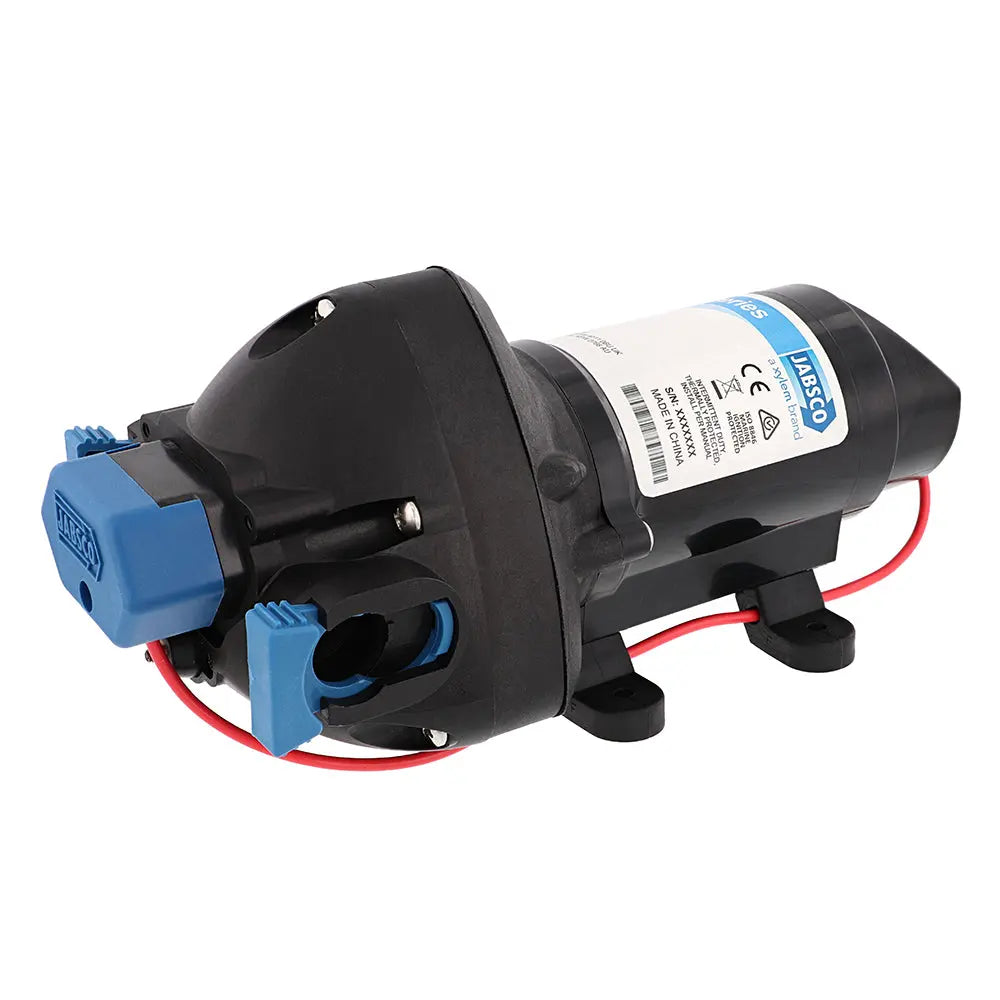

Jabsco Par-Max 3 Water Pressure Pump - 24V, 3 GPM, 40 PSI for Marine and RV Applications

Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 40 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max 3 water pressure pump is a reliable 24-volt solution designed to deliver consistent water flow for marine, RV, and other mobile applications. Featuring a durable construction with a plastic housing to resist corrosion, this pump offers efficient operation with a flow rate of 3 gallons per minute and a maximum pressure of 40 PSI. Ideal for vessels with one to three outlets, it provides a compact yet powerful solution for on-demand water needs. The integrated sealed pressure switch ensures automatic operation, activating the pump only when water is needed, which helps conserve energy and extend pump life. Its self-priming capability of at least 7 feet allows flexible installation options, even in challenging setups. The quick-connect ports facilitate easy installation and maintenance, saving time and effort during setup or servicing. Vibration dampening mounting feet help reduce noise and vibration, contributing to a quieter operation environment. The pump's design incorporates a co-molded diaphragm made of TPV for enhanced durability and long-term performance. The glass fiber-reinforced polypropylene pumphead offers resistance to harsh conditions, while EPDM check valves prevent backflow, ensuring reliable performance over time. Certified with CE, ISO8846, and RCM standards and rated IPX6 for ingress protection, the Jabsco Par-Max 3 is built to withstand demanding environments. Whether used in freshwater or saltwater settings, this pump can operate effectively across a range of temperatures from 32°F to 140°F. Its efficient, quiet, and self-priming operation makes it a practical choice for water supply systems where durability and ease of maintenance are priorities.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motors and cast aluminum lower housings in HD models for extended lifespan at high pressures

• Efficient and quiet operation for user comfort

• Integrated sealed pressure switch for on-demand activation

• Self-priming capability of at least 7 feet for versatile installation

• Can run dry without damage, enhancing reliability

• Quick connect ports for straightforward installation and servicing

• Vibration dampening mounting feet to reduce noise and vibration

• Integrated bypass module to reduce cycling and ensure smooth flow
