SKU:86620

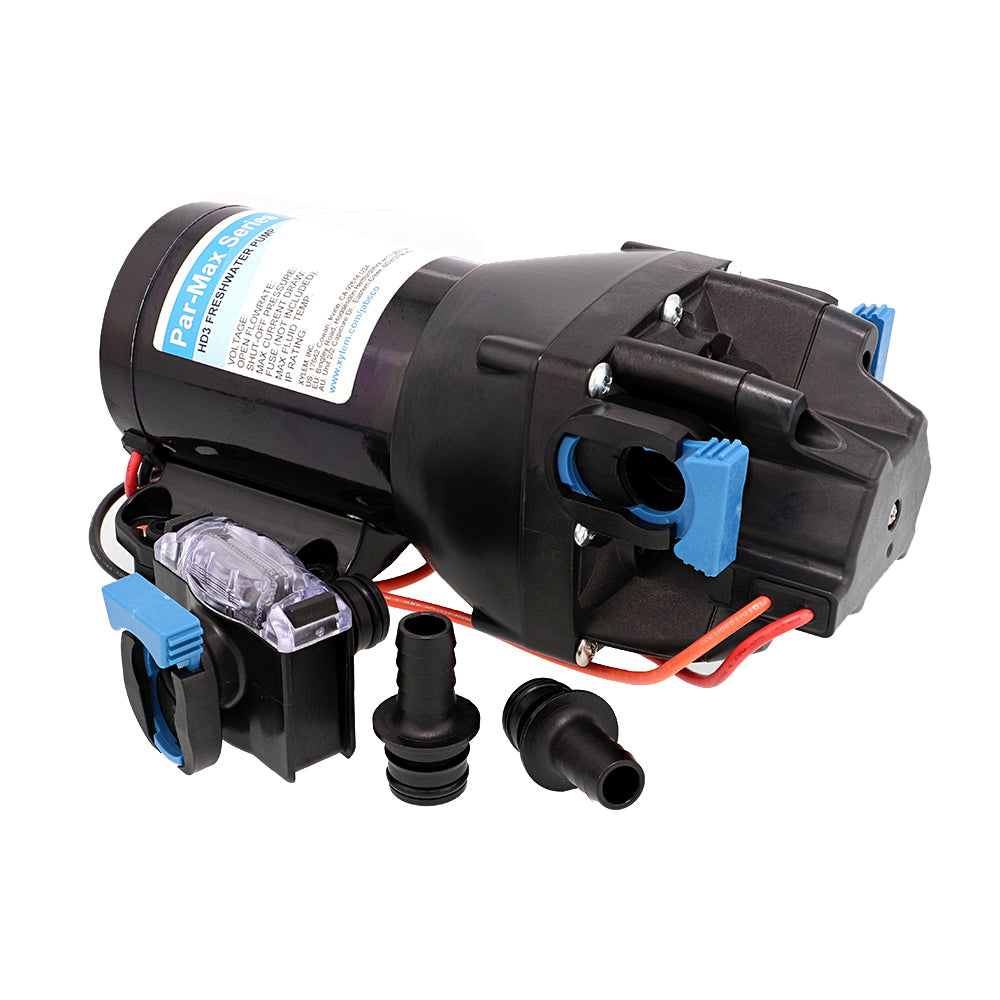

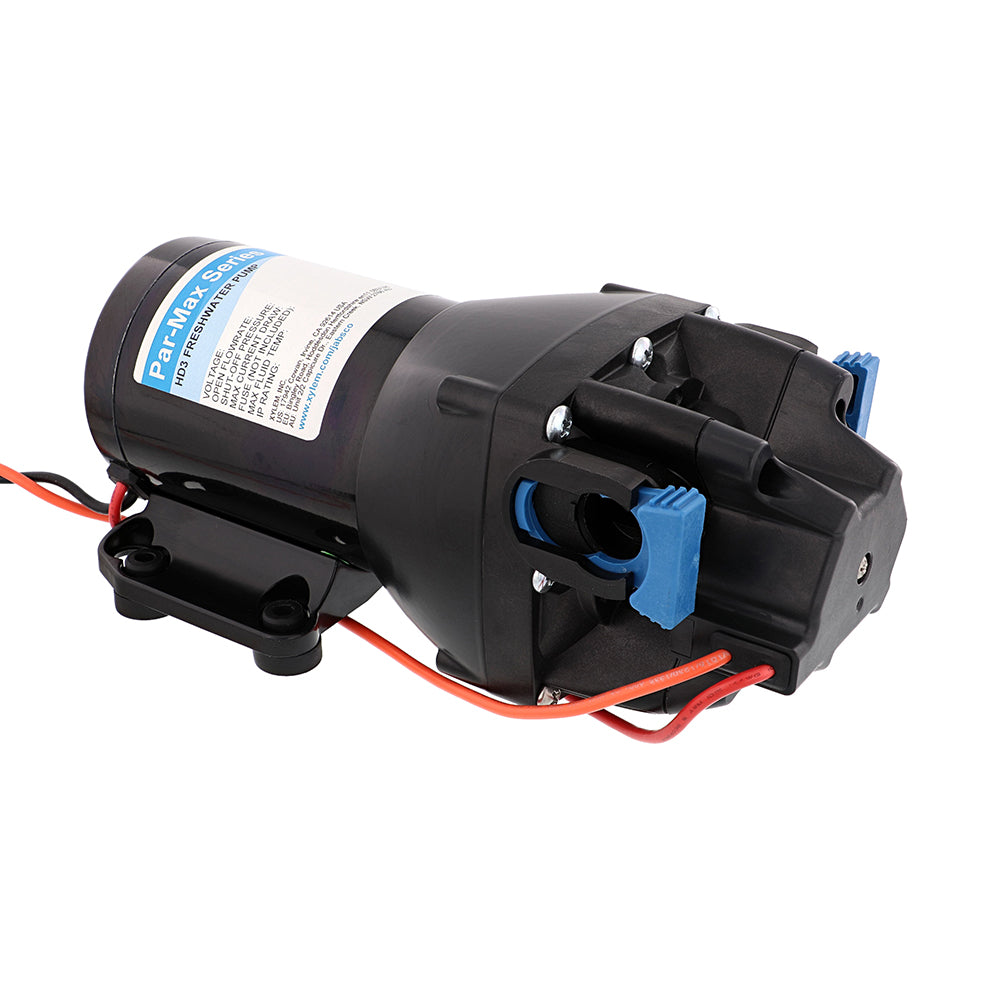

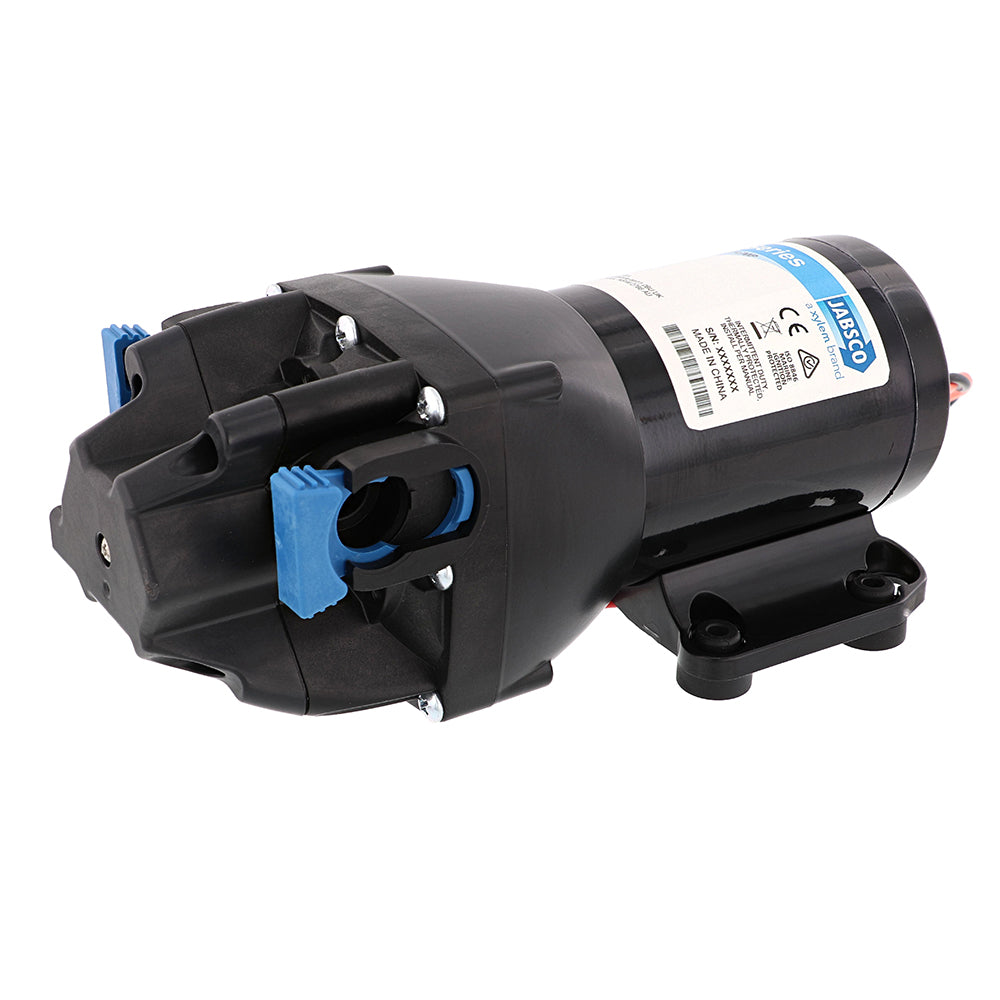

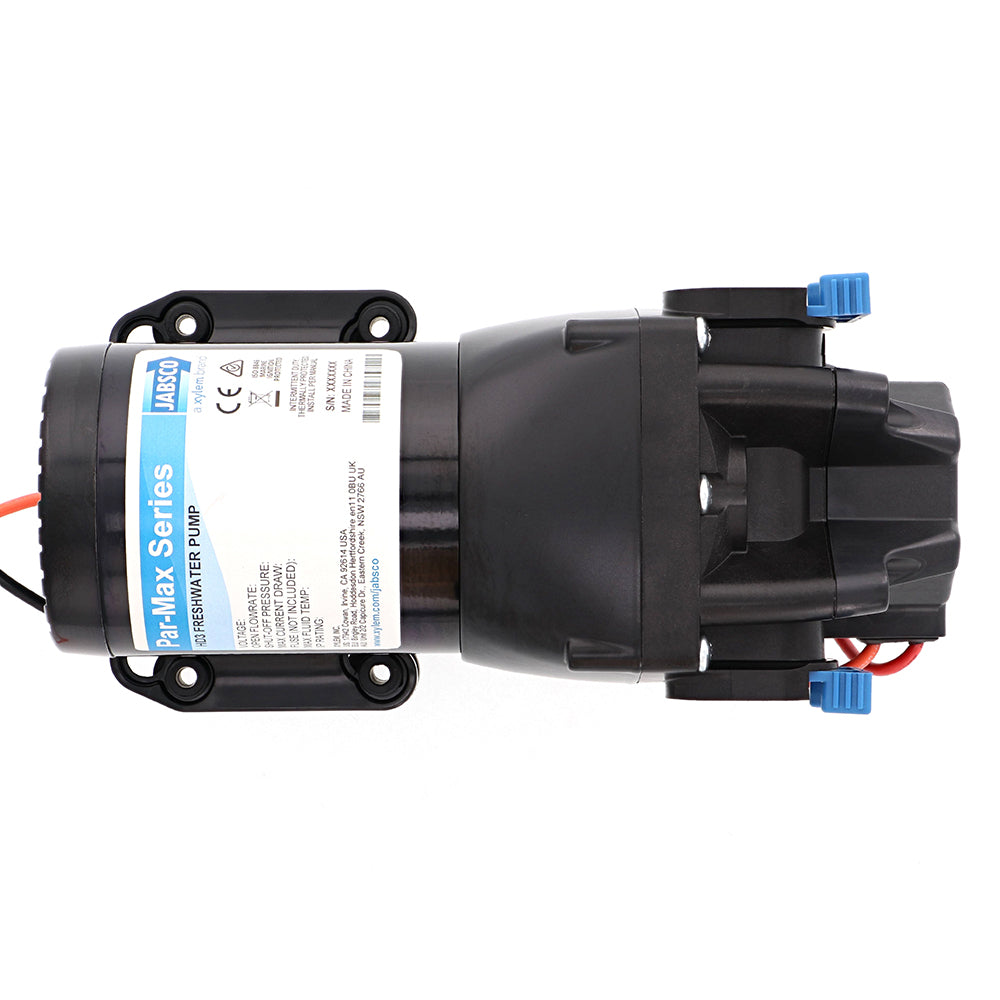

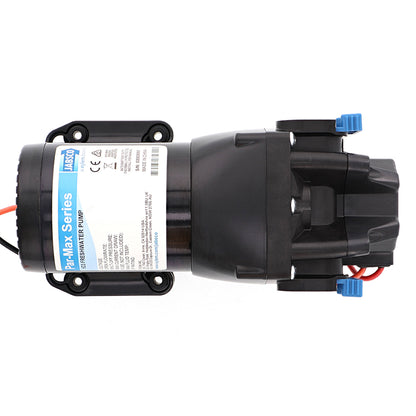

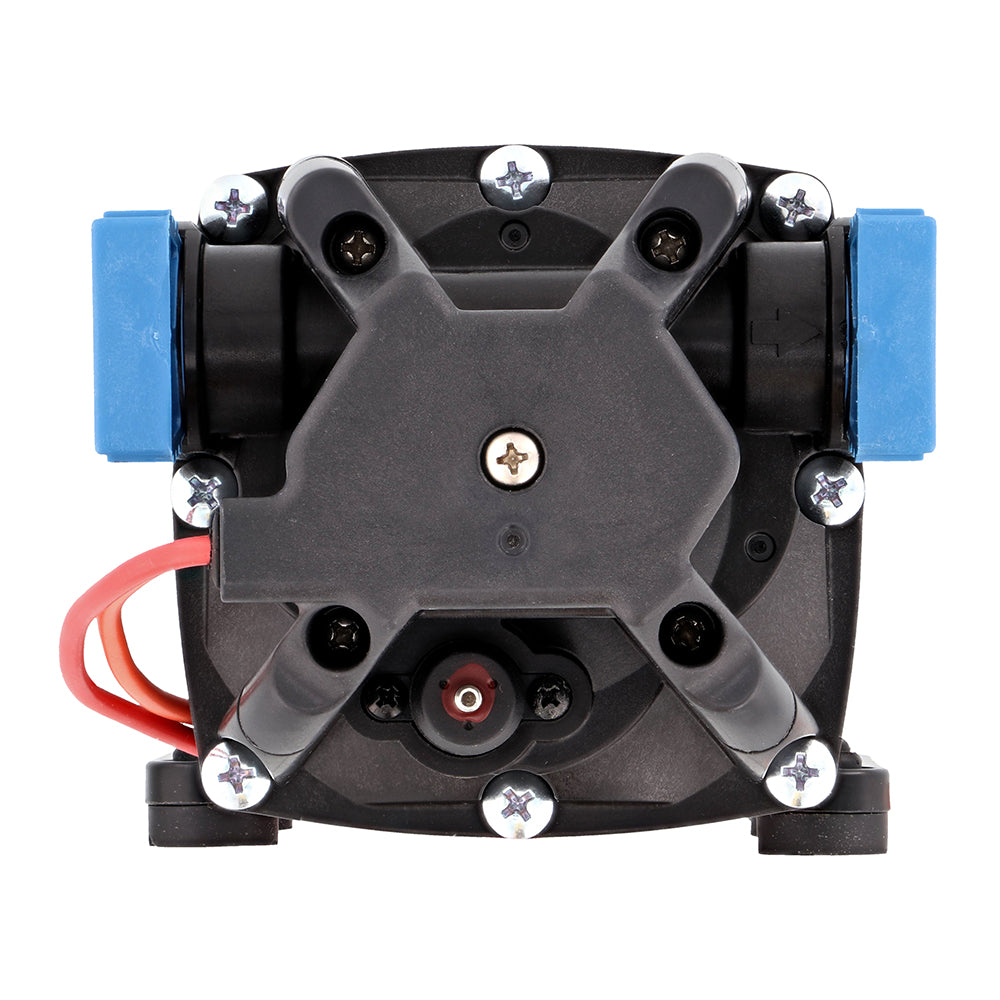

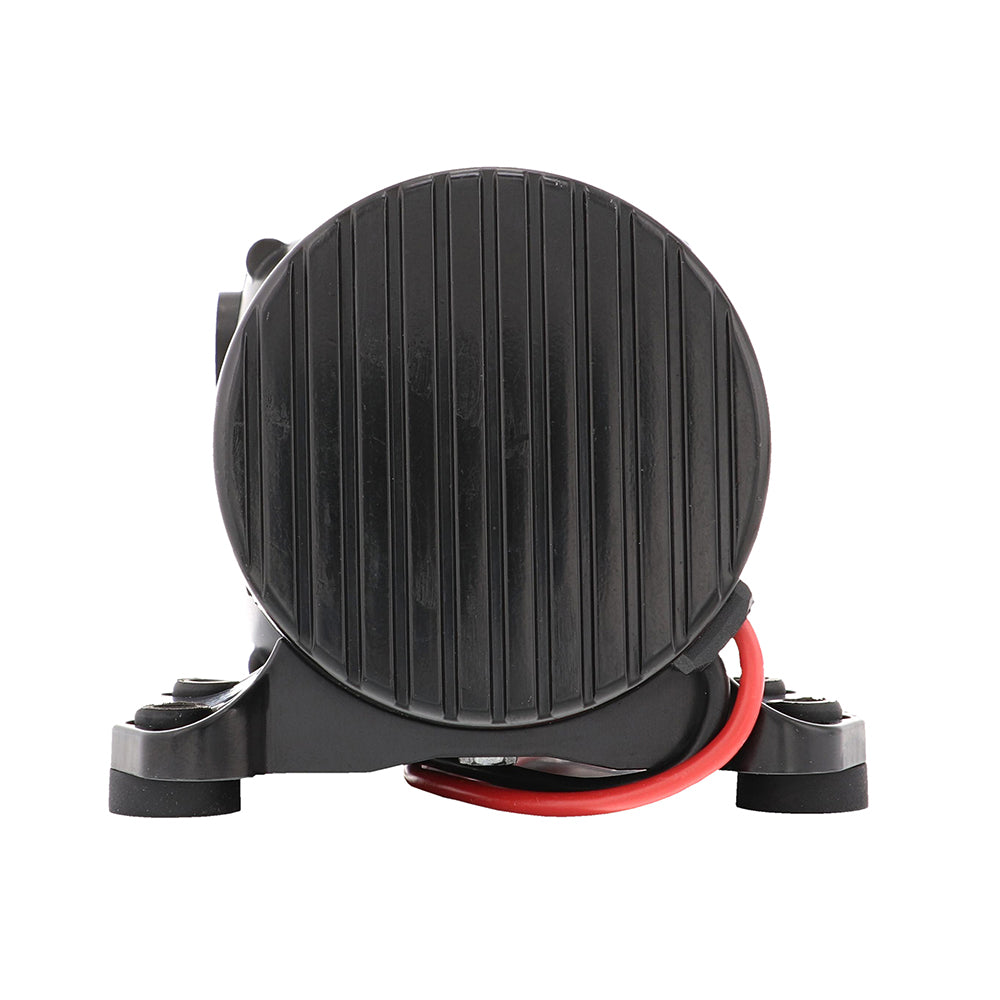

Par-Max HD3 Heavy Duty Water Pressure Pump - 12V - 3 GPM - 40 PSI
HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.
Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.
Features:
Specifications:
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
The Jabsco Par-Max HD3 Heavy Duty Water Pressure Pump is designed for reliable performance in demanding applications. Featuring a robust 12-volt motor and a co-molded diaphragm, this pump ensures long-lasting durability and efficient operation. Its heavy-duty construction includes a wider diameter motor with a powder-coated shell, cast aluminum endbells, and a lower housing, which collectively enhance pressure capability and extend the pump's lifespan. Ideal for vessels requiring a steady flow, the HD3 model delivers up to 3 gallons per minute at 40 PSI, making it suitable for various marine and RV water systems.
This model is equipped with an integrated, sealed pressure switch that allows for on-demand operation, reducing unnecessary cycling and conserving power. Its self-priming feature allows flexible installation options, even in challenging locations, with a minimum self-priming height of 7 feet. The pump can run dry without damage, providing added safety and reliability. Quick connect ports facilitate easy installation, maintenance, and servicing, while vibration dampening mounting feet minimize noise and vibration for quieter operation. The integrated bypass module ensures smoother flow and reduces cycling, contributing to overall system efficiency.
Constructed with high-quality materials such as glass fiber reinforced polypropylene for the pump head and EPDM check valves, the Jabsco Par-Max HD3 is built to withstand harsh conditions. It is rated IPX6 for ingress protection and certified by CE, ISO8846, and RCM standards, ensuring compliance with international safety and quality benchmarks. The pump operates within a fluid temperature range of 32°F to 140°F and supports inlet pressures up to 30 PSI. Its corrosion-resistant plastic housing offers added protection against environmental elements, making it a dependable choice for marine, RV, and mobile applications.
Features:
