SKU:86653

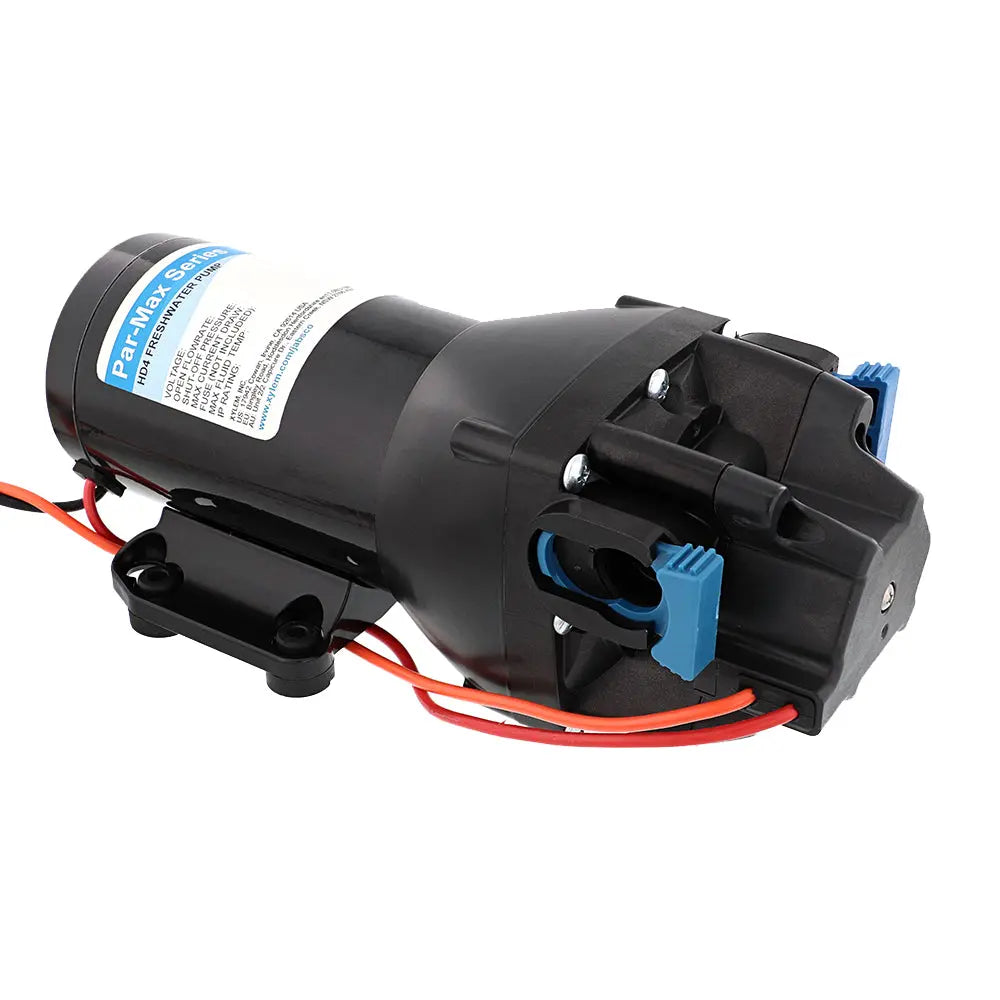

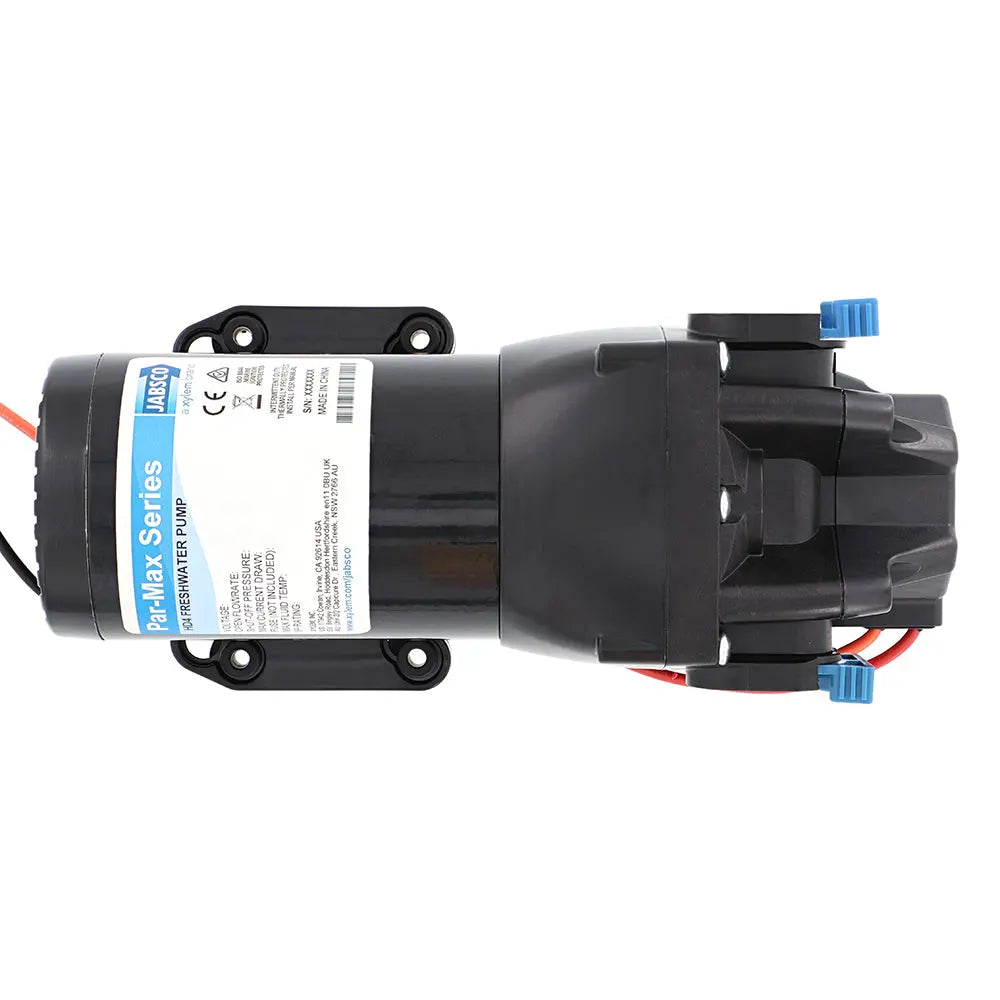

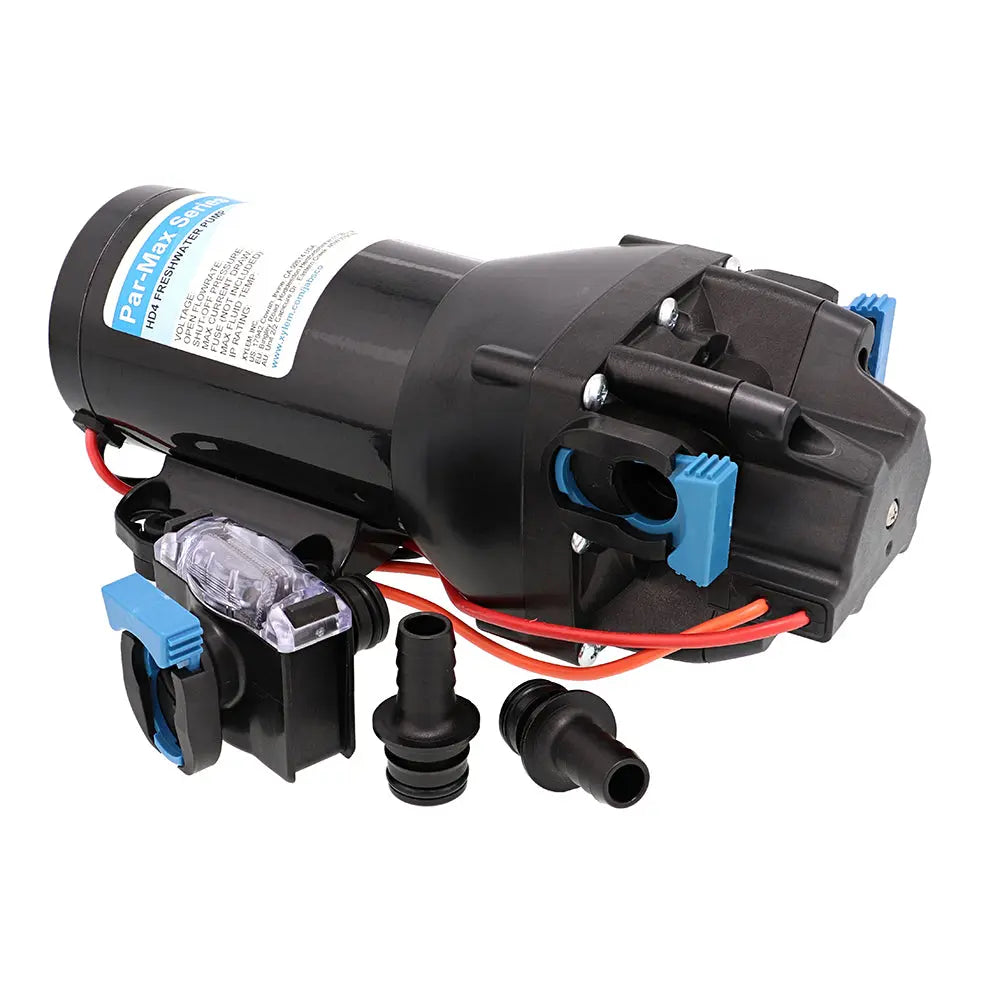

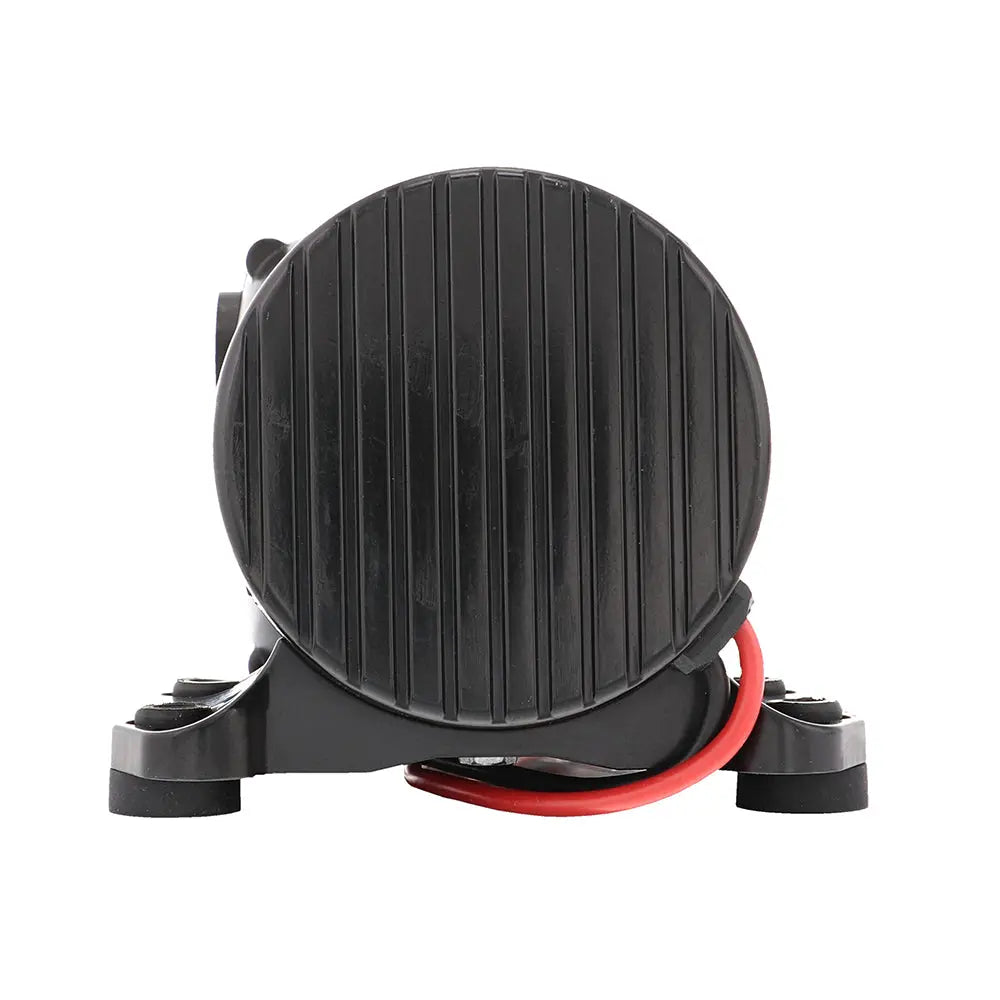

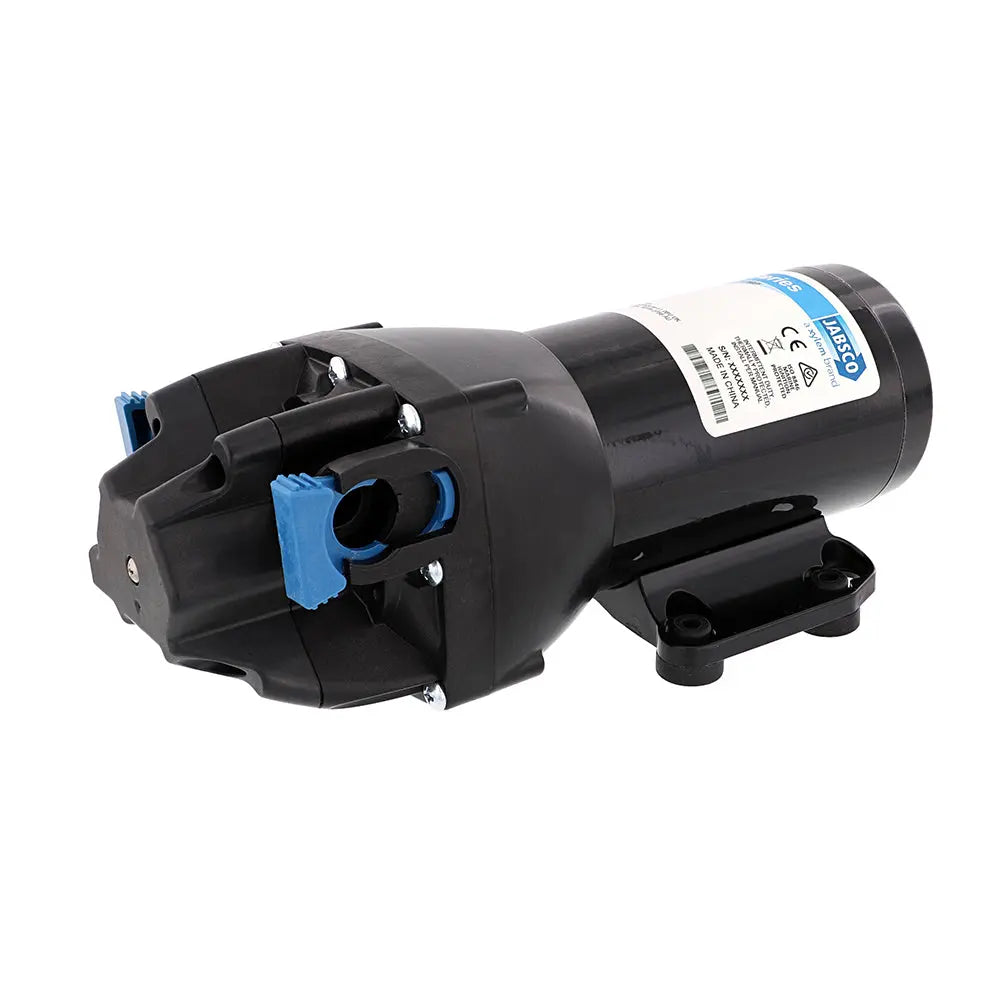

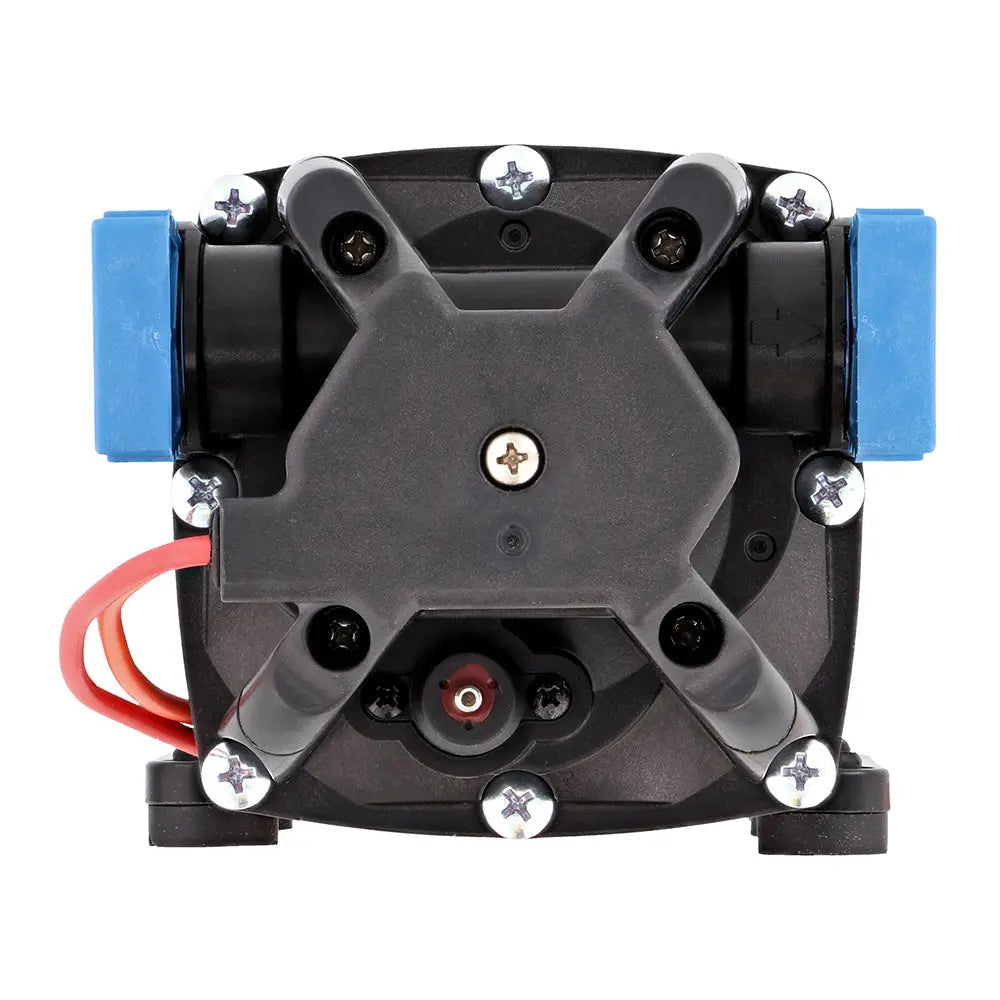

Par-Max HD4 Heavy Duty Water Pressure Pump - 24V - 4 GPM - 60 PSI
HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.
Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.
Features:
Specifications:
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
The Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump is engineered to deliver reliable performance in demanding applications. Designed with a wider diameter motor and a durable powder-coated shell, this pump features cast aluminum endbells and a robust lower housing to enhance pressure capabilities and extend operational life. Ideal for marine and industrial environments, the HD4 model provides up to 4 gallons per minute (GPM) flow rate at a maximum pressure of 60 PSI, making it suitable for various water delivery needs.
The pump utilizes co-molded diaphragm technology for long-lasting durability and efficient operation. Its heavy-duty motor and cast aluminum housing ensure resilience even under high-pressure conditions. The integrated, sealed pressure switch allows for on-demand operation, reducing energy consumption and wear. Self-priming capabilities enable versatile installation options, and the pump can run dry without damage, increasing its reliability in continuous use.
Designed for user convenience, the Jabsco Par-Max HD4 includes quick connect ports for easy installation and maintenance, vibration-dampening mounting feet for stability, and an integrated bypass module to minimize cycling and promote smoother flow. The glass fiber reinforced polypropylene pump head and EPDM check valves ensure durability and compatibility with a range of fluids. Certified by CE, ISO8846, and RCM, and rated IPX6 for ingress protection, this pump is built to meet rigorous standards for safety and performance. Whether used on boats, RVs, or other mobile units, the HD4 provides consistent water pressure with minimal noise and maintenance requirements, ensuring dependable service in various demanding environments.
Features:
