SKU:86623

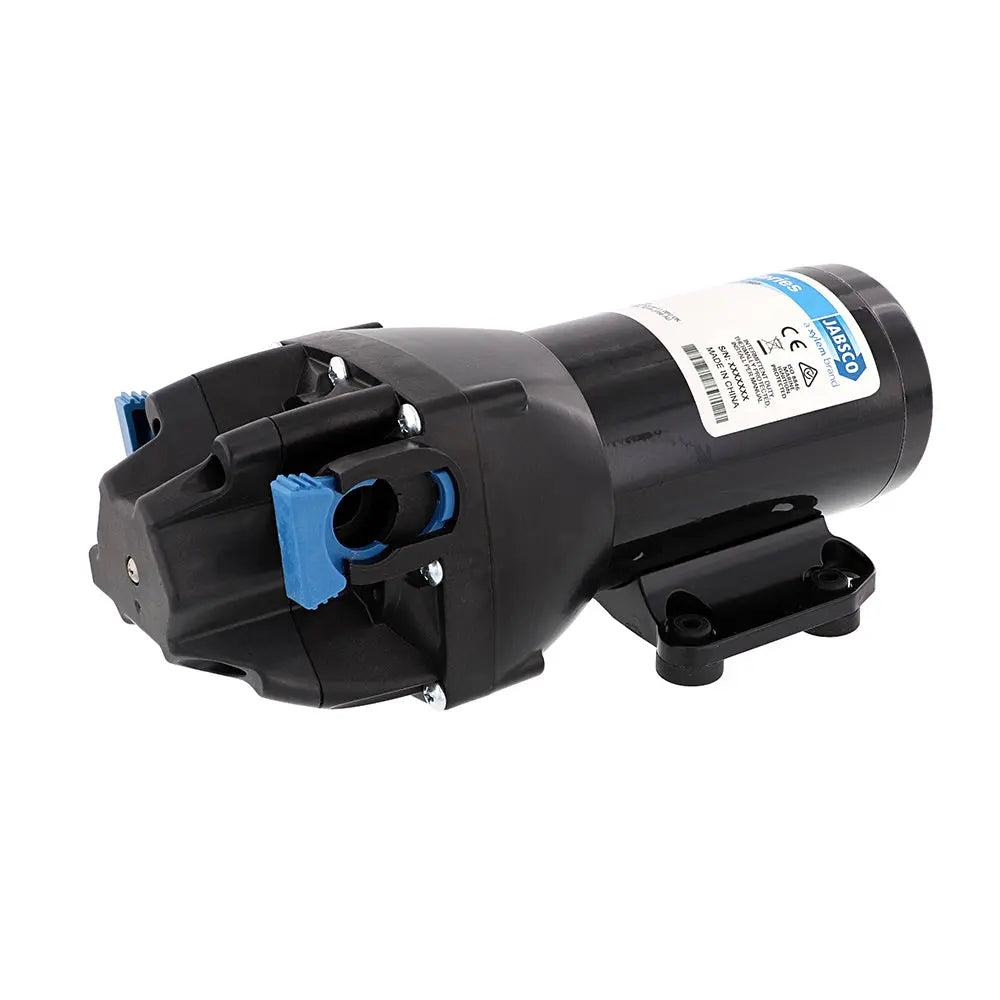

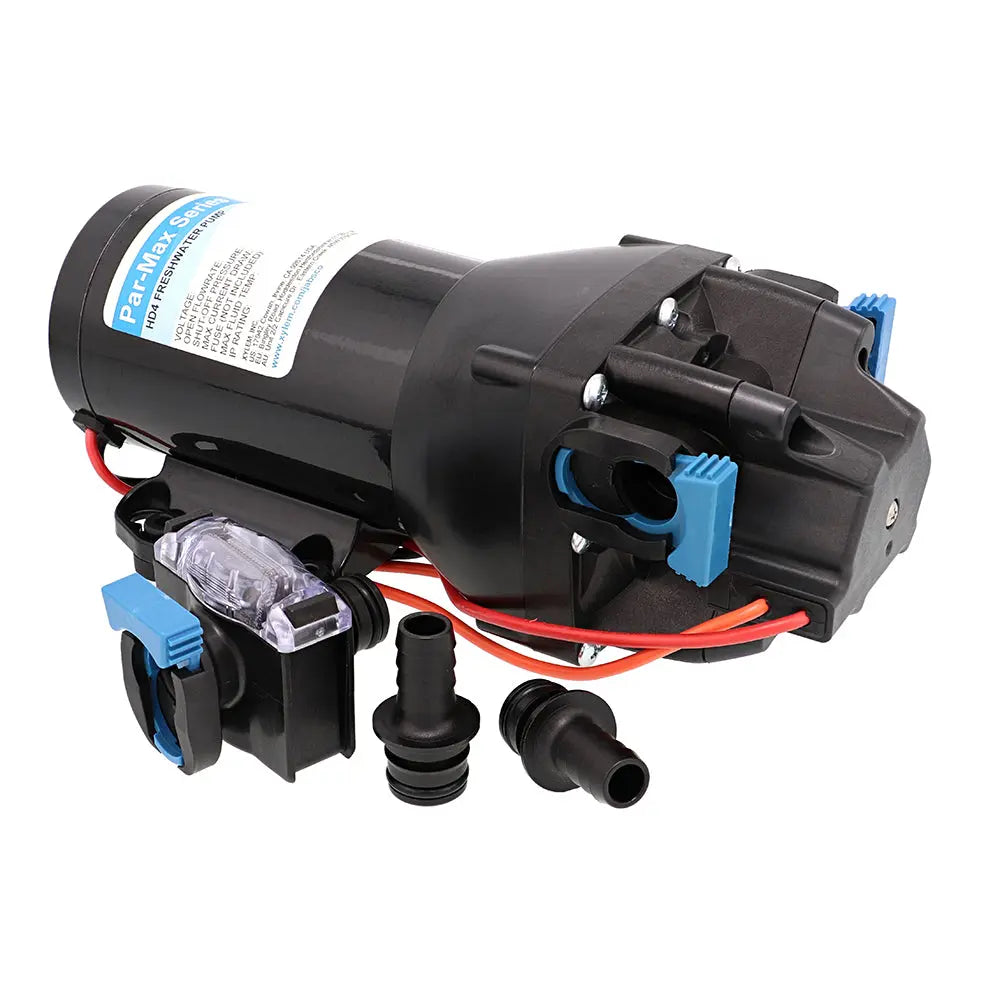

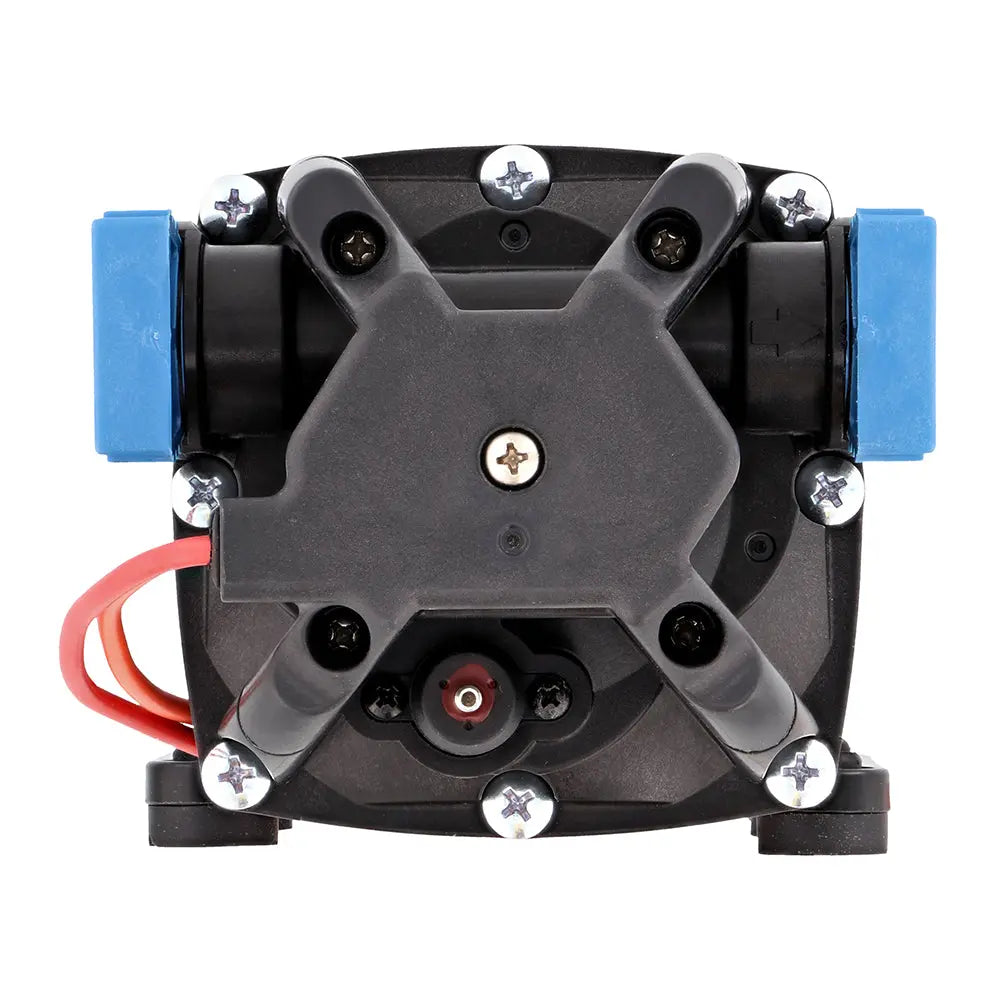

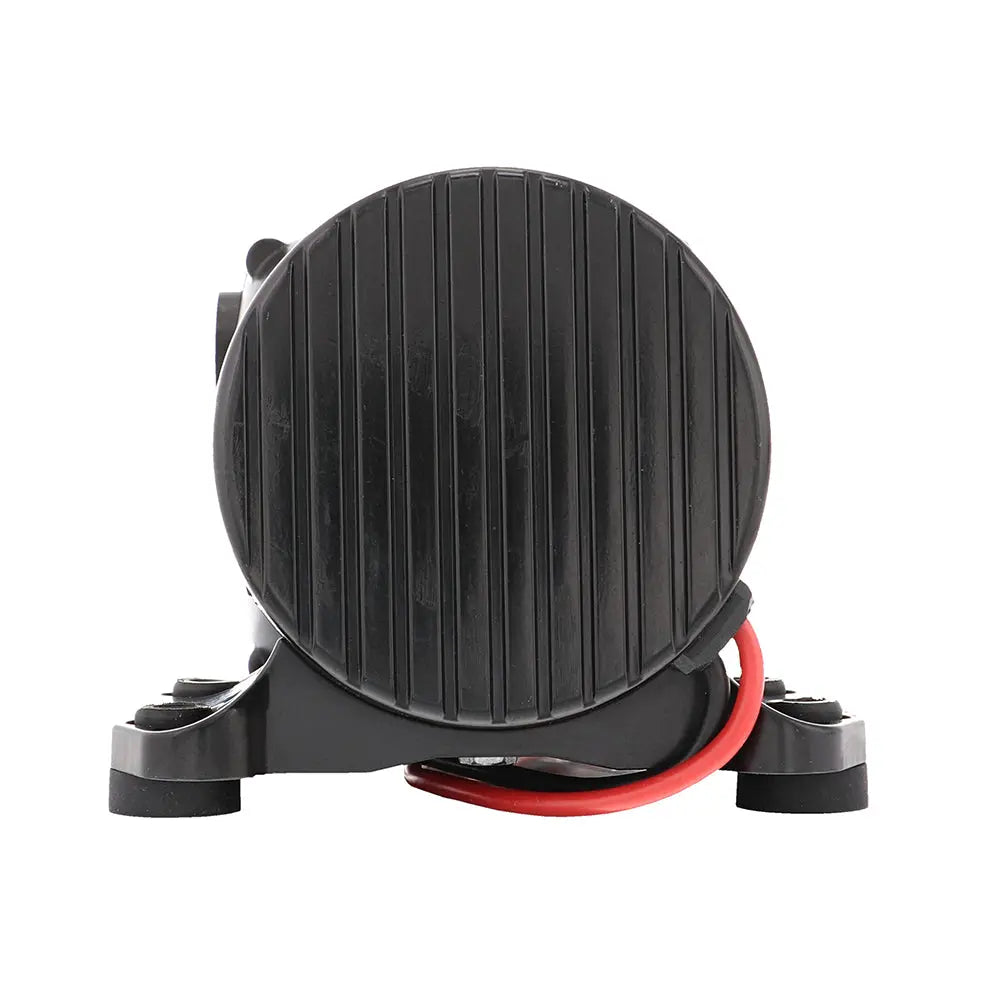

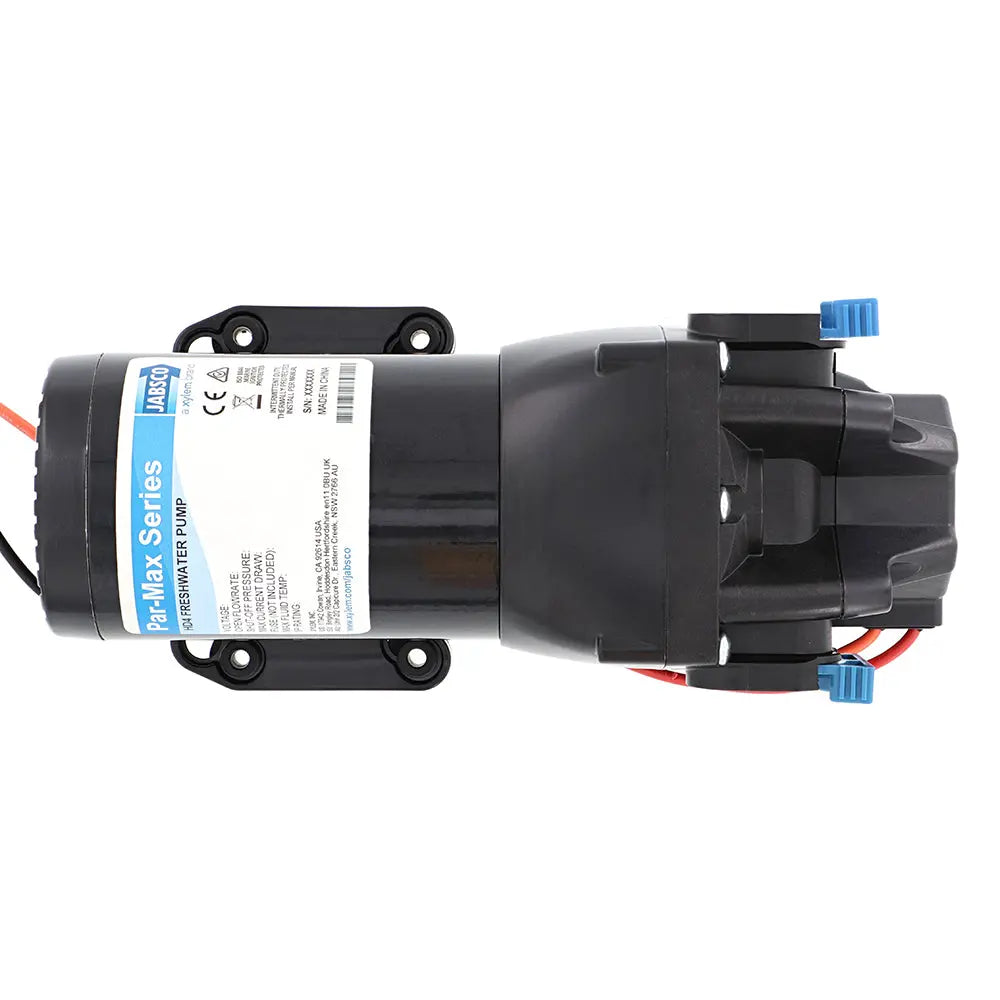

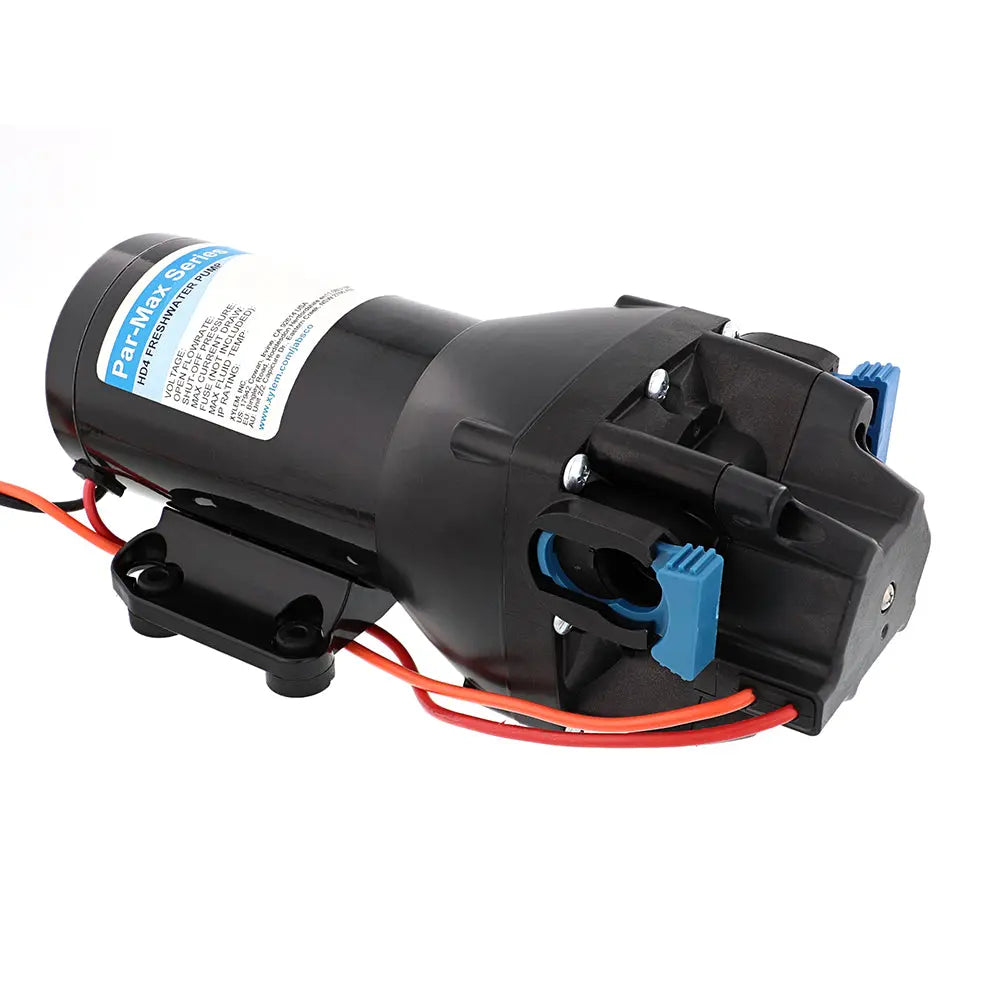

Par-Max HD4 Heavy Duty Water Pressure Pump - 12V - 4 GPM - 60 PSI
HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.
Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.
Features:
Specifications:
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
The Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump offers reliable performance for demanding applications, featuring a robust design tailored for long-term durability. Equipped with a wider diameter motor housed in a powder-coated shell, cast aluminum endbells, and a reinforced lower housing, this pump excels at maintaining high pressure and extended service life. It is capable of delivering up to 4 gallons per minute at 60 PSI, making it suitable for a variety of marine, RV, and industrial uses.
Its advanced features include co-molded diaphragm technology, which enhances durability and longevity, and an integrated sealed pressure switch for on-demand operation. The self-priming capability allows flexible installation options, and the pump can operate dry without damage, providing added versatility. Quick connect ports facilitate easy installation, servicing, and maintenance, while vibration dampening mounting feet reduce noise and vibration during operation. The integrated bypass module ensures smoother flow and reduces cycling, extending the pump's operational life.
Constructed with a glass fiber reinforced polypropylene pumphead and EPDM check valves, the Jabsco Par-Max HD4 is designed to handle a wide range of fluids with temperatures from 32°F to 140°F. It features a brushed, permanent magnet TENV motor, making it efficient and reliable for continuous use. Certified under CE, ISO8846, and RCM standards, and rated IPX6 for ingress protection, this pump is built to meet rigorous safety and performance criteria. Its corrosion-resistant plastic housing protects internal components, especially in marine environments, ensuring dependable operation over time.
Whether for vessel water systems, RVs, or industrial applications, the Jabsco Par-Max HD4 provides consistent pressure and flow with minimal maintenance. Its compact profile and user-friendly design make it a versatile choice for professionals seeking a heavy-duty, high-performance water pressure pump with a proven track record of durability and efficiency.
Features:
