SKU:86636

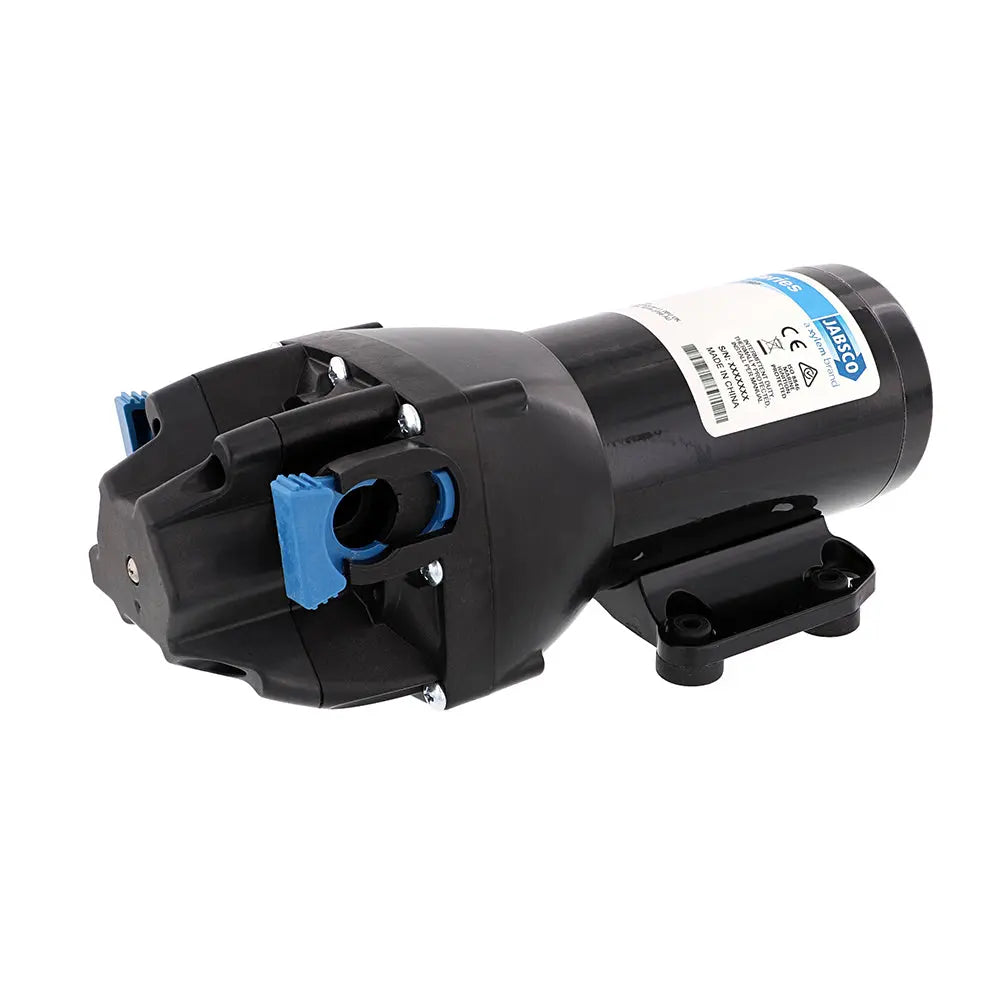

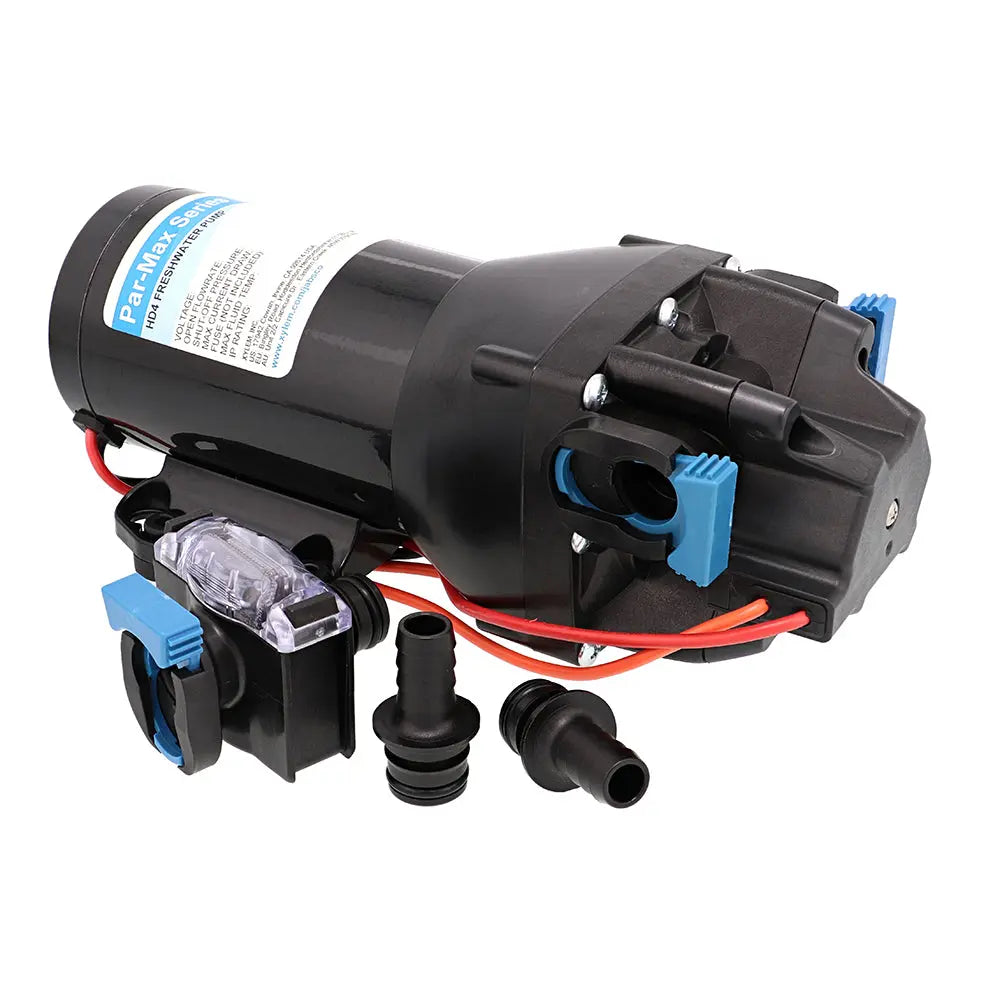

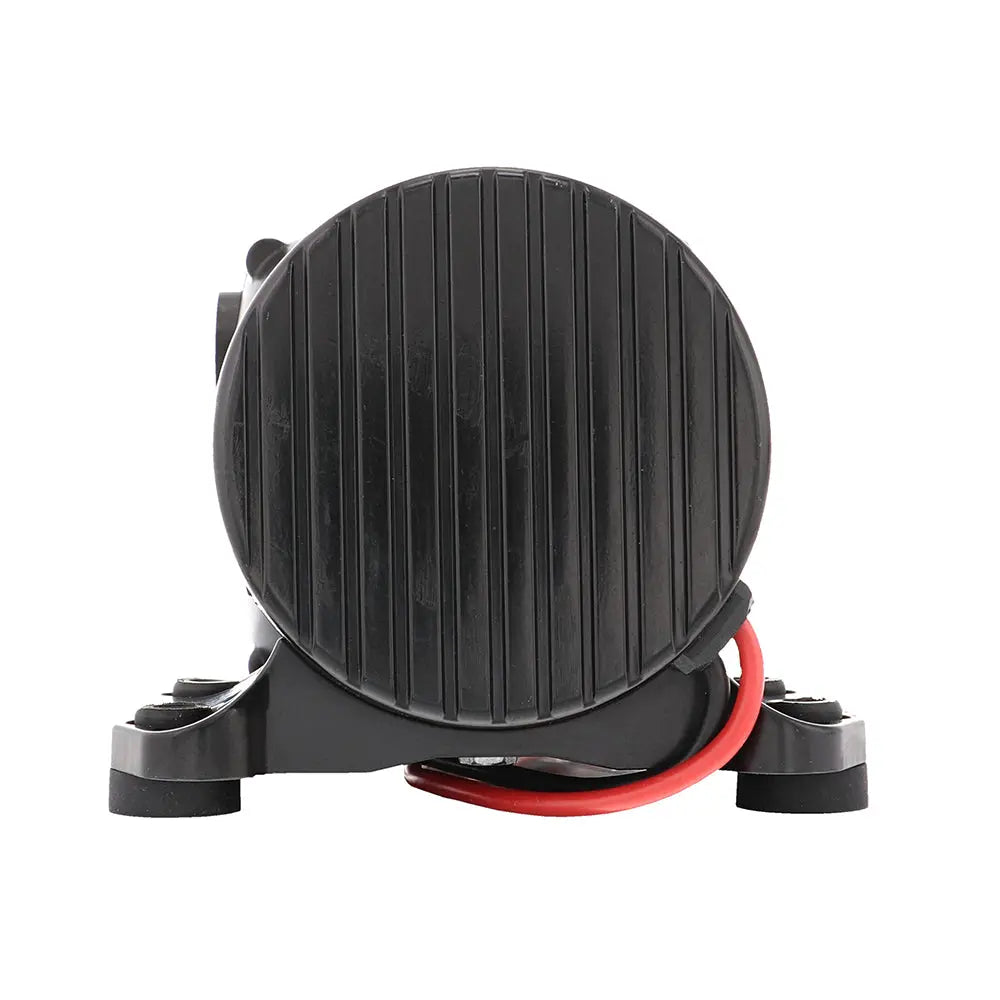

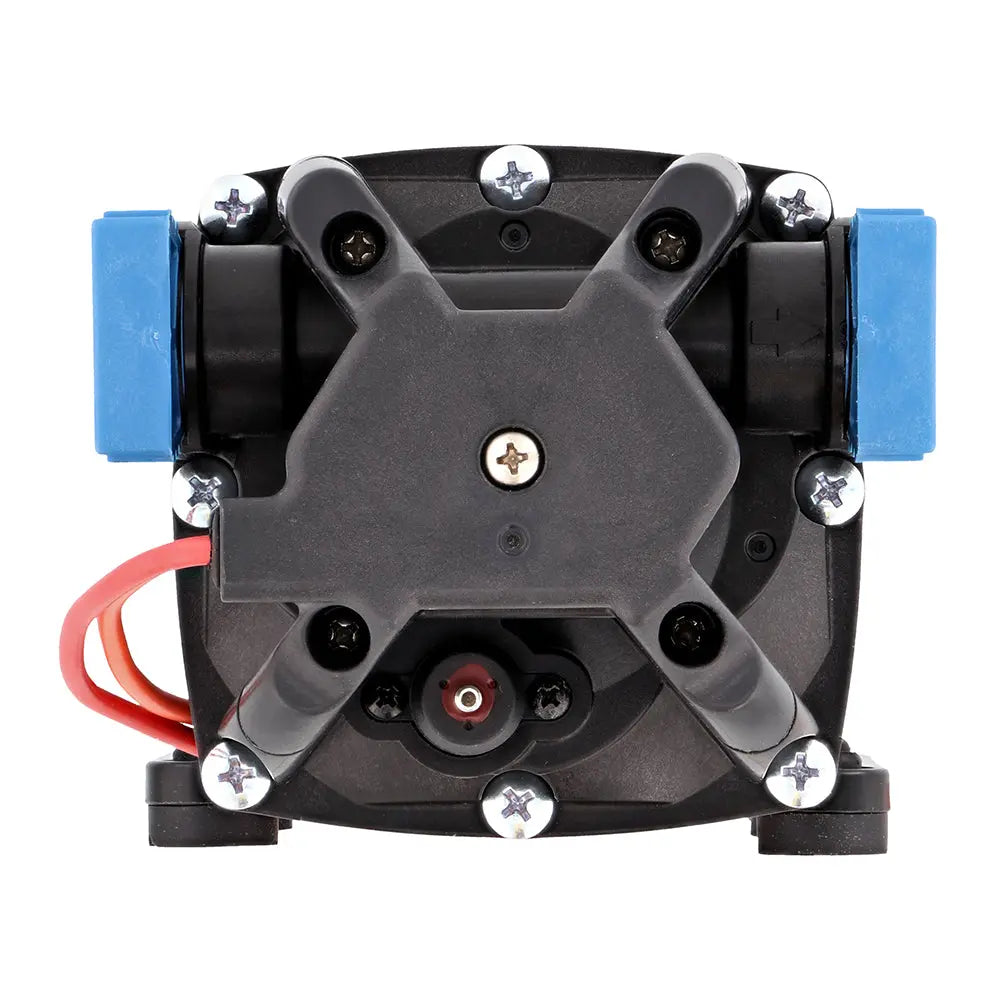

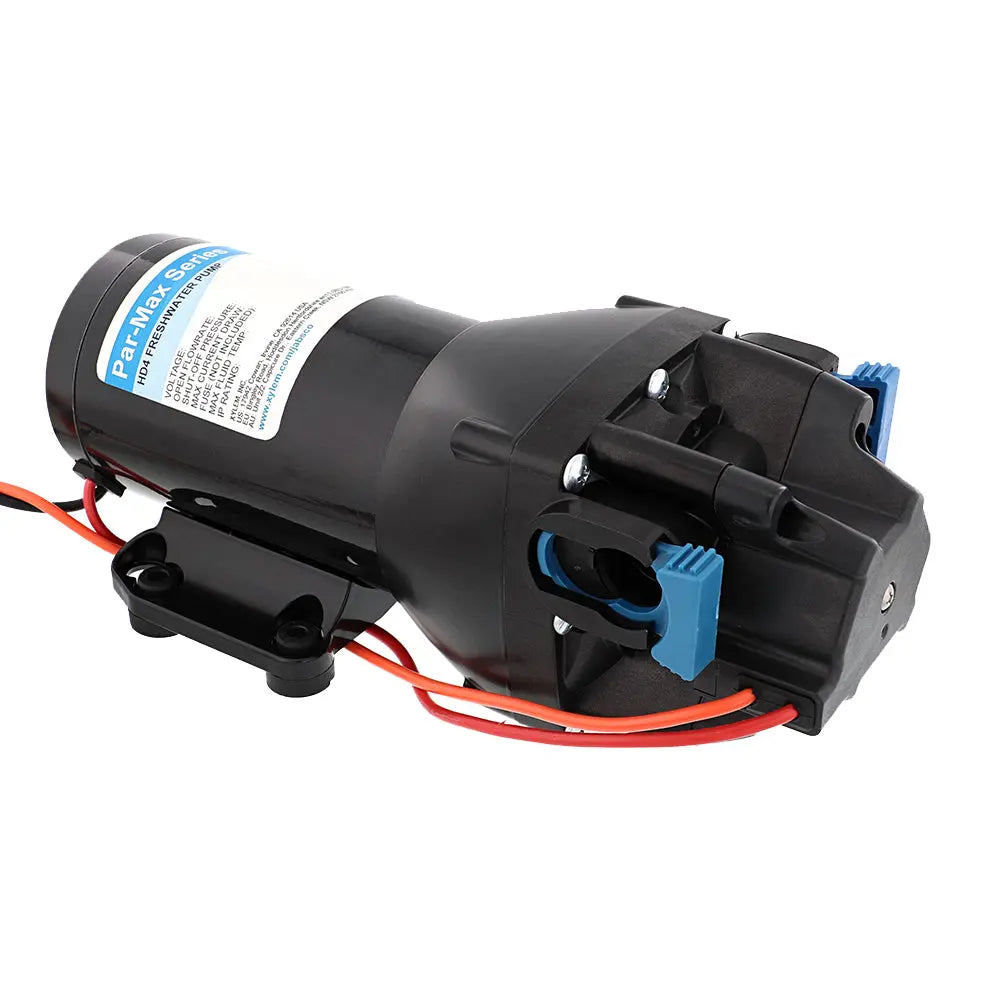

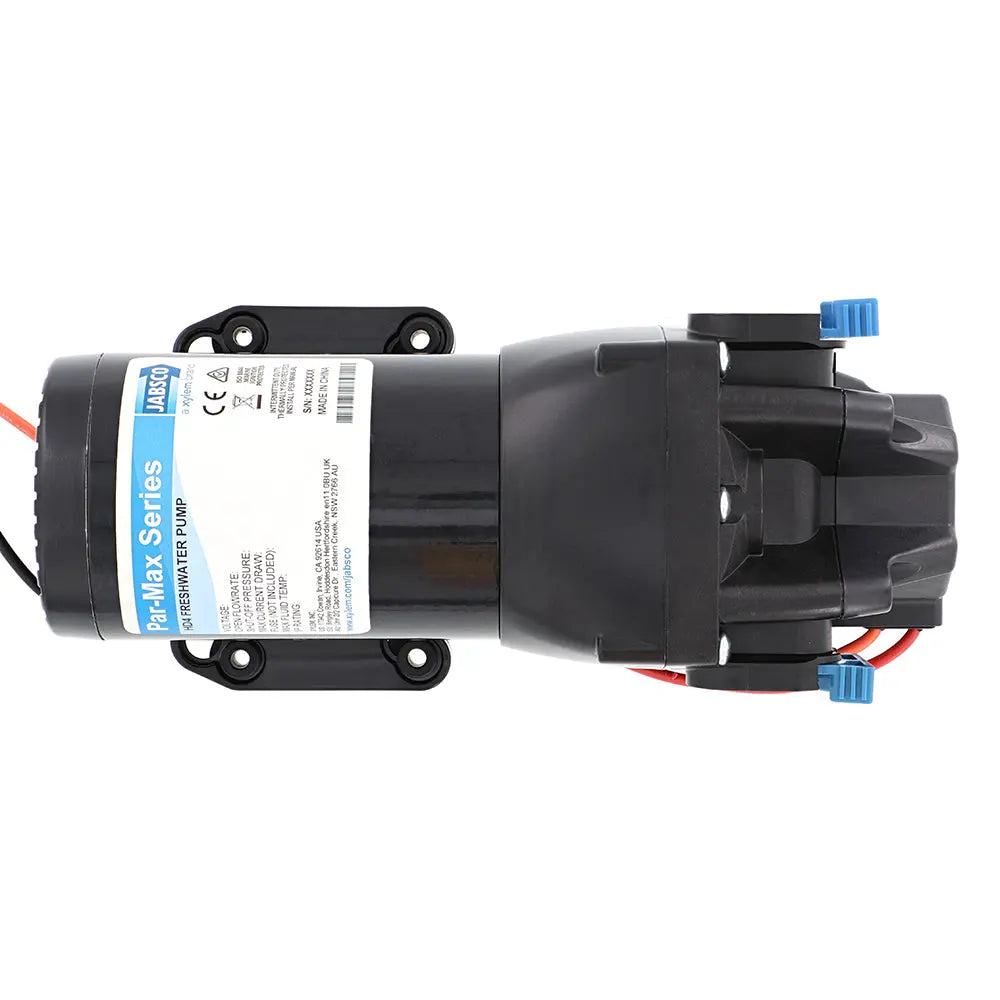

Par-Max HD4 Heavy Duty Water Pressure Pump - 24V - 4 GPM - 40 PSI
HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.
Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.
Features:
Specifications:
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
The Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump is engineered for demanding applications requiring reliable and efficient water flow. This 24V pump delivers up to 4 gallons per minute at 40 PSI, making it ideal for marine, RV, and industrial use where steady water pressure is essential. Its heavy-duty design features a wider diameter motor with a durable powder-coated shell, cast aluminum endbells, and a robust lower housing, ensuring longevity and high performance even under continuous operation. The HD models are optimized for higher pressure capacity and extended lifespan, providing users with a dependable solution for their water management needs. The pump's construction includes a glass fiber reinforced polypropylene pump head and a co-molded TPV diaphragm, which together offer enhanced durability and resistance to wear. Integrated check valves made from EPDM ensure reliable flow direction and prevent backflow, contributing to the system's overall efficiency. The Jabsco Par-Max HD4 also features an integrated, sealed pressure switch for on-demand operation, along with vibration dampening mounting feet that minimize noise and vibration during operation. Its self-priming capability allows flexible installation options, and the pump can run dry without damage, adding to its versatility. The quick connect ports facilitate straightforward installation, servicing, and maintenance, reducing downtime. Designed to operate within a temperature range of 32°F to 140°F, this pump is suitable for various fluid handling environments. Certifications such as CE, ISO8846, and RCM attest to its quality and safety standards, while its ingress protection rating of IPX6 ensures resistance to water and dust intrusion. The Jabsco Par-Max HD4 is an excellent choice for users seeking a durable, high-performance water pressure pump capable of withstanding demanding conditions and providing consistent flow. Its compact design makes it suitable for tight spaces without sacrificing power or reliability, ensuring optimal performance in a variety of applications.
Features:
