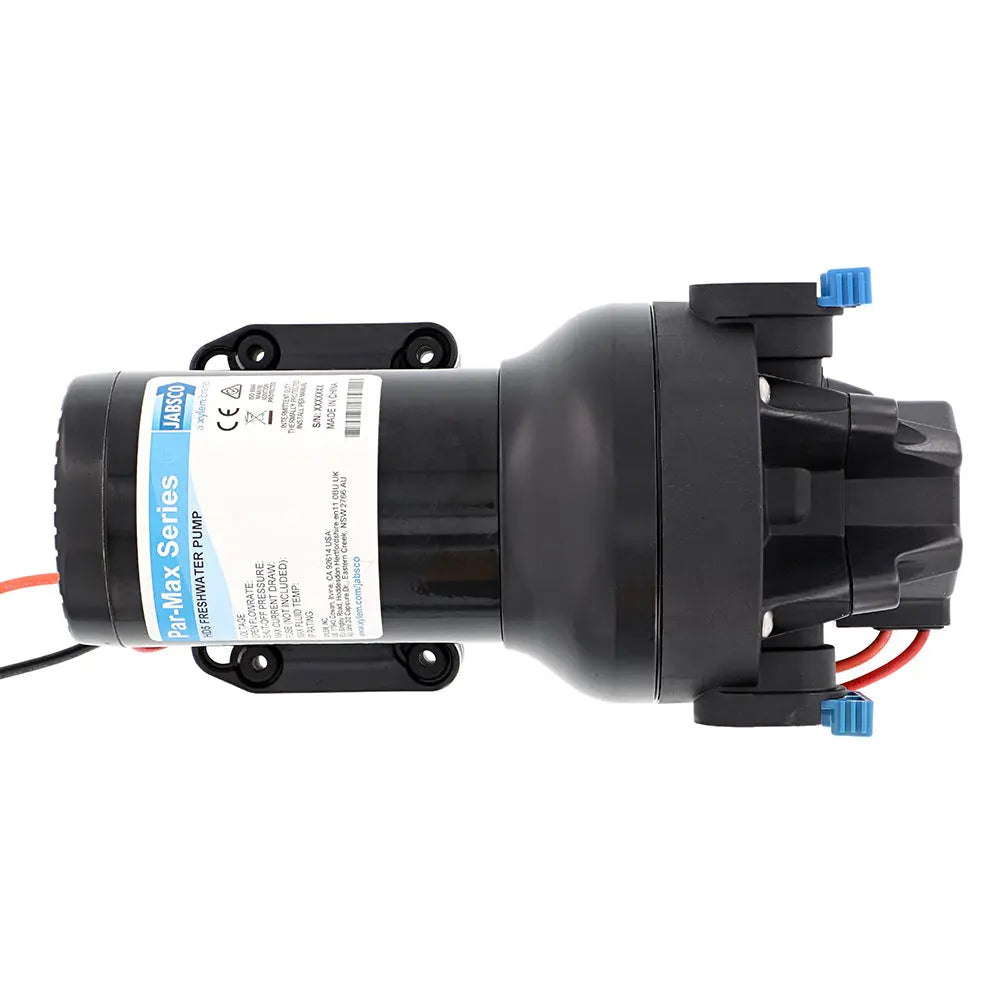

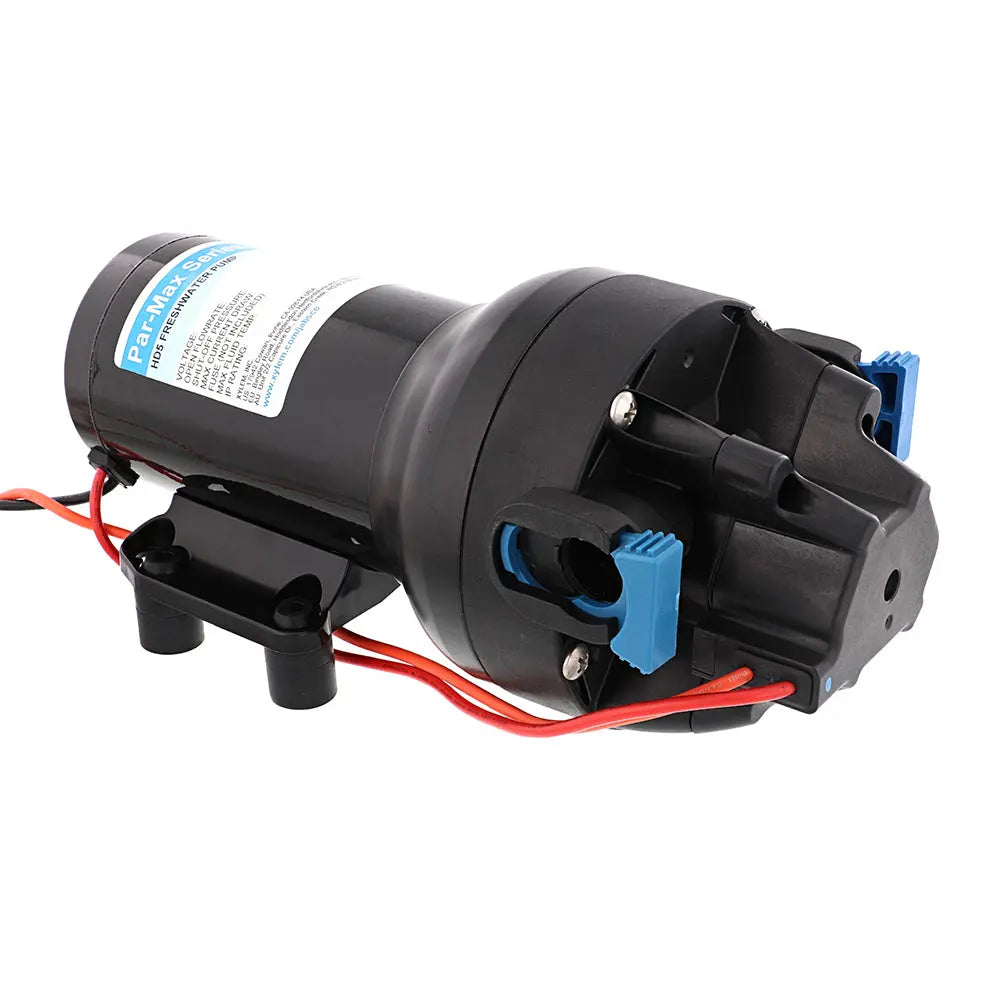

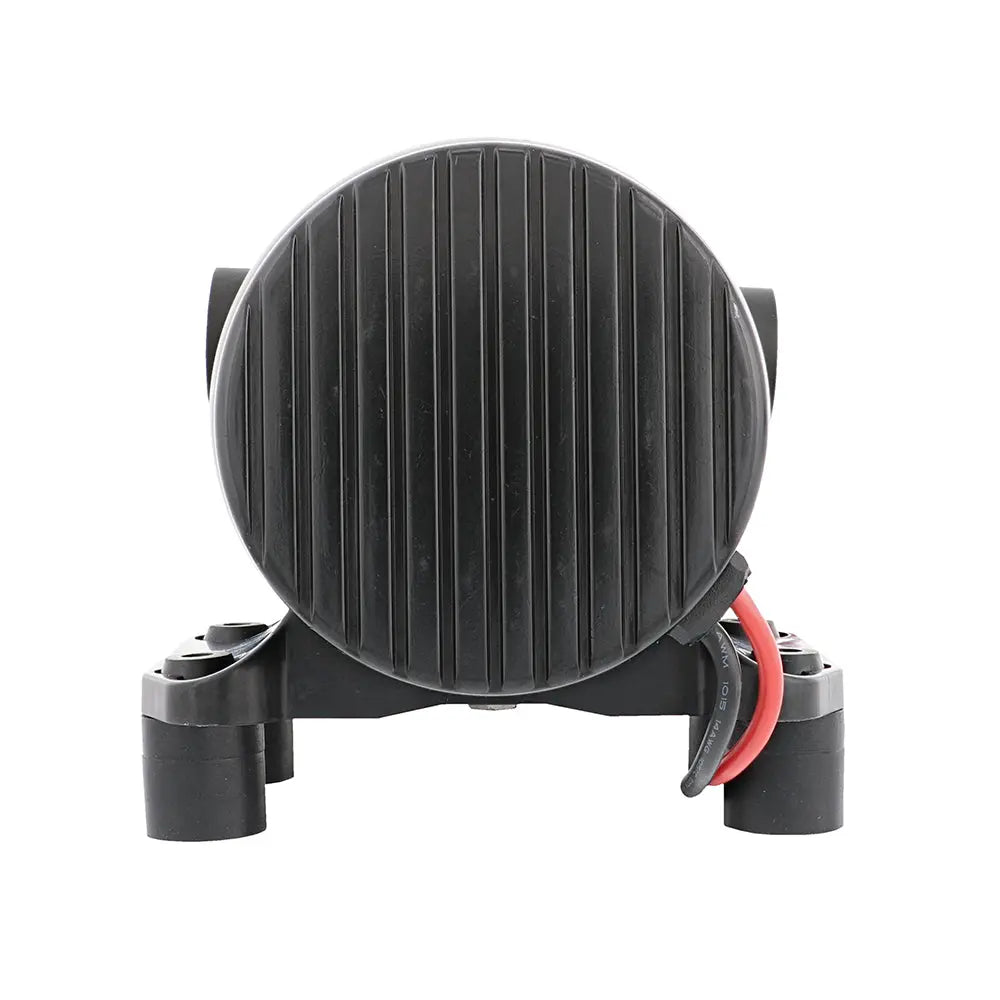

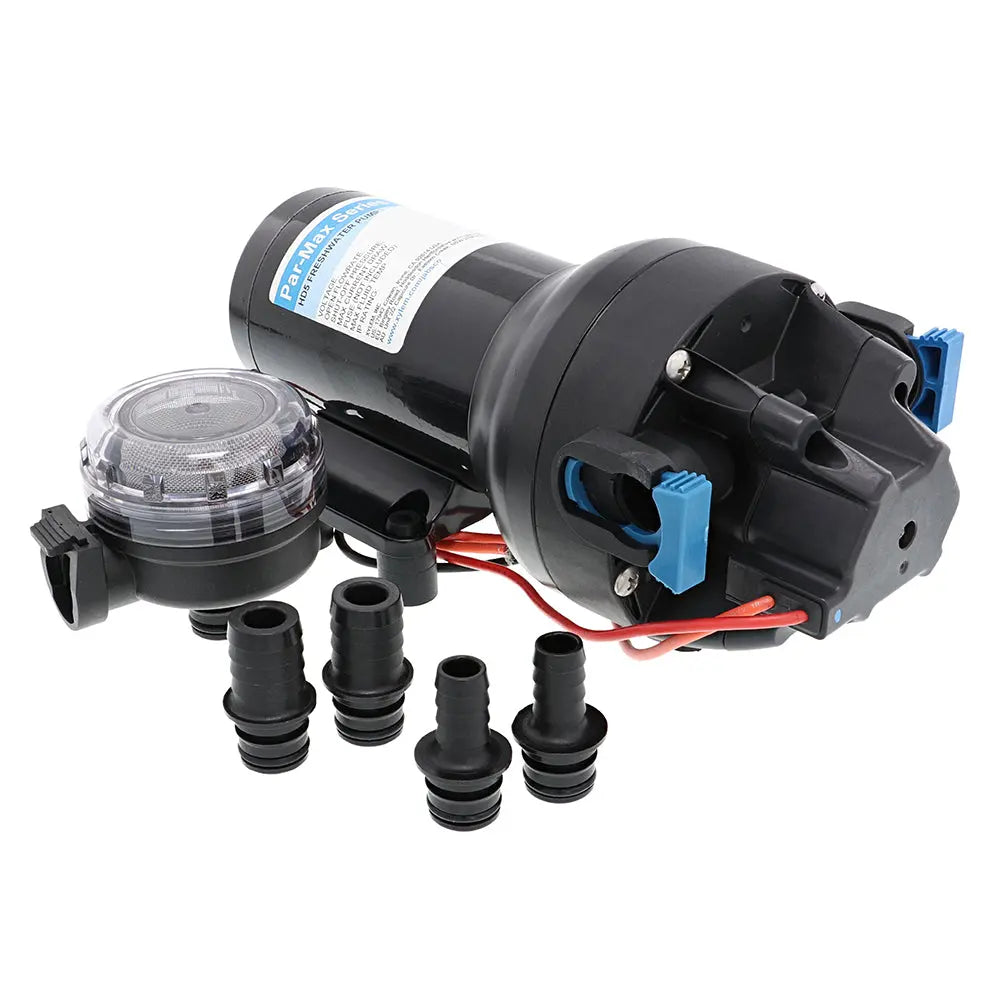

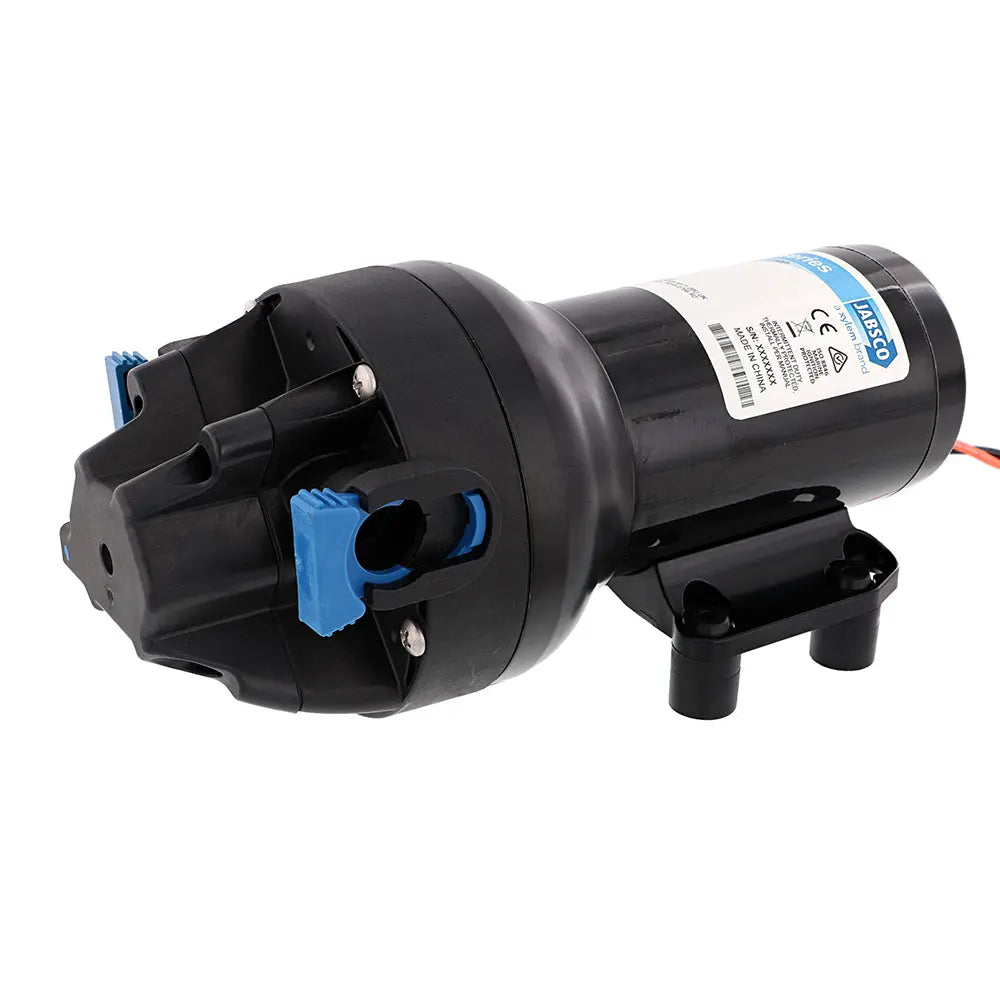

Jabsco Par-Max HD5 12V Heavy Duty Water Pressure Pump - 5 GPM at 40 PSI

Par-Max HD5 Heavy Duty Water Pressure Pump - 12V - 5 GPM - 40 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max HD5 is a reliable 12-volt heavy duty water pressure pump designed for demanding applications. Featuring a wider diameter motor with a durable powder-coated shell, cast aluminum endbells, and a robust lower housing, this pump offers enhanced pressure capability and extended service life. It delivers a flow rate of 5 gallons per minute and maintains a pressure of 40 PSI, making it suitable for various marine, RV, and mobile water systems.
Constructed with co-molded diaphragm technology, the HD5 ensures long-term durability and resistance to wear. Its efficient and quiet operation allows for seamless integration into existing systems. The integrated, sealed pressure switch enables on-demand operation, conserving energy and reducing wear. The self-priming feature allows flexible installation options, with the pump capable of running dry without damage, which simplifies maintenance and reduces downtime.
Designed with user convenience in mind, the HD5 features quick connect ports for simple installation and servicing, vibration dampening mounting feet to minimize noise and movement, and an integrated bypass module to reduce cycling and provide smoother flow. The glass fiber reinforced polypropylene pumphead and EPDM check valves offer chemical resistance and reliability in various fluid conditions. Certified to CE, ISO8846, and RCM standards, and with an ingress protection rating of IPX6, the pump is suitable for demanding environments and outdoor installations.
Ideal for vessels with 1-3 outlets or other mobile water systems, the Jabsco Par-Max HD5 combines rugged construction with versatile features for durable, efficient performance. Its compact size and thoughtful design make it a practical choice for demanding water pressure applications where dependability is essential.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy duty motor and cast aluminum lower housing for high-pressure performance

• Efficient and quiet operation for seamless use

• Integrated, sealed pressure switch for on-demand activation

• Self-priming capability for versatile installation

• Can operate dry without damage, reducing maintenance concerns

• Quick connect ports for easy installation and servicing

• Vibration dampening mounting feet to reduce noise and movement

• Built-in bypass module to minimize cycling and ensure smooth flow
