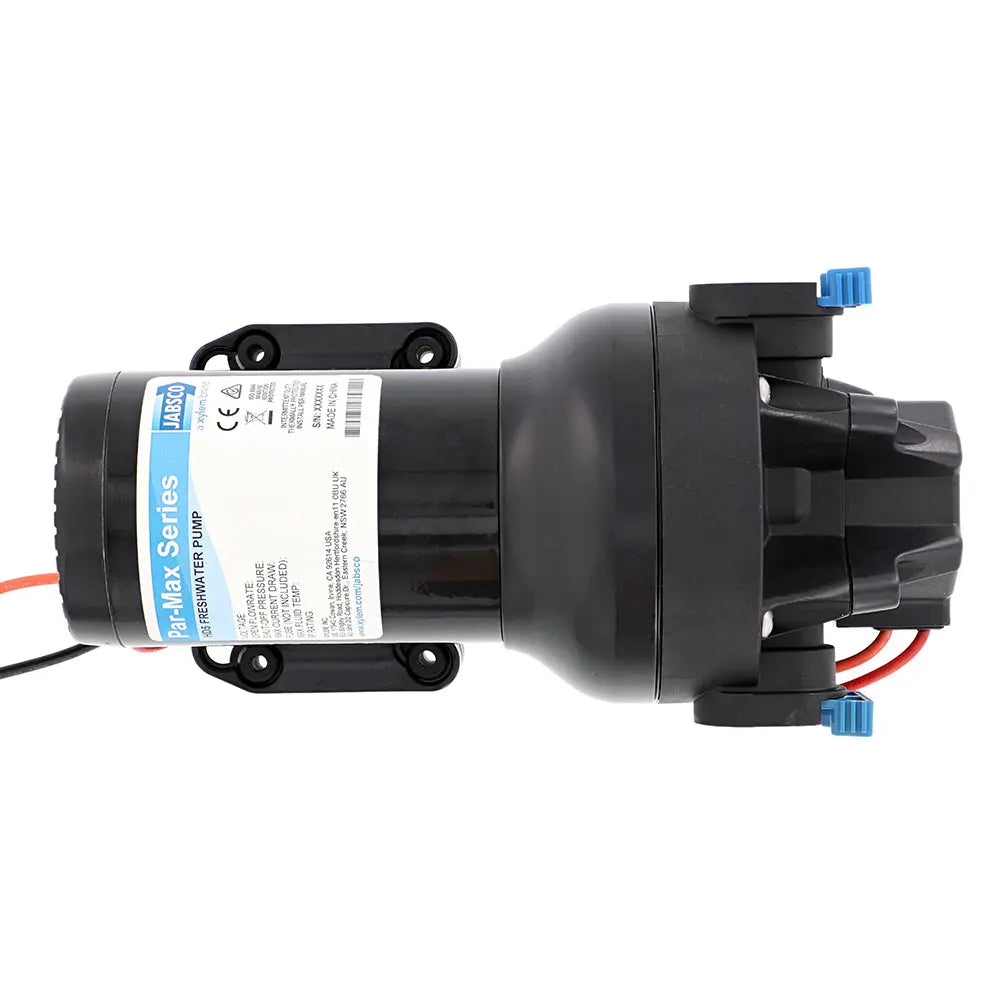

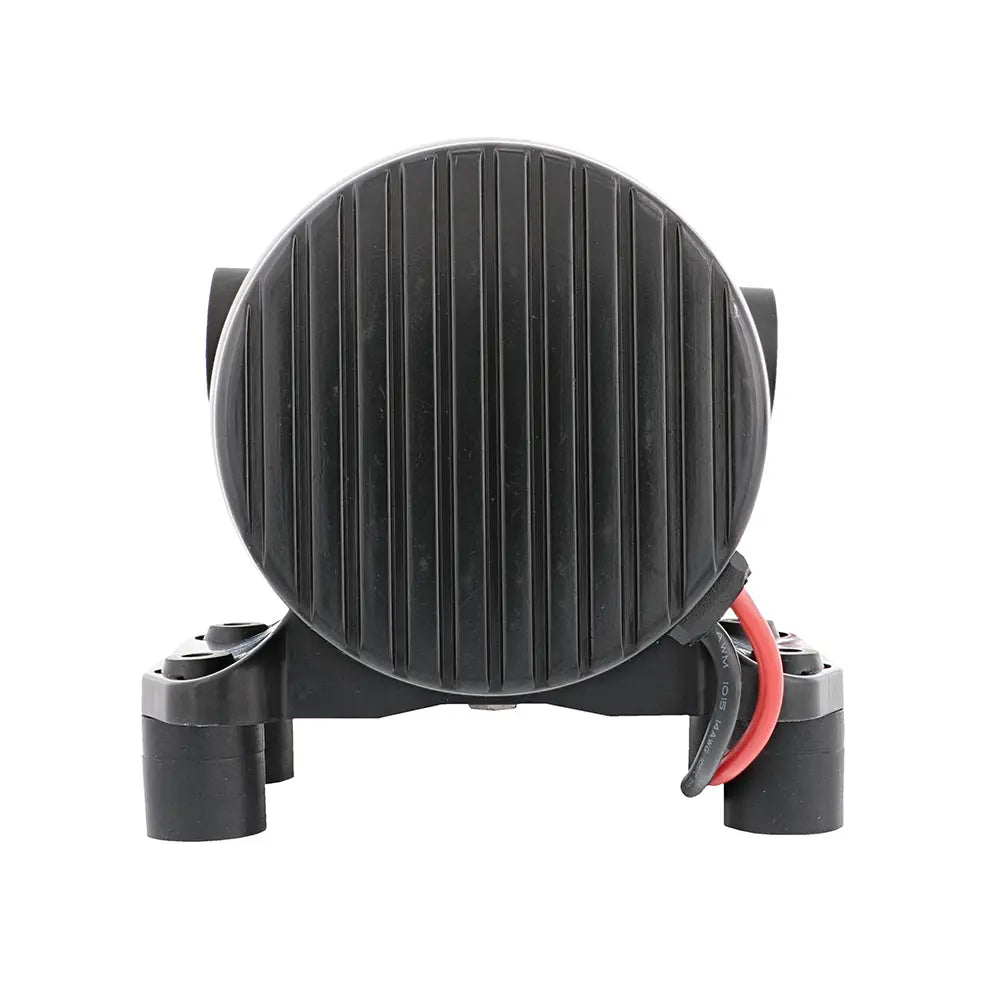

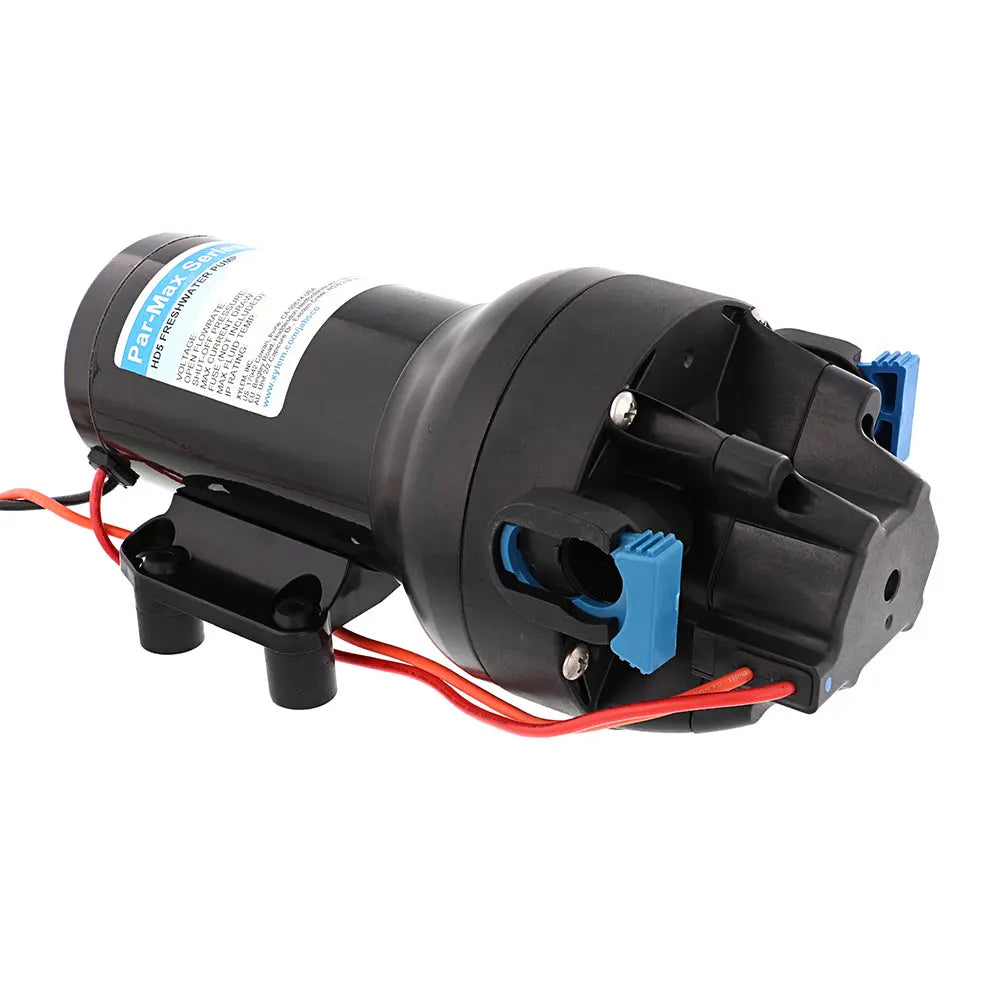

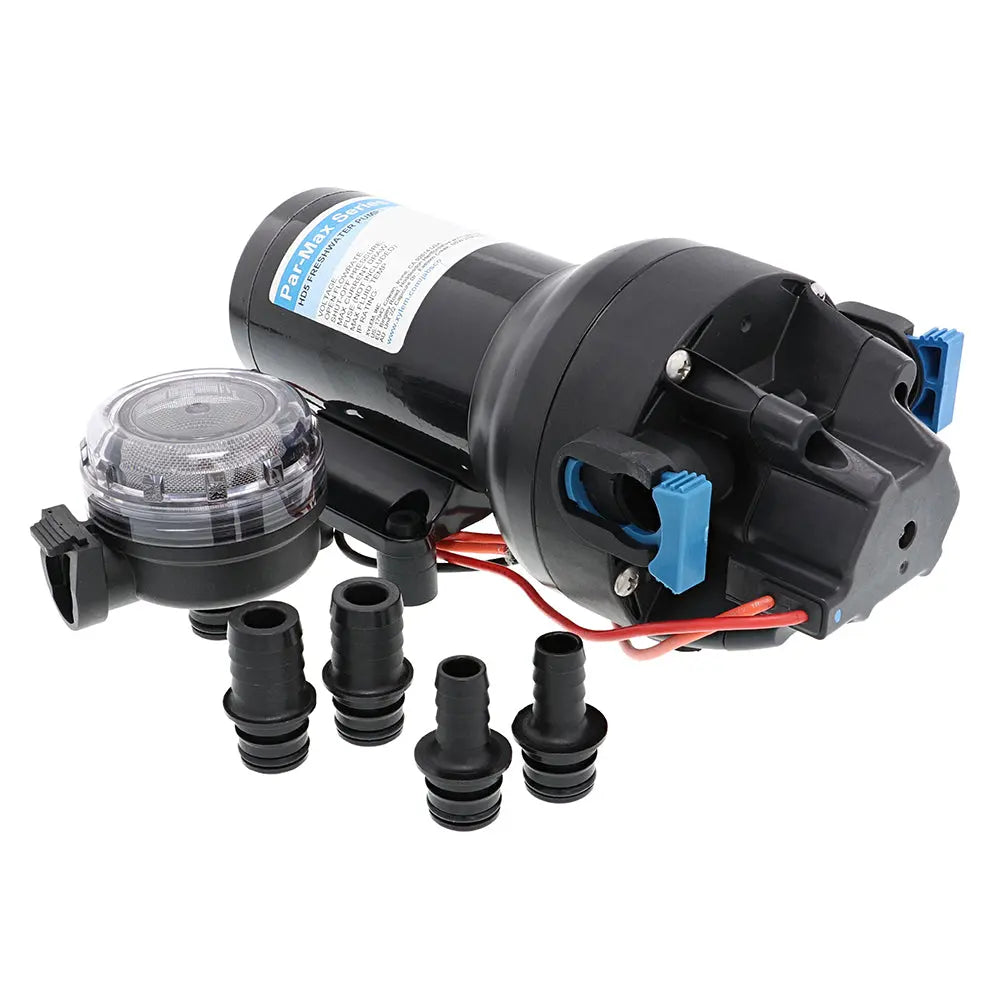

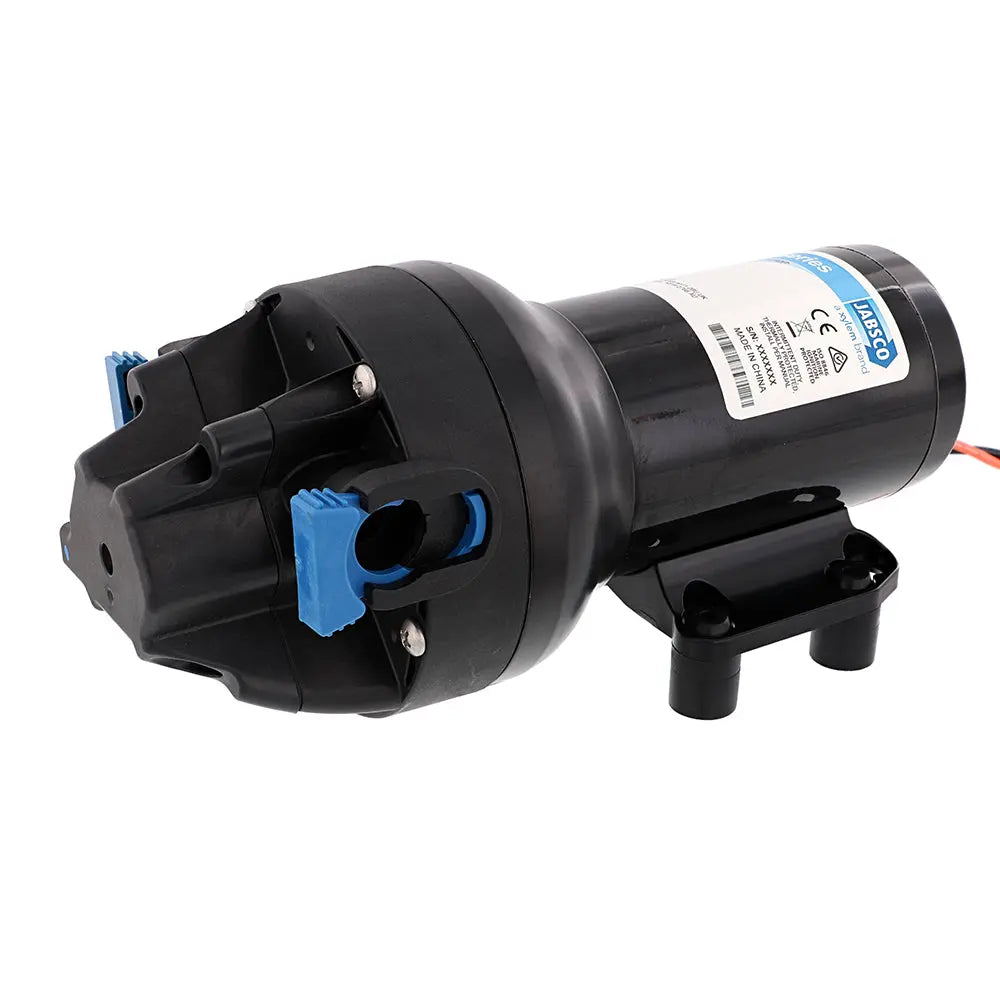

Jabsco Par-Max HD5 Heavy Duty 12V Water Pressure Pump - 5 GPM at 60 PSI

Par-Max HD5 Heavy Duty Water Pressure Pump - 12V - 5 GPM - 60 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32F 140F (0C 60C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max HD5 Heavy Duty Water Pressure Pump is engineered for reliable performance in demanding applications. Featuring a wider diameter motor with a durable powder-coated shell, cast aluminum endbells, and a robust lower housing, this pump enhances pressure capabilities and longevity. Ideal for marine, RV, and industrial use, it delivers consistent water flow with a maximum of 5 gallons per minute and operates efficiently at 60 PSI, ensuring your water system maintains optimal pressure under various conditions. Its heavy-duty construction allows it to withstand high-pressure environments while maintaining quiet and efficient operation. The sealed, integrated pressure switch provides on-demand activation, reducing energy consumption and wear. Self-priming up to 7 feet allows flexible installation options, and the pump can run dry without damage, offering added reliability. Quick connect ports facilitate straightforward installation, servicing, and maintenance, while vibration dampening mounting feet minimize noise and vibration during operation. An integrated bypass module ensures smoother flow and reduces cycling, extending the pump’s service life. The pump's construction includes a glass fiber reinforced polypropylene pumphead, co-molded TPV diaphragm, and EPDM check valves, ensuring durability and corrosion resistance. Certified by CE, ISO8846, and RCM, and rated IPX6 for ingress protection, the Jabsco Par-Max HD5 is a dependable choice for heavy-duty water pressure needs. Whether used in boats, RVs, or industrial systems, this pump offers long-lasting performance, efficient operation, and ease of maintenance, making it a valuable addition to any water management system.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motor and cast aluminum lower housings for high-pressure performance

• Efficient and quiet operation ensures minimal noise during use

• Integrated, sealed pressure switch for on-demand operation

• Self-priming capability up to 7 feet allows flexible installation

• Can operate dry without damage for reliable performance

• Quick connect ports for easy installation, servicing, and maintenance

• Vibration dampening mounting feet reduce noise and vibration

• Built-in bypass module for smoother flow and reduced cycling
