SKU:86654

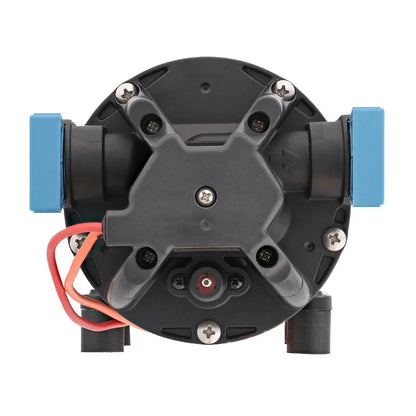

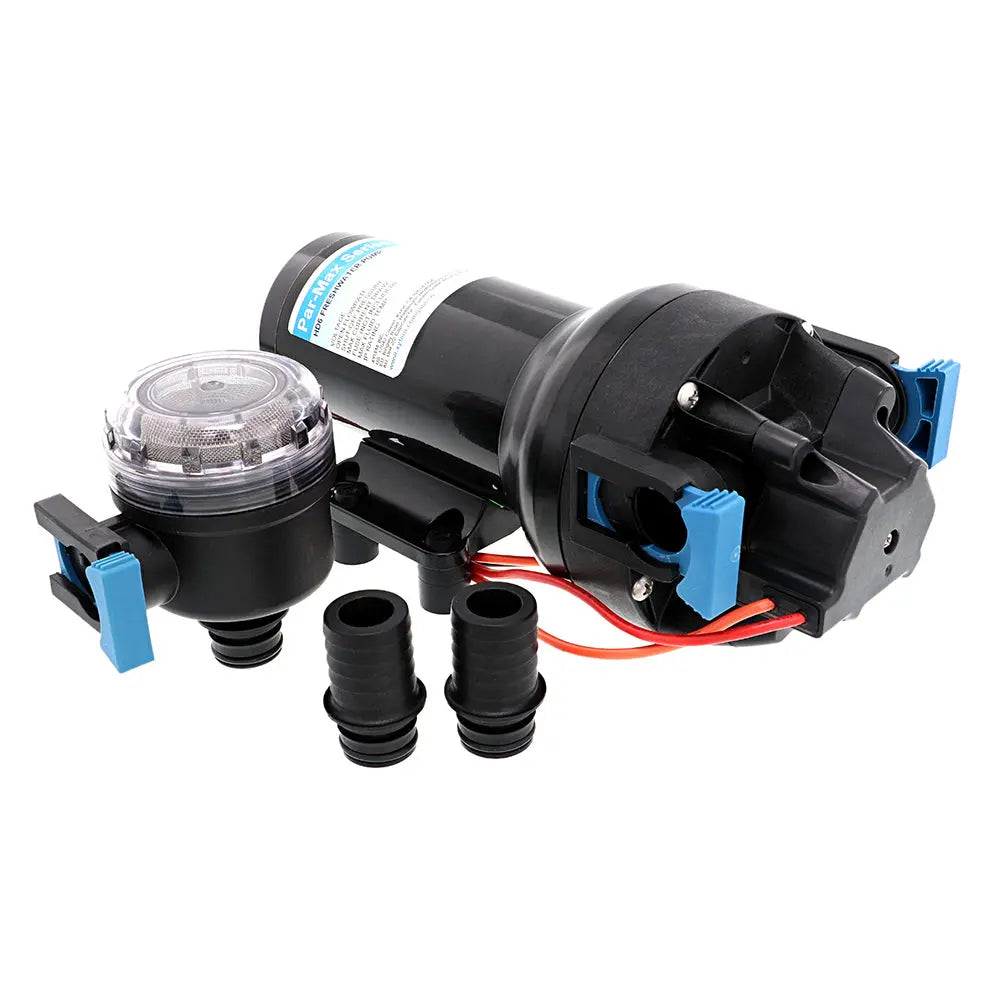

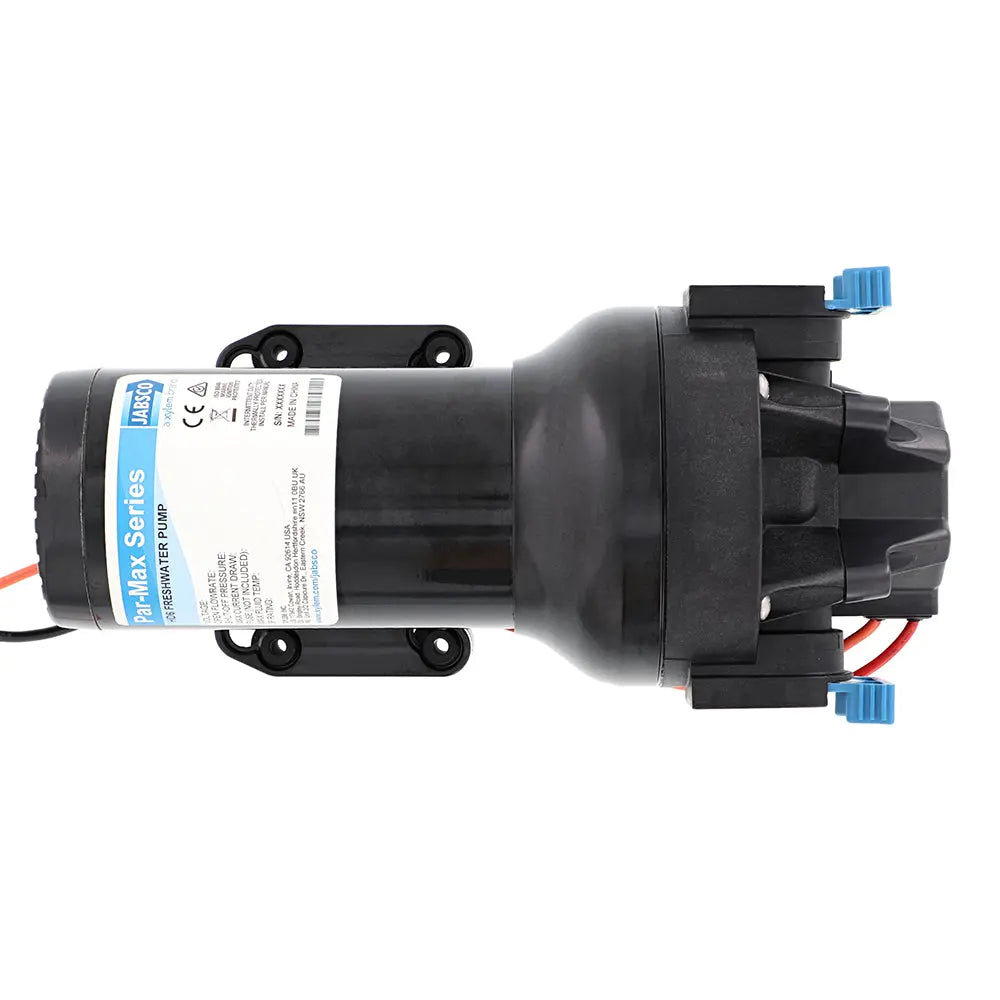

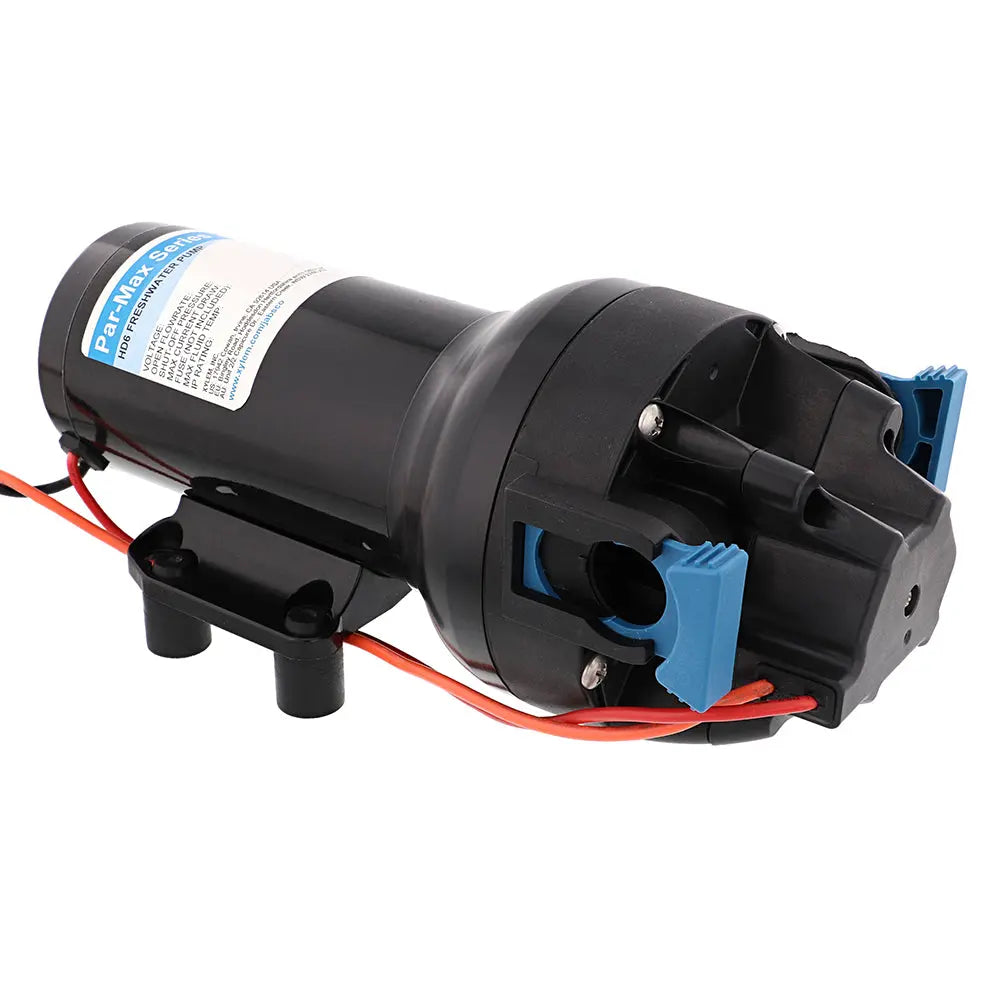

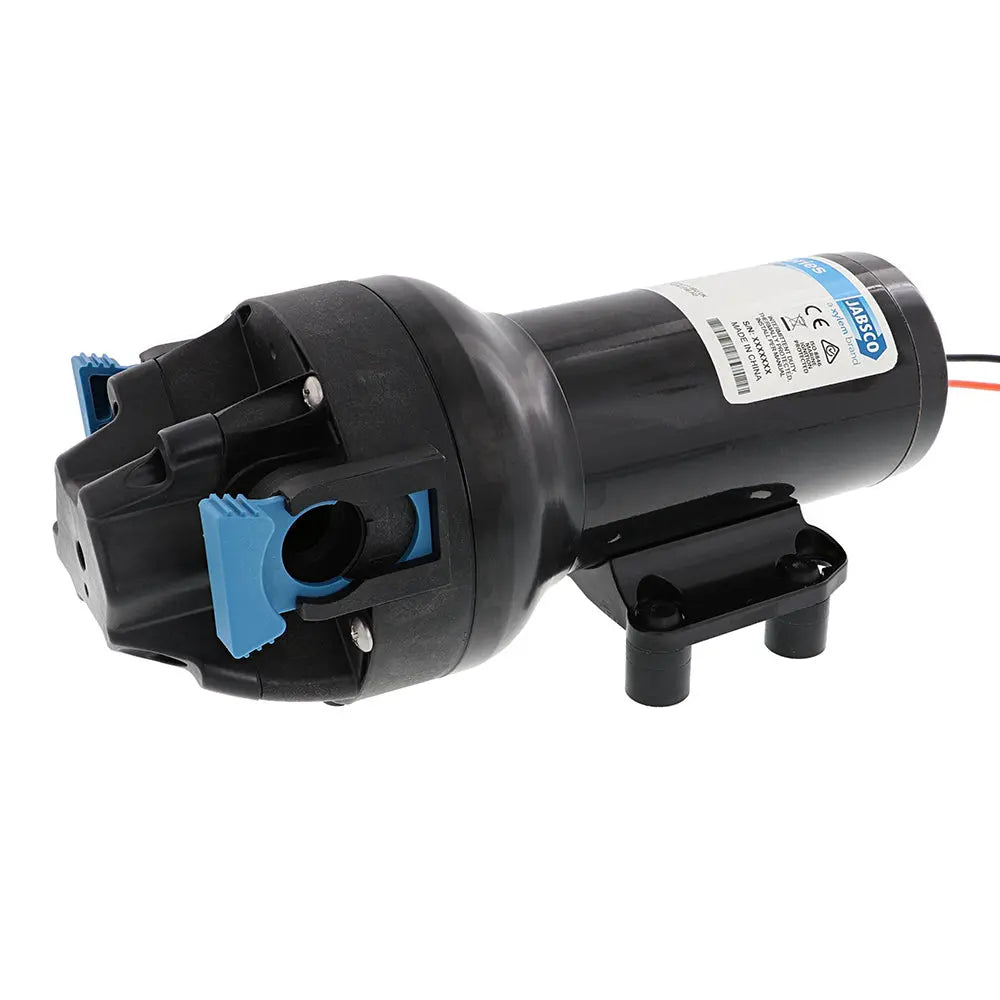

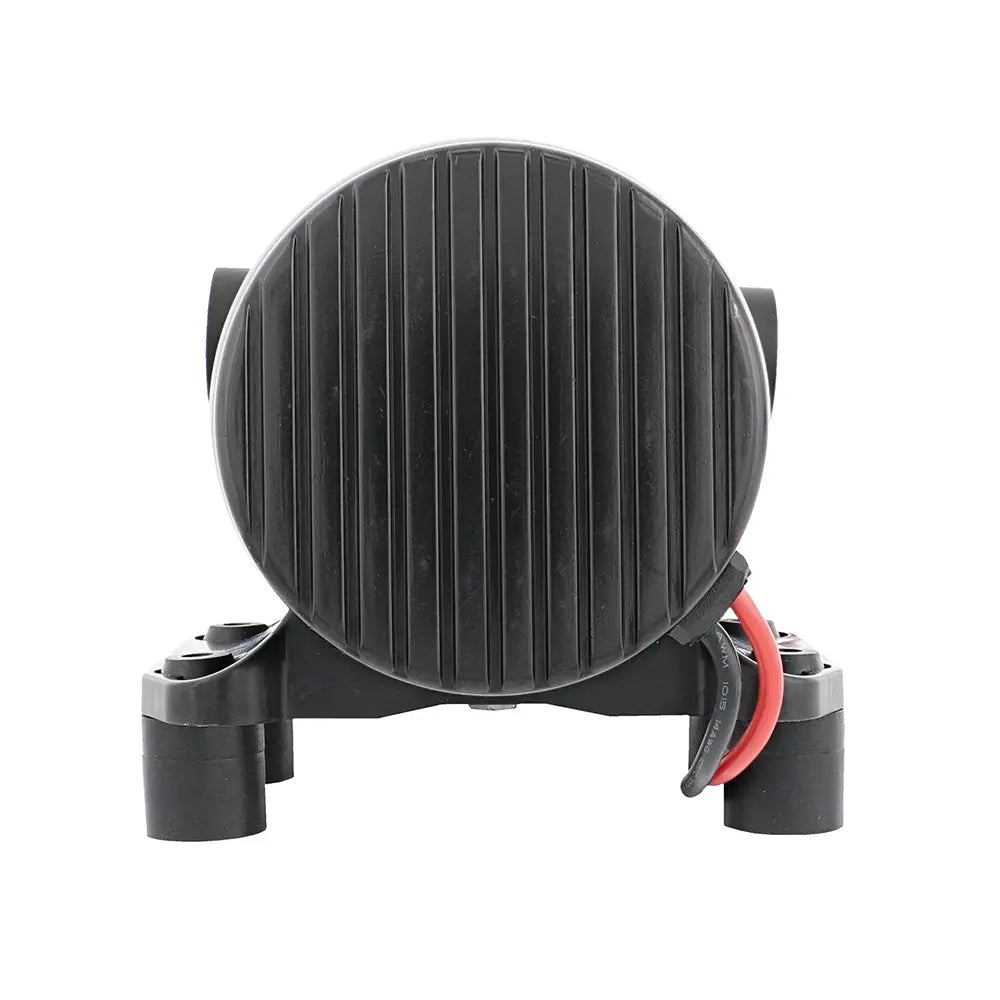

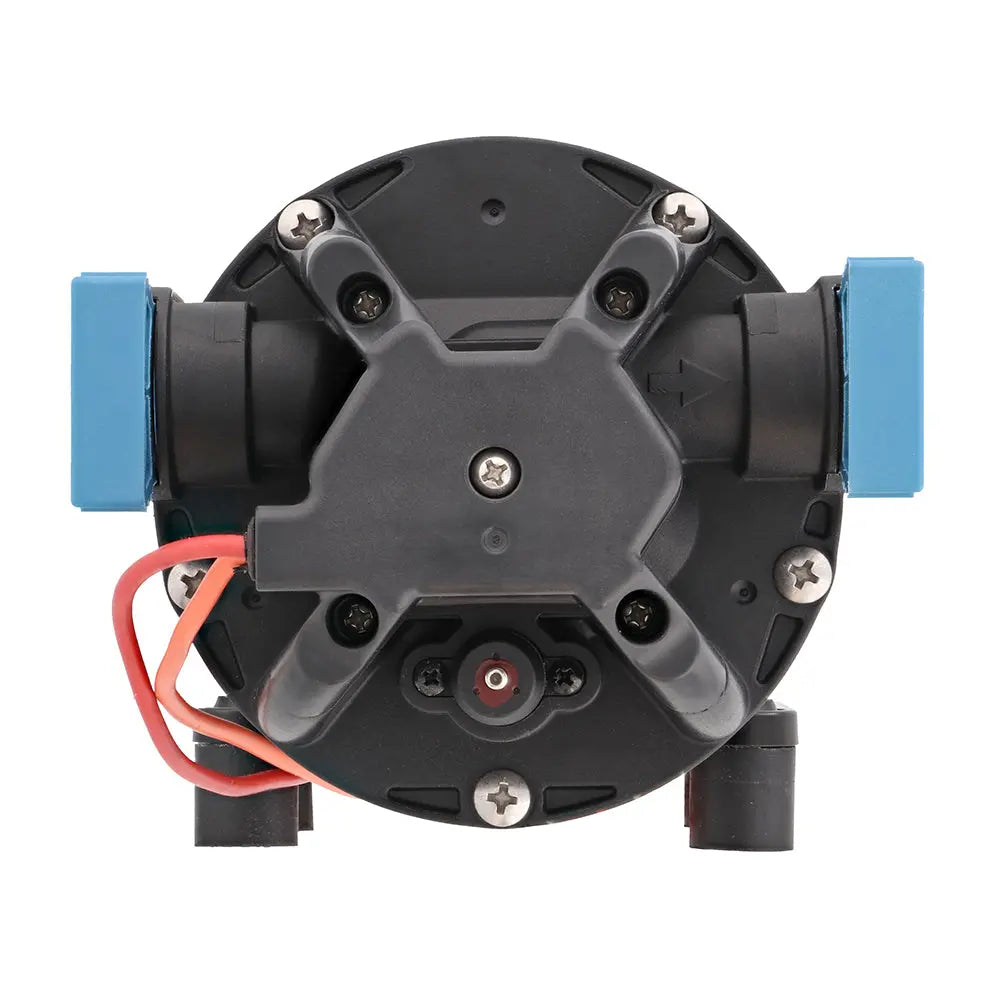

Par-Max HD6 Heavy Duty Water Pressure Pump - 24V - 6 GPM - 40 PSI
HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.
Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.
Features:
Specifications:
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
The Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump is engineered for demanding applications, offering reliable performance in a compact design. Featuring a wider diameter motor with a durable powder-coated shell, cast aluminum endbells, and a reinforced lower housing, this pump is built to withstand high pressure and continuous operation. Its maximum flow rate of 6 gallons per minute (GPM) and 40 pounds per square inch (PSI) make it suitable for various industrial, marine, and RV systems that require robust water delivery.
Constructed with co-molded diaphragm technology using thermoplastic vulcanizate (TPV), the HD6 ensures long-lasting durability and resistance to wear. The integrated, sealed pressure switch provides on-demand operation, contributing to energy efficiency and system longevity. Self-priming capabilities up to 7 feet allow flexible installation options, and the ability to run dry without damage enhances operational reliability in diverse environments. The pump features quick connect ports for straightforward installation and maintenance, vibration dampening mounting feet for stability, and an integrated bypass module to reduce cycling and promote smoother flow.
Designed for versatility, the Jabsco Par-Max HD6 can handle inlet pressures up to 30 PSI and fluid temperatures from freezing point to 140°F. Its glass fiber reinforced polypropylene pump head and EPDM check valves ensure corrosion resistance and dependable performance. Certified by CE, ISO8846, and RCM standards, it is suitable for use in demanding marine and industrial settings. The pump's ingress protection rating of IPX6 guarantees resistance against water ingress, providing peace of mind during rugged use. Whether you need a powerful pump for your vessel, RV, or industrial system, the Jabsco Par-Max HD6 offers a high-performance, durable solution that combines efficiency, ease of maintenance, and long-term reliability.
Features:
