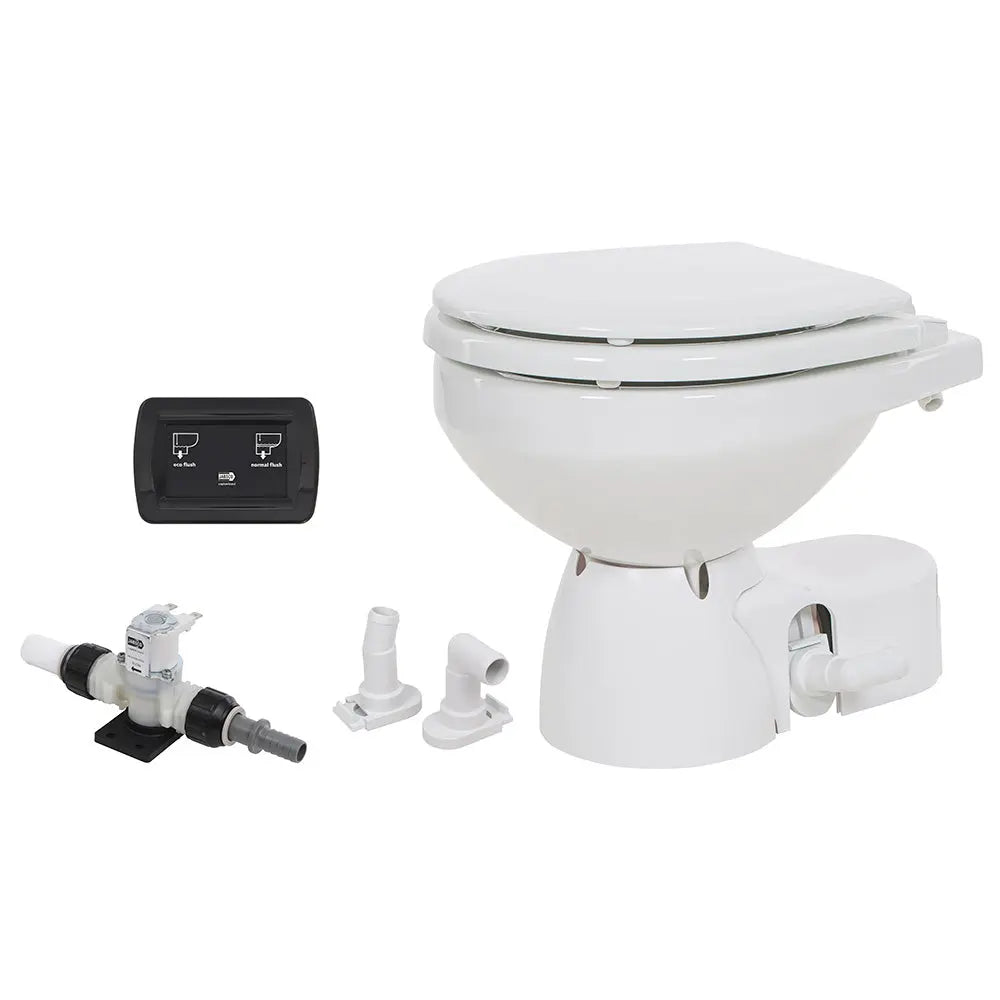

Jabsco Quiet Flush E2 12V Fresh Water Marine Toilet with Soft Close Lid and Touch Sensor Control

Quiet Flush E2 Fresh Water Toilet Compact Bowl - 12V - Soft Close Lid

From crowded charter boats to racing yachts and everything in between, the award-winning Jabsco Quiet Flush E2 marine toilet has been designed to solve some of the biggest marine waste challenges facing boat owners and manufacturers. With its simplified installation, ease of serviceability, and sleek touch sensor control, the Quiet Flush E2 brings a whole new level of convenience and comfort to the water.

Easy to Install

The Quiet Flush E2 gives even the occasional boater the confidence to install this toilet. For maximum flexibility in tight spaces, the base can be rotated, allowing you to install the pump with the discharge to the left, right, or rear.

Easy to Service

Designed for recreational craft but built to withstand the abuse of commercial use, the quick-release system provides easy access to the macerator pump and discharge hose with no tools needed.

Easy to Operate

Marine toilets bring the comfort of home with you, but there are additional considerations on a boat, which is why the Quiet Flush E2 puts you in complete control. With its sleek touch sensor panel, users can choose three settings, including a water-saving, eco-friendly cycle.

Installation:

• The base can be rotated to the left, right, or rear of the bowl to suit multiple installation options
• The discharge pump can be rotated 180 degrees to suit the base orientation and ensure pipework is routed to the rear of the toilet
• Straight or 90-degree discharge port for easy install

Quick Release for Easy Servicing:

• Quick release system allows for fast and easy removal of discharge pumps and hoses when servicing is necessary
• C-Clip design releases pump assembly from the toilet base without the need for tools, resulting in fast service time

Multi-Function Touch Panel:

• Stylish, low-profile design
• Touch-sensitive operation
• Eco flush, full flush, or empty functions
• Only 1-liter (1-quart) per flush using eco mode
• Designed for wet room installations
• No spill empty feature to leave bowl dry when the boat is in motion

Specifications:

• Bowl Size: Compact
• Seat Lid: Wood
• Slow Close Lid: No
• Water: On-board fresh water
• Device: Solenoid valve
• Flush Control Switch: Touch panel
• Voltage DC: 12
• Recommended Fuse Size (AMP): 25
• Size (H x W x D): 14 x 13.9 x 16.3 inches (355 x 352 x 415 mm)
• Weight: 34.2 lbs. (15.5 kg)

The Jabsco Quiet Flush E2 marine toilet offers a compact and efficient solution for water-constrained environments on boats ranging from charter vessels to racing yachts. Its innovative design features a sleek touch sensor control panel that allows users to select eco-friendly, full, or empty flush modes, with only 1 quart of water used per eco flush cycle. This touch-sensitive operation combines convenience with water conservation, making it an ideal choice for modern marine applications. The toilet's bowl is designed to fit tight spaces, with a rotatable base that can be positioned to the left, right, or rear, facilitating flexible installation options. The discharge pump can also be rotated 180 degrees to optimize pipe routing and installation, and the device includes a straight or 90-degree discharge port for added adaptability. The Quiet Flush E2 is built for durability in demanding environments, featuring a quick-release system that provides easy, tool-free access to the macerator pump and discharge hose, simplifying maintenance and servicing. The C-clip design ensures swift removal of components, reducing downtime during repairs. The toilet's compact size and lightweight design make it suitable for wet room installations, while the soft-close wood lid adds a touch of comfort and quiet operation. Its 12V DC operation requires a 25-amp fuse and can be integrated seamlessly into any marine water system. Whether for recreational or commercial vessels, the Jabsco Quiet Flush E2 brings a combination of advanced features, ease of installation, and reliable performance, enhancing onboard comfort and convenience.

Features:

• Rotatable base for flexible installation options

• 180-degree rotatable discharge pump for pipe routing

• Straight or 90-degree discharge port for easy connection

• Quick-release system for effortless servicing without tools

• C-clip design for fast removal of pump assembly

• Multi-function touch panel with eco, full, and empty flush modes

• Eco flush uses only 1 quart of water per cycle

• Sleek, low-profile design suitable for wet room installations

• Soft close wood lid for quiet operation

• Built for durability to withstand marine environments
