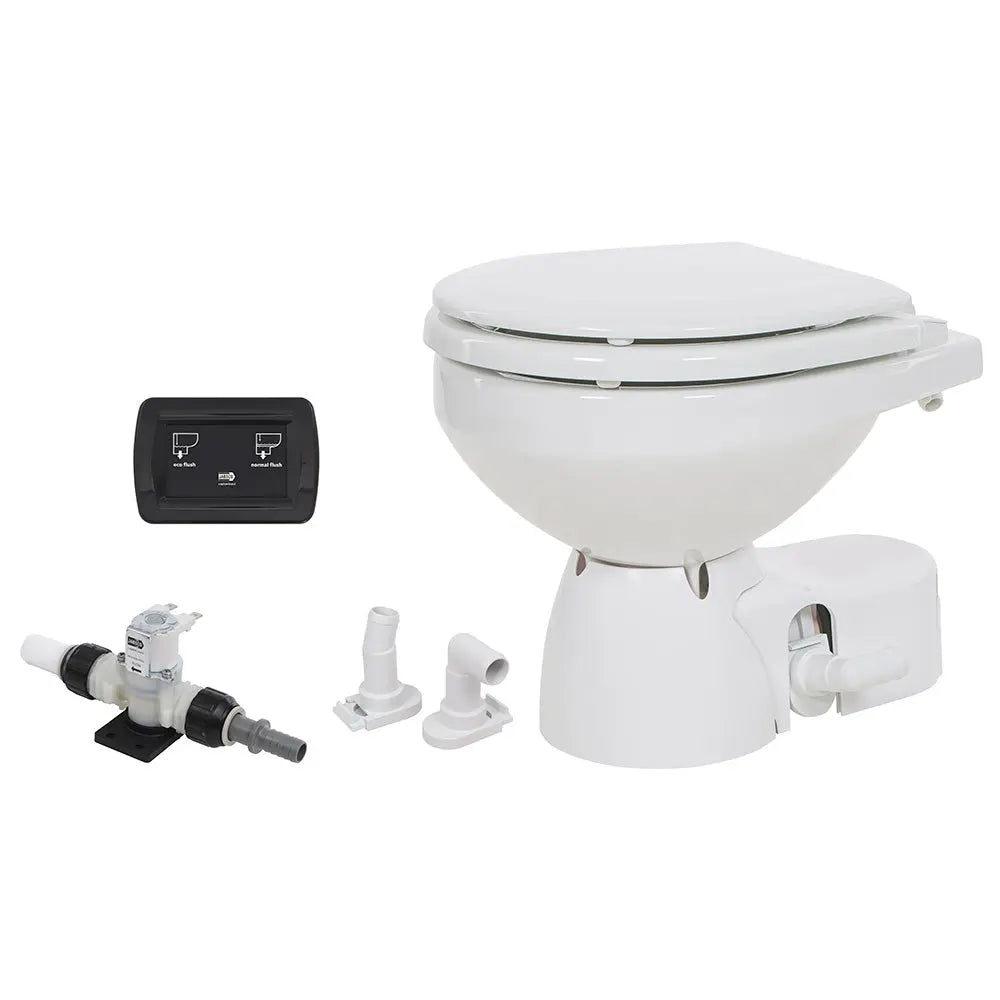

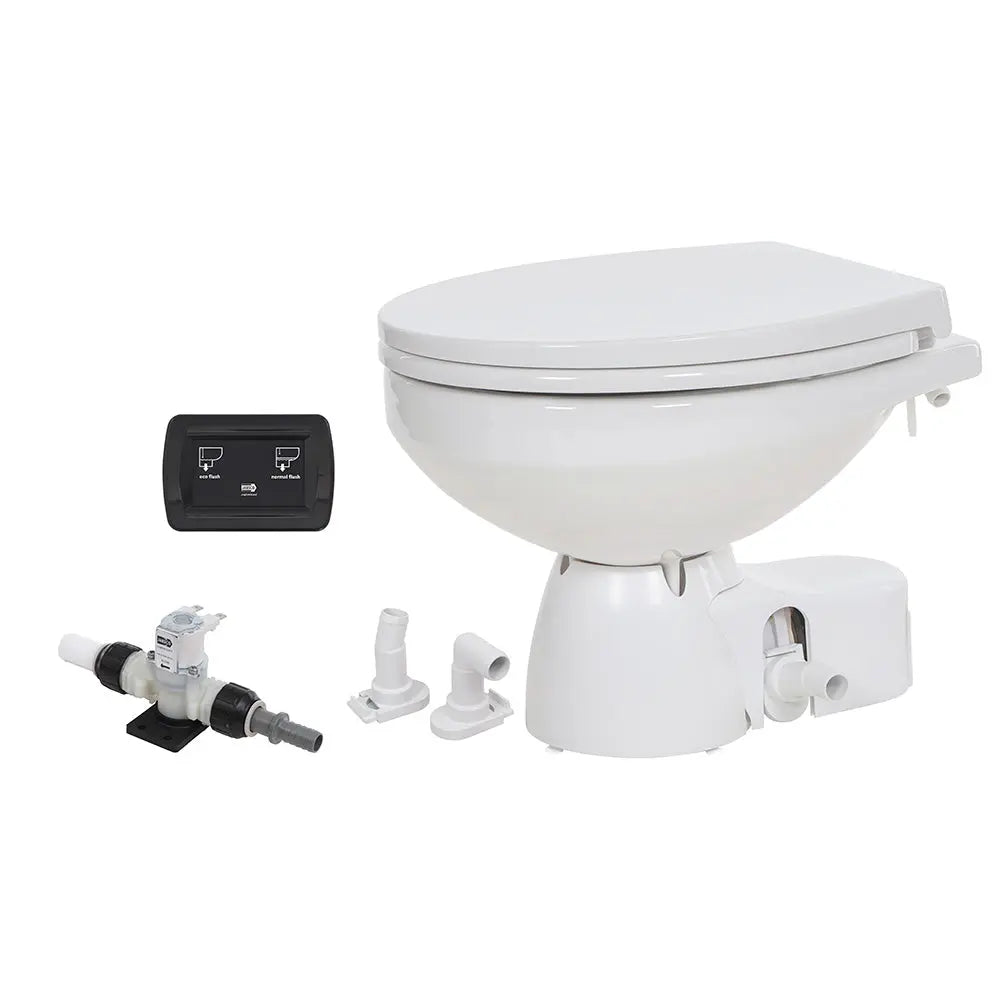

Jabsco Quiet Flush E2 12V Fresh Water Marine Toilet with Soft Close Lid and Touch Sensor Control

Quiet Flush E2 Fresh Water Toilet Regular Bowl - 12V - Soft Close Lid

From crowded charter boats to racing yachts and everything in between, the award-winning Jabsco Quiet Flush E2 marine toilet has been designed to solve some of the biggest marine waste challenges facing boat owners and manufacturers. With its simplified installation, ease of serviceability, and sleek touch sensor control, the Quiet Flush E2 brings a whole new level of convenience and comfort to the water.

Easy 2 Install

The Quiet Flush E2 gives even the occasional boater the confidence to install this toilet. For maximum flexibility in tight spaces, the base can be rotated, allowing you to install the pump with the discharge to the left, right, or rear.

Easy 2 Service

Designed for recreational craft but built to withstand the abuse of commercial use, the quick-release system provides easy access to the macerator pump and discharge hose with no tools needed.

Easy 2 Operate

Marine toilets bring the comfort of home with you, but there are additional considerations on a boat, which is why the Quiet Flush E2 puts you in complete control. With its sleek touch sensor panel, you can choose three settings including a water-saving, eco-flush cycle.

Installation:

• Base can be rotated to the left, right, or rear of the bowl to suit multiple installation options
• Discharge pump can be rotated 180 to suit the base orientation and ensure pipework is routed to the rear of the toilet
• Straight or 90 discharge port for easy install

Quick Release for Easy Servicing:

• Quick release system allows for fast and easy removal of discharge pump and hose when servicing is necessary
• C-Clip design releases the pump assembly from the toilet base without the need for tools, resulting in fast service time

Multi-Function Touch Panel:

• Stylish low-profile design
• Touch-sensitive operation
• Eco flush, full flush, or empty functions
• Only 1-litre (1-quart) per flush using eco mode
• Designed for wet room installations
• No spill empty feature to leave bowl dry when the boat is in motion

Specifications:

• Bowl Size: Regular
• Seat Lid: Composite
• Slow-Close Lid: Yes
• Water: On-board fresh water
• Device: Solenoid valve
• Flush Control Switch: Touch Panel
• Voltage DC: 12
• Recommended Fuse Size: 25 amp

Dimensions:

• Height: 14.4 in. (365 mm)
• Width: 14.8 in. (375 mm)
• Depth: 18.9 in. (480 mm)
• Weight: 38.6 lbs (17.5 kg)

The Jabsco Quiet Flush E2 marine toilet is a versatile and high-performance solution designed for a wide range of watercraft, from charter boats to racing yachts. Engineered to address common marine waste management challenges, this toilet combines innovative features with user-friendly design, enhancing comfort and convenience on board. Its sleek touch sensor control panel allows for intuitive operation, offering eco-flush, full flush, and empty functions, all while using only 1 quart of water per eco-flush cycle. Constructed with durable materials and built to withstand the rigors of marine environments, the Quiet Flush E2 provides reliable performance whether installed on recreational or commercial vessels. Its compact footprint, combined with a rotatable base and discharge pump, offers maximum installation flexibility, making it suitable for tight spaces and various configurations. The quick-release system facilitates effortless maintenance, enabling fast removal of the discharge pump and hose without tools, reducing downtime and service complexity. The toilet features a slow-close composite lid for added safety and comfort, with a dry bowl feature that prevents spillage while the vessel is in motion. Designed for ease of installation, the base can be rotated to suit left, right, or rear discharge options, and the discharge port is compatible with straight or 90-degree fittings for simplified pipe routing. The integrated solenoid valve ensures precise water control, powered by a 12V DC supply with recommended 25-amp fuse. With dimensions optimized for marine use, the toilet measures approximately 14.4 inches high, 14.8 inches wide, and 18.9 inches deep, with a weight of approximately 38.6 pounds. This model is ideal for boat owners seeking a reliable, easy-to-install, and low-maintenance marine toilet that delivers a home-like experience on the water.

Features:

• Easy installation with rotatable base for flexible mounting options

• Discharge pump can be rotated 180 degrees for optimal pipe routing

• Quick-release system for fast, tool-free servicing of pump and hose

• Multi-function touch panel with eco-flush, full flush, and empty options

• Eco-flush cycle uses only 1 quart of water for water conservation

• Slow-close composite lid enhances safety and comfort

• Dry bowl feature prevents spillage during vessel movement

• Designed for wet room installations with straightforward pipe connections

• Durable construction suitable for both recreational and commercial use

• Voltage DC 12V with a recommended 25-amp fuse for reliable operation
