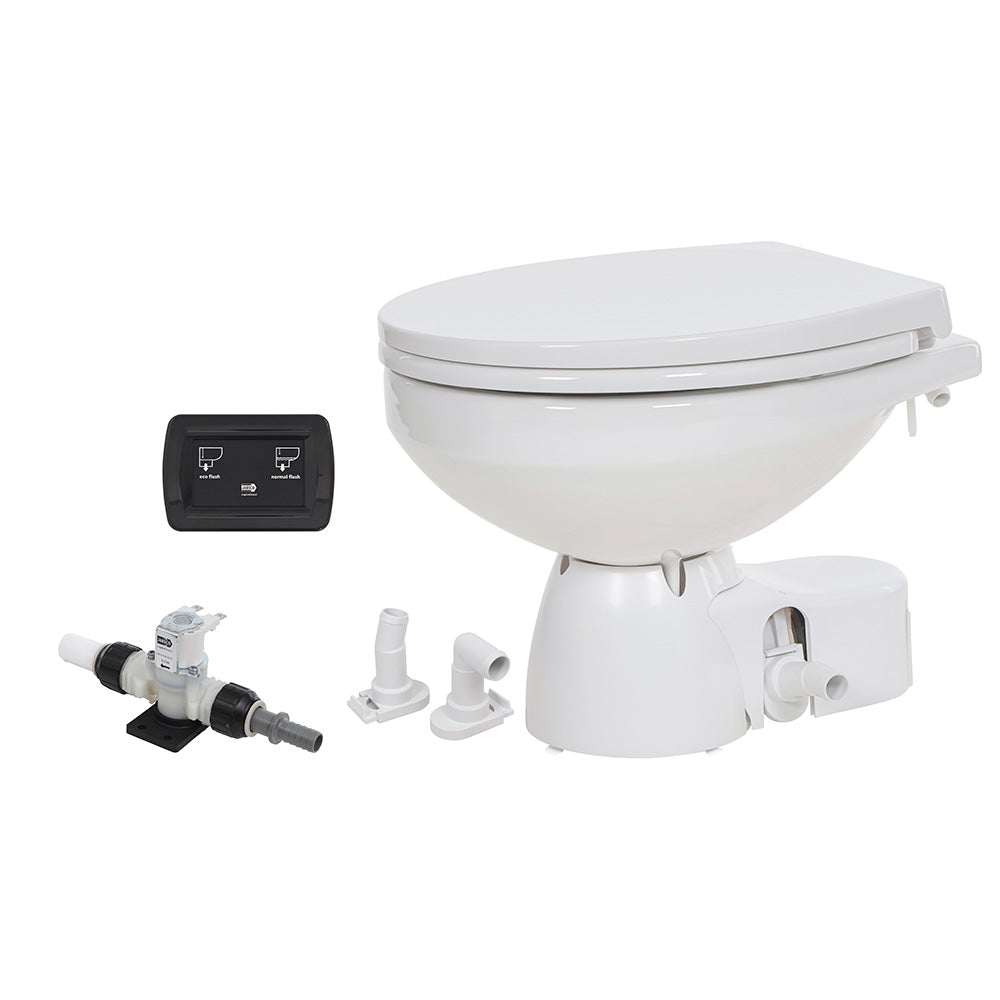

Jabsco Quiet Flush E2 24V Fresh Water Marine Toilet with Soft Close Lid - Easy Install & Service

Quiet Flush E2 Fresh Water Toilet Regular Bowl - 24V - Soft Close Lid

From crowded charter boats to racing yachts and everything in between, the award-winning Jabsco Quiet Flush E2 marine toilet has been designed to solve some of the biggest marine waste challenges facing boat owners and manufacturers. With its simplified installation, ease of serviceability, and sleek touch sensor control, the Quiet Flush E2 brings a whole new level of convenience and comfort to the water.

Easy 2 Install

The Quiet Flush E2 gives even the occasional boater the confidence to install this toilet. For maximum flexibility in tight spaces, the base can be rotated, allowing you to install the pump with the discharge to the left, right, or rear.

Easy 2 Service

Designed for recreational craft but built to withstand the abuse of commercial use, the quick-release system provides easy access to the macerator pump and discharge hose with no tools needed.

Easy 2 Operate

Marine toilets bring the comfort of home with you, but there are additional considerations on a boat, which is why the Quiet Flush E2 puts you in complete control. With its sleek touch sensor panel, you can choose three settings including a water-saving, eco-flush cycle.

Installation:

• Base can be rotated to the left, right, or rear of the bowl to suit multiple installation options
• Discharge pump can be rotated 180 to suit the base orientation and ensure pipework is routed to the rear of the toilet
• Straight or 90 discharge port for easy install

Quick Release for Easy Servicing:

• Quick release system allows for fast and easy removal of discharge pump and hose when servicing is necessary
• C-Clip design releases the pump assembly from the toilet base without the need for tools, resulting in fast service time

Multi-Function Touch Panel:

• Stylish low-profile design
• Touch-sensitive operation
• Eco flush, full flush, or empty functions
• Only 1-litre (1-quart) per flush using eco mode
• Designed for wet room installations
• No spill empty feature to leave bowl dry when boat is in motion

Specifications:

• Bowl Size: Regular
• Seat Lid: Composite
• Slow-Close Lid: Yes
• Water: On-board fresh water
• Device: Solenoid valve
• Flush Control Switch: Touch Panel
• Voltage DC: 24
• Recommended Fuse Size: 15 amp

Dimensions:

• Height: 14.4 in. (365 mm)
• Width: 14.8 in. (375 mm)
• Depth: 18.9 in. (480 mm)
• Weight: 38.6 lbs (17.5 kg)

The Jabsco Quiet Flush E2 marine toilet offers a reliable and hygienic waste management solution for boats ranging from charter vessels to racing yachts. Designed with simplicity and ease of use in mind, this toilet features a sleek touch sensor control panel that allows you to select eco-flush, full flush, or empty functions, making onboard sanitation efficient and convenient. Its compact design, combined with a low-profile, stylish appearance, ensures seamless integration into wet room installations while providing the comfort of a traditional home toilet.

Installation is straightforward with the ability to rotate the base in multiple directions, accommodating tight spaces and various pipe routings. The discharge pump can also be rotated 180 degrees to optimize pipework alignment. The quick-release system enables fast, tool-free removal of the discharge pump and hose, simplifying routine maintenance and servicing. This feature is especially beneficial for boat owners who require minimal downtime for repairs.

Constructed with durability in mind, the Quiet Flush E2 is built to withstand the rigors of both recreational and commercial marine use. The device is powered by a 24-volt DC system and includes a solenoid valve for reliable operation. The slow-close composite lid adds a touch of comfort and safety, preventing abrupt closures that could cause injury. With a water-saving eco-flush cycle that uses only 1 quart per flush, this toilet helps conserve onboard freshwater without sacrificing performance. Its dimensions make it suitable for installations where space is limited, and the weight ensures stability during vessel movement. Whether for new installations or upgrades, the Jabsco Quiet Flush E2 delivers an efficient, hygienic, and user-friendly marine sanitation option.

Features:

• Rotatable base for flexible installation in tight spaces

• Discharge pump can be rotated 180 degrees for optimal pipe routing

• Quick-release system for fast, tool-free servicing of pump and hose

• Touch sensor multi-function control panel with eco-flush, full flush, and empty options

• Eco-flush cycle uses only 1 quart of water per flush to conserve freshwater

• Slow-close composite lid for added safety and comfort

• Designed for wet room installations with spill-free empty feature

• Durable construction suitable for both recreational and commercial marine use

• Powered by 24V DC with solenoid valve for reliable operation

• Compact dimensions for easy integration into various boat layouts
