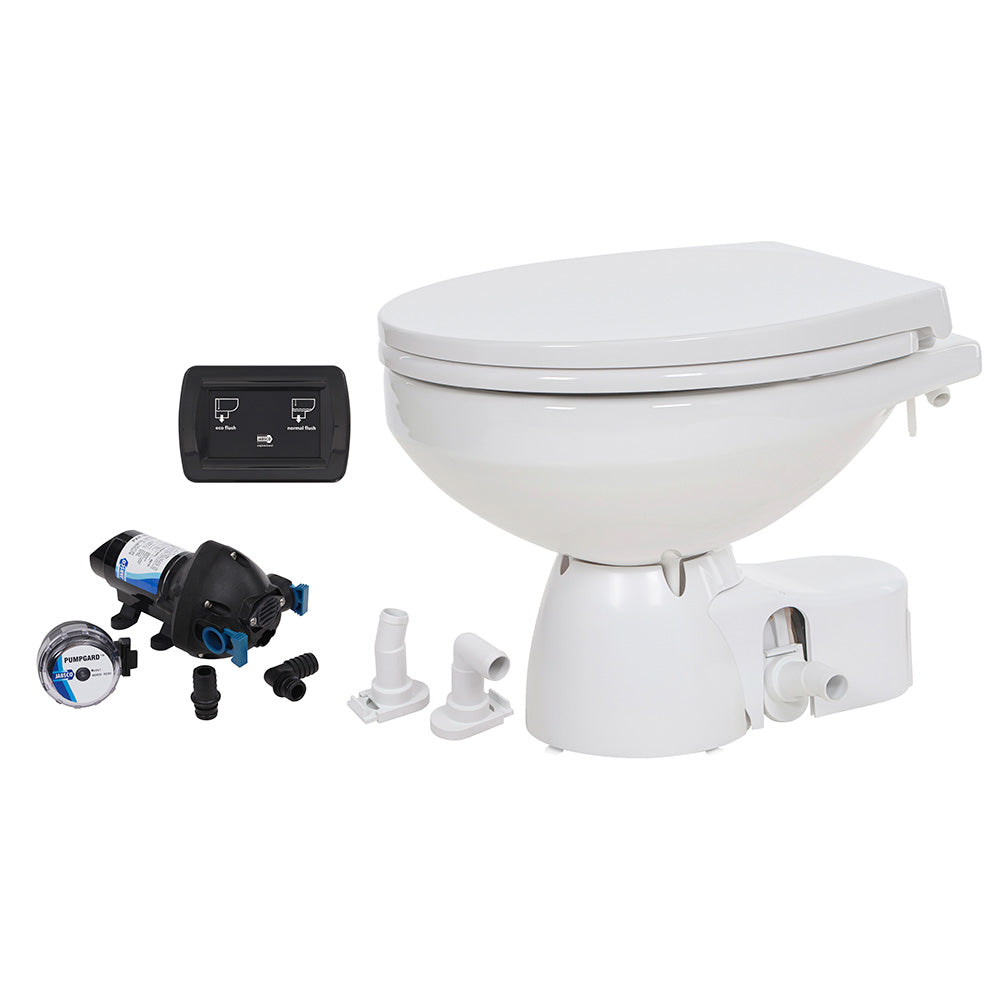

Jabsco Quiet Flush E2 Raw Water Marine Toilet with Soft Close Lid - 12V, Regular Bowl

Quiet Flush E2 Raw Water Toilet Regular Bowl - 12V - Soft Close Lid

From crowded charter boats to racing yachts and everything in between, the award-winning Jabsco Quiet Flush E2 marine toilet has been designed to solve some of the biggest marine waste challenges facing boat owners and manufacturers. With its simplified installation, ease of serviceability, and sleek touch sensor control, the Quiet Flush E2 brings a whole new level of convenience and comfort to the water.

Easy 2 Install

The Quiet Flush E2 gives even the occasional boater the confidence to install this toilet. For maximum flexibility in tight spaces, the base can be rotated, allowing you to install the pump with the discharge to the left, right, or rear.

Easy 2 Service

Designed for recreational craft but built to withstand the abuse of commercial use, the quick-release system provides easy access to the macerator pump and discharge hose with no tools needed.

Easy 2 Operate

Marine toilets bring the comfort of home with you, but there are additional considerations on a boat, which is why the Quiet Flush E2 puts you in complete control. With its sleek touch sensor panel, you can choose three settings including a water-saving, eco-flush cycle.

Installation:

• Base can be rotated to the left, right, or rear of the bowl to suit multiple installation options
• Discharge pump can be rotated 180 to suit the base orientation and ensure pipework is routed to the rear of the toilet
• Straight or 90 discharge port for easy install

Quick Release for Easy Servicing:

• Quick release system allows for fast and easy removal of discharge pump and hose when servicing is necessary
• C-Clip design releases the pump assembly from the toilet base without the need for tools, resulting in fast service time

Multi-Function Touch Panel:

• Stylish low-profile design
• Touch-sensitive operation
• Eco flush, full flush, or empty functions
• Only 1-litre (1-quart) per flush using eco mode
• Designed for wet room installations
• No spill empty feature to leave bowl dry when boat is in motion

Specifications:

• Bowl Size: Regular
• Seat Lid: Composite
• Slow-Close Lid: Yes
• Water: Sea, river, and lake water
• Device: Rinse pump
• Flush Control Switch: Touch Panel
• Voltage DC: 12
• Recommended Fuse Size: 25 amp

Dimensions:

• Height: 14.4 in. (365 mm)
• Width: 14.8 in. (375 mm)
• Depth: 18.9 in. (480 mm)
• Weight: 38.6 lbs (17.5 kg)

The Jabsco Quiet Flush E2 marine toilet is designed for reliable performance on boats ranging from charter vessels to racing yachts. Its efficient design addresses common marine waste management challenges while providing a level of convenience and comfort comparable to household toilets. The toilet features a sleek touch sensor control panel that allows for easy operation, enabling users to select from eco-flush, full flush, or empty functions, with the eco mode using just 1 quart of water per flush. Its quiet operation and soft-close lid contribute to a more comfortable onboard experience. The Quiet Flush E2 is engineered for simple installation and maintenance, featuring a rotatable base that adapts to various tight spaces and a quick-release system for fast servicing of the macerator pump and discharge hose without tools. Its durable construction, built to withstand harsh marine environments, ensures longevity and dependable performance. The toilet accommodates wet room installations and is compatible with sea, river, and lake water, making it versatile for different water sources. The compact dimensions and lightweight design facilitate flexible placement on any vessel, while the integrated rinse pump enhances cleaning efficiency. With its modern, low-profile design and user-friendly features, the Jabsco Quiet Flush E2 offers a seamless blend of convenience, durability, and performance for marine applications.

Features:

• Rotatable base allows flexible installation to suit various boat layouts

• Quick-release system provides easy access for maintenance without tools

• Touch sensor control panel with eco-flush, full flush, and empty options

• Eco flush mode uses only 1 quart of water per flush for water savings

• Soft-close composite lid for quiet and gentle operation

• Compatible with sea, river, and lake water sources

• Designed for wet room installations with no spill empty feature

• Pump discharge can be rotated 180 degrees for optimal pipe routing

• Simple installation with options for straight or 90-degree discharge port

• Durable construction suitable for both recreational and commercial use
